6C Series

Cummins Engineering Engine 6C Series

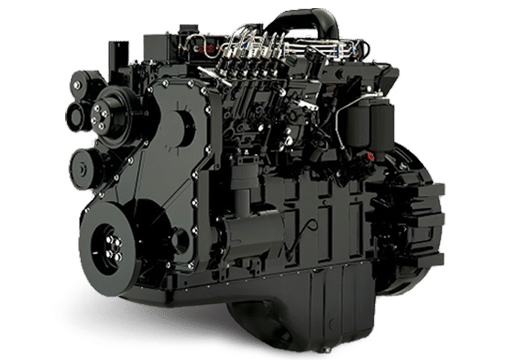

DCEC Cummins 6C Series engineering engine

Cummins Engineering Engine 6C Series

  • High Fuel Efficiency
  • High-pressure fuel pump enables complete combustion under high injection pressure, featuring low energy loss, strong power, high fuel adaptability and lower emissions, Compared with other competitive products, fuel consumption is reduced by 20%.

  • Durability And Compact Dimensions
  • With integral cylinder design, engine parts are about 25% less than similar products, featuring lower failure rate and easier maintenance. Keep maintenance costs to a minimum.

  • Design Of Dual Ni-Resist Pistons And Greater Main Bearing Area
  • Cylinder liner adopts plateau honing cross hatch and corrosion-resistant high nickel cast iron piston, which significantly reduces engine oil loss and improves durability and service life, Contribute directly to extend engine life and unmatched durability.

  • Excellent cold start performance
  • With improved 7.8 KW starter and intake air heater. Make the engine delivers superior performance and lower cost than competitive engines.

  • Excellent performance and advantage
  • Adopt advanced design to achieve higher horsepower and lower weight,horsepower per liter reached 23.0 KW/L. The engine specifications can be customized according to application requirements.

Cummins logo
Cummins logo
  • Construction Engines
  • Product Type Spectrum

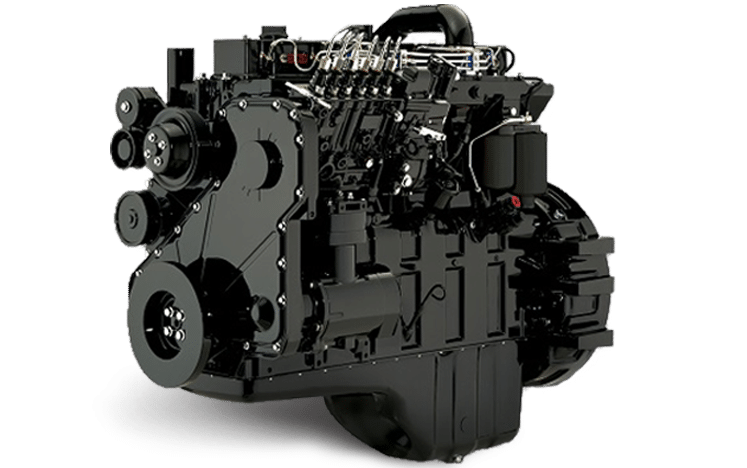

Engine model 6CTAA8.3-C260
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power 194 kW/260HP @ 2200rpm
Peak Torque 1100N.m @ 1400 rpm
Emission Standard Euro II
Manufacturer DCEC Cummins

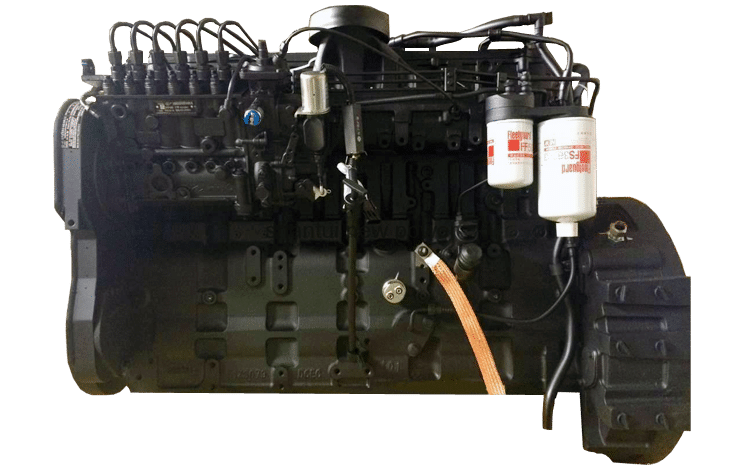

Engine model 6CTAA8.3-C215
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power 160 kW/215HP @ 2200rpm
Peak Torque 900 N.m @ 1500 rpm
Emission Standard Euro II
Manufacturer DCEC Cummins

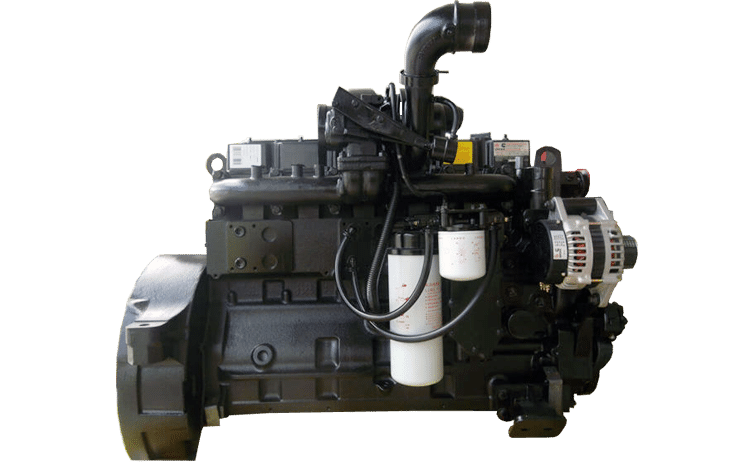

Engine model 6CTA8.3-C260
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power 194 kW/260HP @ 2200rpm
Peak Torque 1135 N.m @ 1500 rpm
Emission Standard Euro I
Manufacturer DCEC Cummins

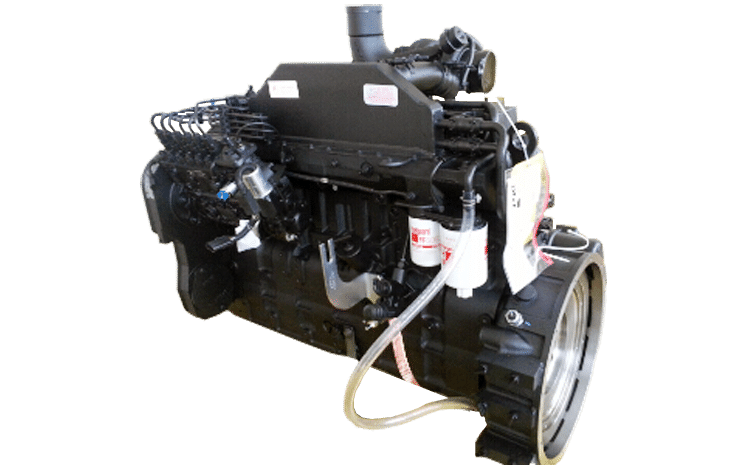

Engine model 6CTA8.3-C240
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power 179 kW/240HP @ 2200rpm
Peak Torque 1028N.m @ 1500 rpm
Emission Standard Euro I
Manufacturer DCEC Cummins

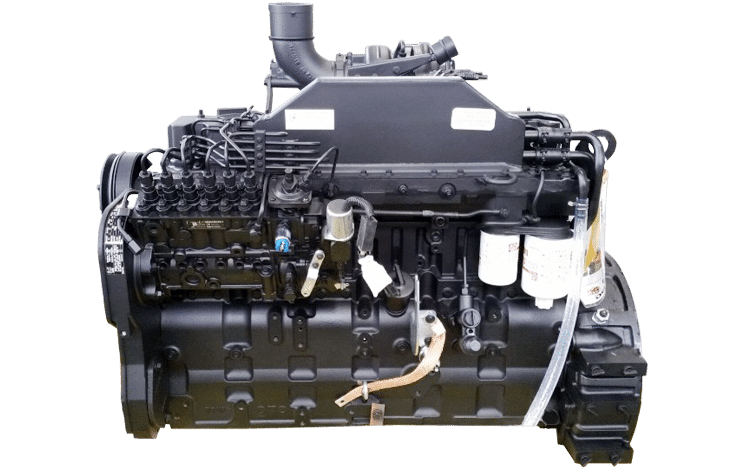

Engine model 6CTA8.3-C230
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power 172 kW/230HP @ 2200rpm
Peak Torque 1003N.m @ 1500 rpm
Emission Standard Euro I
Manufacturer DCEC Cummins

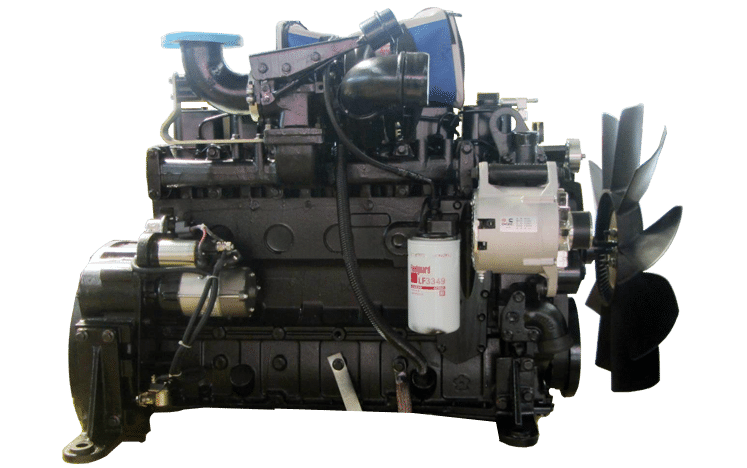

Engine model 6CTA8.3-C215
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power 160kW/215HP @ 2200rpm
Peak Torque 880N.m @ 1500 rpm
Emission Standard Euro I
Manufacturer DCEC Cummins

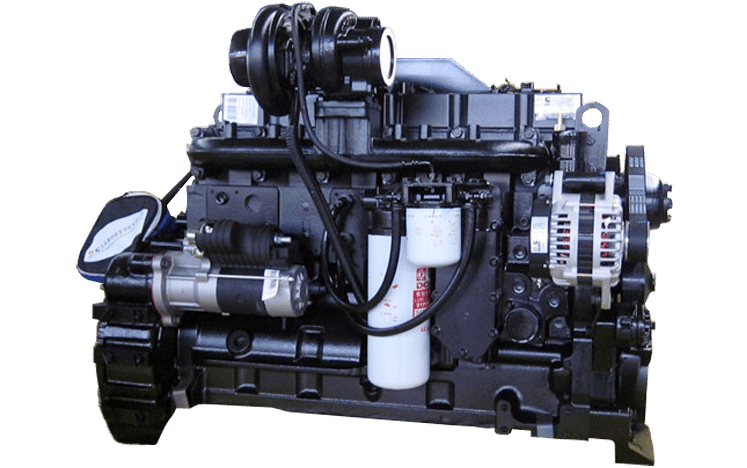

Engine model 6CTA8.3-C205
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power 151 kW/205 HP @ 1850rpm
Peak Torque 900 N.m @ 1400 rpm
Emission Standard Euro I
Manufacturer DCEC Cummins
Engine model 6CTA8.3-C145
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power 108 kW/145HP @ 1900rpm
Peak Torque 672N.m @ 1300 rpm
Emission Standard Euro I
Manufacturer DCEC Cummins

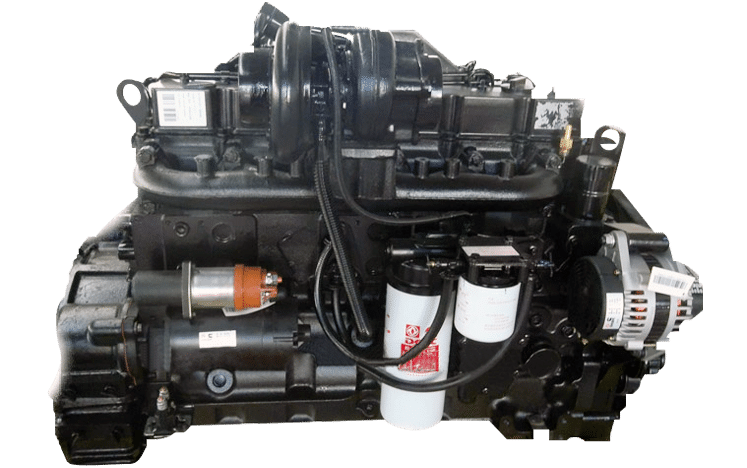

Engine model 6CTA8.3-C180
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power 134 kW/180 HP @ 2000rpm
Peak Torque 837 N.m @ 1400 rpm
Emission Standard Euro I
Manufacturer DCEC Cummins

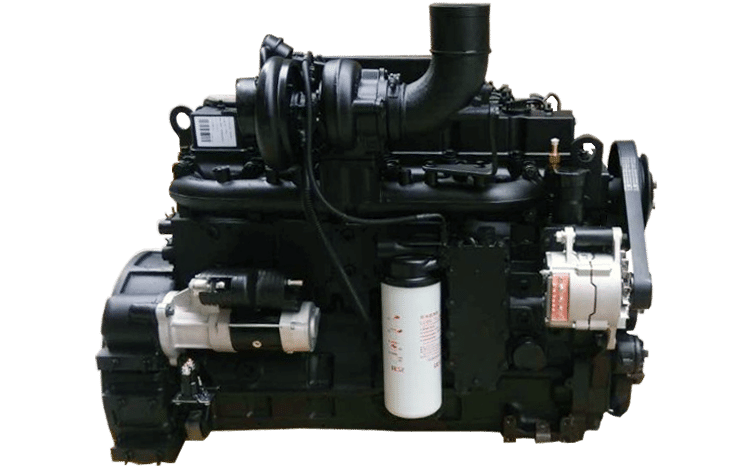

Engine model 6CTA8.3-C175
Engine type 4 stroke, 6 cylinders in line
Displacement 8.3 L
Rated Power 128 kW/175 HP @ 1850rpm
Peak Torque 820 N.m @ 1100 rpm
Emission Standard Euro I
Manufacturer DCEC Cummins

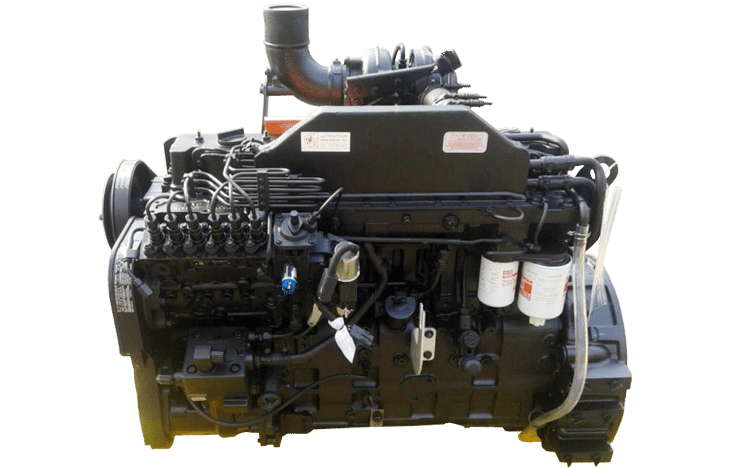

Engine model 6CTA8.3-C195
Engine type 4 stroke, 6 cylinders in line
Displacement 8.3 L
Rated Power 145 kW/195 HP@ 1900rpm
Peak Torque 820 N.m @ 1500 rpm
Emission Standard Euro I
Manufacturer DCEC Cummins

Cummins C series engines provide power and reliability for the global construction & Mining

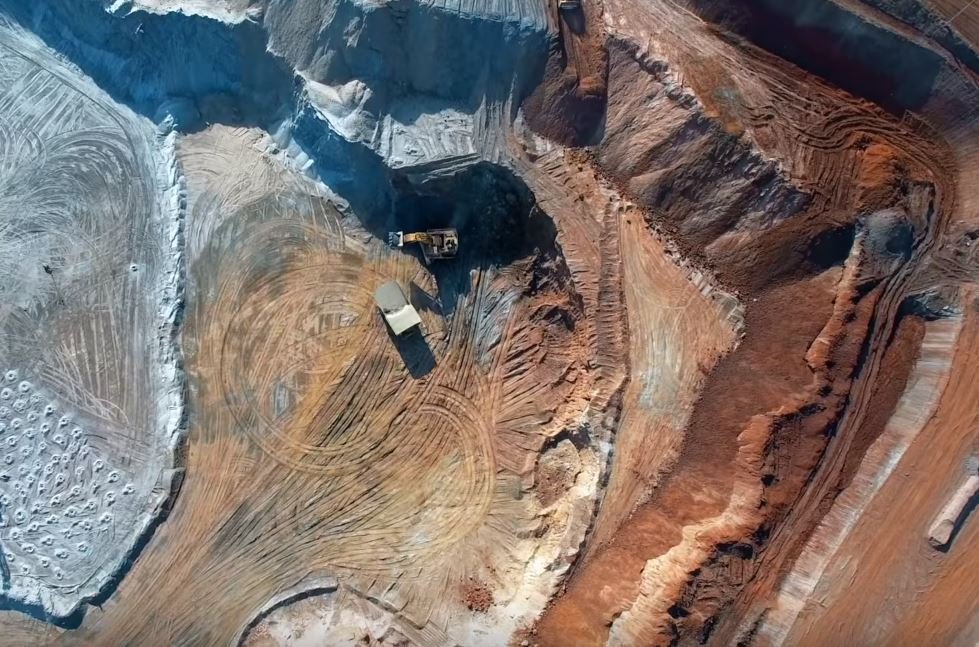

Cummins Mining Engines

Cummins C series engines provide power and reliability for the global construction & Mining

  • Cummins C / QSC Series 8.3 Engines
  • 6CT / QSC are the most popular construction machinery diesel engines produced by Cummins. The use of high-pressure fuel pumps enables fuller combustion at high fuel injection pressures, less energy loss, strong power, strong fuel adaptability, lower emissions and improved equipment productivity, setting industry standards for reliability and durability. Higher fuel economy and longer maintenance intervals help reduce operating costs and lower total cost of ownership.

  • Proven Cummins 6CT / QSC series engines
  • Proven legacy in tough plateau and underground environments, hard earned over the last 25 years. Cummins 6CT/QSC series engines is the ideal solution for underground and plateau mining service power, power units and hydraulic equipment, enjoy a comprehensive one-year warranty, and get Cummins Global Service Network Support.

  • Single Module™ aftertreatment system
  • The Single Module™ aftertreatment system combines DPF, SCR and urea dosing in one unit which takes up 50 percent less space and weighs 30 percent less than the prior system.

  • Call Cummins Care at CUMMINS™ (0086-21-332-827-11) for expert assistance from a Cummins Care representative. If you need service, representatives are available 24/7/365 to help you find the fastest solution.
