Deutz 912 Engines

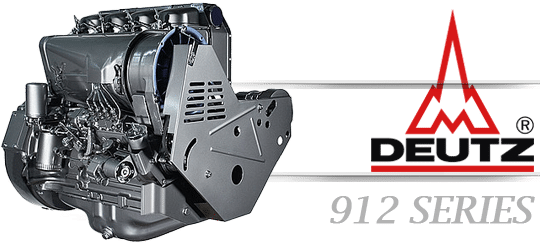

Deutz engine 912 srries

Air-cooled naturally aspirated engine in inline arrangement. Low noise emissions due to acoustically optimized components with very smooth running and high durability. Easy, inexpensive installation due to minimum weight and small installation space. Best cold starting performance even under extreme conditions. The robust engine design allows worldwide operation even with high sulphur fuels. Highly efficient injection and combustion system ensures optimum engine performance at low consumption. A very good load response ensures an immediate power supply.

Deutz engine 912 srries

LOW

Lifecycle Costs

LARGE

fast delivery

GREATER

Reliability

INNOVATIVE

Technology

BROAD

Product Range

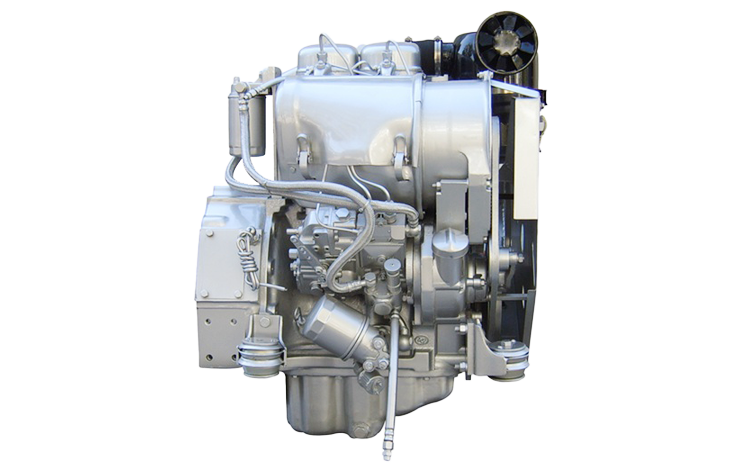

F 2 L 912 G
Deutz diesel engine F 2 L 912 G
Engine model F 2 L 912 G
Engine type 4 stroke, 2 cylinder in-line
Displacement 118 in3 / 1.88 L
Rated Power 20 kW @ 2300～2500 RPM
Peak Torque 105N.m @ 1600 RPM
Cooling type Air Cooled
Applicable Construction machinery

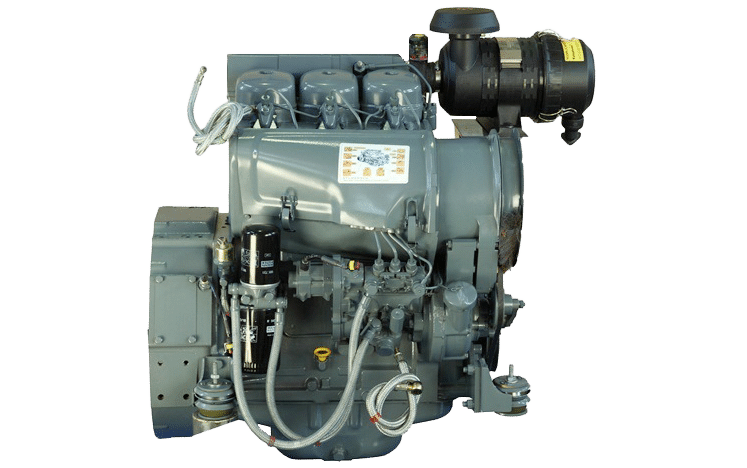

F 3 L 912 G
Deutz diesel engine F 3 L 912 G
Engine model F 3 L 912 G
Engine type 4 stroke, 3 cylinder in-line
Displacement 177 in3 / 2.82 L
Rated Power 36～38 kW @ 2300～2500 RPM
Peak Torque 170N.m @ 1600 RPM
Cooling type Air Cooled
Applicable Construction machinery

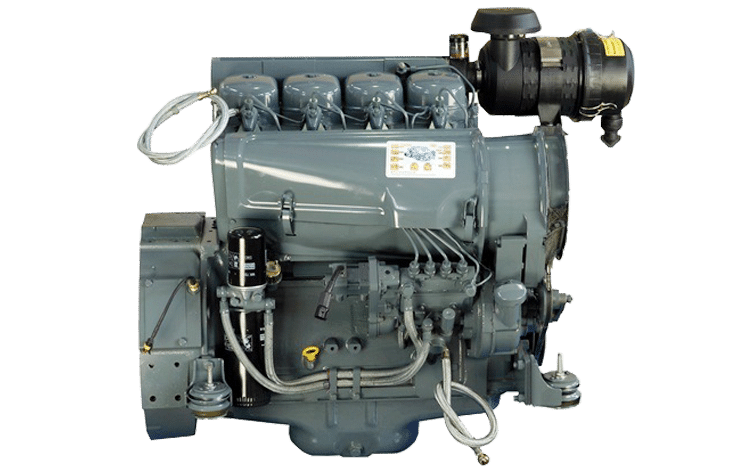

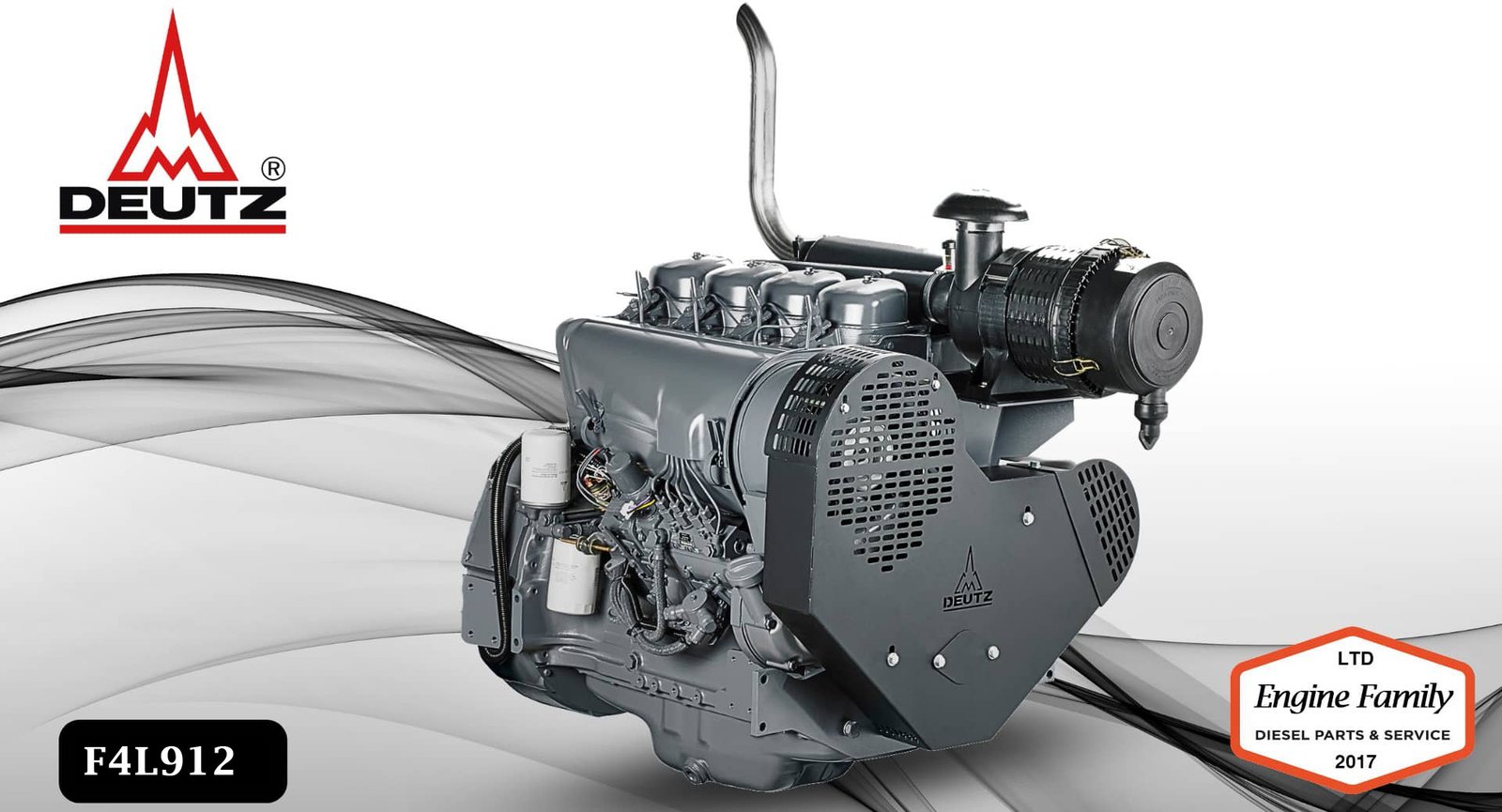

F 4 L 912 G
Deutz diesel engine F 4 L 912 G
Engine model F 4 L 912 G
Engine type 4 stroke, 4 cylinder in-line
Displacement 237 in3 / 3.77 L
Rated Power 46～51 kW @ 2300～2500 RPM
Peak Torque 230N.m @ 1600 RPM
Cooling type Air Cooled
Applicable Construction machinery
F 5 L 912
Deutz diesel engine F 5 L 912
Engine model F 5 L 912
Engine type 4 stroke, 5 cylinder in-line
Displacement 339 in3 / 5.40 L
Rated Power 68 kW @ 2500 RPM
Peak Torque 308N.m @ 1450 RPM
Cooling type Air Cooled
Applicable Agri

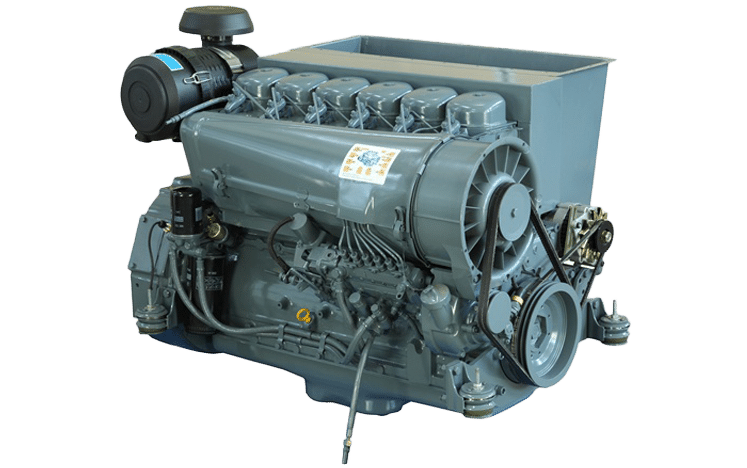

F 6 L 912 G
Deutz diesel engine F 6 L 912 G
Engine model F 6 L 912 G
Engine type 4 stroke, 6 cylinder in-line
Displacement 355 in3 / 5.655 L
Rated Power 74～78 kW @ 2300～2500 RPM
Peak Torque 345N.m @ 1600 RPM
Cooling type Air Cooled
Applicable Construction machinery
F 2 L 912 D
Deutz diesel engine F 2 L 912 D Generator Sets
Engine model F 2 L 912 D
Engine type 4 stroke, 2 cylinder in-line
Displacement 118 in3 / 1.88 L
Continuous Power 14～17 kW @ 1500～1800 RPM
Maximum power 16～19 kW @ 1500～1800 RPM
Cooling type Air Cooled
Applicable Gen sets
F 3 L 912 D
Deutz diesel engine F 3 L 912 D Generator Sets
Engine model F 3 L 912 D
Engine type 4 stroke, 3 cylinder in-line
Displacement 177 in3 / 2.828 L
Continuous Power 24～28 kW @ 1500～1800 RPM
Maximum power 26～30 kW @ 1500～1800 RPM
Cooling type Air Cooled
Applicable Gen sets

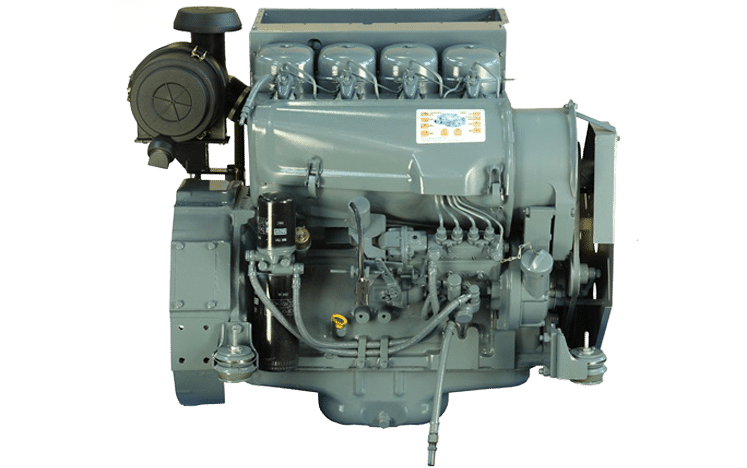

F 4 L 912 D
Deutz diesel engine F 4 L 912 D Generator Sets
Engine model F 4 L 912 D
Engine type 4 stroke, 4 cylinder in-line
Displacement 237 in3 / 3.77 L
Continuous Power 32～38 kW @ 1500～1800 RPM
Maximum power 35～42 kW @ 1500～1800 RPM
Cooling type Air Cooled
Applicable Gen sets
F 4 L 912 TD
Deutz diesel engine F 4 L 912 TD Generator Sets
Engine model F 4 L 912 TD
Engine type 4 stroke, 4 cylinder in-line
Displacement 237 in3 / 3.77 L
Continuous Power 41～48 kW @ 1500～1800 RPM
Maximum power 45～52 kW @ 1500～1800 RPM
Cooling type Air Cooled
Applicable Gen sets
F 6 L 912 D
Deutz diesel engine F 6 L 912 D Generator Sets
Engine model F 6 L 912 D
Engine type 4 stroke, 6 cylinder in-line
Displacement 355 in3 / 5.655 L
Continuous Power 48～60 kW @ 1500～1800 RPM
Maximum power 52～62 kW @ 1500～1800 RPM
Cooling type Air Cooled
Applicable Gen sets
F 6 L 912 TD
Deutz diesel engine F 6 L 912 TD Generator Sets
Engine model F 6 L 912 TD
Engine type 4 stroke, 6 cylinder in-line
Displacement 355 in3 / 5.655 L
Continuous Power 61～72 kW @ 1500～1800 RPM
Maximum power 65～77 kW @ 1500～1800 RPM
Cooling type Air Cooled
Applicable Gen sets
F 3 L 912 G
Deutz F 3 L 912 G Agri diesel engine
Engine model F 3 L 912 G
Engine type 4 stroke, 3 cylinder in-line
Displacement 177 in3 / 2.82 L
Rated Power 36～38 kW @ 2300～2500 RPM
Peak Torque 170N.m @ 1600 RPM
Cooling type Air Cooled
Applicable Agri
F 4 L 912 G
Deutz F 4 L 912 G Agri diesel engine
Engine model F 4 L 912 G
Engine type 4 stroke, 4 cylinder in-line
Displacement 237 in3 / 3.77 L
Rated Power 46～41 kW @ 2300～2500 RPM
Peak Torque 230N.m @ 1600 RPM
Cooling type Air Cooled
Applicable Agri
F 6 L 912 G
Deutz F 6 L 912 G Agri diesel engine
Engine model F 6 L 912 G
Engine type 4 stroke, 6 cylinder in-line
Displacement 355 in3 / 5.655 L
Rated Power 74～78 kW @ 2300～2500 RPM
Peak Torque 345N.m @ 1600 RPM
Cooling type Air Cooled
Applicable Agri
F 4 L 912 W
Deutz F 4 L 912 W mining diesel engine
Engine model F 4 L 912 W
Engine type 4 stroke, 4 cylinder in-line
Displacement 237 in3 / 3.77 L
Rated Power 42～44 kW @ 2500 RPM
Peak Torque 345N.m @ 1600 RPM
Cooling type Air Cooled
Applicable Mining
F 6 L 912 W
Deutz F 6 L 912 W mining diesel engine
Engine model F 6 L 912 W
Engine type 4 stroke, 6 cylinder in-line
Displacement 355 in3 / 5.655 L
Rated Power 63～66 kW @ 2500 RPM
Peak Torque 345N.m @ 1600 RPM
Cooling type Air Cooled
Applicable Mining

Deutz Air-cooled 2-, 3-, 4-, 5- and 6-cylinder in-line engines.

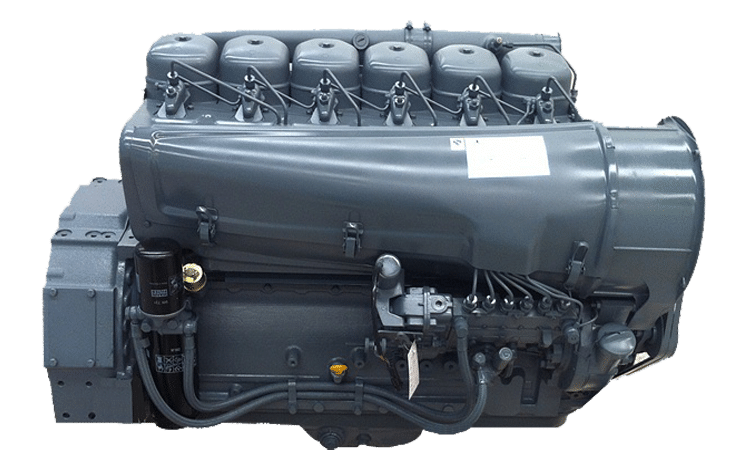

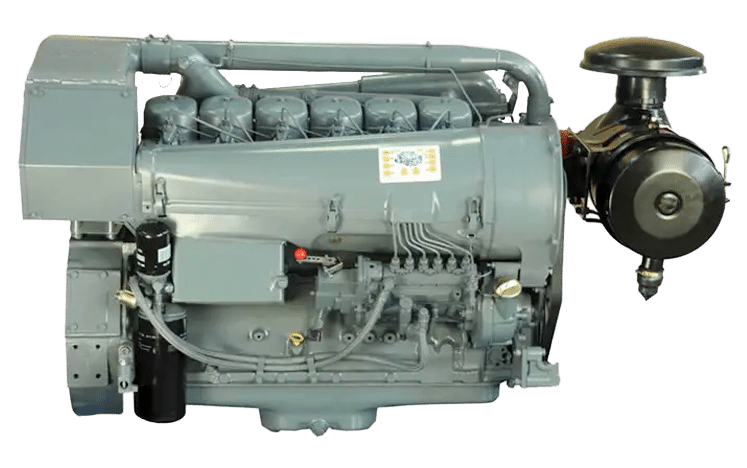

Deutz F6L912 Engine

Deutz Air-cooled 2-, 3-, 4-, 5- and 6-cylinder in-line engines.

Models Bore * Stroke RPM range Maximum torque
F 2 L 912 G 100 * 120 / 3.92 in * 4.7 in 1600 105 Nm | 71 lb/ft
F 3 L 912 G 100 * 120 / 3.92 in * 4.7 in 2300～2500 170 Nm | 123 lb/ft
F 4 L 912 G 100 * 120 / 3.92 in * 4.7 in 2300～2500 230 Nm | 167 lb/ft
F 5 L 912 100 * 120 / 3.92 in * 4.7 in 2300～2500 307 Nm | 223 lb/ft
F 6 L 912 G 100 * 120 / 3.92 in * 4.7 in 2300～2500 345 Nm | 250 lb/ft
F 4 L 912 W 102 * 132 / 4.02 in * 5.20 in 2500 247 Nm | 182 lb/ft
F 6 L 912 W 102 * 132 / 4.02 in * 5.20 in 2500 370 Nm | 272.9 lb/ft
F 6 L 912 TD 100 * 120 / 3.92 in * 4.7 in 1500～1800 N / A
