The five key engine systems are developed and optimized for Cummins to ensure engine reliability.
High pressure common rail fuel system (HPCR), fuel injection pressure up to 1600bar, rapid throttle response at different speeds, more efficient power output, better fuel economy, and lower noise.
Mature intelligent electronic control technology improves the overall performance of the engine. The engine specifications can be tailored according to application requirements, and the self-diagnosis and self-protection capabilities are stronger.
The three-stage fuel filter ensures a balanced level of particle dispersion, protects the main components of the fuel system, and maximizes the life of the engine.
Adopting exhaust gas bypass turbocharger, the supercharging is smoother at low speed, and the power output is more stable at high speed.
The electronic control system can intelligently switch the working mode according to the environment and operating conditions, and has the functions of self-diagnosis, alarm and remote monitoring.
Engine model | QSB6.7-C260-31 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 6.7 L |
Rated Power | 194kW (260 HP) @ 2400 rpm |
Peak Torque | 990 N.m @ 1501 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB6.7-C260-30 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 6.7 L |
Rated Power | 194kW (260 HP) @ 2200 rpm |
Peak Torque | 990 N.m @ 1500 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB6.7-C250-30 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 6.7 L |
Rated Power | 186kW (250 HP) @ 2200 rpm |
Peak Torque | 990 N.m @ 1500 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB6.7-C240-31 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 6.7 L |
Rated Power | 178kW (240 HP) @ 2000 rpm |
Peak Torque | 970 N.m @ 1400 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB6.7-C240-30 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 6.7 L |
Rated Power | 178kW (240 HP) @ 2200 rpm |
Peak Torque | 970 N.m @ 1500 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB6.7-C220-31 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 6.7 L |
Rated Power | 164kW (220 HP) @ 2000 rpm |
Peak Torque | 950 N.m @ 1250 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB6.7-C220-30 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 6.7 L |
Rated Power | 163kW (220 HP) @ 2200 rpm |
Peak Torque | 949 N.m @ 1500 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB6.7-C215-31 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 6.7 L |
Rated Power | 160kW (215 HP) @ 2500 rpm |
Peak Torque | 888 N.m @ 1500 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB6.7-C215-30 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 6.7 L |
Rated Power | 158kW (215 HP) @ 2000 rpm |
Peak Torque | 962 N.m @ 1300 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB6.7-C205-30 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 6.7 L |
Rated Power | 153kW (205 HP) @ 1800 rpm |
Peak Torque | 929 N.m @ 1300 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB6.7-C190-31 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 6.7 L |
Rated Power | 145kW (190 HP) @ 2050 rpm |
Peak Torque | 930 N.m @ 1300 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB6.7-C190-30 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 6.7 L |
Rated Power | 142kW (190 HP) @ 2200 rpm |
Peak Torque | 931 N.m @ 1400 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB6.7-C170-30 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 6.7 L |
Rated Power | 129kW (170 HP) @ 2200 rpm |
Peak Torque | 800 N.m @ 1500 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB6.7-C160-31 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 6.7 L |
Rated Power | 119kW (160 HP) @ 2500 rpm |
Peak Torque | 732 N.m @ 1500 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB6.7-C155-30 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 6.7 L |
Rated Power | 116kW (155 HP) @ 2200 rpm |
Peak Torque | 622 N.m @ 1500 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB6.7-C130-30 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 6.7 L |
Rated Power | 99kW (130 HP) @ 2200 rpm |
Peak Torque | 580 N.m @ 1400 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB5.9-C210-30 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 5.9 L |
Rated Power | 154kW (210 HP) @ 2200 rpm |
Peak Torque | 820 N.m @ 1500 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB5.9-C190-31 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 5.9 L |
Rated Power | 142kW (190 HP) @ 2200 rpm |
Peak Torque | 800 N.m @ 1500 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB5.9-C180-34 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 5.9 L |
Rated Power | 133kW (180 HP) @ 2200 rpm |
Peak Torque | 770 N.m @ 1400 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB5.9-C180-33 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 5.9 L |
Rated Power | 133kW (180 HP) @ 2000 rpm |
Peak Torque | 800 N.m @ 1500 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB5.9-C180-31 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 5.9 L |
Rated Power | 132kW (180 HP) @ 2400 rpm |
Peak Torque | 800 N.m @ 1500 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB5.9-C170-30 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 5.9 L |
Rated Power | 125kW (170 HP) @ 2200 rpm |
Peak Torque | 750 N.m @ 1500 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB5.9-C160-30 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 5.9 L |
Rated Power | 119kW (160 HP) @ 2200 rpm |
Peak Torque | 720 N.m @ 1500 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB5.9-C150-31 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 5.9 L |
Rated Power | 113kW (150 HP) @ 2000 rpm |
Peak Torque | 690 N.m @ 1500 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB5.9-C130-30 |
Engine type | 4 stroke, 6 cylinders in line |
Displacement | 5.9 L |
Rated Power | 97kW (130 HP) @ 2200 rpm |
Peak Torque | 650 N.m @ 1500 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB4.5-C160-30 |
Engine type | 4 stroke, 4 cylinders in line |
Displacement | 4.5 L |
Rated Power | 119kW (160 HP) @ 2200 rpm |
Peak Torque | 624 N.m @ 1500 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB4.5-C130-30 |
Engine type | 4 stroke, 4 cylinders in line |
Displacement | 4.5 L |
Rated Power | 97kW (130 HP) @ 2200 rpm |
Peak Torque | 600 N.m @ 1500 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB4.5-C110-31 |
Engine type | 4 stroke, 4 cylinders in line |
Displacement | 4.5 L |
Rated Power | 82kW (110 HP) @ 1800rpm |
Peak Torque | 488 N.m @ 1300 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |

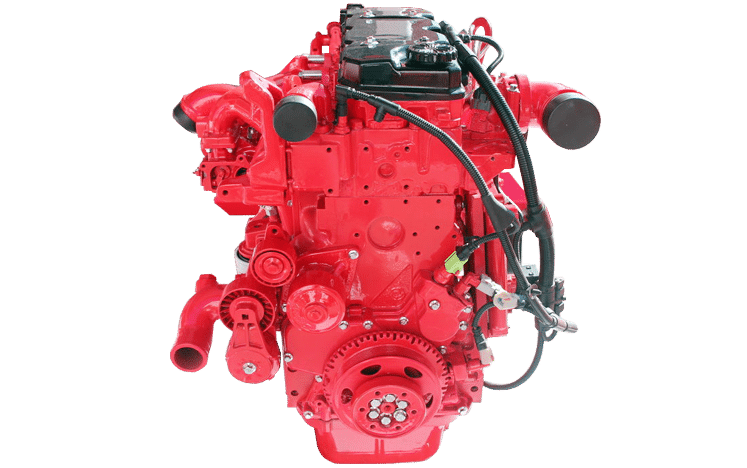

Engine model | QSB4.5-C110-30 |
Engine type | 4 stroke, 4 cylinders in line |
Displacement | 4.5 L |
Rated Power | 82kW (110 HP) @ 2200rpm |
Peak Torque | 488 N.m @ 1500 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB3.9-C130-31 |
Engine type | 4 stroke, 4 cylinders in line |
Displacement | 3.9 L |
Rated Power | 97kW (130 HP) @ 2500rpm |
Peak Torque | 520 N.m @ 1600 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB3.9-C130-30 |
Engine type | 4 stroke, 4 cylinders in line |
Displacement | 3.9 L |
Rated Power | 97kW (130 HP) @ 2300rpm |
Peak Torque | 520 N.m @ 1600 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB3.9-C125-30 |
Engine type | 4 stroke, 4 cylinders in line |
Displacement | 3.9 L |
Rated Power | 93kW (125 HP) @ 2200rpm |
Peak Torque | 480 N.m @ 1350 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |

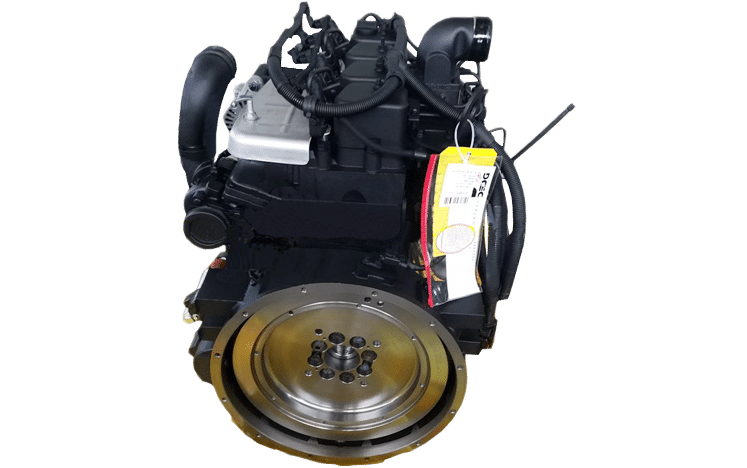

Engine model | QSB3.9-C110-30 |
Engine type | 4 stroke, 4 cylinders in line |
Displacement | 3.9 L |
Rated Power | 81kW (110 HP) @ 2200rpm |
Peak Torque | 480 N.m @ 1600 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB3.9-C100-31 |
Engine type | 4 stroke, 4 cylinders in line |
Displacement | 3.9 L |
Rated Power | 74kW (100 HP) @ 2400rpm |
Peak Torque | 330 N.m @ 1600 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB3.9-C80-31 |
Engine type | 4 stroke, 4 cylinders in line |
Displacement | 3.9 L |
Rated Power | 60kW (80 HP) @ 2200rpm |
Peak Torque | 350 N.m @ 1600 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |
Engine model | QSB3.9-C80-30 |
Engine type | 4 stroke, 4 cylinders in line |
Displacement | 3.9 L |
Rated Power | 60kW (80 HP) @ 2000rpm |
Peak Torque | 350 N.m @ 1350 rpm |
Emission Standard | NS Ⅲ/ EU stage ⅢA |
Use for | Construction Machinery |

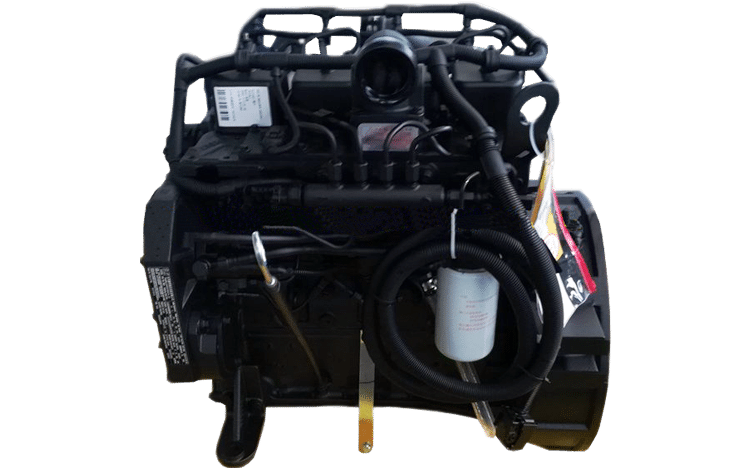

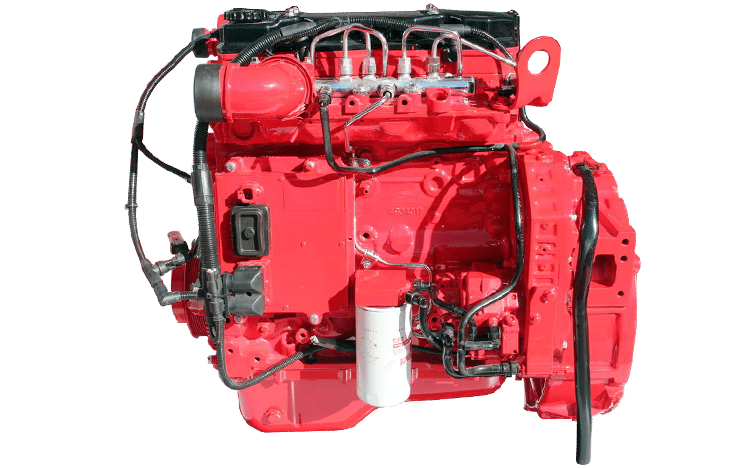

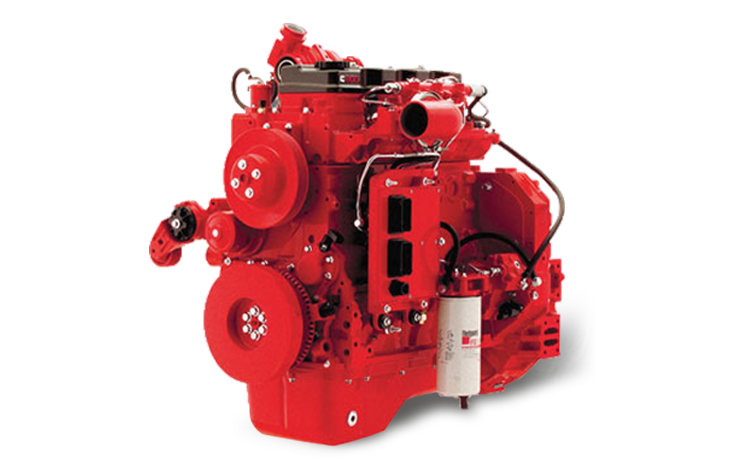

When you have a tough job to do, you need the power, precision and flexibility of Cummins QSB diesel engines. These 4-cylinder electronic QSB engines feature major enhancements to make every piece of equipment work harder, smarter, quieter and longer. Plus, they achieve Tier 3/Stage IIIA compliance with in-cylinder technology that maintains a compact, simple and cost-effective design solution.
Cummins QSB engine redesigns the filter system for oil products, which has strong fuel adaptability and is suitable for applications in various fields. The overall modular design, the total number of parts is small, the failure rate is low, the structure is compact, and the maintenance is easy.

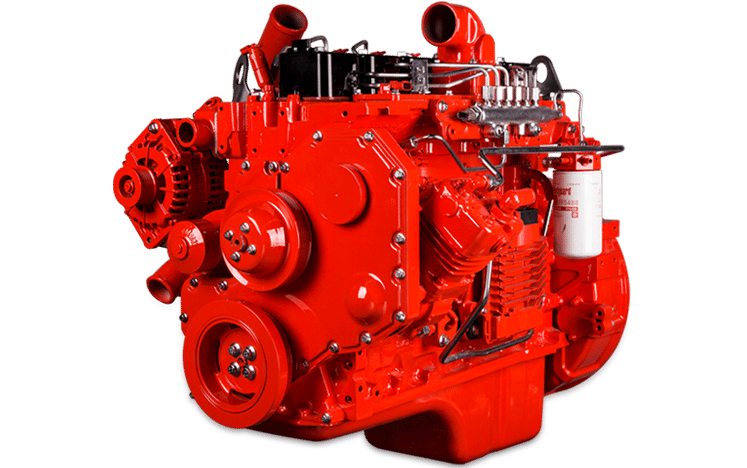

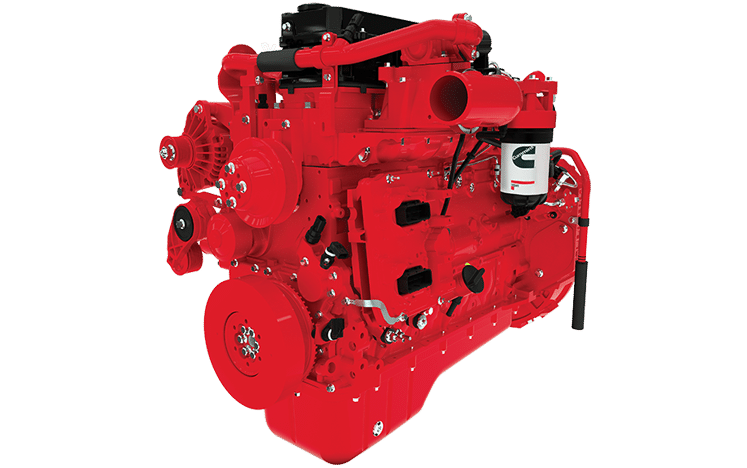

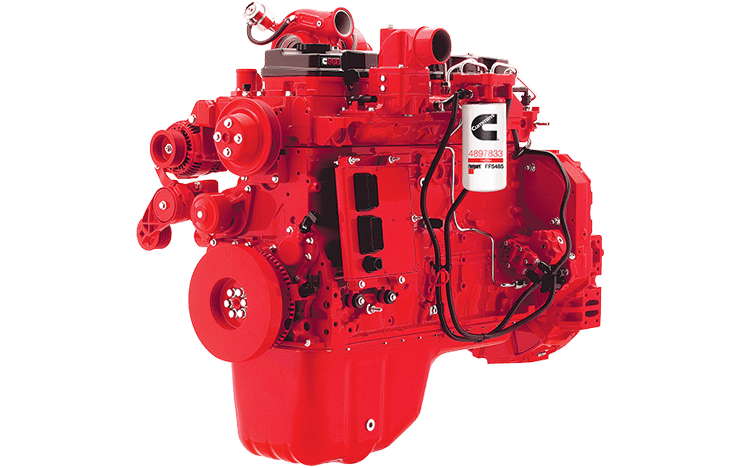

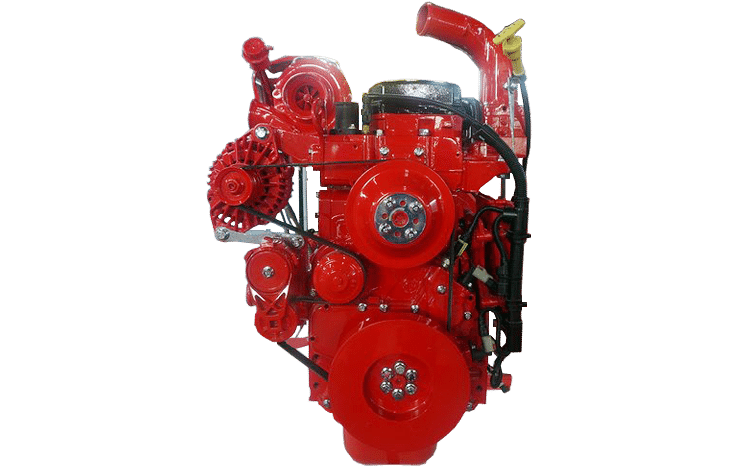

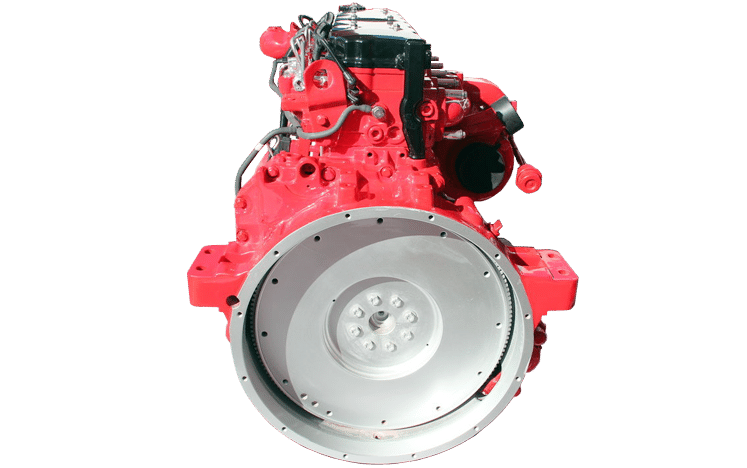

Cummins QSB 5.9 & 6.7 engine uses one of the most successful engine block designs in the world. The 6-cylinder model can choose 12-valve or 24-valve configuration. The QSB engine has the appropriate size, horsepower and torque, and is suitable for all kinds of small agricultural equipment to large mining machinery.
The new high-strength cylinder design and the power output of the rear gear chamber have significant noise reduction effect, improved displacement, better reliability, low noise and longer service life.
Regardless of your needs, Cummins QSB series engines can match your needs; Getting the right combination to match your equipment, environment and workloads has never been easier;Every QSB engine is covered by Cummins three-step warranty, one of the most comprehensive and simplest plans in the industry.
