| Engine model | B190-33 |
| Engine type | 6 cylinders in line |
| Displacement | 5.9 L |
| Rated Power | 140 kW(190 HP) @ 2500rpm |
| Peak Torque | 640 N.m @ 1500rpm |
| Emission Standard | Euro Ⅲ |
| Use for | truck |

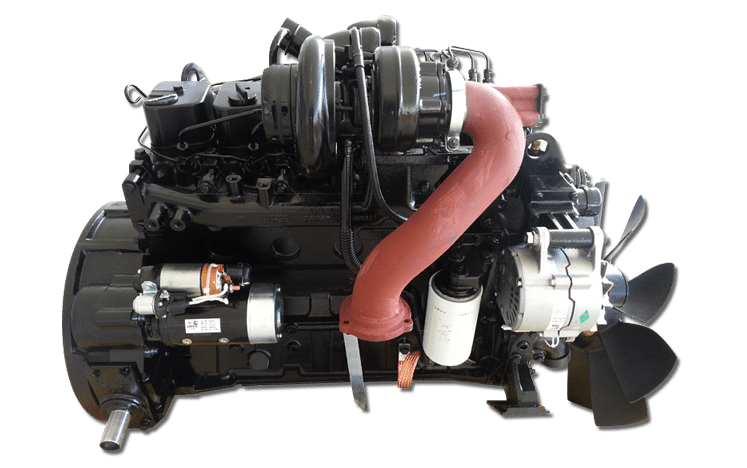

Cummins diesel engine B190-33 technique specification |
|
|---|---|
| Bore*stroke | 102*120mm |
| Intake method | Turbochager & Inter Cooled |
| Fuel systeme | Wuxi Weifu Pump |
| Cooling method | Fluid Cooling 7.0 L |
| Governor Type | Mechanical Control |
| Compression Ratio | 17.3 : 1 |
| Fuel Consumption: | 40 L/hr @ Rated Power |
| Starting System | Electrical Starting Motor 12V/500A; 24V/250A |
| Lowest Starting Temp .(with/without auxiliary system) | -10℃/-25℃ |
Cummins diesel engine B190-33 trade information |
|
| Warranty time | 1year or 1500h |
| Engine Size(L*W*H): | 1030mm*880mm*980mm |
| Packing size | 1050mm*900mm*1000mm |
| Weight net | 420 Kg |
| Weight gross | 450 Kg |
| Delivary port | Shanghai |
| Delivary time | 15 working days |
| Marine delivary boat | Masket/zhongyuan |
| Trade termes | FOB/CIF/CNF |
| Payement termes | T/T，L/C |
| Mode of transport | Sea transportation or air transportation |
