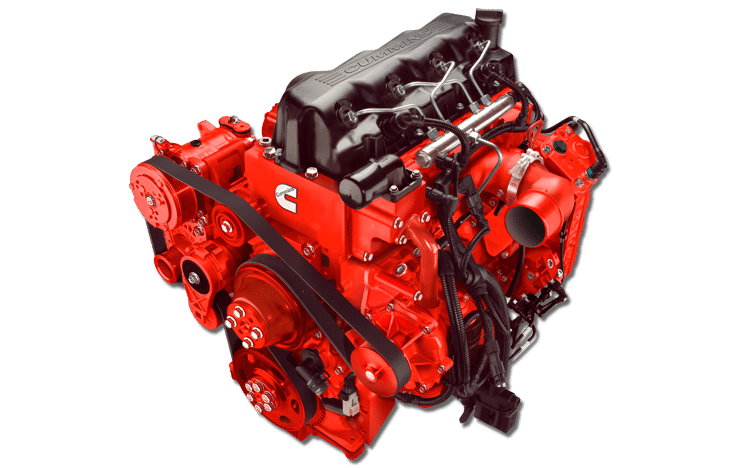

Engine model ISB190-40
Engine type 4 stroke, 6 cylinders in line
Displacement 5.9 L
Rated Power 140kW (190 HP) @ 2500rpm
Peak Torque 700N.m @ 1500rpm
Emission Standard Euro IV
Use for truck
Cummins logo
  • Product advantages
  • Cummins parts

Cummins engine ISB190-40 technique specification

Bore*stroke 102 * 120mm
Intake method Turbochager & Inter Cooled
Fuel systeme DENSO high pression Common rail
Cooling method Fluid Cooling 7.0 L
Governor Type ECM Control
Compression Ratio 18 : 1
Fuel Consumption 20.8L/hr @ Rated Power
Starting System Electrical Starting Motor 24V/510A
Lowest Starting Temp .(with/without auxiliary system) -10℃/-41℃

Cummins diesel engine ISB190-40 trade parameters

Warranty time 1year or 1500h
Engine Size(L*W*H): 1095mm*744mm*905mm
Packing size 1155mm*810mm*965mm
Weight net 453 Kg
Weight gross 500 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Trade termes FOB/CIF/EXW
Delivary time 15 working days
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

Cummins parts | P/N: C5260561

Cylinder block | P/N: C5260561

Genuine Cummins Parts | C5256984

Starter motor | P/N: C5256984

Cummins parts | P/N: C3913990

Piston ring | P/N: 4089500

Cummins parts | P/N: C3916588

Valve spring | P/N: C3916588

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Choose Genuine. Because There is a Difference.

Genuine Cummins Parts

Choose Genuine. Because There is a Difference.

Using Genuine Cummins parts makes all the difference. Genuine Cummins new and ReCon® parts are guaranteed to fit right and work right.

Extend the life of your equipment by choosing the best parts for your Cummins engine or generator.

Backed by Cummins with a 100% comprehensive warranty on parts, labour and progressive damage nothing works better or lasts longer.

The difference between Genuine Cummins parts and non-genuine parts isn’t always the easiest to detect.

Precision design, state-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance.

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
