| Engine model | ISB190-50 |
| Engine type | 4 stroke, 6 cylinders in line |
| Displacement | 5.9 L |
| Rated Power | 140kW (190 HP) @ 2500rpm |
| Peak Torque | 720 N.m @ 1200 - 1700rpm |
| Emission Standard | National Ⅴ / Euro Ⅴ |
| Use for | truck |

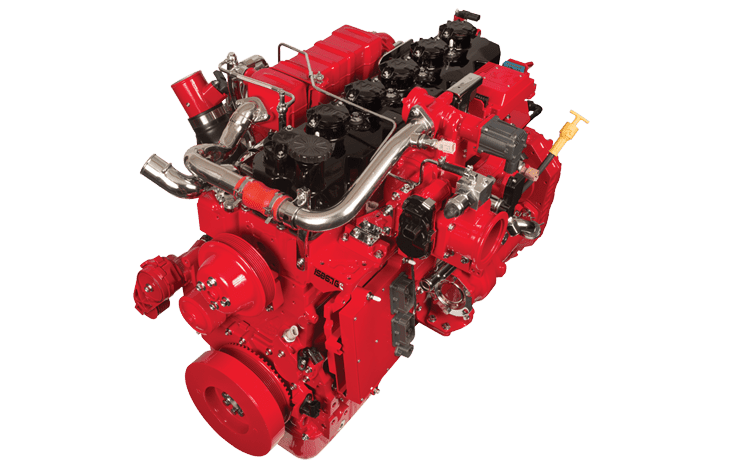

Cummins engine ISB190-50 technique specification |
|
|---|---|
| Bore*stroke | 102 * 120mm |
| Intake method | Turbochager, Charge air cooled |
| Fuel systeme | DENSO High pressure common rail system |
| Cooling method | Fluid Cooling 9.0 L |
| Control system | ECM Control |
| Compression Ratio | 17.3 : 1 |
| After treatment | SCR |
| Starting System | Electrical Starting Motor 24V/510A |
| Lowest Starting Temp .(with/without auxiliary system) | -10℃/-41℃ |
Cummins diesel engine ISB190-50 trade parameters |
|
| Warranty time | 1year or 1500h |
| Engine Size(L*W*H): | 1095mm*744mm*905mm |
| Packing size | 1155mm*810mm*965mm |
| Weight net | 453 Kg |
| Weight gross | 500 Kg |
| Delivary port | Shanghai |
| Marine delivary boat | Masket/zhongyuan |
| Trade termes | FOB/CIF/EXW |
| Delivary time | 15 working days |
| Payement termes | T/T，L/C |
| Mode of transport | Sea transportation or air transportation |

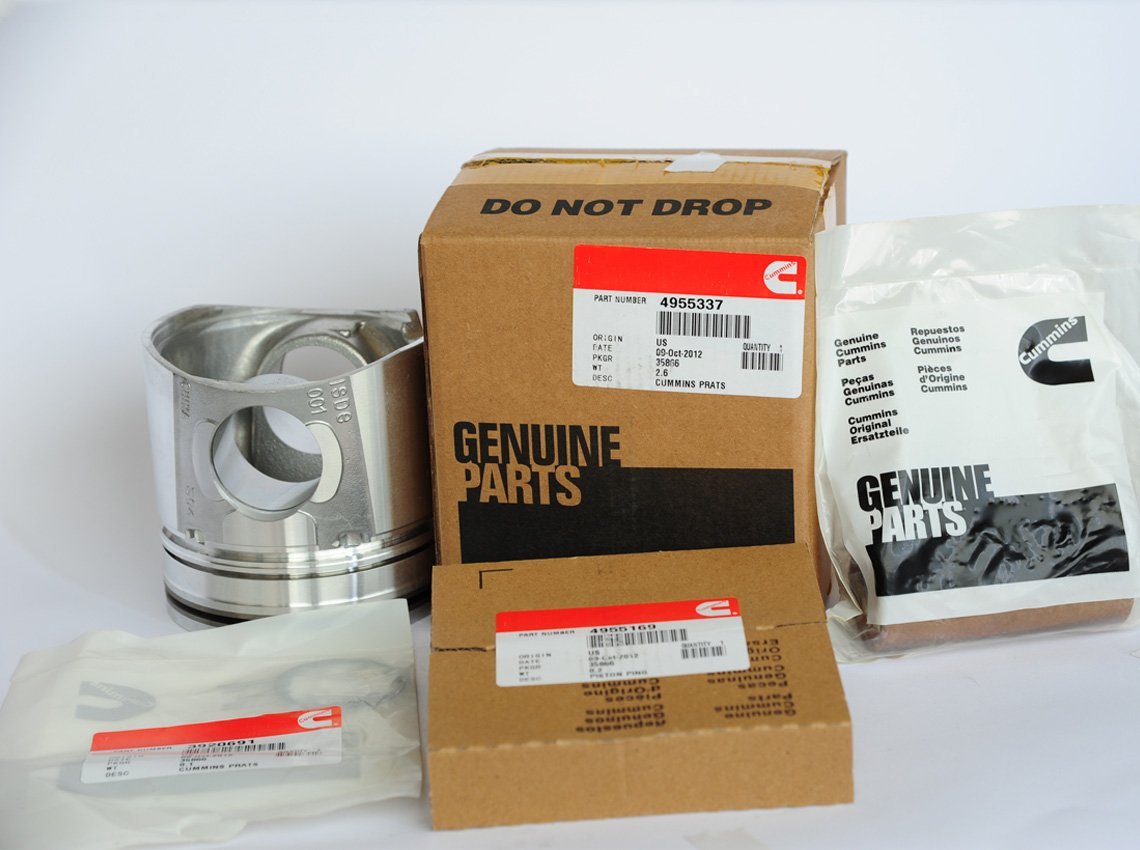

Using Genuine Cummins parts makes all the difference. Genuine Cummins new and ReCon® parts are guaranteed to fit right and work right.
Extend the life of your equipment by choosing the best parts for your Cummins engine or generator.
Backed by Cummins with a 100% comprehensive warranty on parts, labour and progressive damage nothing works better or lasts longer.
The difference between Genuine Cummins parts and non-genuine parts isn’t always the easiest to detect.
Precision design, state-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance.
Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
