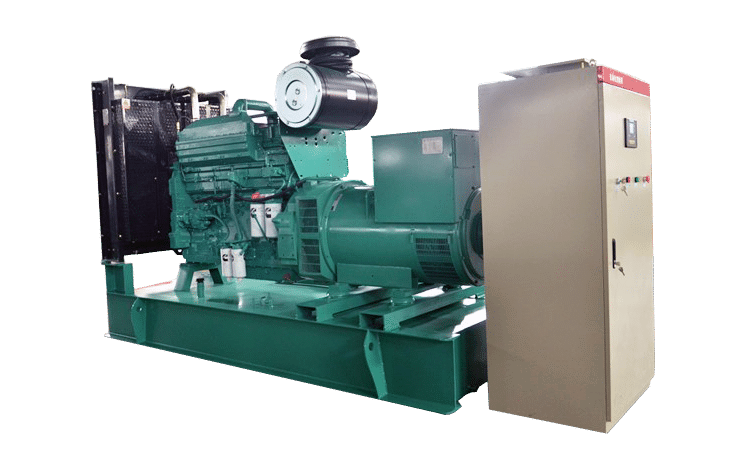

Engine model KTA19-G8
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 575kW (718 Kva) @ 1500 rpm
Standby Power 610kW (762 Kva) @ 1500 rpm
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon
Cummins logo
Cummins logo
  • Product advantages
  • Cummins parts

Cummins G-Drive KTA19-G8 technique specification

Bore*stroke 159 mm * 159 mm / 6.25 in * 6.25 in
Aspiration Turbocharged & Aftercooled Intercooler
Fuel system Cummins PT Pump Direct Injection
Cooling method Fluid Cooling
Governor Type Electronic Control
Dry Weight – Fan to Flywheel Engine 3725 lb / 1690 kg
Wet Weight – Fan to Flywheel Engine 3880 lb / 1760 kg
Maximum Static Loading at Rear Main Bearing 2000 lb / 907 kg
Intake Air Flow (cfm / liter/s) 1635 / 772
Exhaust Gas Flow (cfm / liter/s) 4185 / 1975
Manufacturer CCEC Cummins

Cummins G-Drive KTA19-G8 Trade information

Warranty time 1year or 1500h
Engine Size(L*W*H): 1324mm*596mm*1183mm
Packing size 1573mm*796mm*133mm
Weight net 1690 Kg
Weight gross 1887 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

Cummins parts | P/N: 4024779

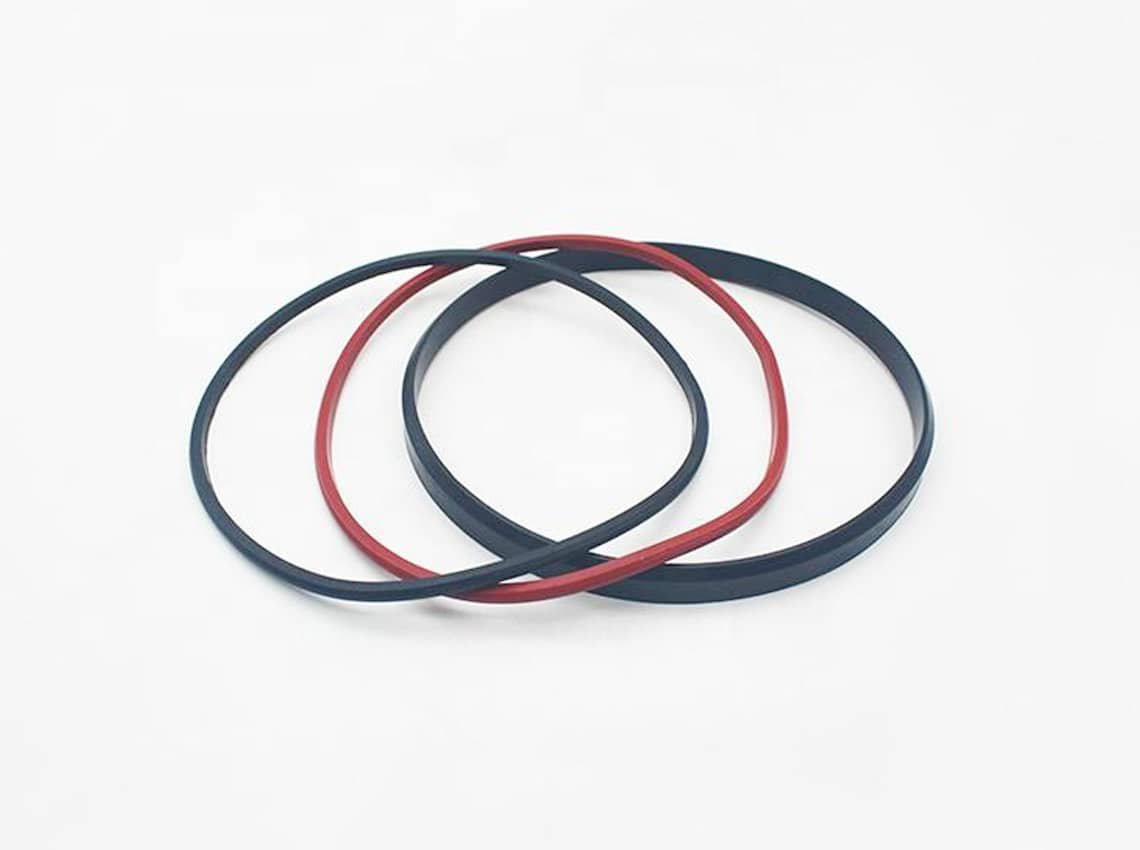

Seal Ring | P/N: 4024779

Original Cummins Parts| P/N: 4078701

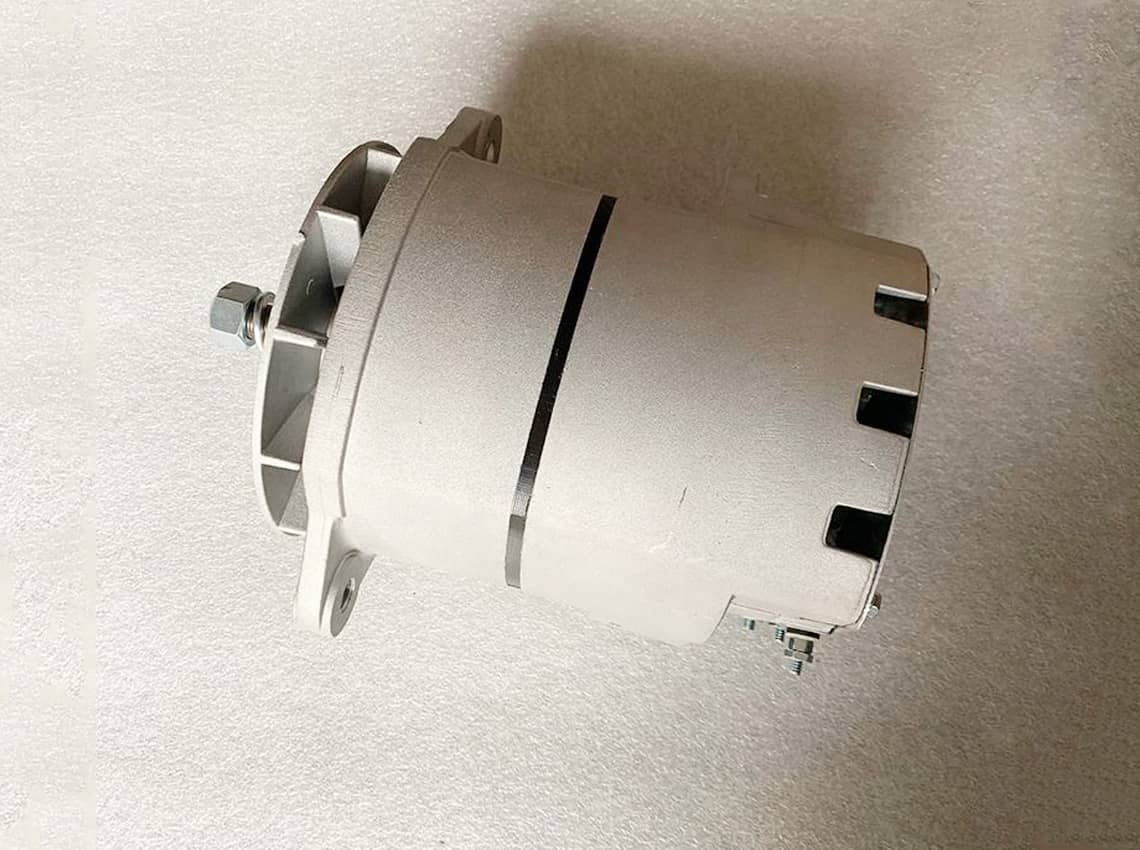

Alternator | P/N: 4078701

Genuine Cummins Parts | 207233

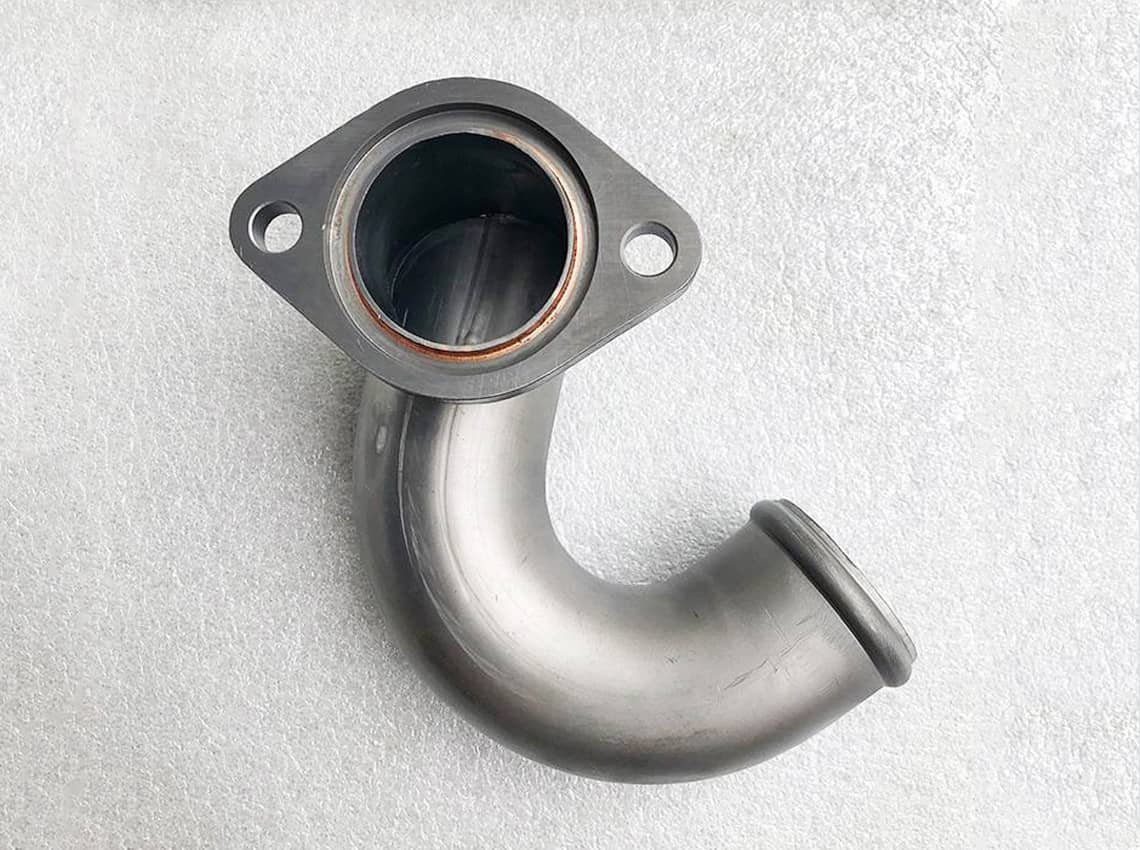

Water Transfer Tube | P/N: 207233

Cummins diesel parts | P/N: 3811987

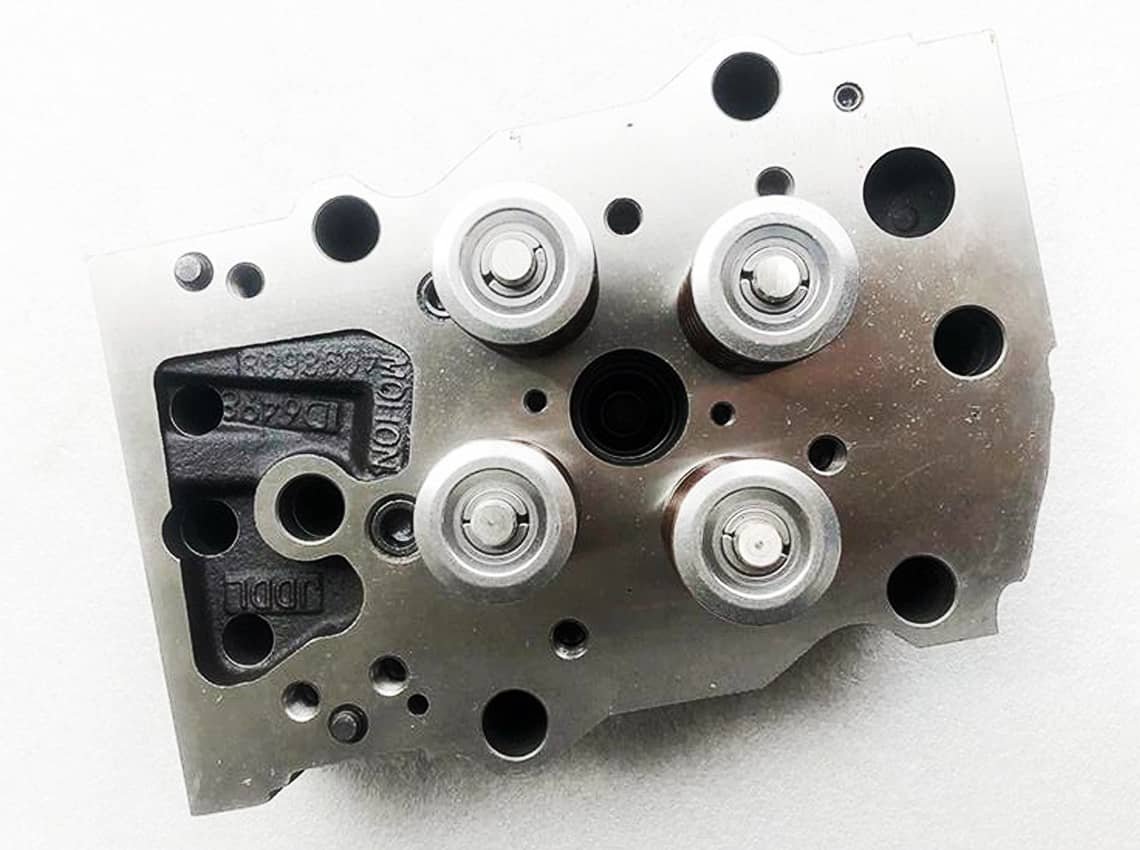

Cylinder Head | P/N: 3811987

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Professional configuration, best quality

CCEC Cummins production plant

Professional configuration, best quality

Advanced design and sophisticated manufacturing, adapt to a variety of harsh working conditions, high strength, strong ability to work under heavy loads.

The cylinder block and cylinder head adopt an integrated design to prevent the occurrence of engine water and oil leakage. The parts are about 40% less than other similar engines, and the failure rate is greatly reduced.

Using forged steel camshaft and crankshaft, high-strength cylinder block design, multiple parts cast on the cylinder block, high rigidity, high pressure resistance, good reliability, and longer service life.

The cylinder bore adopts a platform mesh honing design, which is perfect The geometric structure effectively prevents oil leakage, and adopts advanced technologies such as new piston ring components and gasket crimping molding to reduce oil loss.

Adopt Holset supercharger with integral wastegate valve, low-speed response and strong power, three-stage fuel filter to ensure a balanced level of particulate dispersion, protect the main components of the fuel system, and maximize the life of the engine.

Electronic control system can intelligently switch the working mode according to the environment and operating conditions, and has the functions of self-diagnosis, alarm and remote monitoring.

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
