Engine model NTA855-C310
Engine type 4 stroke,6 cylinders in line
Displacement 14 L
Rated Power 231kW (310 HP) @ 2100rpm
Peak Torque 1261 N.m @ 1500 rpm
Emission Standard Euro Ⅰ
Use for Construction Machinery
Cummins logo
Cummins logo
  • Product advantages
  • Cummins parts

Cummins engine NTA855-C310 technique specification

Bore*stroke 140 * 152mm
Intake method Turbocharged Aftercooled
Fuel systeme Direct Injection PT Pump, STC
Coolant capacity Engine only 20.8 L
Compression Ratio 14.5 : 1
Governor Type Mechanical Control
Fuel Consumption @ Rated Power 210 g/kw.h @ 2100 rpm
Starting System Electrical Starting Motor 24V/750A,12V/500A
Manufacturer CCEC Cummins

Cummins diesel engine NTA855-C310 trade information

Warranty time 1year or 1500h
Engine Size(L*W*H): 1115mm*716mm*1077mm
Packing size 1315mm*916mm*1280m
Weight net 1300 Kg
Weight gross 1345 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

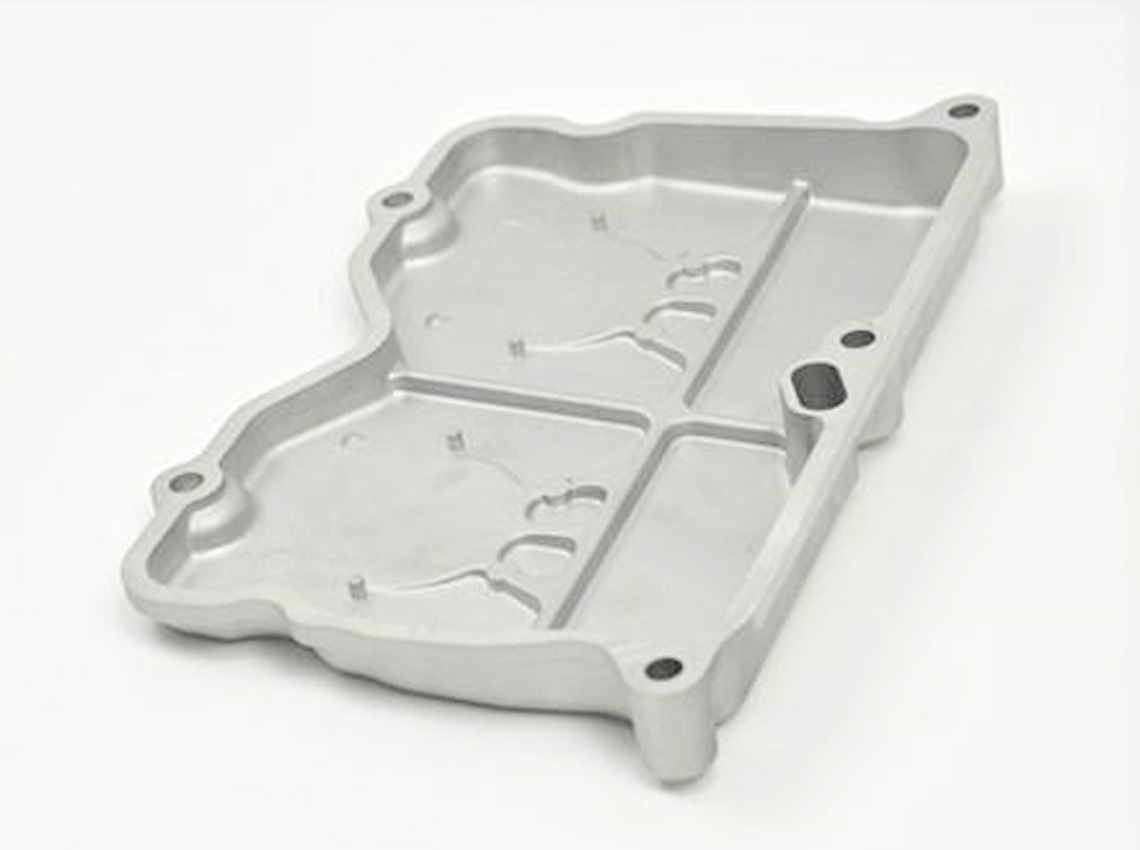

Cummins parts | P/N: 3006183

Rocker Lever Cover | P/N: 3006183

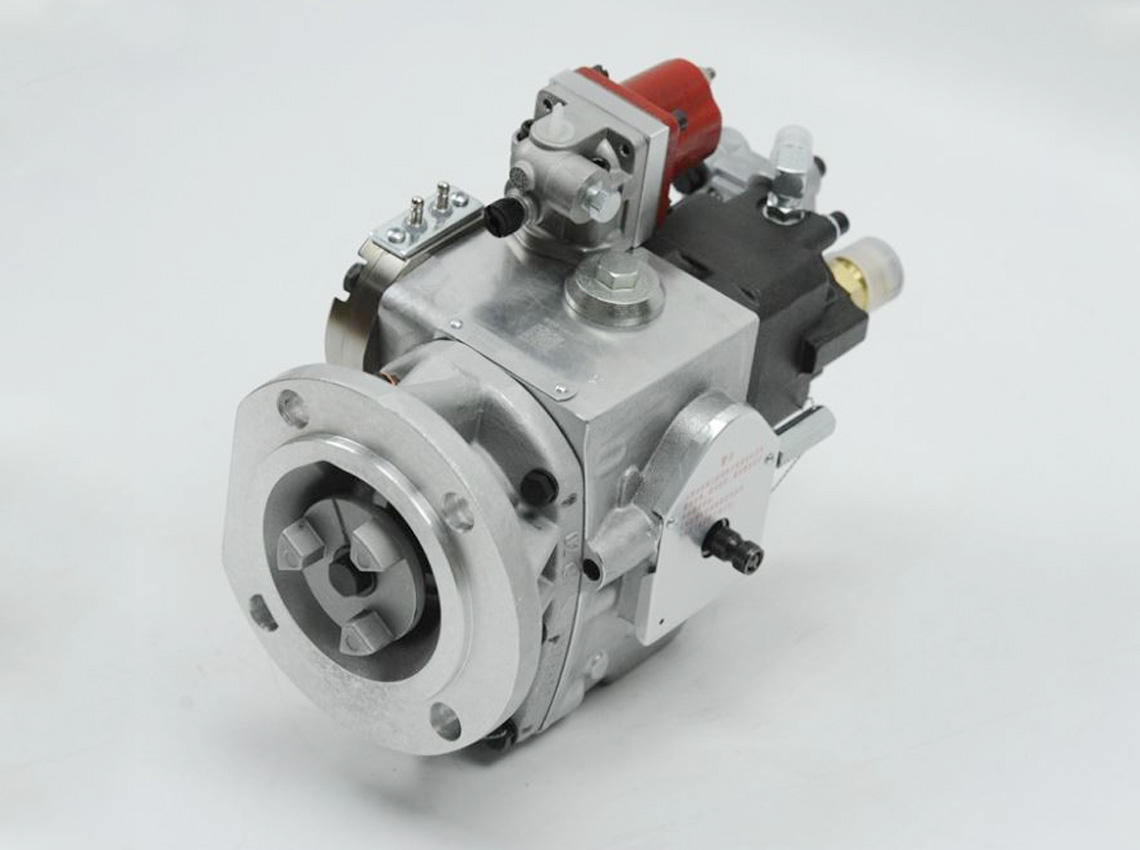

CCEC Cummins engine parts | P/N: 4914484

Fuel Pump | P/N: 4914484

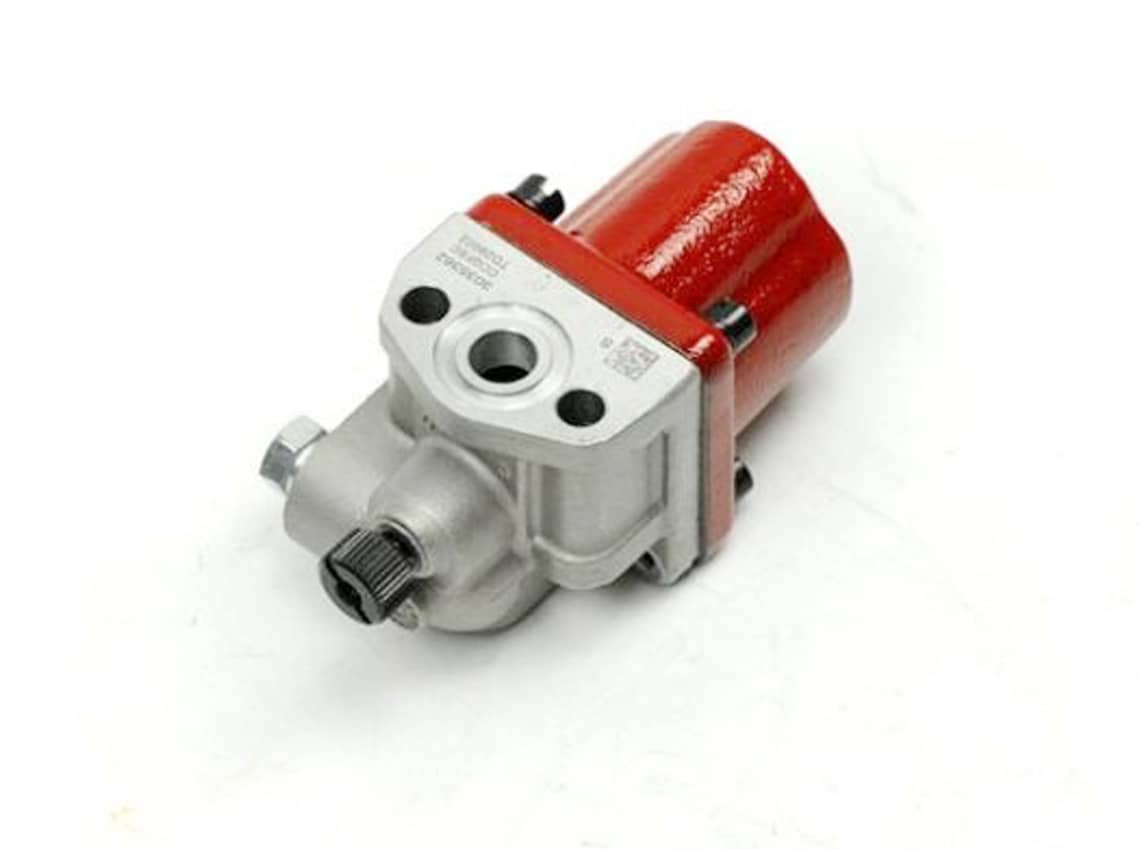

Genuine Cummins Parts | 3035362

Shut-Off Valve | P/N: 3035362

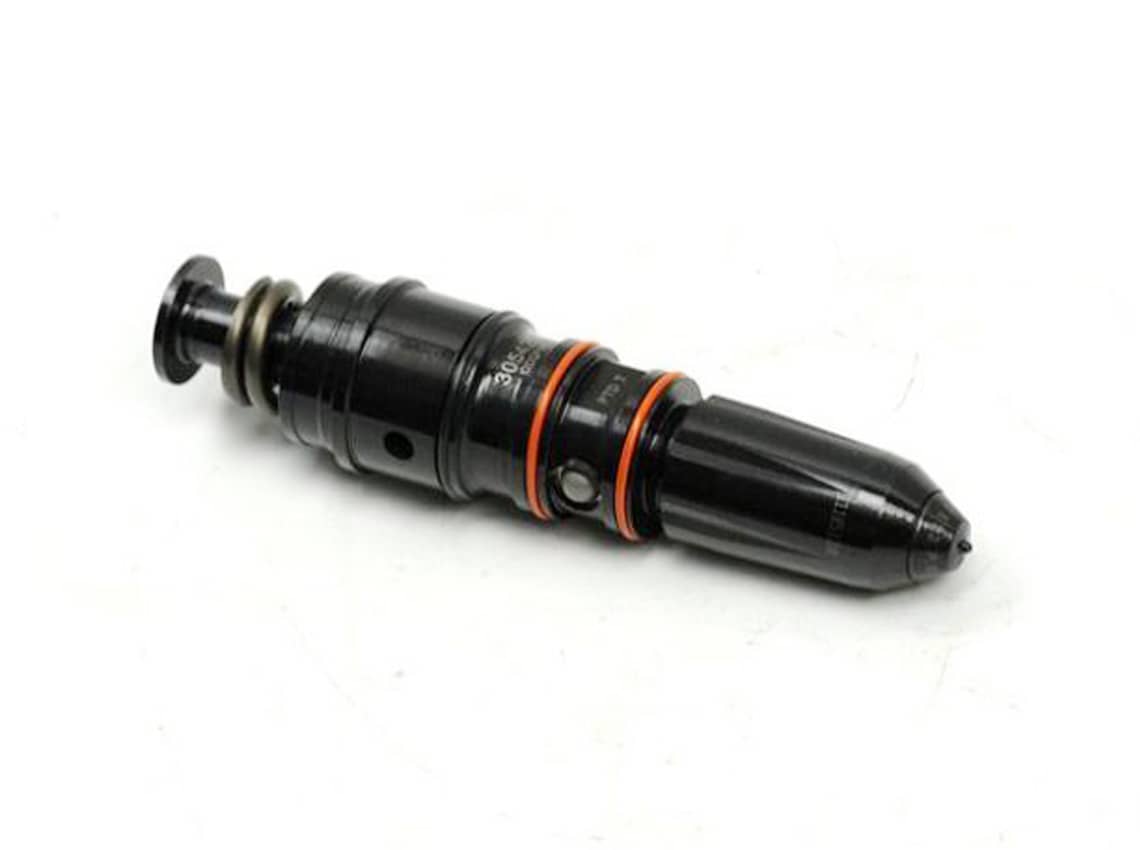

Cummins diesel parts | P/N:3054254

Fuel injector | P/N:3054254

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Professional configuration, best quality

CCEC Cummins production plant

Professional configuration, best quality

Lubrication system: All moving parts are forced to lubricate; the large-capacity gear pump provides pressure lubricating oil to lubricate the bearings and cool the piston; the oil cooler, full-flow filter, and bypass filter maintain good oil condition.

Fuel system: Cummins PT fuel system, optimized combustion, surging power; STC distributed timing system to ensure better combustion in all working conditions; low-pressure fuel supply system, equipped with fuel one-way circuit, safe and reliable.

Cooling system: Forced water cooling with geared centrifugal water pump, large flow channel design, good cooling effect; spin-on water filter and special DCA additives can effectively prevent rust and cavitation, control the acidity of the coolant and remove impurities.

Intake and exhaust system: efficient Holset exhaust gas supercharger to further improve combustion; pressure pulse exhaust pipe can make full use of exhaust gas energy and improve engine efficiency; air-to-air cooling technology ensures better fuel economy and emissions.

Reliable Quality and High Dispatching Ratio: State-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance, Key assemblies and parts are imported from the US, including cylinder block, cylinder head, piston, camshaft and connecting rod mechanism.
