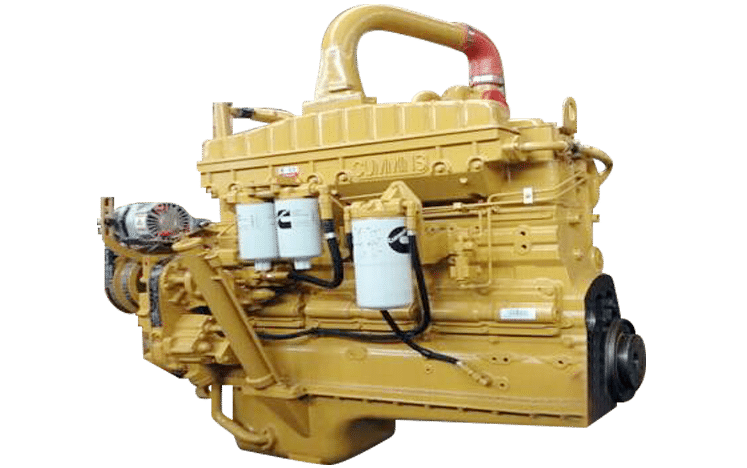

Cummins engine NTA855-C400 technique specification
|Bore*stroke||140 * 152mm|
|Intake method||Turbocharged Aftercooled|
|Fuel systeme||Direct Injection PT Pump, STC|
|Coolant capacity||Engine only 20.8 L|
|Compression Ratio||14.5 : 1|
|Governor Type||Mechanical Control|
|Fuel Consumption @ Rated Power||215 g/kw.h @ 2100 rpm|
|Starting System||Electrical Starting Motor 24V/750A,12V/500A|
Cummins diesel engine NTA855-C400 trade information
|Warranty time||1year or 1500h|
|Weight net||1303 Kg|
|Weight gross||1348 Kg|
|Marine delivary boat||Masket/zhongyuan|
|Delivary time||15 working days|
|Mode of transport||Sea transportation or air transportation|
Lubrication system: All moving parts are forced to lubricate; the large-capacity gear pump provides pressure lubricating oil to lubricate the bearings and cool the piston; the oil cooler, full-flow filter, and bypass filter maintain good oil condition.

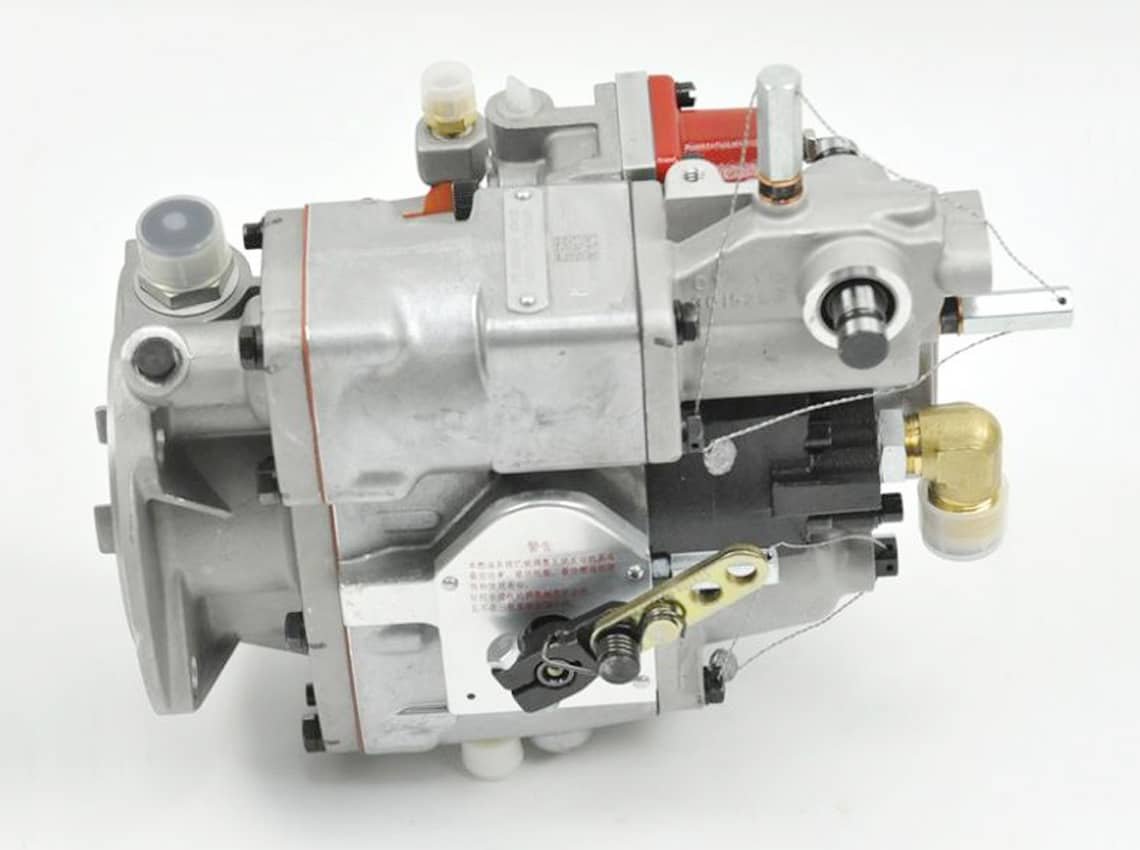

Fuel system: Cummins PT fuel system, optimized combustion, surging power; STC distributed timing system to ensure better combustion in all working conditions; low-pressure fuel supply system, equipped with fuel one-way circuit, safe and reliable.
Cooling system: Forced water cooling with geared centrifugal water pump, large flow channel design, good cooling effect; spin-on water filter and special DCA additives can effectively prevent rust and cavitation, control the acidity of the coolant and remove impurities.
Intake and exhaust system: efficient Holset exhaust gas supercharger to further improve combustion; pressure pulse exhaust pipe can make full use of exhaust gas energy and improve engine efficiency; air-to-air cooling technology ensures better fuel economy and emissions.
Reliable Quality and High Dispatching Ratio: State-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance, Key assemblies and parts are imported from the US, including cylinder block, cylinder head, piston, camshaft and connecting rod mechanism.
