K19 Series

Cummins Generator engine KTA19 / QSK19 Series

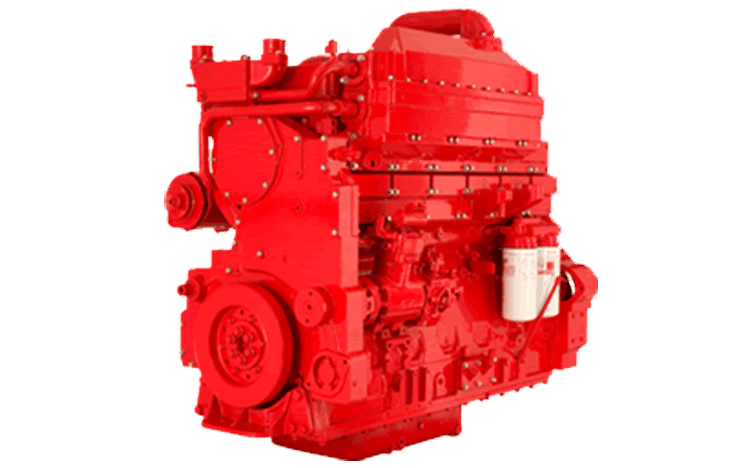

CCEC Cummins K19 Series Generator engine

Cummins Generator engine KTA19 / QSK19 Series

  • Super power
  • K19 is proof that dependable high-horsepower performance can be delivered in a compact package. The clean, efficient inline six-cylinder K19 engine design has been in Cummins product line for over 30 years delivering the lowest total cost of ownership while providing maximum productivity and durability. With ratings from 450 hp to 890 hp (336 – 650 kW), K19 engines have proven performance with the mechanical simplicity of Cummins PT® fuel system.

  • Low fuel consumption and good economy
  • Cummins PT fuel system, ultra-high injection pressure, ensures good atomization and complete combustion of the engine.The high-efficiency Holset exhaust gas turbocharger can ensure more sufficient air intake, improve engine efficiency, further improve combustion, and reduce engine specific fuel consumption.The air-to-air cooling technology ensures more sufficient air intake and better fuel economy.

  • Compact structure, easy maintenance
  • The wet cylinder liner can be replaced, with good heat dissipation effect and easy replacement. The spare parts of all models are highly versatile, highly serialized, and easy to maintain. Both the cylinder body and the cylinder head adopt built-in pressure lubricating oil passages, with compact structure and low failure rate.

  • Advanced design and reliable performance
  • Cylinder block: Made of high-strength alloy cast iron, with good rigidity, small vibration and low noise. Cylinder head: Four-valve design per cylinder, optimized air/fuel mixture ratio, effectively improving combustion and emission; one head per cylinder, easy maintenance. Camshaft: The single camshaft design can precisely control the valve and fuel injection timing, and the optimized cam profile can reduce the impact force and improve reliability and durability. Crankshaft: Integral crankshaft made of high-strength forged steel. The induction hardening process of rounded corners and journals can ensure higher fatigue strength of the crankshaft.

Cummins logo
Cummins logo
  • Construction Engines
  • Product Type Spectrum

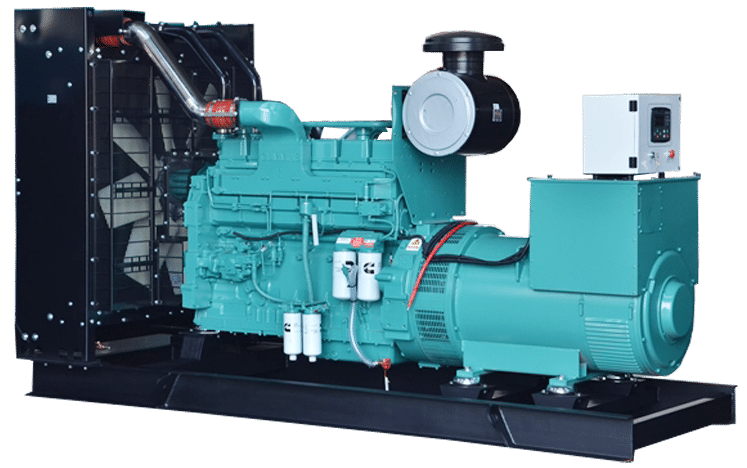

Engine model QSK19-G14
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 402kW (502.5 Kva) @ 1500 rpm
Compression Ratio 15.0:1
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon

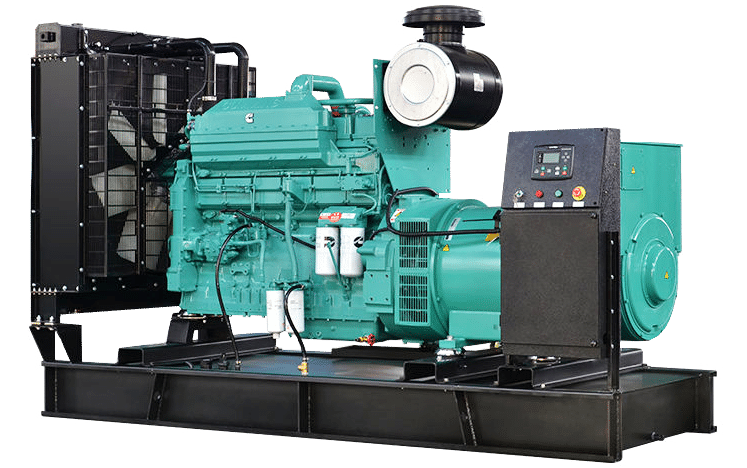

Engine model QSK19-G13
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 451kW (563.8 Kva) @ 1500 rpm
Compression Ratio 15.0:1
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon

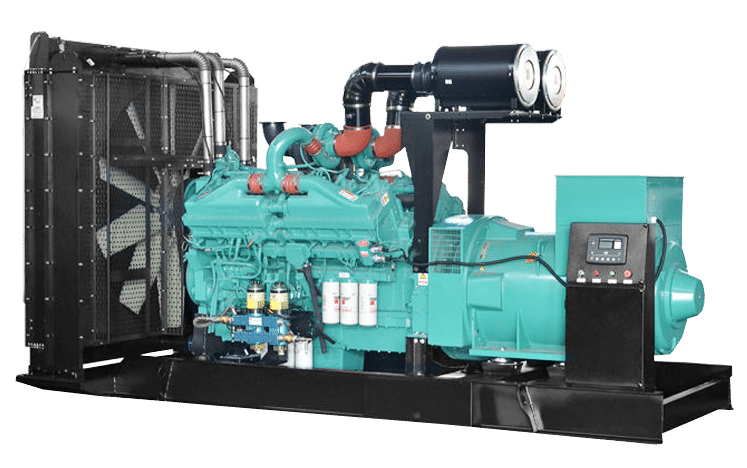

Engine model QSK19-G12
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 503kW (628.8 Kva) @ 1500 rpm
Compression Ratio 15.0:1
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon

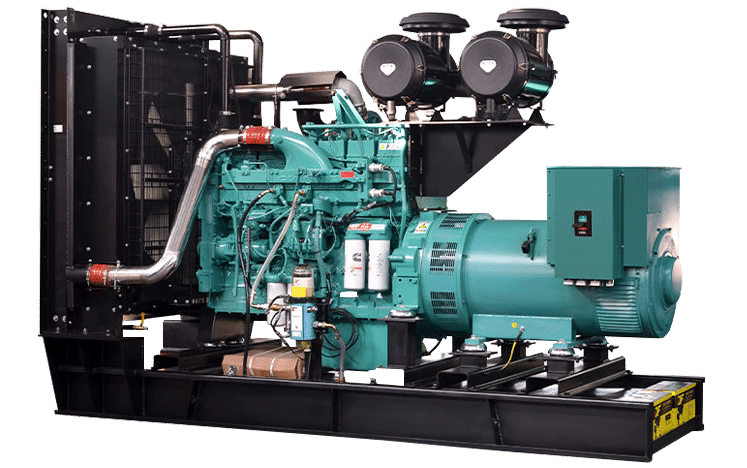

Engine model QSK19-G11
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 606kW (757.5 Kva) @ 1500 rpm
Compression Ratio 15.0:1
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon

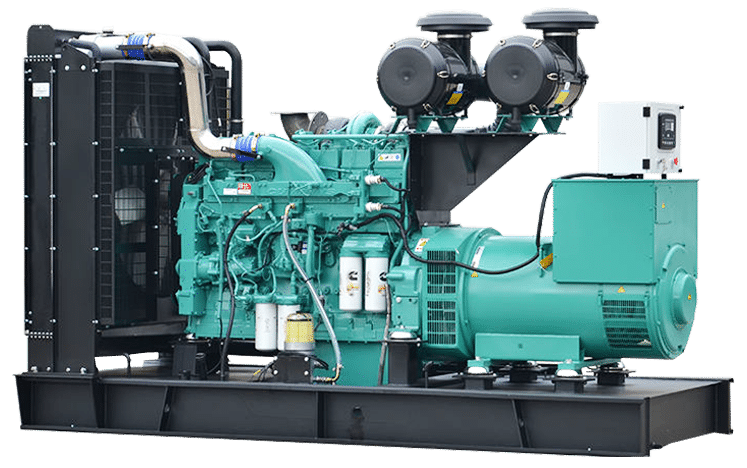

Engine model QSK19-G5
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 608kW (760 Kva) @ 1800 rpm
Piston Speed (ft/min / m/s) 1875 / 9.5
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon
Engine model QSK19-G4B
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 559kW (698.8 Kva) @ 1800 rpm
Piston Speed (ft/min / m/s) 1875 / 9.5
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon

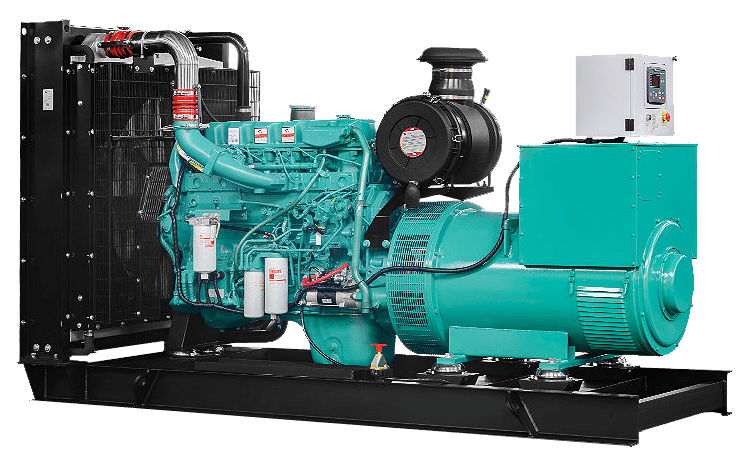

Engine model QSK19-G4A
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 574kW (717.5 Kva) @ 1500 rpm
Piston Speed (ft/min / m/s) 1562 / 7.9
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon
Engine model QSK19-G3B
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 608kW (760 Kva) @ 1800 rpm
Piston Speed (ft/min / m/s) 1875 / 9.5
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon

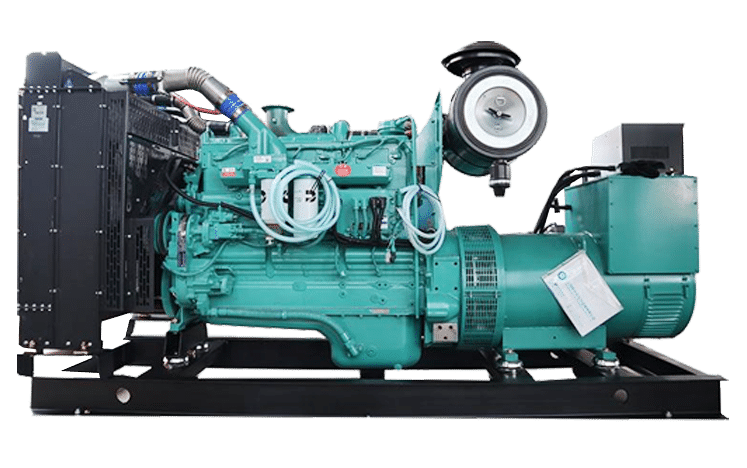

Engine model QSK19-G3A
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 574kW (718 Kva) @ 1500 rpm
Piston Speed (ft/min / m/s) 1562 / 7.9
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon
Engine model QSKTAA19-G3-NR2-B
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 608kW (760 Kva) @ 1800 rpm
Piston Speed (ft/min / m/s) 1875 / 9.5
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon

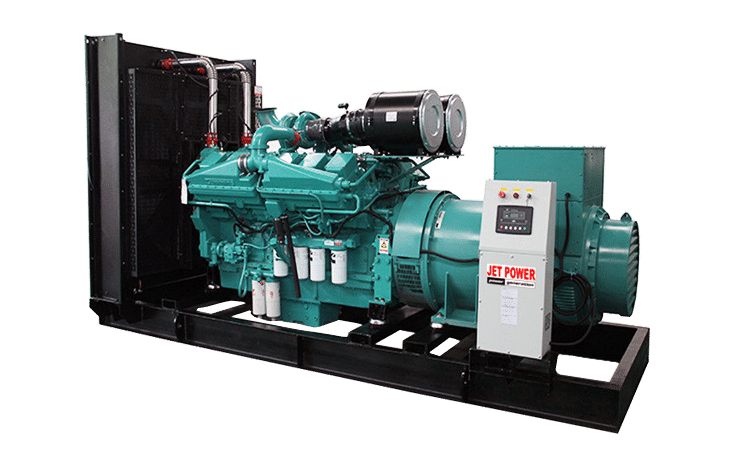

Engine model QSKTAA19-G3-NR2-A
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 574kW (718 Kva) @ 1500 rpm
Piston Speed (ft/min / m/s) 1562 / 7.9
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon

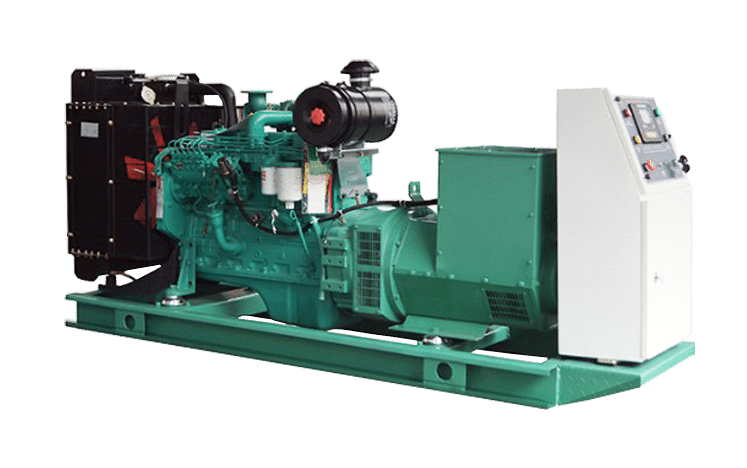

Engine model KTAA19-G7
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 610kW (762 Kva) @ 1500 rpm
Compression Ratio 13.0 : 1
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon

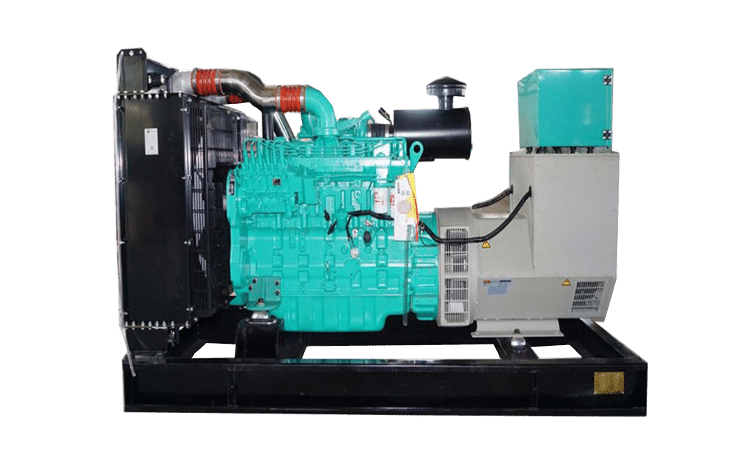

Engine model KTAA19-G6A
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 610kW (762 Kva) @ 1500 rpm
Compression Ratio 13.5 : 1
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon

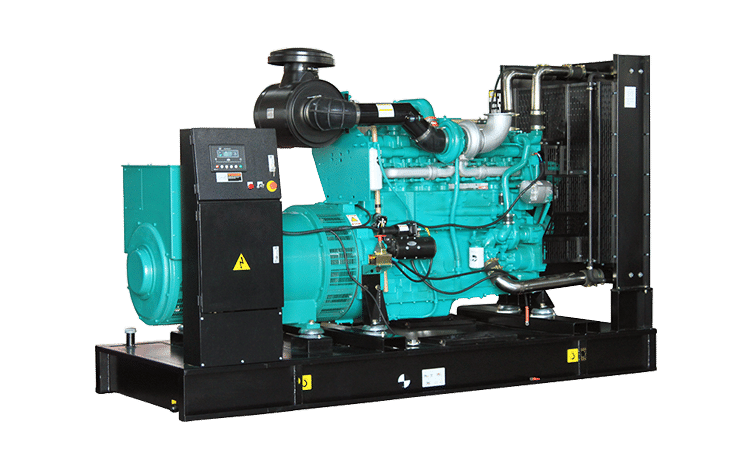

Engine model KTAA19-G6
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 570kW (712 Kva) @ 1500 rpm
Standby Power 620kW (775 Kva) @ 1500 rpm
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon
Engine model KTAA19-G5
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 555kW (693 Kva) @ 1500 rpm
Standby Power 605kW (756 Kva) @ 1800 rpm
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon
Engine model KTA19-G8
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 575kW (718 Kva) @ 1500 rpm
Standby Power 610kW (762 Kva) @ 1500 rpm
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon

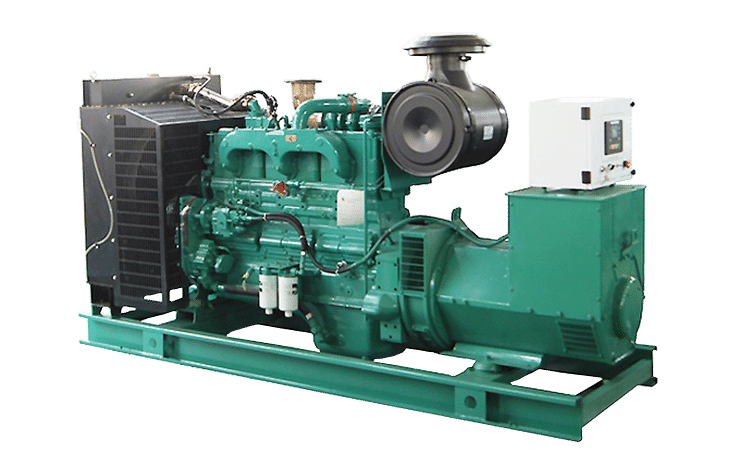

Engine model KTA19-G4
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 448kW (560 Kva) @ 1500 rpm
Standby Power 504kW (630 Kva) @ 1500 rpm
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon

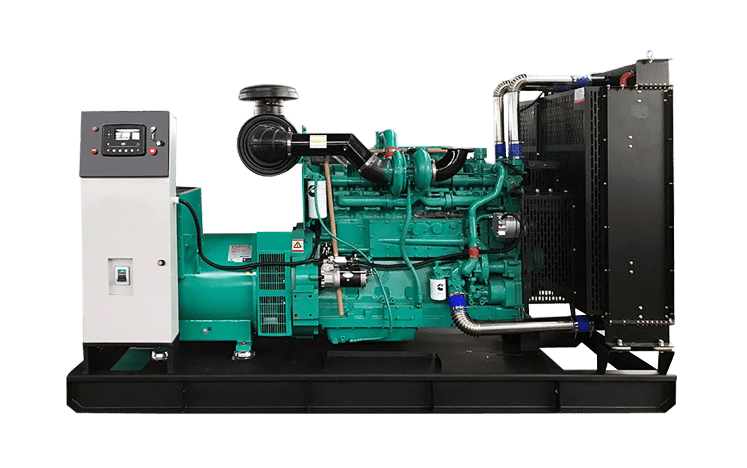

Engine model KTA19-G3A
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 463kW (578 Kva) @ 1500 rpm
Standby Power 511kW (638 Kva) @ 1800 rpm
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon

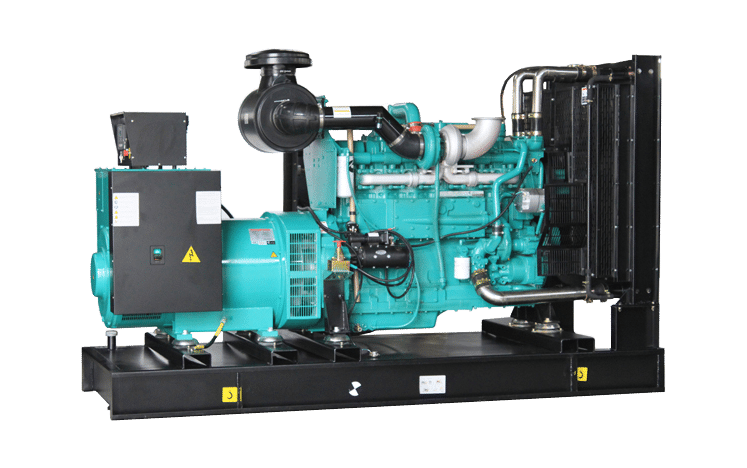

Engine model KTA19-G3
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 403kW (510 Kva) @ 1500 rpm
Standby Power 448kW (560 Kva) @ 1500 rpm
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon

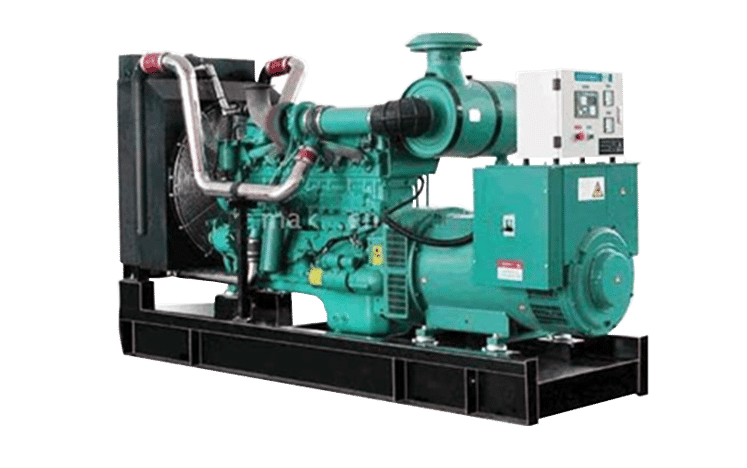

Engine model KTA19-G2
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 336kW (420 Kva) @ 1500 rpm
Standby Power 369kW (460 Kva) @ 1500 rpm
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon

Professional configuration, excellent quality

Professional configuration, excellent quality

  • Lubrication system
  • All moving parts are forced to lubricate; the large-capacity gear pump provides pressure lubricating oil to lubricate the bearing and cool the piston; the oil cooler, full-flow filter, and bypass filter maintain good oil condition.

  • Fuel system
  • Cummins PT fuel system, optimized combustion, surging power; STC distributed timing system ensures better combustion under all working conditions; low-pressure fuel supply system, equipped with fuel one-way circuit, safe and reliable.

  • Cooling system
  • forced water cooling by gear centrifugal water pump, large flow channel design, good cooling effect; spin-on water filter and special DCA additive can effectively prevent rust and cavitation, control the acidity of the cooling liquid and remove impurities.

  • Intake and exhaust system
  • High-efficiency Holset exhaust gas supercharger further improves combustion; pressure-type pulse exhaust pipe can make full use of exhaust gas energy and improve engine efficiency; air-to-air cooling technology ensures better fuel economy.

  • Industries and Applications
  • Cummins Power Generation has looked beyond today’s challenges, helping our customers meet their future needs by developing the next generation of power. Our comprehensive portfolio delivers centralized as well as distributed energy solutions for your unique power need—commercial, industrial, marine, mining, recreational, emergency and residential.
