N Series

Cummins N series engine product performance characteristics

CCEC Cummins N Series engineering engine

Cummins N series engine product performance characteristics

  • Super power

    Power covers 185-545 horsepower, the maximum torque is 1763 Newton meters, the low-speed torque is large, the start is fast, and the climbing ability is strong. Weight 1838 kg , the power weight ratio.

  • Low fuel economy is good

    Cummins PT fuel system patented technology, high injection pressure, ensure that the engine good atomization, combustion.

    Efficient Holset turbocharger exhaust intake ensures more fully , improve engine efficiency and further improve combustion and reduce engine specific fuel consumption.

    Air-to-air cooling technology ensures more sufficient air intake and better fuel economy.

  • Compact, easy to maintain

    Replaceable wet cylinder liners , cooling effect , easy to replace.

    All models parts versatility , high degree of serialization , and easy maintenance.

    Block and head are taking a built-in pressure lubricants Road , compact , low failure rate

  • Advanced design and reliable performance

    Cylinder block: made of high-strength alloy cast iron, with good rigidity, low vibration and low noise.

    Cylinder head: Four valves per cylinder design, optimized air/fuel mixture ratio, effectively improving combustion and emissions; two cylinders and one head, easy maintenance.

    Camshaft: The large-diameter camshaft can withstand higher loads. The new design can accurately control the valve and injection timing. The optimized cam profile can reduce the impact force and improve the reliability and durability.

    Crankshaft: The integral crankshaft is made of high-strength forged steel. The induction hardening process of fillet and journal can ensure higher fatigue strength of the crankshaft.

    Piston: Using the latest aluminum alloy casting technology, the design of ω-shaped head and barrel-shaped skirt can compensate for thermal expansion and contraction to ensure a good fit.

Cummins logo
Cummins logo
  • Construction Engines
  • Product Type Spectrum

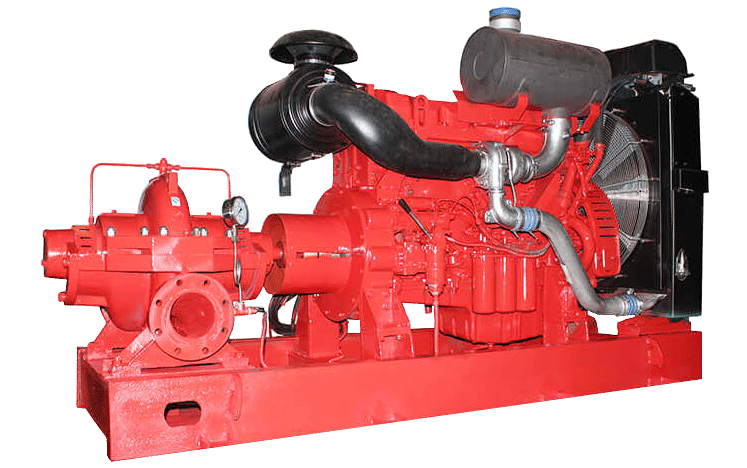

Engine model NTA855-P470
Engine type 4 stroke,6 cylinders in line
Displacement 14 L
Rated Power 351kW (470 HP) @ 1500rpm
Peak Torque 2233 N.m @ 1500 rpm
Emission Standard Tier Ⅱ
Use for Pump power unit

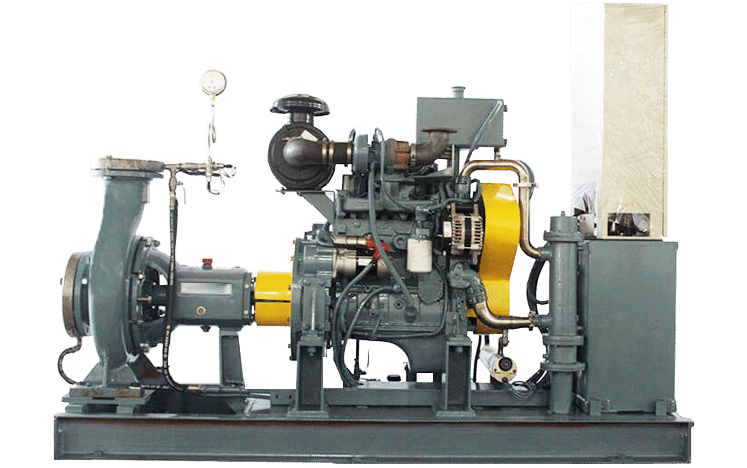

Engine model NTA855-P400
Engine type 4 stroke,6 cylinders in line
Displacement 14 L
Rated Power 299kW (400 HP) @ 1500rpm
Peak Torque 1900 N.m @ 1500 rpm
Emission Standard Tier Ⅱ
Use for Pump power unit

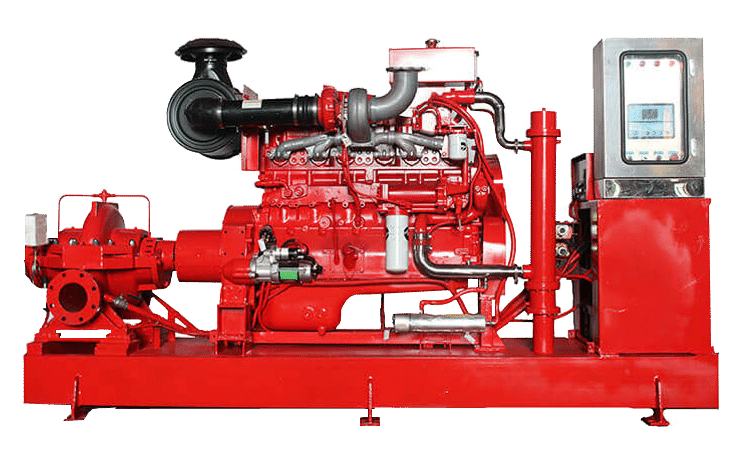

Engine model NTA855-P360
Engine type 4 stroke,6 cylinders in line
Displacement 14 L
Rated Power 269kW (360 HP) @ 1800rpm
Peak Torque 1536 N.m @ 1300 rpm
Emission Standard Tier Ⅰ
Use for Pump power unit

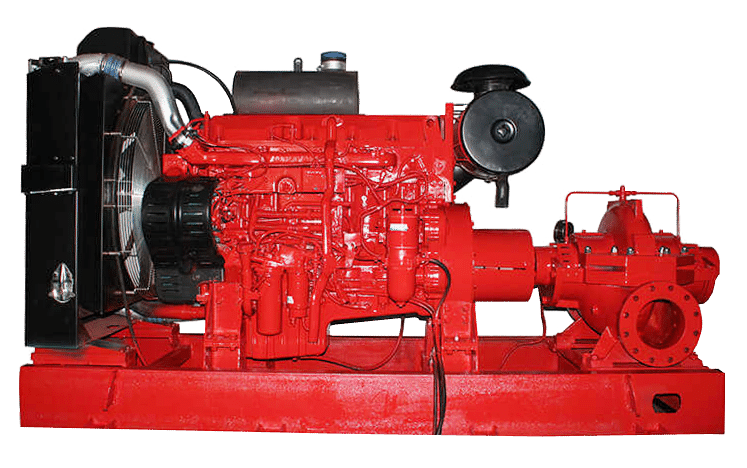

Engine model NTA855-P300
Engine type 4 stroke,6 cylinders in line
Displacement 14 L
Rated Power 224kW (300 HP) @ 1500rpm
Peak Torque 1425 N.m @ 1500 rpm
Emission Standard Tier Ⅰ
Use for Pump power unit

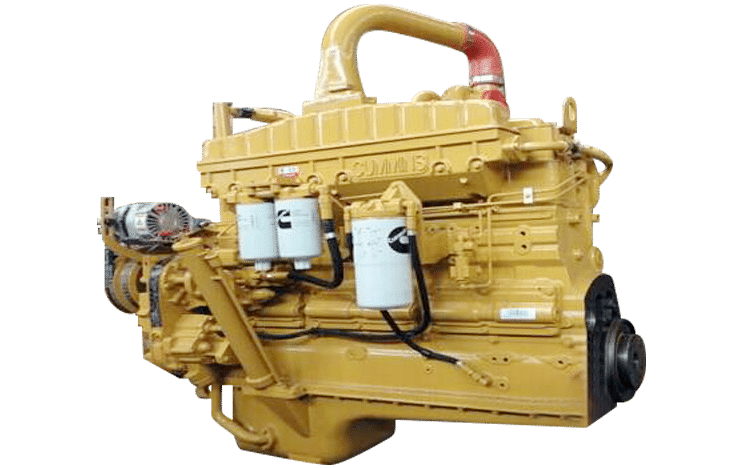

Engine model NTA855-C400
Engine type 4 stroke,6 cylinders in line
Displacement 14 L
Rated Power 298kW (400 HP) @ 2100rpm
Peak Torque 1627 N.m @ 1400 rpm
Emission Standard Euro II
Use for Construction Machinery
Engine model NTA855-C360
Engine type 4 stroke,6 cylinders in line
Displacement 14 L
Rated Power 269kW (360 HP) @ 2100rpm
Peak Torque 1464 N.m @ 1400 rpm
Emission Standard Euro II
Use for Construction Machinery

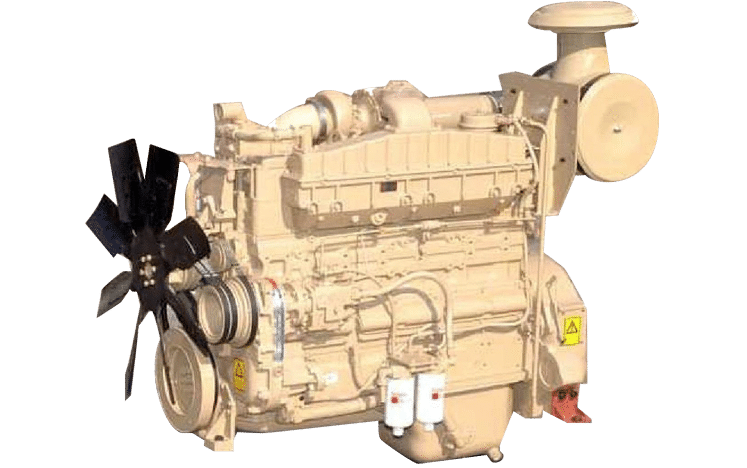

Engine model NTA855-C335
Engine type 4 stroke,6 cylinders in line
Displacement 14 L
Rated Power 250kW (335 HP) @ 2100rpm
Peak Torque 1363 N.m @ 1500 rpm
Emission Standard Euro II
Use for Construction Machinery
Engine model NTA855-C310
Engine type 4 stroke,6 cylinders in line
Displacement 14 L
Rated Power 231kW (310 HP) @ 2100rpm
Peak Torque 1261 N.m @ 1500 rpm
Emission Standard Euro Ⅰ
Use for Construction Machinery
Engine model NT855-C280
Engine type 4 stroke,6 cylinders in line
Displacement 14 L
Rated Power 209kW (280 HP) @ 2100rpm
Peak Torque 1139 N.m @ 1500 rpm
Emission Standard Euro Ⅰ
Use for Construction Machinery
Engine model NT855-C250
Engine type 4 stroke,6 cylinders in line
Displacement 14 L
Rated Power 187kW (250 HP) @ 2100rpm
Peak Torque 1017 N.m @ 1500 rpm
Emission Standard Euro Ⅰ
Use for Construction Machinery

Premium performance | Cummins diesel engine N series

Cummins Truck Engine

Premium performance | Cummins diesel engine N series

  • Overview of Cummins Engine N Series NT & NTA
  • From a series that is service-proven through millions of hours of operation in some of the world's most demanding applications, the NT855 has been engineered to handle higher injection pressures, with redesigned overhead arrangement, pistons, crankshaft and camshaft. A gear train with high contact ratio spur gears also eliminates unwanted thrust loads and reduces noise.

    In line with the rest of the NT family, wide-ranging benefits including fuel efficiency, low oil consumption, reliable long life, high power and durability.

  • Mature products, well-known all over the world
  • Wide range of applications: Since Cummins entered China in 1975, N series engines have been widely used in construction machinery, heavy-duty vehicles, power generation, ship power and other fields

    High reputation: As one of the main models of the Cummins family, the N series engine has won high recognition from customers in various fields with strong power, ultra-low fuel consumption, high reliability and low maintenance costs.

    Technology upgrade: The BCIII design of the large camshaft, air-to-air cooling, slow start and other technologies have further improved the engine's reliability, power, fuel economy and emissions. The electronic injection technology being jointly developed with Cummins will further strengthen the leading position of the N series engine in China's high-horsepower engine manufacturing industry.

  • Single Module™ aftertreatment system
  • The Single Module™ aftertreatment system combines DPF, SCR and urea dosing in one unit which takes up 50 percent less space and weighs 30 percent less than the prior system.
