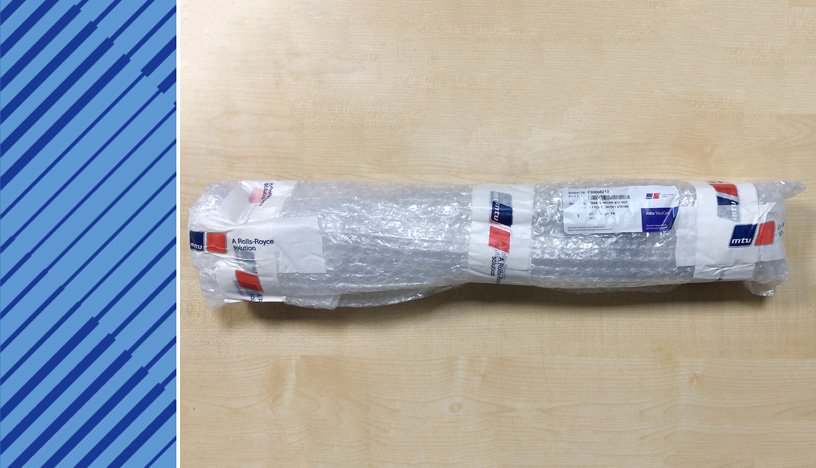

MTU Specialized Tools F30006212 RATCHET WITH EXTENSI ON

F30006212 RATCHET WITH EXTENSI ON

Other
Other F30452739 MILLING CUTTER F30006212 RATCHET WITH EXTENSI ON F30378324 SETTING MANDREL Y20098771 FEELER GAUGE F30379104 OIL FITER WRENCH F6780562 PULLER F6780561 PULLER F6781539 HYDRAULIC PRESSURE SPINDLE T80090944 BRACKET F6801820 BARRING GEAR F6789889 FITTING/REMOVAL DEVICE F6792918 BARRING TOOL F6558557 BARRING DEVICE
PART NUMBER F30006212
ENGINE TYPE BR4000-03
DESCRIPTION RATCHET WITH EXTENSI ON
UNIT WEIGHT 2.810 KG
HS CODE 82042000
NATO-VERS.-NR. 5120121745658
MAINTENANCE LEVEL QL - 1
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Tools details
  • Original tools

MTU SPECIALIZED TOOLS F30006212 RATCHET WITH EXTENSI ON

MTU SPECIALIZED TOOLS F30006212 RATCHET WITH EXTENSI ON

MTU SPECIALIZED TOOLS F30006212 RATCHET WITH EXTENSI ON

C/N Description ORDER NO. Qty
01 SOCKET WRENCH BIT F30501118 001
02 SOCKET WRENCH F30453226 001
03 RATCHET WITH EXTENSI ON F30006212 001
04 RATCHET 1/2"" SQ F30027340 001
05 TORQUE WRENCH F30452769 001
06 RATCHET "1/2" F30027341 001
07 TORQUE WRENCH F30452768 001
08 DOUBLE OPEN-END WRENCH F30006068 001
09 SINGLE-ENDED OPEN-END WRENCH F30004455 001
10 DOUBLE OPEN END WRENCH F30002785 001
11 SCREW DRIVER SOCKET F30378921 001
12 CROWFOOT BOX WRENCH F30455321 001
13 CROWFOOT BOX WRENCH F30455322 001
14 TOOL KIT F30452564 001
15 TOOL BOX F6790604 001
16 FITTING/REMOVAL DEVICE F6789889 001
17 MILLING CUTTER F30452739 001
18 BARRING GEAR F6801820 001
19 CROWFOOT BOX WRENCH F30373588 001

F30006212 SUPERSEDED PART AND EFFECTIVE DATE

F30006212 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 F30006212 F362410006212 N/A
02 F30006212 F30006212 1998/01/01

MTU BR4000-03 ENGINE SPECIAL TOOLS FOR MAINTENANCE

MTU BR4000-03 Special tools for maintenance

MTU BR4000-03 ENGINE SPECIAL TOOLS FOR MAINTENANCE

ORDER NO. DESIGNATION USAGE QTY.
F6789471 ALIGNMENT JIG to align cylinder heads, 16V engines 001
F6790544 ALIGNMENT JIG for cylinder heads of 8V engines 001
T80090944 BRACKET to lift the cylinder head in installation position 001
Y20044010 ANGULAR TORQUE JIG 1/2" 001
Y20090113 ALIGNMENT LIMIT PLUG GAUGE ø11H7 for valve guide, new-part dimension 001
Y20091080 ALIGNMENT LIMIT PLUG GAUGE ø19.00H7 for valve guide bore in cylinder head 001
Y20097473 ALIGNMENT LIMIT PLUG GAUGE ø11H9 for repair - pre-finished valve guide 001
Y20097512 ALIGNMENT LIMIT PLUG GAUGE ø19.10H7 for valve guide bore in cylinder head 001
Y20097513 ALIGNMENT LIMIT PLUG GAUGE ø19.30H7 for valve guide bore in cylinder head 001
Y4340442 TEST GAUGE INLET for inlet valve seat 001
Y4340443 TEST GAUGE EXHAUST for exhaust valve seat 001
Y4341919 MEASURING JIG to measure TDC in cylinder head of genset engine 001
Y4343688 PRESSURE TEST DEVICE cylinder head 001
5115890021/00 FEELER GAUGE feeler gauge for clearance on ZR turbocharger 0.3-1.4mm 001
F0141931 SPEC. TOOL ASSEMBLY Compressor wheel on turbine wheel removal tool 001
B80147745 HAND PUMP KIT 3000 bar, for press-on and press-off device 001
F30370328 HYD. INSTALLATION TOOL assembly tool for turbochargers 001
F30378717 ASSEMBLY PLIERS assembly tool for turbochargers piston ring 001
F30379258 RATCHET RING WRENCH wrench size 13, 9x12 square 001
F30379259 RATCHET RING WRENCH wrench size 17, 9 x 12 square 001
F30452807 RATCHET RING WRENCH wrench size 13 square 001
F30510059 SOCKET WRENCH BIT wrench size11, long, for V band clamp of turbochargers 001
F6558076 ASSEMBLY TEMPLATE assembly tool for turbochargers 001
F6558092 PROTECTIVE CAP turbine wheel in carrier housing, 20V M engines 001
