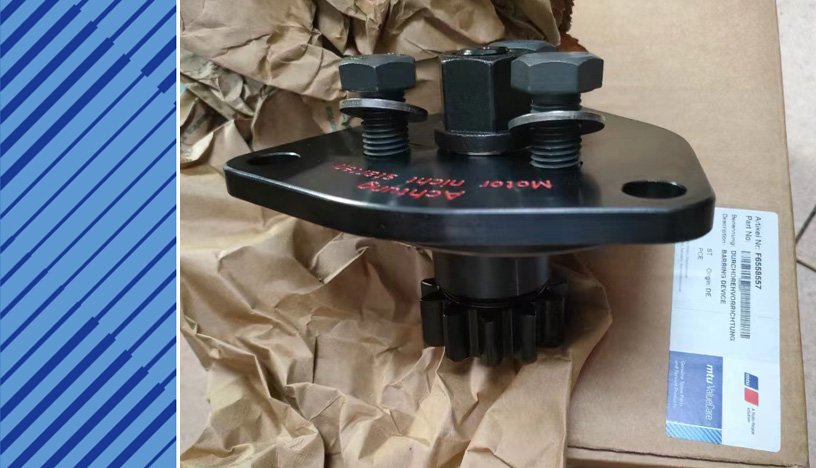

MTU Specialized Tools F6558557 BARRING DEVICE

F6558557 BARRING DEVICE

Other
Other F30452739 MILLING CUTTER F30006212 RATCHET WITH EXTENSI ON F30378324 SETTING MANDREL Y20098771 FEELER GAUGE F30379104 OIL FITER WRENCH F6780562 PULLER F6780561 PULLER F6781539 HYDRAULIC PRESSURE SPINDLE T80090944 BRACKET F6801820 BARRING GEAR F6789889 FITTING/REMOVAL DEVICE F6792918 BARRING TOOL F6558557 BARRING DEVICE
PART NUMBER F6558557
ENGINE TYPE BR2000 PLD
DESCRIPTION BARRING DEVICE
DIMENSIONS RUNNING GEAR
UNIT WEIGHT 3.270 KG
HS CODE 82055980
MAINTENANCE LEVEL QL - 1
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Tools details
  • Original tools

MTU SPECIALIZED TOOLS F6558557 BARRING TOOL

MTU SPECIALIZED TOOLS F6558557 BARRING TOOL

MTU SPECIALIZED TOOLS F6558557 BARRING TOOL

C/N Description ORDER NO. Qty
01 BARRING GEAR F6799543 001
02 FLANGE 5360300074 001
03 SOCKET 32 MM A F F30006125 001
04 RATCHET WITH EXTENSI ON F30006212 001
05 WRENCH SOCKET F30004976 001
06 BARRING DEVICE F6557971 001
07 BARRING DEVICE F6558556 001
08 BARRING DEVICE F6558557 001
09 TOOL BOX F6791285 001
10 ASSEMBLY DEVICE F6559691 001
11 SLOTTED NUT DRIVER F30453015 001
12 ADAPTER F30452771 001
13 SOCKET 32 MM A F F30006125 001
14 SOCKET F30500943 001
15 UNIV. JOINT F30006203 001
16 SOCKET F30501119 001
17 PULLER 3555890163/00 001
18 VALVE CLEAR GAUGE Y4350176 001
19 STARTER KEY F30006193 001
20 EXTENSION, OFFSET F30501569 001
21 COMBIN. WRENCH F30048716 001
22 DOUBLE BOX SPANNER 14X17 F30002799 001
23 FUEL SUCTION DEVICE F30378207 001
24 TORQUE SCREWDRIVER F30452774 001

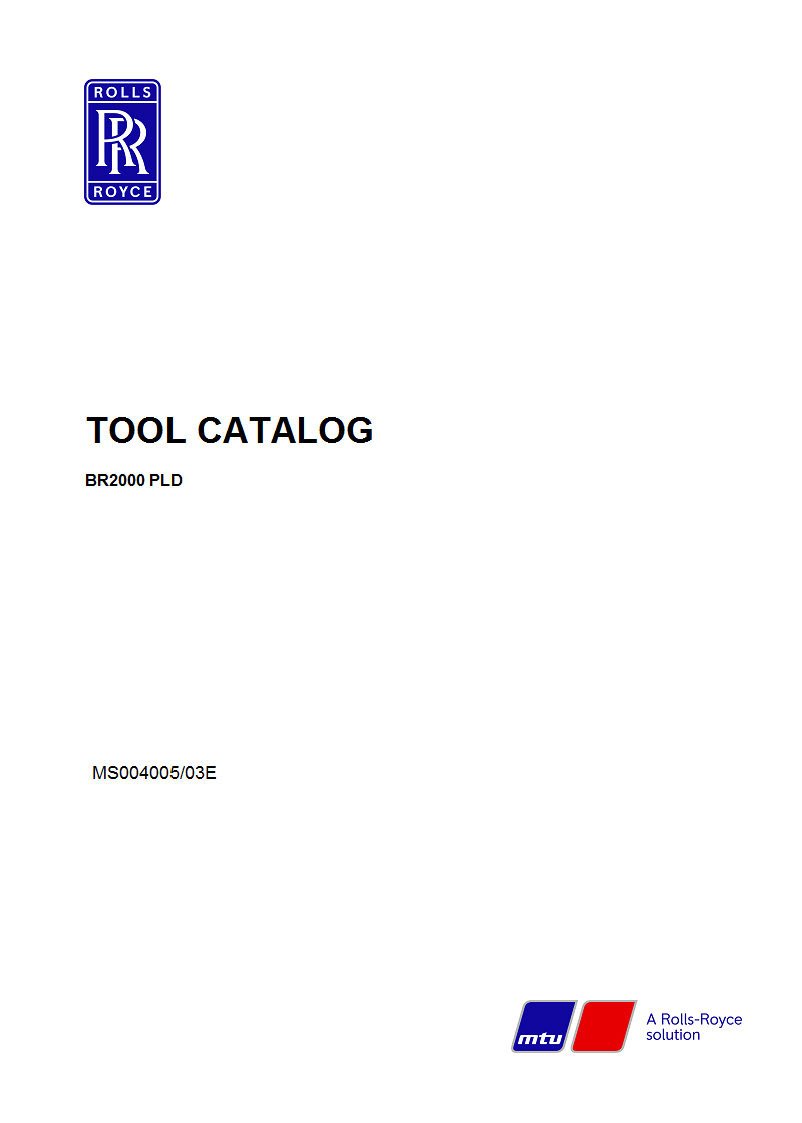

MTU BR2000PLD ENGINE SPECIAL TOOLS FOR MAINTENANCE

MTU BR4000-03 Special tools for maintenance

MTU BR2000PLD ENGINE SPECIAL TOOLS FOR MAINTENANCE

ORDER NO. DESIGNATION USAGE QTY.
F30453004 TOOL KIT N/A 001
8205892061/03 MIRROR ATTACHMENT N/A 001
8205892961/00 MAGNET LIFTER with flexible shaft 001
F30004976 WRENCH SOCKET 27 A/F, 3/4", square 001
F30004977 SOCKET ADAPTER 30 A/F, 3/4", long 001
F30005655 DBLE-END BOX WRENCH wrench size 32x36mm, straight 001
F30006199 STRAP WRENCH for fuel filter with constricted installation area 001
F30006212 RATCHET WITH EXTENSI ON 3/4" with extension 001
F30011450 WRENCH, RING DE O/SET wrench size 17x19 001
F30017884 PIPE WRENCH slip joint pliers for electric plug connections 001
F30025897 OPEN-END WRENCH BIT wrench size 19 (9x12 square) 001
F30453004/22 THREE-SQUARE HOLLOW SCRAPER N/A 001
F30454308/11 TORQUE WRENCH 20-100 Nm 001
F30027340 RATCHET 1/2"" SQ 1/2", 9x12 square 001
F30030450 BOX WRENCH BIT wrench size 17, 9x12 square for valve rocker arm 001
F30038493 BOX WRENCH wrench size 19, 9x12 square for torque wrench 001
F30038494 BOX WRENCH wrench size 22, 9x12 square 001
F30453004/21 TORQUE WRENCH 8-40 Nm 001
F30379104 OIL FITER WRENCH Square drive 1/2", also for fuel filter 001
F30452770 SCREWDRIVER Complete set of slotted screw drivers size 3,5/5,5/7/8 001
F30453000 SOCKET T30, 1/4" 001
F30453215 TOOL KIT Socket wrench kit 1/2" and 1/4" 001
F30501562 BOX WRENCH wrench size 24, 9x12 square 001
Y20010128 FEELER GAUGE 0.05-1.00mm 001
