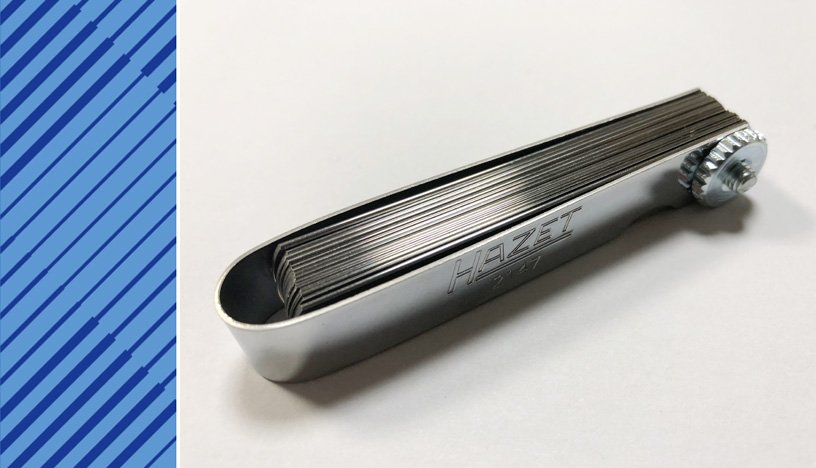

MTU Specialized Tools Y20098771 FEELER GAUGE

Y20098771 FEELER GAUGE

Other
Other F30452739 MILLING CUTTER F30006212 RATCHET WITH EXTENSI ON F30378324 SETTING MANDREL Y20098771 FEELER GAUGE F30379104 OIL FITER WRENCH F6780562 PULLER F6780561 PULLER F6781539 HYDRAULIC PRESSURE SPINDLE T80090944 BRACKET F6801820 BARRING GEAR F6789889 FITTING/REMOVAL DEVICE F6792918 BARRING TOOL F6558557 BARRING DEVICE
PART NUMBER Y20098771
ENGINE TYPE BR4000-03
DESCRIPTION FEELER GAUGE
UNIT WEIGHT 0.094 KG
HS CODE 90173000
NATO-VERS.-NR. 5210123944767
MAINTENANCE LEVEL QL - 1
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Tools details
  • Original tools

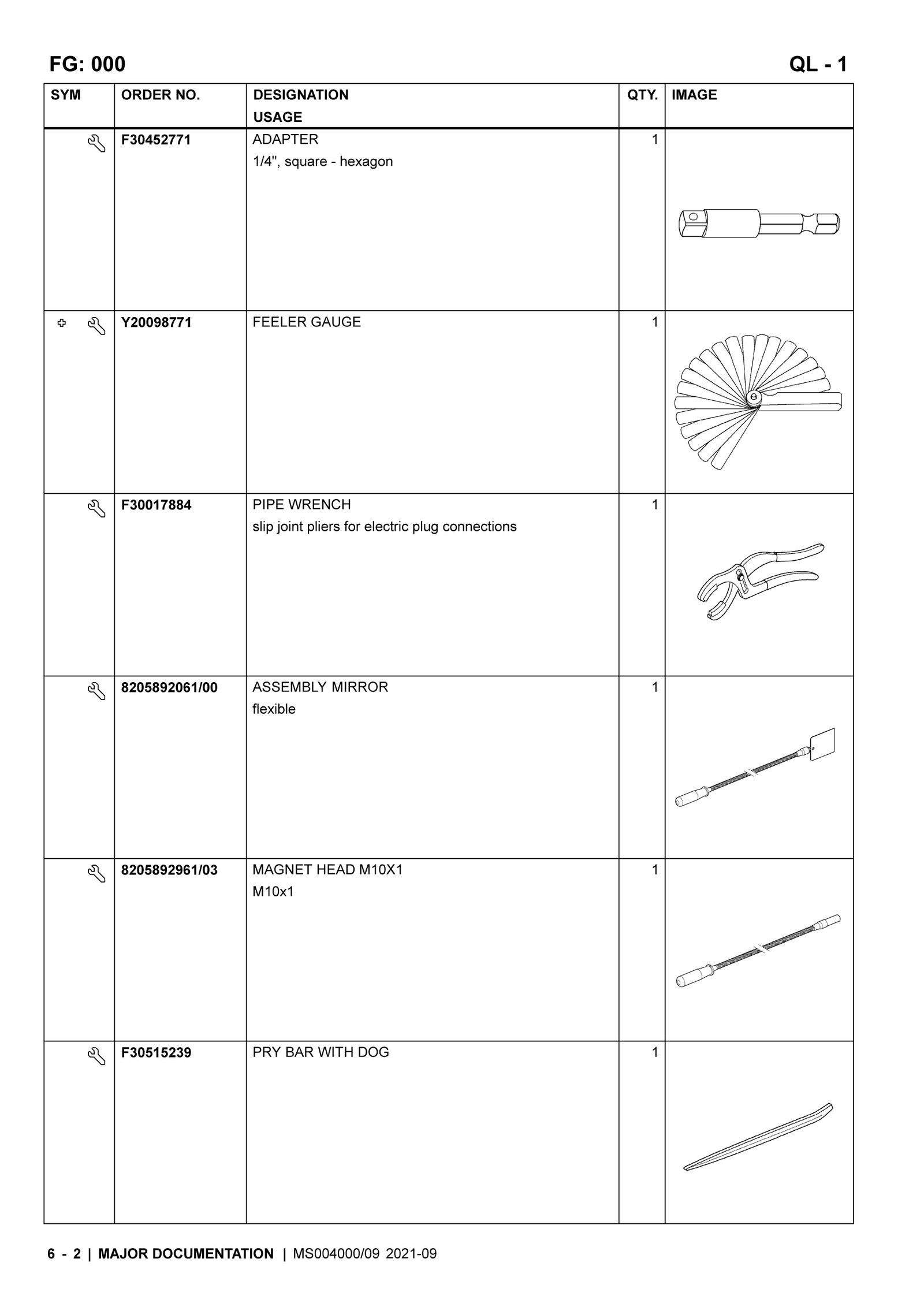

MTU SPECIALIZED TOOLS Y20098771 FEELER GAUGE

MTU SPECIALIZED TOOLS Y20098771 FEELER GAUGE

MTU SPECIALIZED TOOLS Y20098771 FEELER GAUGE

C/N Description ORDER NO. Qty
01 ADAPTER F30452771 001
02 FEELER GAUGE Y20098771 001
03 PIPE WRENCH F30017884 001
04 ASSEMBLY MIRROR 8205892061/00 001
05 MAGNET HEAD M10X1 8205892961/03 001
06 PRY BAR WITH DOG F30515239 001
07 EXTENSION, OFFSET F30501569 001
08 CROWFOOT BOX WRENCH F30027426 001
09 BOX WRENCH SOCKET F30028347 001
10 CROWFOOT BOX WRENCH F30024325 001
11 BOX WRENCH BIT F30039518 001
12 SOCKET WRENCH BIT F30011612 001
13 SOCKET WRENCH BIT F30005002 001
14 SOCKET SPANNER INSERT F30005003 001
15 SOCKET WRENCH BIT F30011637 001
16 SOCKET WRENCH BIT F30011640 001
17 SOCKET WRENCH BIT F30011644 001
18 SOCKET 30MM AF F30011995 001
19 SOCKET WRENCH BIT F30006120 001
20 SCREWDRIVER F30452770 001
21 SOCKET WRENCH ADAPTER F30025097 001
22 SOCKET WRENCH BIT F30006129 001
23 SOCKET F30452772 001
24 ADAPTER F30452771 001

MTU BR4000-03 ENGINE SPECIAL TOOLS FOR MAINTENANCE

MTU BR4000-03 Special tools for maintenance

MTU BR4000-03 ENGINE SPECIAL TOOLS FOR MAINTENANCE

ORDER NO. DESIGNATION USAGE QTY.
F30378316 INSTALLATION TOOL dowel pin in cylinder head 001
F30378324 SETTING MANDREL cylinder head 002
F30378617 INSTALLATION MANDREL ø20mm, for end cover 001
F30377862 GUIDE SLEEVE for installation mandrel F30378617 001
F30450348 DRIFT to remove valve guide 001
F30450631 VALVE ST GRIND TOOL for exhaust valve, valve-seat insert 001
F70272006 DETACHABLE HOLDER grinding tool with guide ø 11 mm and tapered shaft 001
F30450547 VALVE SEAT GRINDER to recondition upper clearance of exhaust valve 001
F30450646 VALVE SEAT GRINDER to recondition lower clearance of exhaust valve 001
8205890451/00 TURNING HANDLE MK2 001
F30450632 VALVE ST GRIND TOOL for cylinder head inlet valve 001
F70272005 DETACHABLE HOLDER grinding tool with guide ø 11 mm and tapered shaft 001
F30450643 VALVE SEAT GRINDER to recondition upper clearance of inlet valve 001
F30450645 VALVE SEAT GRINDER to recondition lower clearance of inlet valve 001
F30450750 PRESS-IN MANDREL for exhaust valve-seat insert 001
F30450751 PRESS-IN MANDREL for inlet valve-seat insert 001
F30451080 VALVE ST.CTRSK TOOL for cylinder head inlet valve 001
F6781747 SHRINKING TOOL to chill valve guide and to install it in cylinder head 001
F30451081 VALVE SEAT GRINDER to recondition upper clearance of inlet valve 001
F30451082 VALVE SEAT GRINDER to recondition lower clearance of inlet valve 001
F30451554 DRILL/REAMING TOOL for mating surface of injection valve sleeve 001
F30515760 SOCKET WRENCH INSERT AF16, 3/8" square, for mounting exhaust pipe flange 001
F6553658 ANGLE-OF-ROTATION JIG to tighten the cylinder head screws 001
F6554300 ASSEMBLY PLATE to install valve guide in cylinder head 001
