MTU Specialized Tools F6780561 PULLER

F6780561 PULLER

Other
Other F30452739 MILLING CUTTER F30006212 RATCHET WITH EXTENSI ON F30378324 SETTING MANDREL Y20098771 FEELER GAUGE F30379104 OIL FITER WRENCH F6780562 PULLER F6780561 PULLER F6781539 HYDRAULIC PRESSURE SPINDLE T80090944 BRACKET F6801820 BARRING GEAR F6789889 FITTING/REMOVAL DEVICE F6792918 BARRING TOOL F6558557 BARRING DEVICE
PART NUMBER F6780561
ENGINE TYPE BR4000-03
DESCRIPTION PULLER
UNIT WEIGHT 7.040 KG
HS CODE 82055980
NATO-VERS.-NR. 5120123840122
MAINTENANCE LEVEL QL - 3
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Tools details
  • Original tools

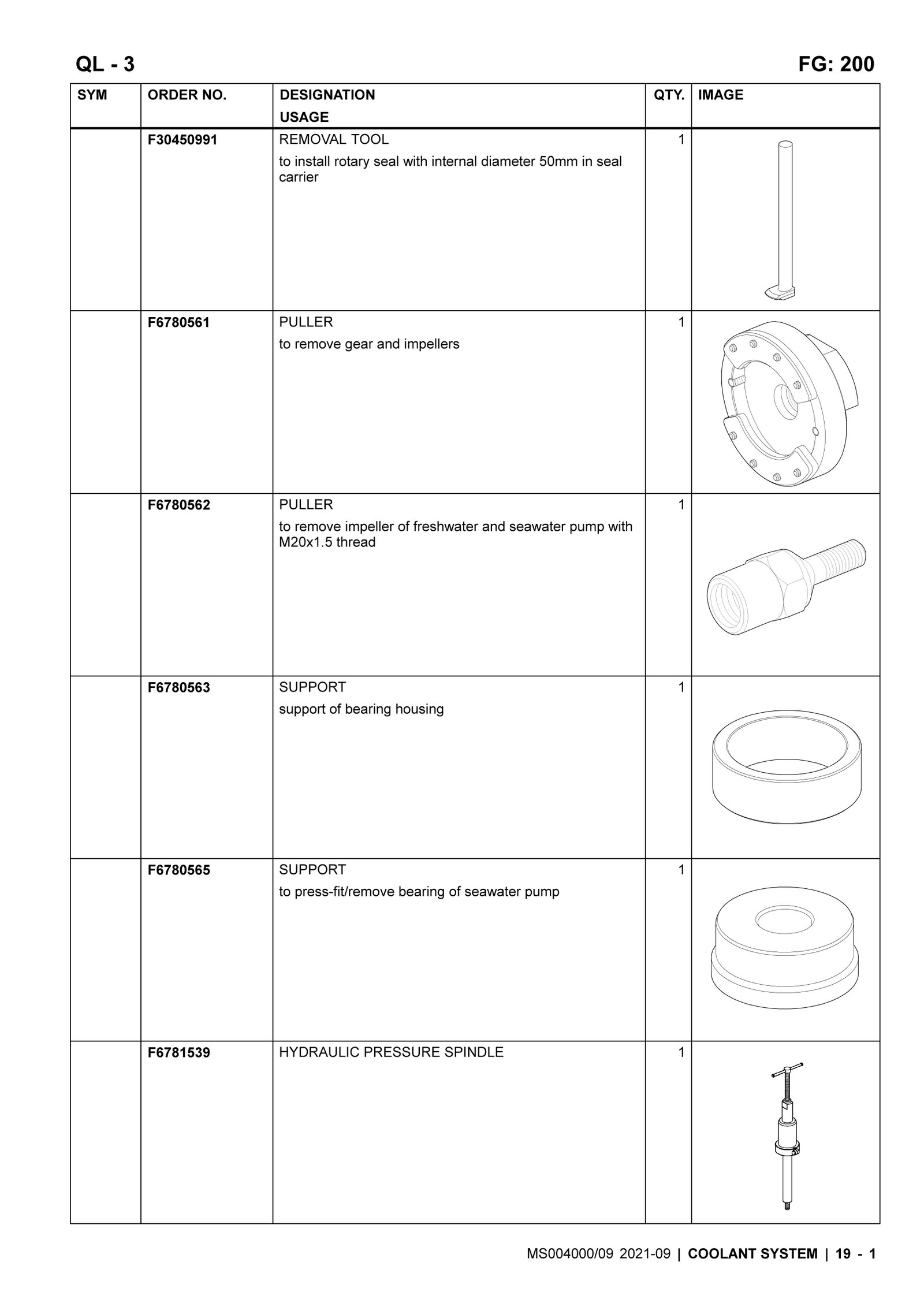

MTU SPECIALIZED TOOLS F6780561 IMPELLERS PULLER

MTU SPECIALIZED TOOLS F6780561 IMPELLERS PULLER

MTU SPECIALIZED TOOLS F6780561 IMPELLERS PULLER

C/N Description ORDER NO. Qty
01 REMOVAL TOOL F30450991 001
02 PULLER F6780561 001
03 PULLER F6780562 001
04 SUPPORT F6780563 001
05 SUPPORT F6780565 001
06 HYDRAULIC PRESSURE SPINDLE F6781539 001
07 SUPPORT F6781573 001
08 PULLER F6785817 001
09 PRESS-IN TOOL F6788557 001
10 PRESS-IN TOOL F6788558 001
11 GUIDE PIN F6789813 001
12 RETAINING FIXTURE 5505890531/00 001
13 PRESS-IN TOOL F30378151 001
14 FORCING TOOL F30379315 001
15 ASSEMBLY PLIERS F30377776 001
16 PRESS-IN TOOL F30450990 001
17 PRESS-IN TOOL F30378550 001
18 PRESS-IN TOOL F30378153 001
19 MOUNT F30275611 001
20 PRESS-IN TOOL F30378152 001
21 CIRCLIP PLIERS F30002760 001
22 ADJ. MANDREL F30373475 001
23 ALIGNMENT JIG F6789270 001
24 ALIGNMENT JIG F6791468 001

MTU BR4000-03 ENGINE SPECIAL TOOLS FOR MAINTENANCE

MTU BR4000-03 Special tools for maintenance

MTU BR4000-03 ENGINE SPECIAL TOOLS FOR MAINTENANCE

ORDER NO. DESIGNATION USAGE QTY.
F30452768 TORQUE WRENCH 60-320Nm 001
F30006068 DOUBLE OPEN-END WRENCH wrench size 55x60 001
F30004455 SINGLE-ENDED OPEN-END WRENCH wrench size 65 for engine mount 001
F30002785 DOUBLE OPEN END WRENCH wrench size 41x46 001
F30378921 SCREW DRIVER SOCKET wrench size14, female square 1/2", for starter 001
F30455321 CROWFOOT BOX WRENCH AF17, 12-flange, 3/8" 001
F30455322 CROWFOOT BOX WRENCH AF19, 12-flange, 3/8" 001
F30452564 TOOL KIT special tool kit 001
F6790604 TOOL BOX N/A 001
F6789889 FITTING/REMOVAL DEVICE Fuel injector disassembly tool 001
F30452739 MILLING CUTTER for injector seat 001
F6801820 BARRING GEAR for cranking engine, with M16 and M20 screws 001
F30373588 CROWFOOT BOX WRENCH wrench size 27, 1/2" 001
F30450906 BOX WRENCH wrench size 41 offset, 14 x 18 square for HP fuel line 001
F6792918 BARRING TOOL for flywheel / engine assembly 001
F6558528 ADAPTER for barring tool, position from below, hole pitch attachment 001
F6783293 BARRING TOOL for 20V 4000 truck engines 001
F6793994 ALIGNMENT JIG Exhaust pipe bellows 001
F6793654 ASSEMBLY JIG Exhaust pipe bellows 001
F30378499 WRENCH ADAPTER for starter installation/removal with short flywheel housing 001
F30044239 TORQUE WRENCH 9x12 square, 4-20Nm 001
F30450905 BOX WRENCH A/F 41, 14x18 sq. for HP line 001
F30453003 OPEN-END WRENCH wrench size 90, flattened, for resilient mount 001
F30379609 BOX WRENCH Tighten damping mount of engine mounting. 001
