MTU Specialized Tools T80090944 BRACKET

T80090944 BRACKET

Other
Other F30452739 MILLING CUTTER F30006212 RATCHET WITH EXTENSI ON F30378324 SETTING MANDREL Y20098771 FEELER GAUGE F30379104 OIL FITER WRENCH F6780562 PULLER F6780561 PULLER F6781539 HYDRAULIC PRESSURE SPINDLE T80090944 BRACKET F6801820 BARRING GEAR F6789889 FITTING/REMOVAL DEVICE F6792918 BARRING TOOL F6558557 BARRING DEVICE
PART NUMBER T80090944
ENGINE TYPE BR4000-03
DESCRIPTION BRACKET
UNIT WEIGHT 2.420 KG
HS CODE 82055980
NATO-VERS.-NR. 4910123860173
MAINTENANCE LEVEL QL - 3
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Tools details
  • Original tools

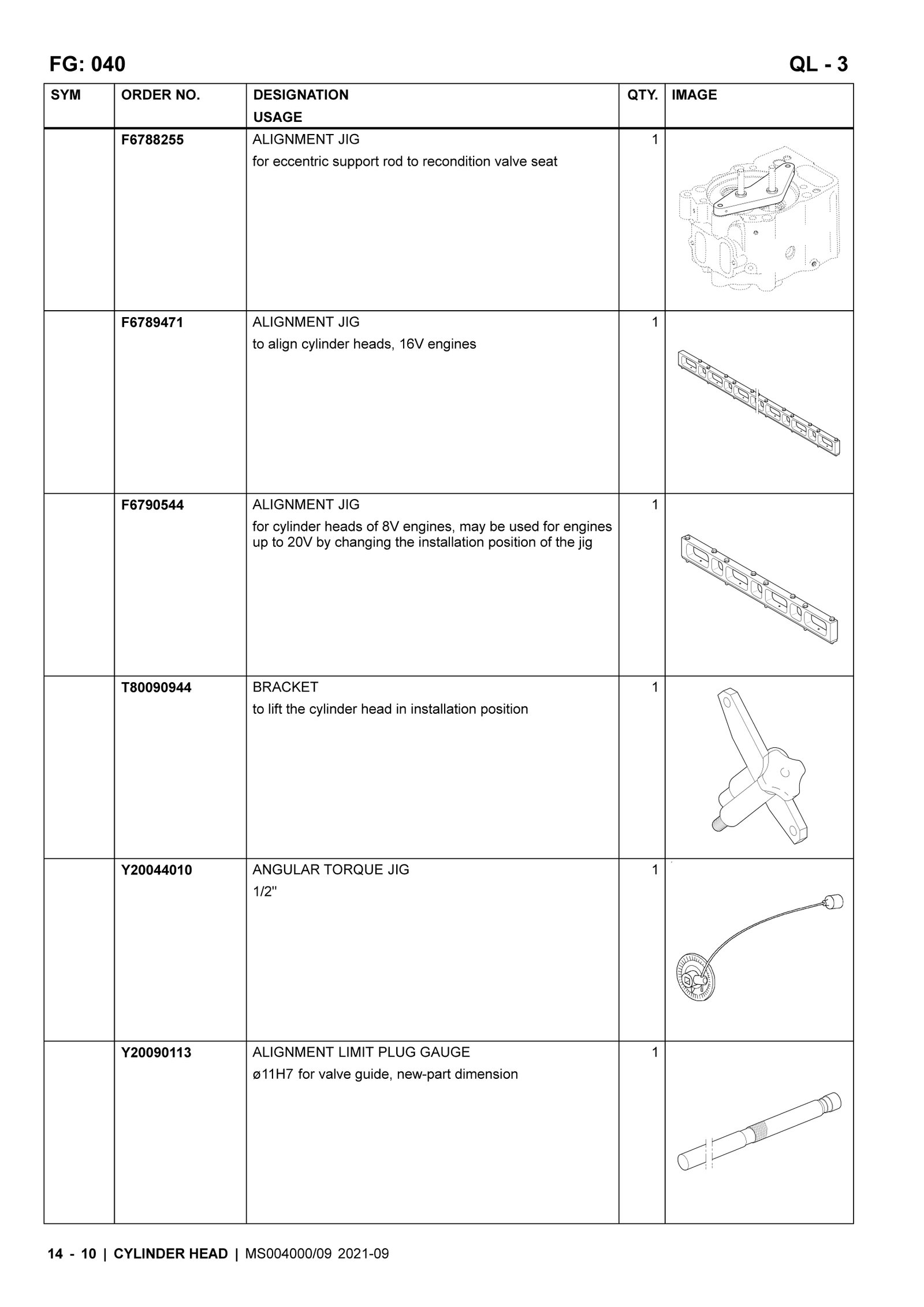

MTU SPECIALIZED TOOLS T80090944 BRACKET

MTU SPECIALIZED TOOLS T80090944 BRACKET

MTU SPECIALIZED TOOLS T80090944 BRACKET

C/N Description ORDER NO. Qty
01 TOOL BOX F6783737 001
02 SCREW FOR INDEXABLE INSERT F70026248 001
03 CLAMP F70272935 001
04 TEST RIG Y4347140 001
05 VALVE SPR. COMP.DEV. F6797411 001
06 TOOL KIT F6784421 001
07 BORING HEAD F30450909 001
08 TURNING TOOL F30450558 001
09 STEADY HOLDER F30450910 001
10 CLAMP BAR F30450911 001
11 SUPPORT F30450916 001
12 SEAT RING EXTRACTOR F30450912 001
13 SUPPORT F30454314 001
14 ALIGNMENT JIG F6788255 001
15 ALIGNMENT JIG F6789471 001
16 ALIGNMENT JIG F6790544 001
17 BRACKET T80090944 001
18 ANGULAR TORQUE JIG Y20044010 001
19 ALIGNMENT LIMIT PLUG GAUGE Y20090113 001

T80090944 SUPERSEDED PART AND EFFECTIVE DATE

T80090944 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 T80090944 J-42730 N/A
02 T80090944 T80090944 2009/03/01

MTU BR4000-03 ENGINE SPECIAL TOOLS FOR MAINTENANCE

MTU BR4000-03 Special tools for maintenance

MTU BR4000-03 ENGINE SPECIAL TOOLS FOR MAINTENANCE

ORDER NO. DESIGNATION USAGE QTY.
F30006199 STRAP WRENCH for fuel filter with constricted installation area 001
F30452561 TOOL KIT multi-purpose tool kit 001
8205892061/00 ASSEMBLY MIRROR flexible 001
F30022000 WRENCH, RING DE O/SET wrench size 24x27 001
F30011450 WRENCH, RING DE O/SET wrench size 17x19 001
F30516143 EXTENSION, ROTATABLE 1/2", 50mm long, for exhaust pipe bellows 001
F30452766 OFFSET SCREWDRIVER 1,5-10 hexagon 001
F30452767 TOOL KIT 1/4" and 1/2", 38 parts 001
F30452765 OFFSET SCREWDRIVER 14 hexagon 001
F30452774 TORQUE SCREWDRIVER 1,0-5,0Nm 001
F30452764 SCREWDRIVER TORX 30 001
F30379104 OIL FITER WRENCH Square drive 1/2", also for fuel filter 001
F30452771 ADAPTER 1/4", square - hexagon 001
Y20098771 FEELER GAUGE N/A 001
F30017884 PIPE WRENCH slip joint pliers for electric plug connections 001
8205892061/00 ASSEMBLY MIRROR lexible 001
8205892961/03 MAGNET HEAD M10x1 001
F30515239 PRY BAR WITH DOG N/A 001
F30501569 EXTENSION, OFFSET 3/8" bent, for crowfoot box wrench 001
F30027426 CROWFOOT BOX WRENCH wrench size 24, 3/8" square 001
F30028347 BOX WRENCH SOCKET wrench size 17, 9x12 square 001
F30024325 CROWFOOT BOX WRENCH wrench size 17, 3/8" square 001
F30039518 BOX WRENCH BIT wrench size 18, 9x12 square for valve crosshead 001
F30011612 SOCKET WRENCH BIT 1/2" 13 A/F, long 001
