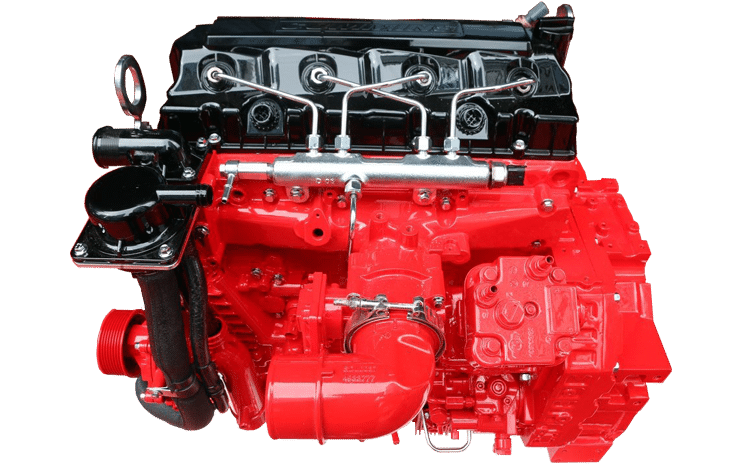

Engine model F4.5NS6B220
Engine type 4 stroke, 4 cylinders in line
Displacement 4.5 L
Rated Power 162kW (220 HP) @ 2300rpm
Peak Torque 820 N.m @ 1300-1500rpm
Emission Standard Euro Ⅵ
Use for Commercial Vehicle
Cummins logo
Cummins logo
  • Product advantages
  • Cummins parts

Cummins engine F4.5NS6B220 technique specification

Bore*stroke 107 * 127mm
Intake method Turbochager & Intercooled
Fuel systeme Bosch Direct Injection/HPCR, SCR
Governor Type Electronic Control
Compression Ratio 17.2 : 1
Fuel Consumption: 195g/kW.h @ Rated Power
Lowest Starting Temp .(with/without auxiliary system) -10℃/-35℃
Firing order 1-3-4-2
Adaptation range Suitable for light trucks, medium buses, and medium buses

Cummins diesel engine F4.5NS6B220 trade information

Warranty time 1year or 1500h
Engine Size(L*W*H): 888mm*818mm*700mm
Packing size 960mm*860mm*740mm
Weight net 335 Kg
Weight gross 380 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

Cummins spare parts | P/N: 5271866

Cylinder Head | P/N: 5271866

Genuine Cummins Parts | LF16352

Filtration | P/N: LF16352

Cummins engine parts | P/N: 4307475

Fuel injector | P/N: 4307475

Cummins diesel parts | P/N: 3904166

Cylinder Liner | P/N: 3904166

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Choose Genuine. Because There is a Difference.

Genuine Cummins Parts

Choose Genuine. Because There is a Difference.

Using Genuine Cummins parts makes all the difference. Genuine Cummins new and ReCon® parts are guaranteed to fit right and work right.

Extend the life of your equipment by choosing the best parts for your Cummins engine or generator.

Backed by Cummins with a 100% comprehensive warranty on parts, labour and progressive damage nothing works better or lasts longer.

The difference between Genuine Cummins parts and non-genuine parts isn’t always the easiest to detect.

Precision design, state-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance.

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
