MTU 0002000001 COOLANT PUMP ASSY

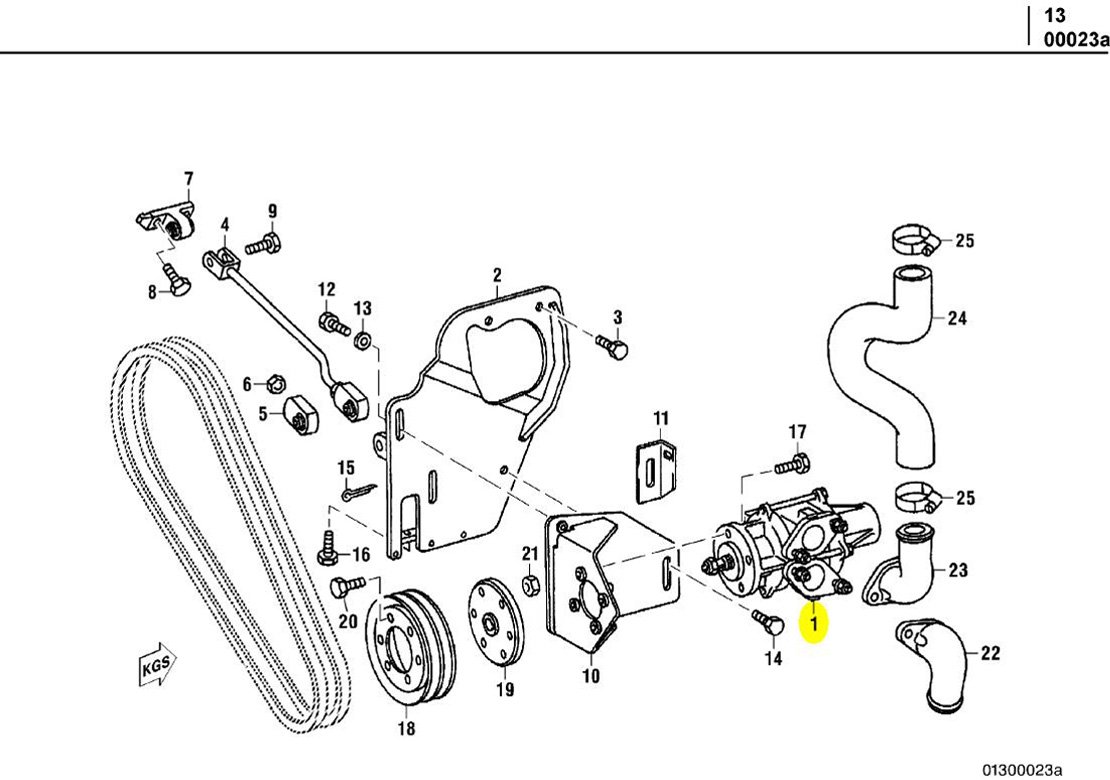

MTU 12V 183 TA,TB,TE32 Parts 0002000001 Technical Engineering Exploded View MTU 12V 183 TA,TB,TE32 Parts 0002000001 COOLANT PUMP ASSY

MTU 0002000001 COOLANT PUMP ASSY

C/N Description Part-Number Qty
01 COOLANT PUMP 0002000001 01
02 SUPPORT 4221300235 01
03 SCREW 910105014031 02
04 STIFFENER 4222300394 01
05 BEARING BODY 4442300008 01
06 HEX NUT 000439014206 01
07 BEARING PEDESTAL 4442300039 01
08 SCREW 910105010006 02
09 SCREW 910105010011 02
10 RETAINR 4242300040 01
11 RETAINR 4442360040 01
12 SCREW 304017010040 02
13 WASHER 007349010002 02
14 SCREW 308676012038 01
15 SPLIT PIN 000094002060 01
16 SCREW 304017010039 01
17 SCREW 304017010040 04
18 V-BELT PULLEY 4032021310 01
19 HUB 4242020014 01
20 SCREW 304017008023 06
21 HEX NUT 000934008005 06
22 UNION 4242030030 01
23 UNION 4242030031 01
24 HOSE 4242030082 01
25 CLAMP 000000000671 02

MTU 183 Diesel Engine Models & Specifications

MTU 8V 183 TE92 Diesel Engine

MTU 183 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
8V 183 TE52 OM 442 LA 243 1500
8V 183 TE52 OM 442 LA 367 1800
8V 183 AA51 OM 422 152 1500
8V 183 AA51 OM 422 178 1800
6R 183 TD13H OM 447 H LA 275 2100
12V 183 TE93 OM 444 LA 846 2400
12V 183 TE52 OM 444 LA 455 1500
12V 183 TE52 OM 444 LA 550 1800
12V 183 TD13 OM 444 LA 450 1500
12V 183 TD13 OM 444 LA 550 2100
12V 183 TB32 OM 444 LA 441 1500
12V 183 TA12 OM 444 A 400 2100
