| PART NUMBER | 4220530196 |
| ENGINE TYPE | MTU 183 ENGINE |

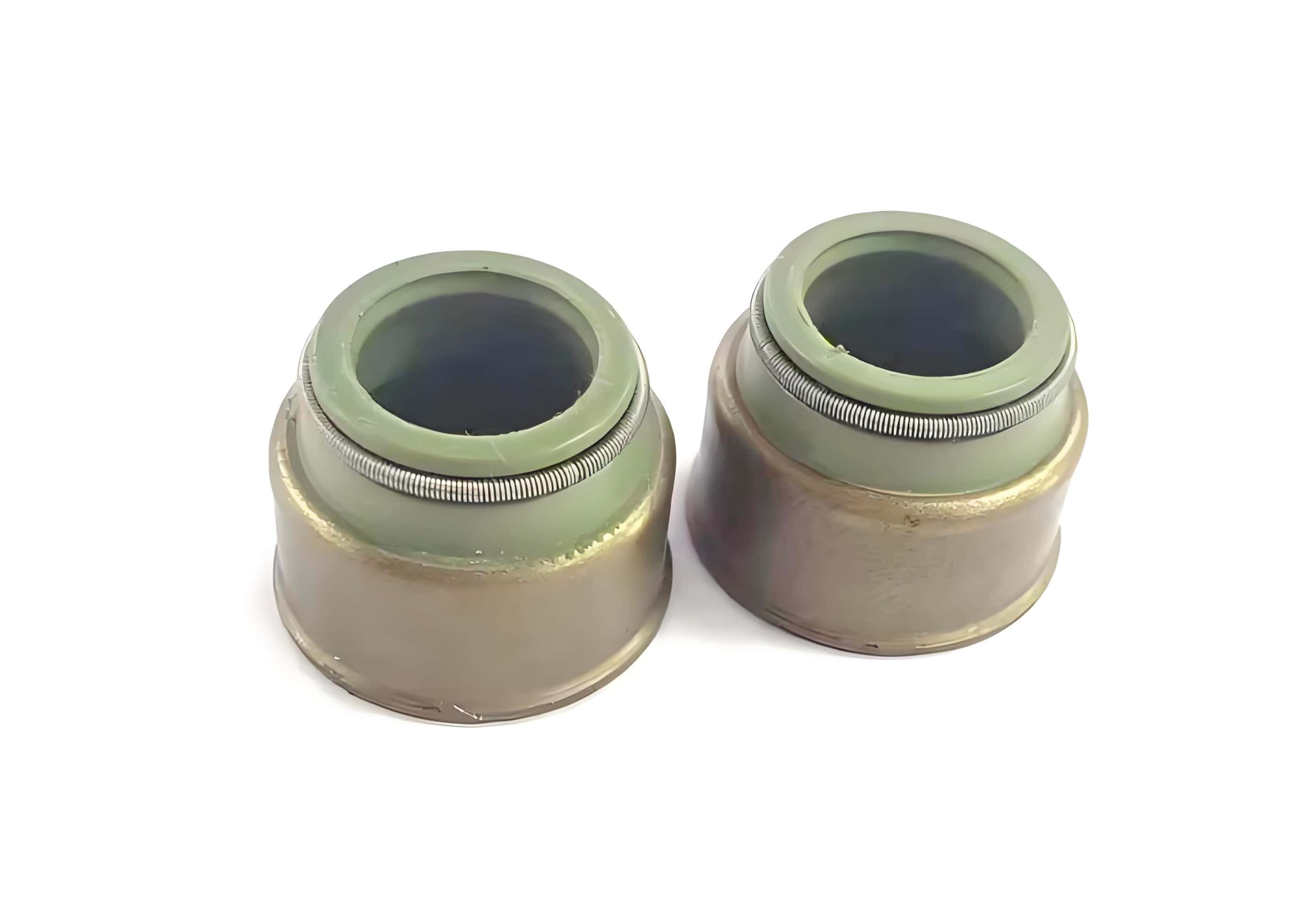

| DESCRIPTION | VALVE STEM SEAL |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.02 KG |
| HS CODE | 84841000 |
| NATO-VERS.-NR. | 5330123140217 |

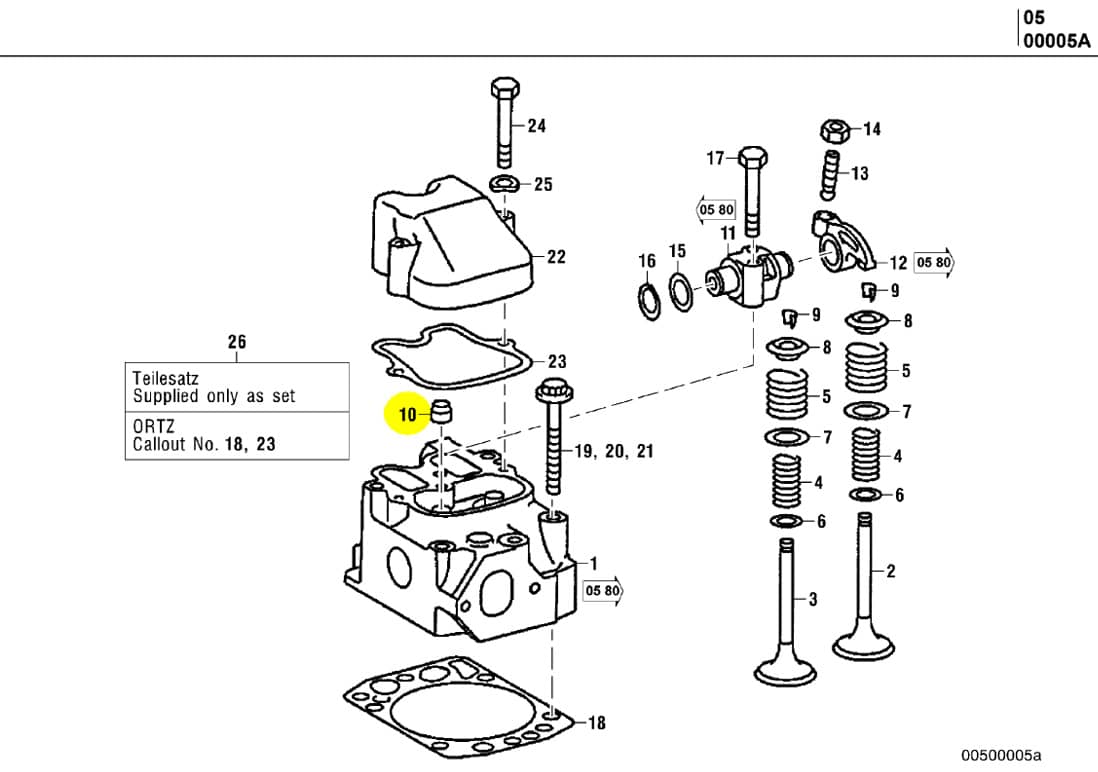

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 01 | CYLINDER HEAD | 4290100220 | 12 |
| 02 | INLET VALVE | 4420500526 | 12 |
| 03 | EXHAUST VALVE | 4420500227 | 12 |
| 04 | INNER VALVE SPRING | 4030531022 | 24 |
| 05 | OUTER VALVE SPRING | 4030530720 | 24 |
| 06 | COMPENSATING WASHER | 4030530052 | 24 |
| 07 | COMPENSATING WASHER | 4030530152 | 24 |
| 08 | SPRING RETAINER | 4220530025 | 24 |
| 09 | COLLET | 4220530026 | 48 |
| 10 | VALVE STEM SEAL | 4220530196 | 24 |
| 11 | ROCKER ARM - BEARING BRACKET | 4030501236 | 12 |
| 12 | ROCKER ARM | 4420500333 | 01 |
| 13 | ADJUSTER SCREW | 4420550020 | 24 |
| 14 | NUT | 4229900051 | 24 |
| 15 | DISC | 0019908240 | 24 |
| 16 | RING SNAP | 000471024000 | 24 |
| 17 | HEX SCREW | 000931010369 | 24 |
| 18 | CYLINDER HEAD GASKET | 4420160420 | 12 |
| 19 | SCREW | 4229900401 | 24 |
| 20 | SCREW | 4229900301 | 36 |
| 21 | SCREW | 4229900201 | 12 |
| 22 | CYLINDER HD COVER | 4420160505 | 09 |
| 23 | GASKET | 4420160621 | 12 |
| 24 | HEX SCREW | 000931008173 | 24 |
| 25 | WASHER SPRING B8 | 000137008203 | 24 |
| 26 | GASKET KIT | 4440100120 | 12 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 4220530196 | 4030530096 | N/A |
| 02 | 4220530196 | 4220530096 | 1989/03/01 |
| 03 | 4220530196 | 4030530196 | 1989/04/01 |
| Make | Year of construction | Power KW | U/MIN |
|---|---|---|---|
| 8V 183 TE52 | OM 442 LA | 243 | 1500 |
| 8V 183 TE52 | OM 442 LA | 367 | 1800 |
| 8V 183 AA51 | OM 422 | 152 | 1500 |
| 8V 183 AA51 | OM 422 | 178 | 1800 |
| 6R 183 TD13H | OM 447 H LA | 275 | 2100 |
| 12V 183 TE93 | OM 444 LA | 846 | 2400 |
| 12V 183 TE52 | OM 444 LA | 455 | 1500 |
| 12V 183 TE52 | OM 444 LA | 550 | 1800 |
| 12V 183 TD13 | OM 444 LA | 450 | 1500 |
| 12V 183 TD13 | OM 444 LA | 550 | 2100 |
| 12V 183 TB32 | OM 444 LA | 441 | 1500 |
| 12V 183 TA12 | OM 444 A | 400 | 2100 |
