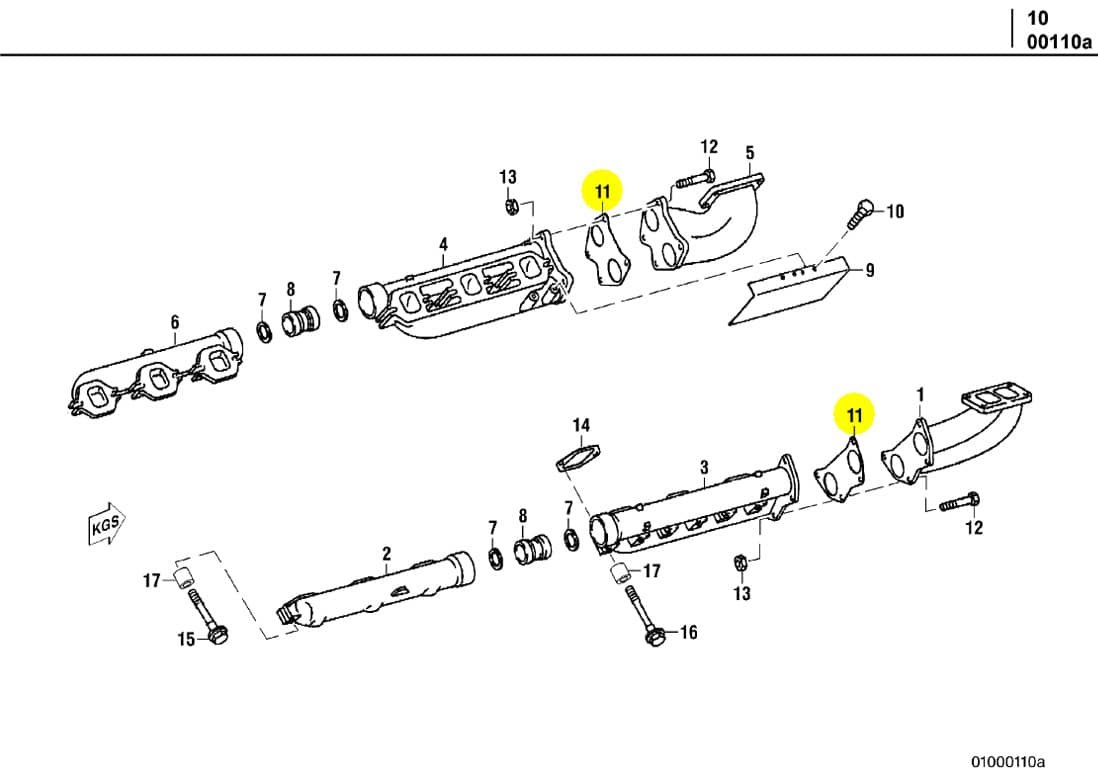

MTU 4041420180 Technical Engineering Exploded View

MTU 4041420180 Technical Engineering Exploded View

MTU 4041420180 Technical Engineering Exploded View

C/N Description Part-Number Qty
01 EXHAUST ELBOW 4041422801 01
02 EXHAUST ELBOW 4041422601 01
03 EXHAUST ELBOW 4041422701 01
04 EXHAUST ELBOW 4041422401 01
05 EXHAUST ELBOW 4041422501 01
06 EXHAUST ELBOW 4041422301 02
07 SEALING RING 0001423657 04
08 CONNECTING ELEMENT 4241420211 02
09 HEAT SHIELD 4041420920 02
10 HEX SCREW 000000000436 08

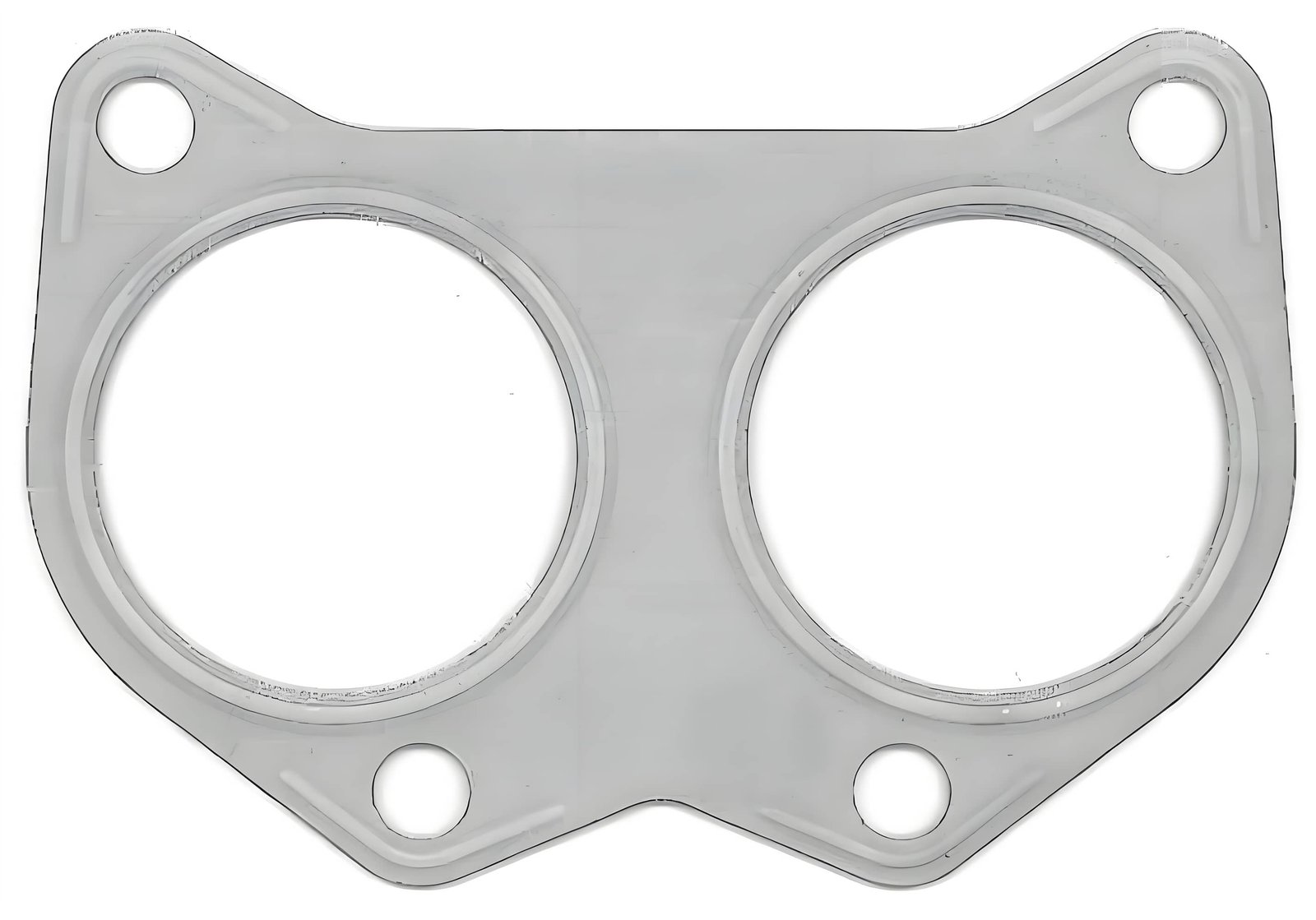

11 GASKET 4041420180 02
12 SCREW 0059900201 02
13 HEX SCREW 000934010007 08
14 GASKET 4031420380 12
15 SCREW 4479905804 10
15A SCREW 4479907004 10
16 SCREW 4479907104 14
16A SCREW 4479907104 14
17 CLAMP 4031420212 24

MTU 183 Diesel Engine Models & Specifications

MTU 8V 183 TE92 Diesel Engine

MTU 183 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
8V 183 TE52 OM 442 LA 243 1500
8V 183 TE52 OM 442 LA 367 1800
8V 183 AA51 OM 422 152 1500
8V 183 AA51 OM 422 178 1800
6R 183 TD13H OM 447 H LA 275 2100
12V 183 TE93 OM 444 LA 846 2400
12V 183 TE52 OM 444 LA 455 1500
12V 183 TE52 OM 444 LA 550 1800
12V 183 TD13 OM 444 LA 450 1500
12V 183 TD13 OM 444 LA 550 2100
12V 183 TB32 OM 444 LA 441 1500
12V 183 TA12 OM 444 A 400 2100
