MTU Engins Oil System Assembly Components 007603014104

MTU MTU Oil System Assembly Components 007603014104

MTU Engines Oil System Assembly Components 007603014104

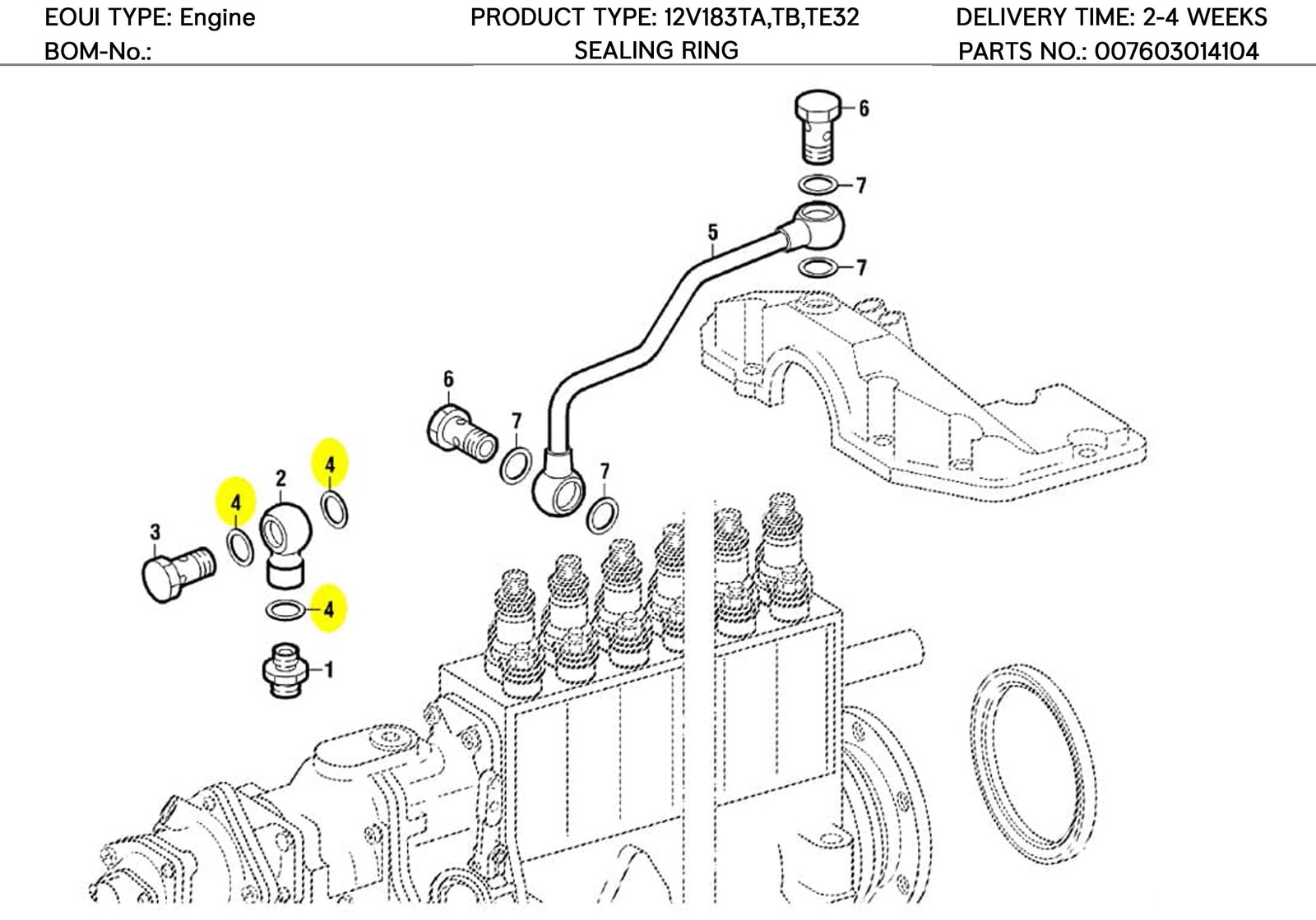

C/N Description Part-Number Qty
01 UNION 1129970372 01
02 BANJO UNION 0009900388 01
03 BANJO SCREW 3649900063 01
04 SEALING RING 007603014104 03
05 OIL RETURN LINE 4441800322 01
06 BANJO SCREW 3649900063 02
07 WASHER A COP 007603014106 04

007603014104 SUPERSEDED PART AND EFFECTIVE DATE

007603014104 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 007603014104 4114110005 N/A
02 007603014104 4120110009 2004/02/01

MTU 183 Diesel Engine Models & Specifications

MTU 8V 183 TE92 Diesel Engine

MTU 183 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
8V 183 TE52 OM 442 LA 243 1500
8V 183 TE52 OM 442 LA 367 1800
8V 183 AA51 OM 422 152 1500
8V 183 AA51 OM 422 178 1800
6R 183 TD13H OM 447 H LA 275 2100
12V 183 TE93 OM 444 LA 846 2400
12V 183 TE52 OM 444 LA 455 1500
12V 183 TE52 OM 444 LA 550 1800
12V 183 TD13 OM 444 LA 450 1500
12V 183 TD13 OM 444 LA 550 2100
12V 183 TB32 OM 444 LA 441 1500
12V 183 TA12 OM 444 A 400 2100
