MTU 0012040100 COOLANT PUMP ASSEMBLY

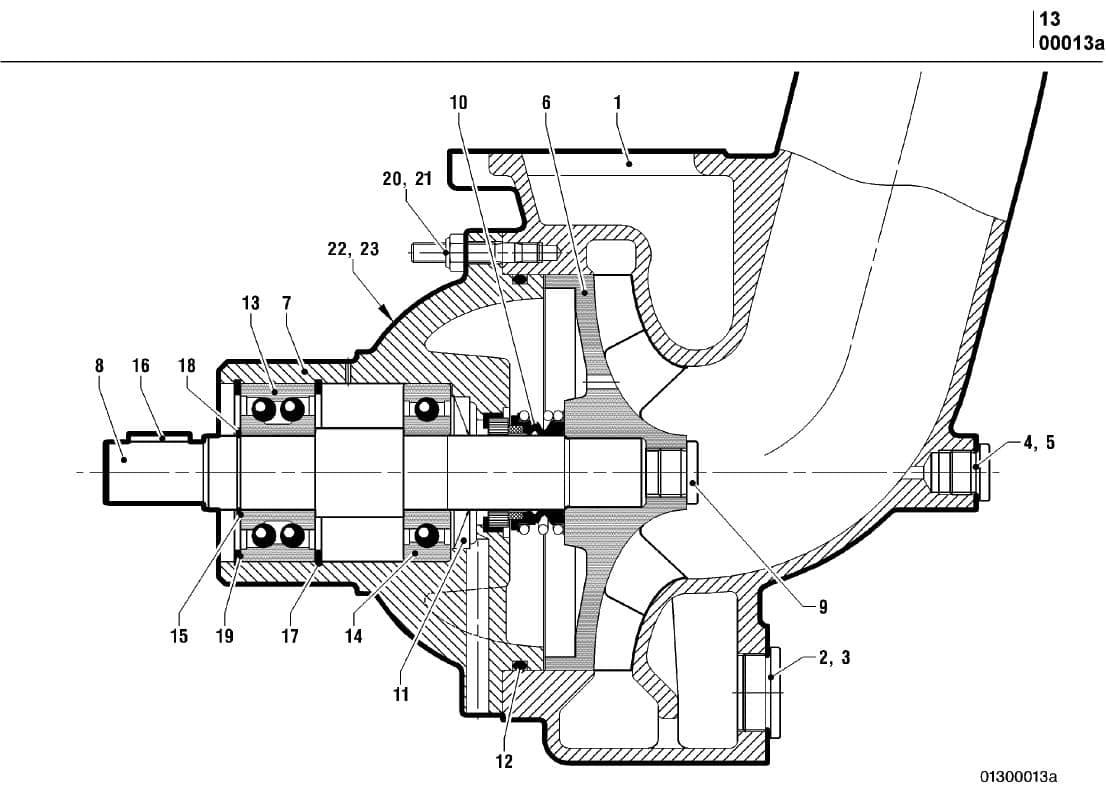

MTU 12V 183 TE94 0012040100 Technical Engineering Exploded View MTU 12V 183 TE94 0012040100 COOLANT PUMP ASSEMBLY

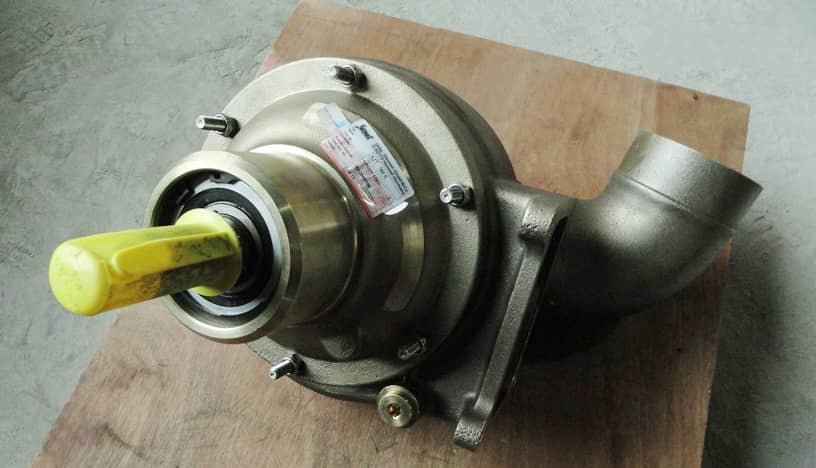

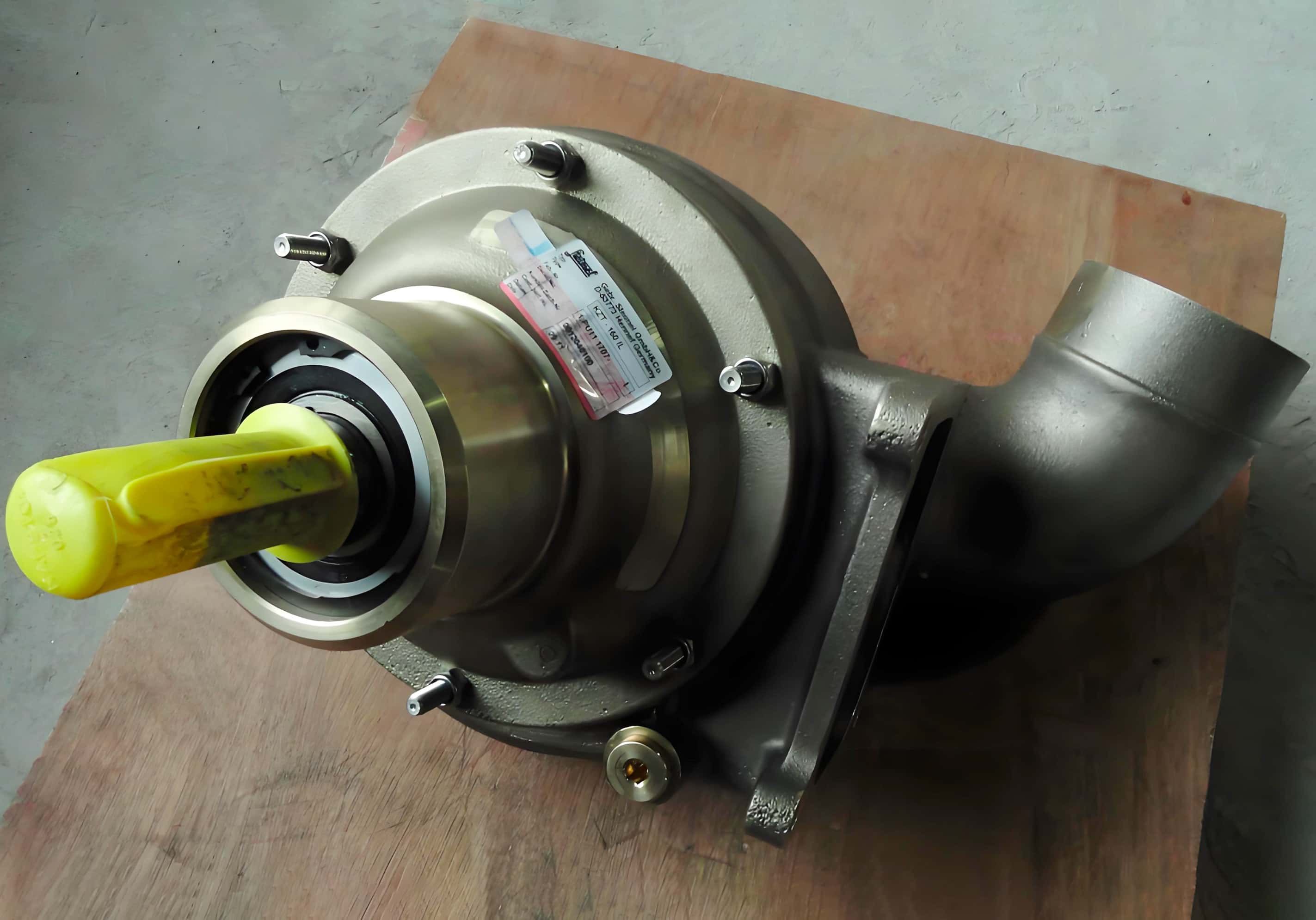

MTU 0012040100 COOLANT PUMP ASSEMBLY

C/N Description Part-Number Qty
000 SEAWATER PUMP 0012040100 01
01 HOUSING 8692040102 01
02 PLUG =ITPG11/4 01
03 SEALING RING 007603042101 01
04 PLUG =ITP18X1,5 02
05 SEALING RING 007603018101 02
06 IMPELLER 8692040099 01
07 BEARING HOUSING =ELG160-MTUSM33 01
08 COOLANT PUMP SHAFT 8692040100 01
09 PLUG =ITP18X1,5 01
10 ROTARY SEAL 8692010024 01
11 SEALING RING 8699970391 01
12 SEALING RING 8699970245 01
13 ANGLR-CONT BALL BRG 8699810028 01
14 GROOVED BALL BEARING 8699810029 01
15 WASHER 8692040101 02
16 WOODRUFF KEY 8699910012 01
17 SNAP RING 8699940022 02
18 SNAP RING 000471030000 01
19 WASHER 8692040086 02
20 STUD =IBS08X040A2/32 06
21 NUT =IBY08A2 06
22 MAMEPLATE =ETY924-AA03 01
23 GROOVED PIN 001476002013 02

MTU 183 Diesel Engine Models & Specifications

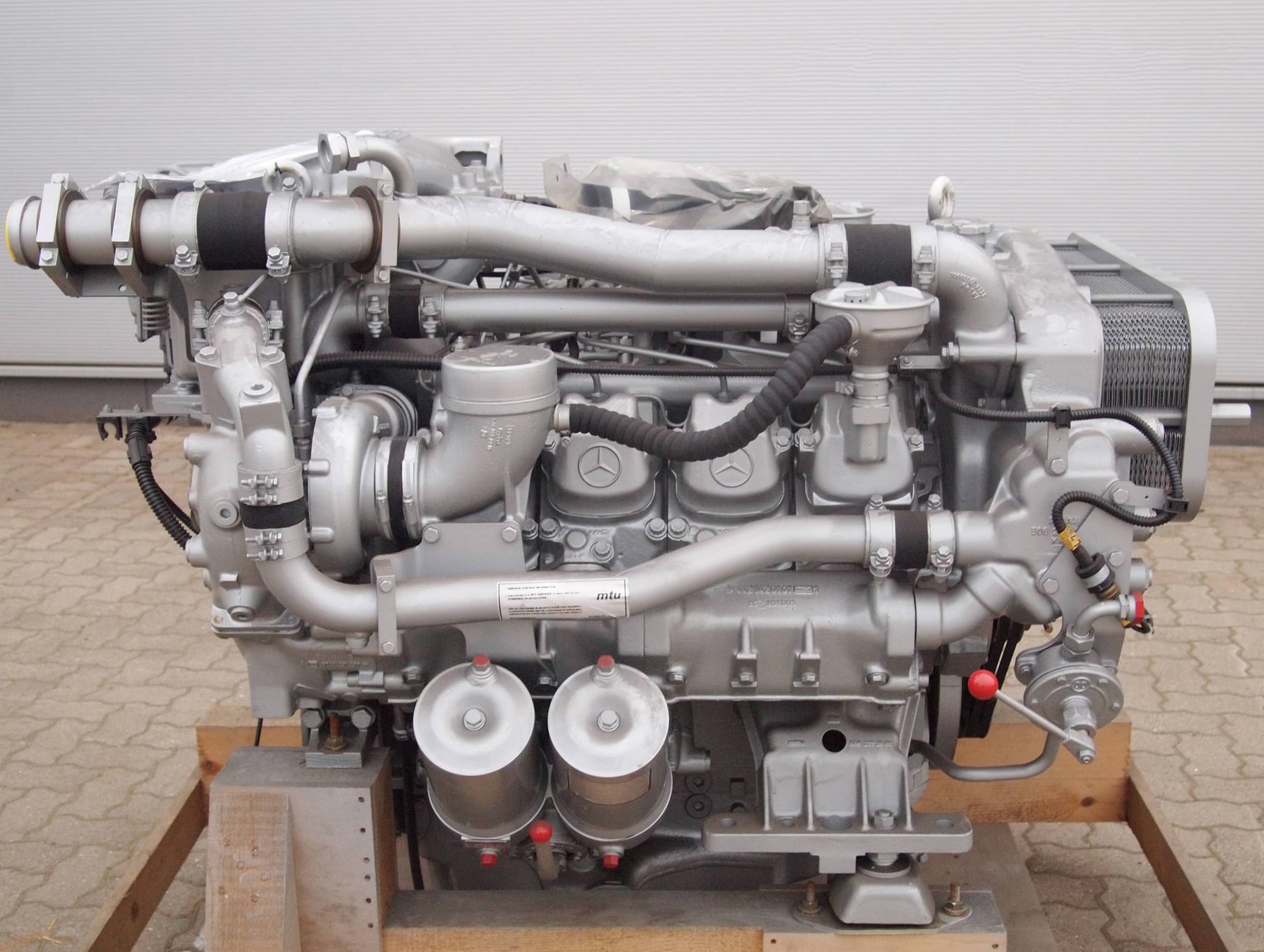

MTU 8V 183 TE92 Diesel Engine

MTU 183 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
8V 183 TE52 OM 442 LA 243 1500
8V 183 TE52 OM 442 LA 367 1800
8V 183 AA51 OM 422 152 1500
8V 183 AA51 OM 422 178 1800
6R 183 TD13H OM 447 H LA 275 2100
12V 183 TE93 OM 444 LA 846 2400
12V 183 TE52 OM 444 LA 455 1500
12V 183 TE52 OM 444 LA 550 1800
12V 183 TD13 OM 444 LA 450 1500
12V 183 TD13 OM 444 LA 550 2100
12V 183 TB32 OM 444 LA 441 1500
12V 183 TA12 OM 444 A 400 2100
