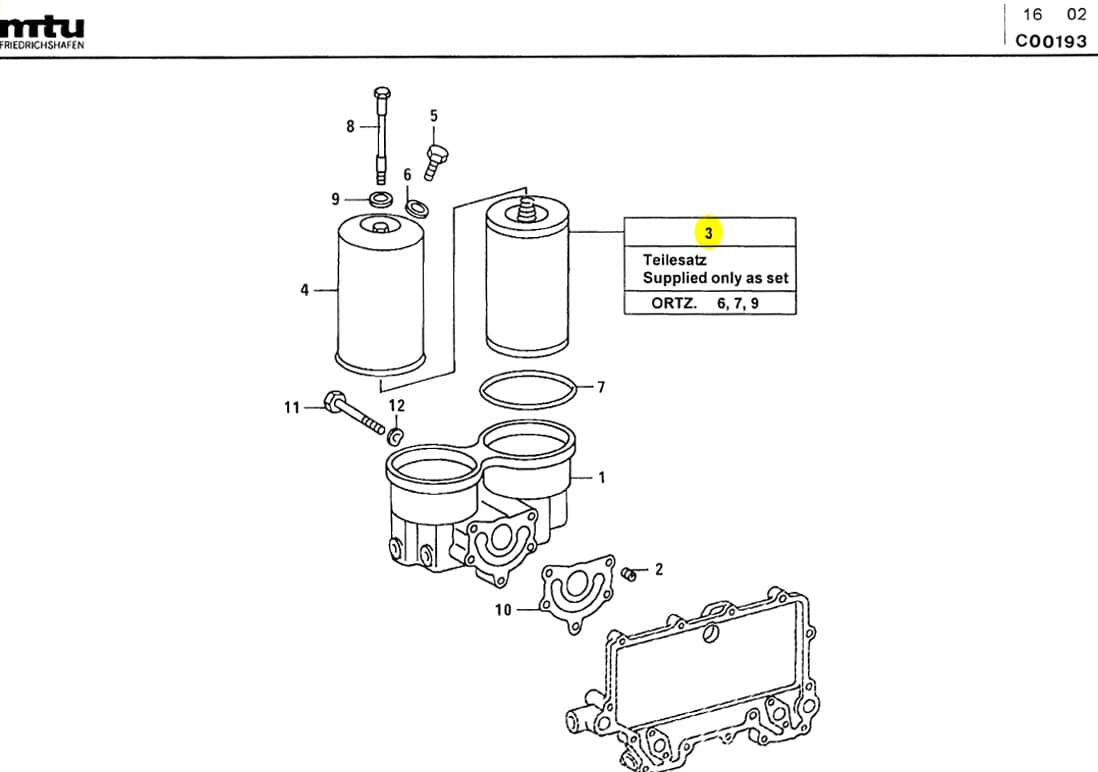

MTU 4021800009 Technical Engineering Exploded View

MTU 4021800009 Technical Engineering Exploded View

MTU 4021800009 Technical Engineering Exploded View

C/N Description Part-Number Qty
01 OIL FILTER BOWL 0001802138 01
02 INSERT THREAD 900421010000 05
03 FILTER ELEMENT 4021800009 02
04 FILTER HOUSING 4031800011 02
05 PLUG 4429970030 02
06 COPPER SEALING RING 007603018101 02
07 SEALING RING 0089977045 02
08 SCREW 4039900301 02
09 SEALING RING 007603014405 02
10 GASKET 4441840080 01
11 HEX SCREW 000931010100 01
12 WASHER SPRING 000137010201 05

4021800009 SUPERSEDED PART AND EFFECTIVE DATE

4021800009 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 4021800009 51.055504-0078 N/A
02 4021800009 51.055504-0069 2003/02/01
03 4021800009 0011840625 2003/03/01
04 4021800009 4031840025 2003/04/01
05 4021800009 4021800009/67 2003/05/01

MTU 183 Diesel Engine Models & Specifications

MTU 8V 183 TE92 Diesel Engine

MTU 183 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
8V 183 TE52 OM 442 LA 243 1500
8V 183 TE52 OM 442 LA 367 1800
8V 183 AA51 OM 422 152 1500
8V 183 AA51 OM 422 178 1800
6R 183 TD13H OM 447 H LA 275 2100
12V 183 TE93 OM 444 LA 846 2400
12V 183 TE52 OM 444 LA 455 1500
12V 183 TE52 OM 444 LA 550 1800
12V 183 TD13 OM 444 LA 450 1500
12V 183 TD13 OM 444 LA 550 2100
12V 183 TB32 OM 444 LA 441 1500
12V 183 TA12 OM 444 A 400 2100
