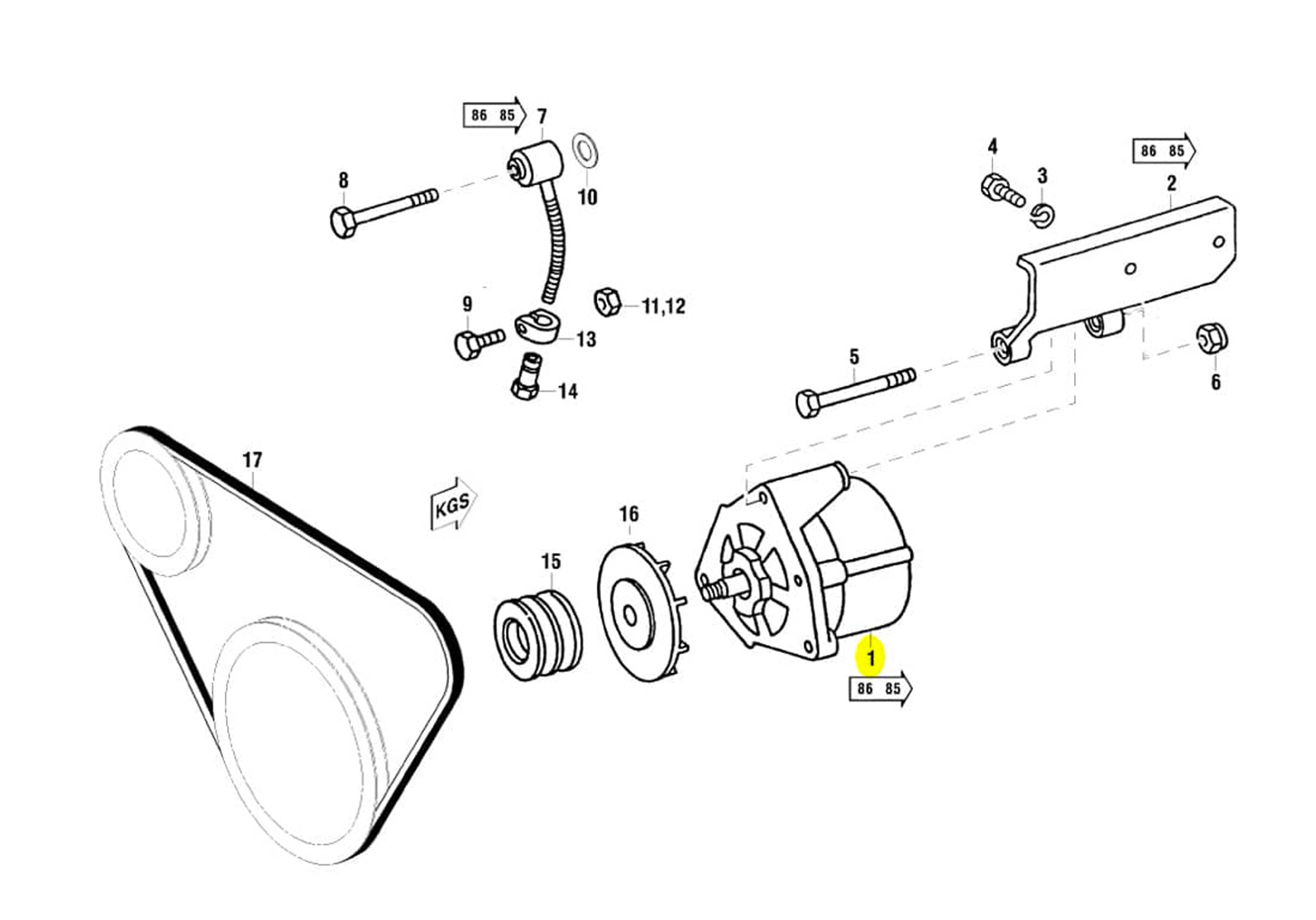

MTU 0071548102 Technical Engineering Exploded View

MTU 0071548102 Technical Engineering Exploded View

MTU 0071548102 Technical Engineering Exploded View

C/N Description Part-Number Qty
01 THREE-PHASE GENERATOR 0071548102 01
02 SUPPORT 4031504270 01
03 WASHER 000125015016 02
04 SCREW 910105014031 02
05 SCREW 304014010015 01
06 NUT 913023010002 01
07 STUD 4031500572 01
08 SCREW 910105010008 01
09 SCREW 0089909201 01
10 WASHER 4039901340 01
11 NUT 913023012002 01
12 NUT 913023012004 02
13 CLAMP 3141550528 01
14 NUT HEX M12 X 33 CLAMPING 3521550172 01
15 BELT PULLEY 0011551015 01
16 FAN 0001558518 01
17Z SET OF PARTS 0001500472 01

0071548102 SUPERSEDED PART AND EFFECTIVE DATE

0071548102 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 0071548102 0031546602 1990/08/01
02 0071548102 0071547502 1990/09/01

MTU 183 Diesel Engine Models & Specifications

MTU 8V 183 TE92 Diesel Engine

MTU 183 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
8V 183 TE52 OM 442 LA 243 1500
8V 183 TE52 OM 442 LA 367 1800
8V 183 AA51 OM 422 152 1500
8V 183 AA51 OM 422 178 1800
6R 183 TD13H OM 447 H LA 275 2100
12V 183 TE93 OM 444 LA 846 2400
12V 183 TE52 OM 444 LA 455 1500
12V 183 TE52 OM 444 LA 550 1800
12V 183 TD13 OM 444 LA 450 1500
12V 183 TD13 OM 444 LA 550 2100
12V 183 TB32 OM 444 LA 441 1500
12V 183 TA12 OM 444 A 400 2100
