MTU 4421411780 Charge Air Piping - Exhaust Piping Gaska

MTU 4421411780 Charge Air Piping - Exhaust Piping Gaska

MTU 4421411780 Charge Air Piping - Exhaust Piping Gaskat

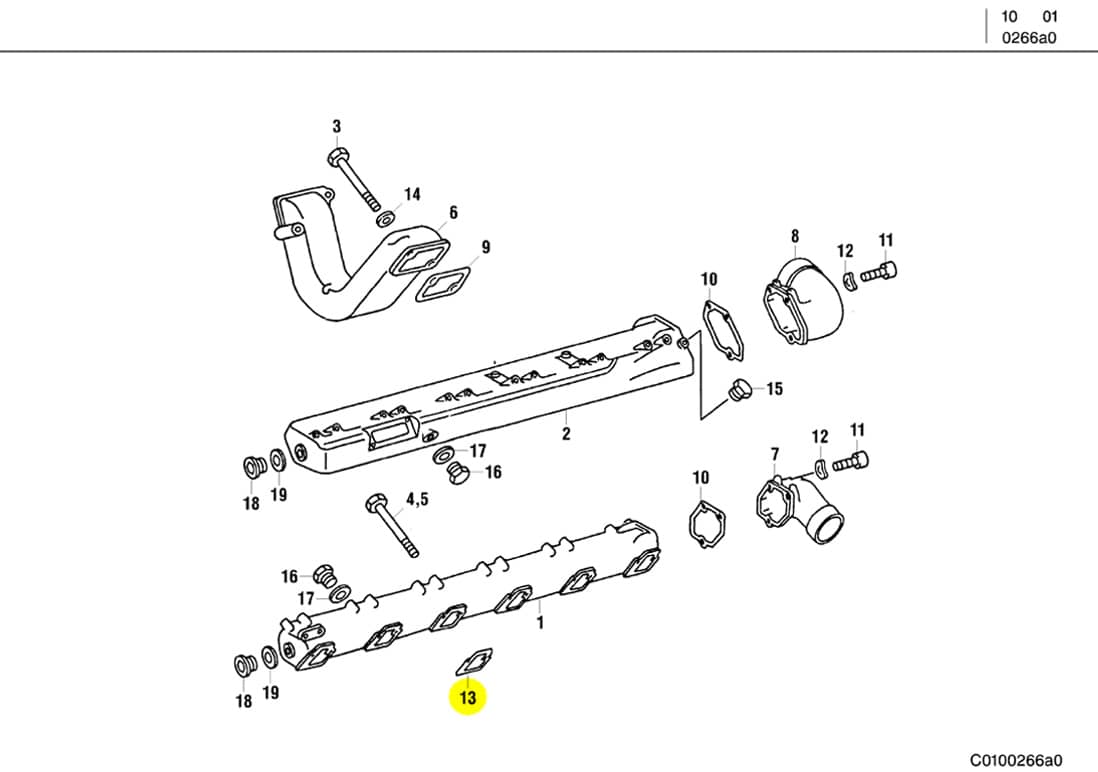

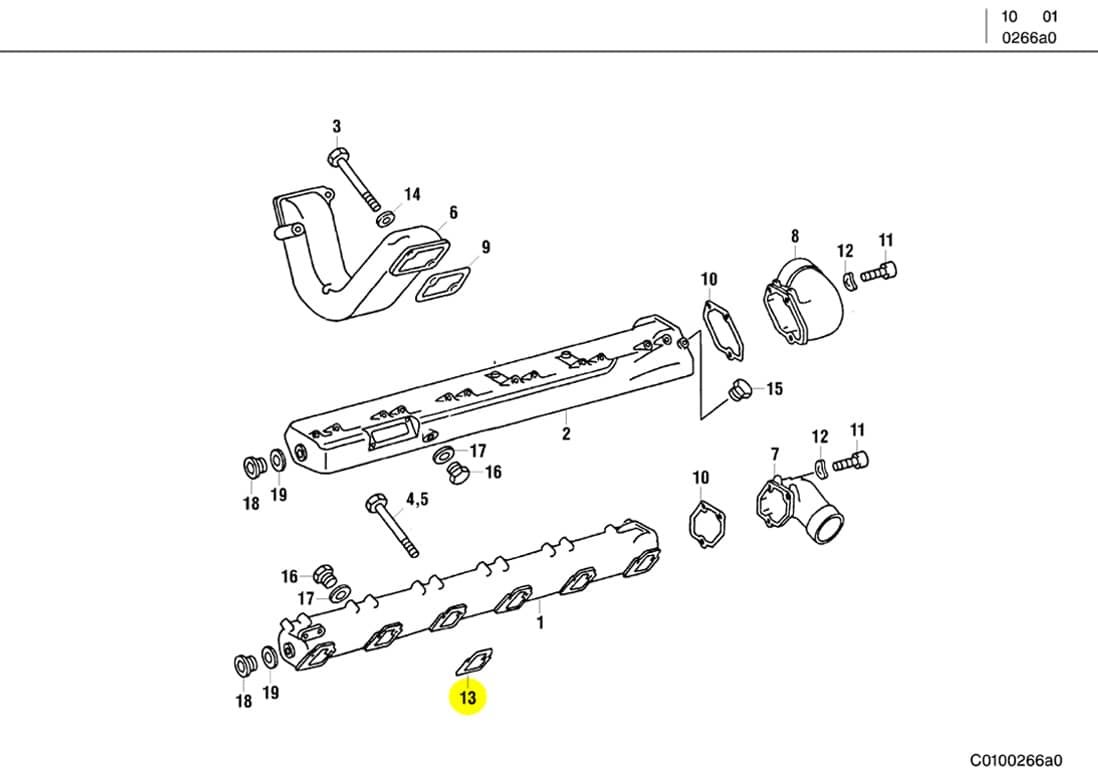

C/N Description Part-Number Qty
01 SUCTION TUBE,LEFT 4241400601 01
02 SUCTION PIPE RIGHT 4241400701 01
03 HEX SCREW 910105010003 04
04 SCREW 0079902201 04
05 WASHER/SCREW ASSY 0079901901 20
06 INTERMEDIATE PIECE 4240980216 01
07 FITTING 4441410057 01
08 FITTING 4441410157 01
09 GASKET 4420981780 02
10 GASKET 4421410780 02
11 BOLT HEX SOC HD 000912010014 06
12 WASHER 200433010500 06
13 GASKET 4421411780 12
13A GASKET 4421411880 12
13B GASKET 4421411980 12
14 WASHER 000125010524 04
15 PLUG 007604010102 02
16 PLUG 007604012102 01
17 SEALING RING 007603012405 01
18 PLUG 000908022001 02
19 SEALING RING 007603022103 02

4421411780 SUPERSEDED PART AND EFFECTIVE DATE

4421411780 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 4421411780 4421411080 N/A
02 4421411780 4421411980 1998/08/01
03 4421411780 4421411880 1998/09/01

MTU 183 Diesel Engine Models & Specifications

MTU 8V 183 TE92 Diesel Engine

MTU 183 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
8V 183 TE52 OM 442 LA 243 1500
8V 183 TE52 OM 442 LA 367 1800
8V 183 AA51 OM 422 152 1500
8V 183 AA51 OM 422 178 1800
6R 183 TD13H OM 447 H LA 275 2100
12V 183 TE93 OM 444 LA 846 2400
12V 183 TE52 OM 444 LA 455 1500
12V 183 TE52 OM 444 LA 550 1800
12V 183 TD13 OM 444 LA 450 1500
12V 183 TD13 OM 444 LA 550 2100
12V 183 TB32 OM 444 LA 441 1500
12V 183 TA12 OM 444 A 400 2100
