| PART NUMBER | 5062000601 |
| ENGINE TYPE | MTU 183 ENGINE |
| DESCRIPTION | COOLANT PUMP |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 6.374 KG |
| HS CODE | 84133080 |
| NATO-VERS.-NR. | 2930123652026 |

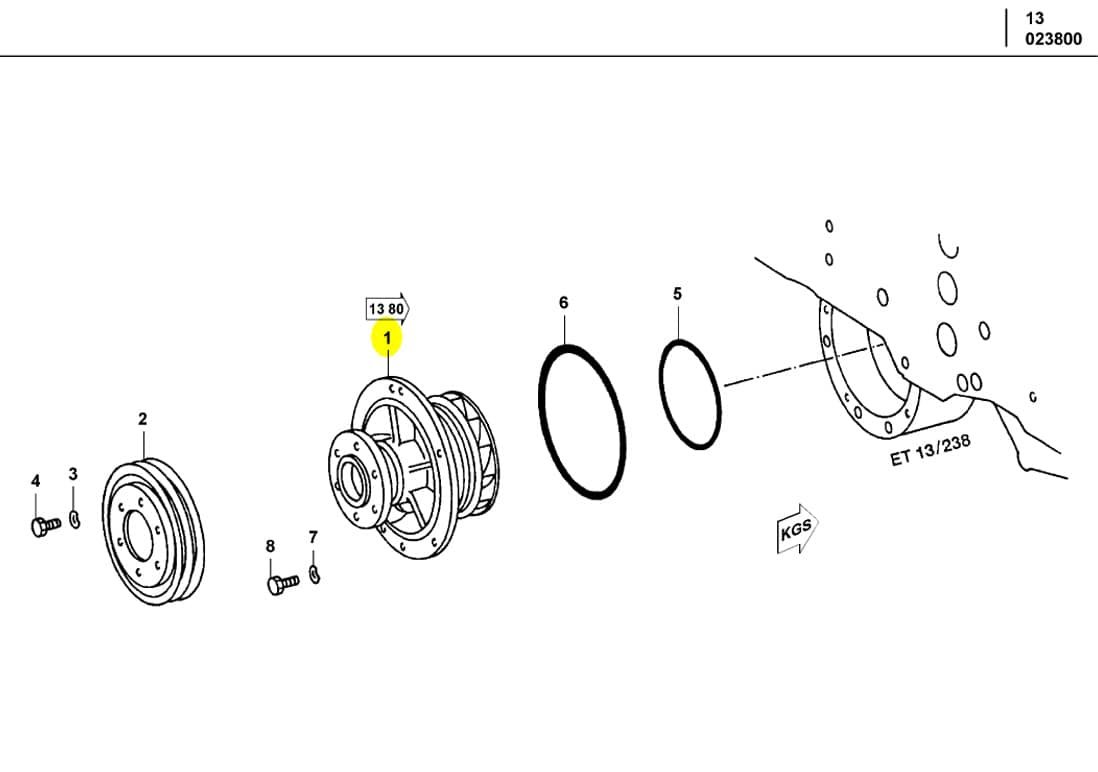

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 01 | COOLANT PUMP | 5062000601 | 01 |
| 02 | BELT PULLEY | 4032021310 | 01 |
| 03 | WASHER | 000125008427 | 06 |
| 04 | HEX SCREW | 304017008077 | 06 |
| 05 | O-RING | 700429130002 | 01 |
| 06 | O-RING | 700429158001 | 01 |
| 07 | WASHER | 000125008427 | 05 |
| 08 | HEX SCREW | 304017008083 | 05 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 5062000601 | 5062000101 | N/A |
| 02 | 5062000601 | 5062000601 | 1987/07/01 |
| Make | Year of construction | Power KW | U/MIN |
|---|---|---|---|
| 8V 183 TE52 | OM 442 LA | 243 | 1500 |
| 8V 183 TE52 | OM 442 LA | 367 | 1800 |
| 8V 183 AA51 | OM 422 | 152 | 1500 |
| 8V 183 AA51 | OM 422 | 178 | 1800 |
| 6R 183 TD13H | OM 447 H LA | 275 | 2100 |
| 12V 183 TE93 | OM 444 LA | 846 | 2400 |
| 12V 183 TE52 | OM 444 LA | 455 | 1500 |
| 12V 183 TE52 | OM 444 LA | 550 | 1800 |
| 12V 183 TD13 | OM 444 LA | 450 | 1500 |
| 12V 183 TD13 | OM 444 LA | 550 | 2100 |
| 12V 183 TB32 | OM 444 LA | 441 | 1500 |
| 12V 183 TA12 | OM 444 A | 400 | 2100 |
