MTU 0049976548 GENERATOR ASSEMBLY COMPONENTS

MTU 0049976548 GENERATOR ASSEMBLY COMPONENTS

MTU 0049976548 GENERATOR ASSEMBLY COMPONENTS

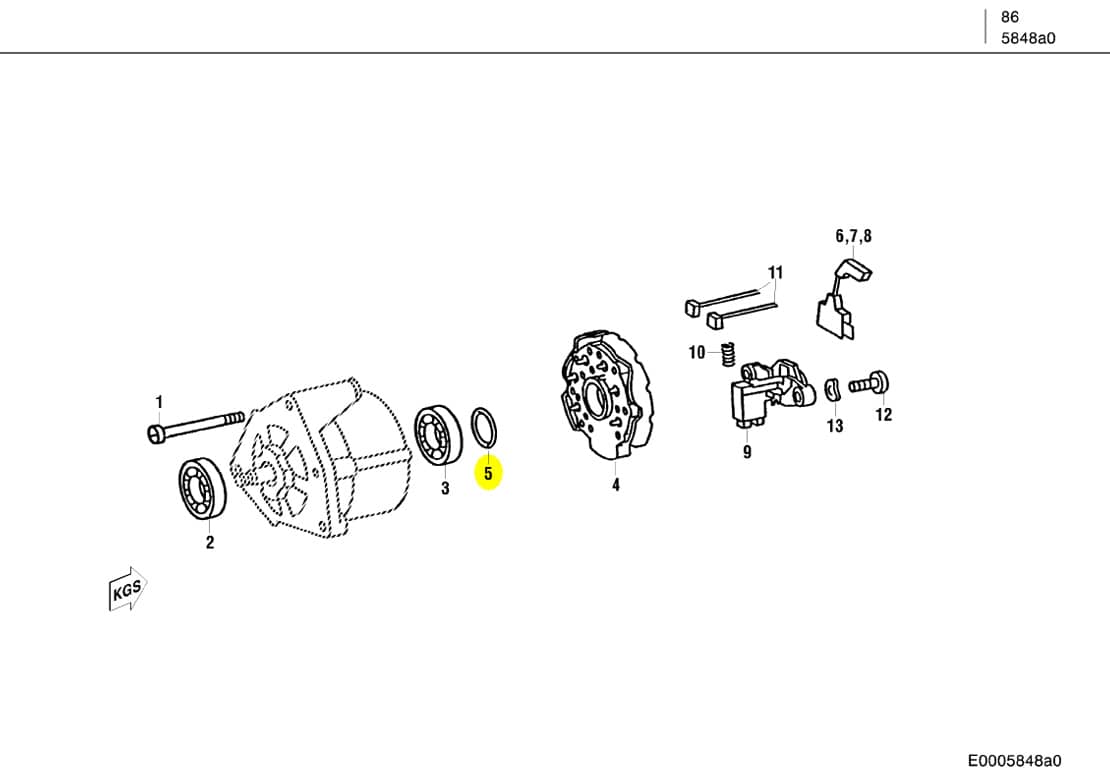

C/N Description Part-Number Qty
000 THREE-PHASE GENERATOR 0071548102 00
01 SCREW 0009909621 04
02 GROOVED BALL BEARING 0059812225 01
03 GROOVED BALL BEARING 0049813425 01
04 RECTIFIER 0001547416 01

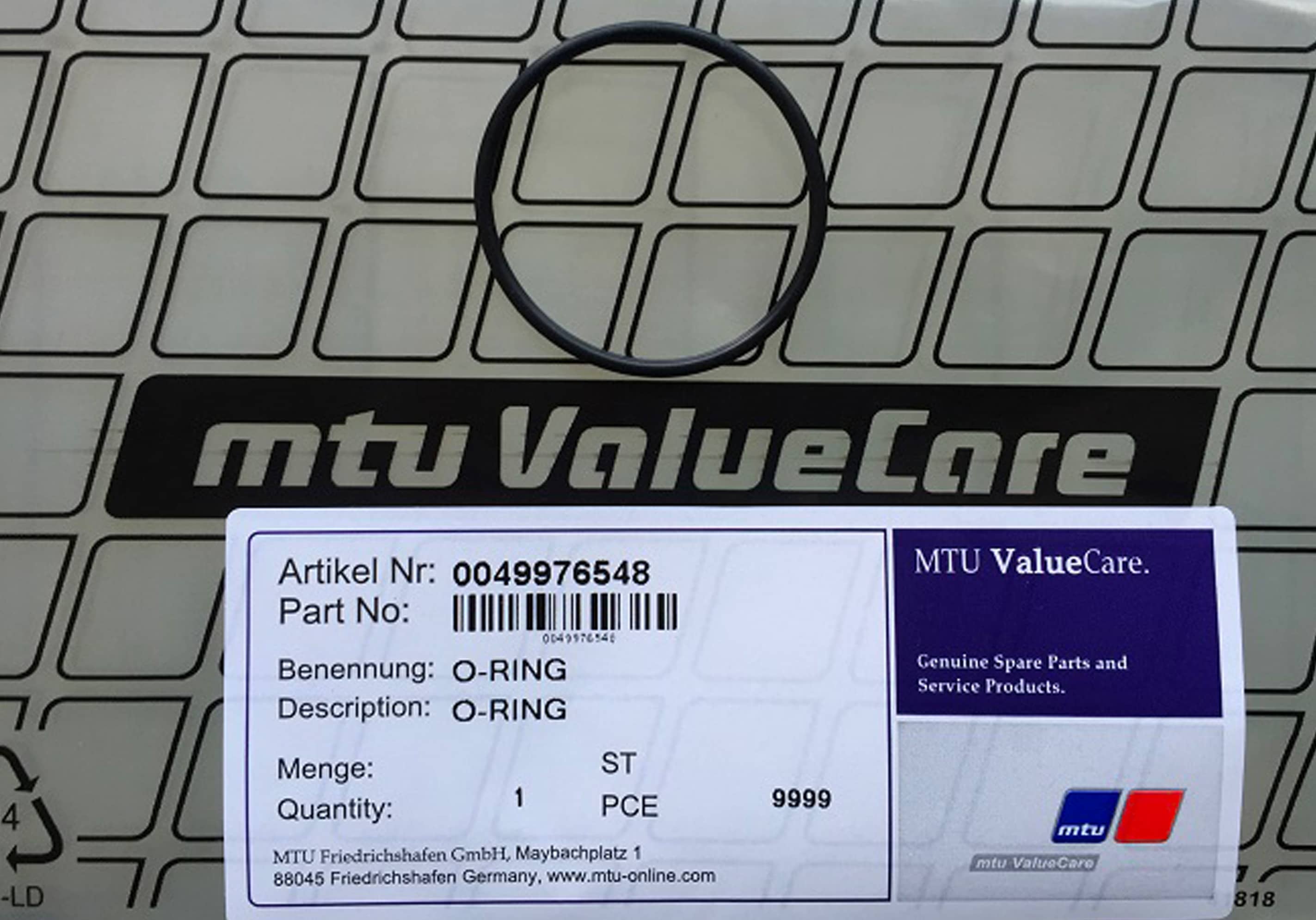

05 O-RING 0049976548 01
06 INTERF SUPPR CAPAC 0011566701 01
07 CONDENSER 0011560801 01
08 CAPACITOR 0011566301 01
09 FIELD REGULATOR 0021546906 01
10 PRESSURE SPRING 0001541993 02
11 CARBON BRUSH KIT 0001547114 01
12 OVAL-HEAD SCREW 007985004148 04
13 SPRING WASHER 000137004202 04

MTU 183 Diesel Engine Models & Specifications

MTU 8V 183 TE92 Diesel Engine

MTU 183 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
8V 183 TE52 OM 442 LA 243 1500
8V 183 TE52 OM 442 LA 367 1800
8V 183 AA51 OM 422 152 1500
8V 183 AA51 OM 422 178 1800
6R 183 TD13H OM 447 H LA 275 2100
12V 183 TE93 OM 444 LA 846 2400
12V 183 TE52 OM 444 LA 455 1500
12V 183 TE52 OM 444 LA 550 1800
12V 183 TD13 OM 444 LA 450 1500
12V 183 TD13 OM 444 LA 550 2100
12V 183 TB32 OM 444 LA 441 1500
12V 183 TA12 OM 444 A 400 2100
