  • Part details
  • original parts

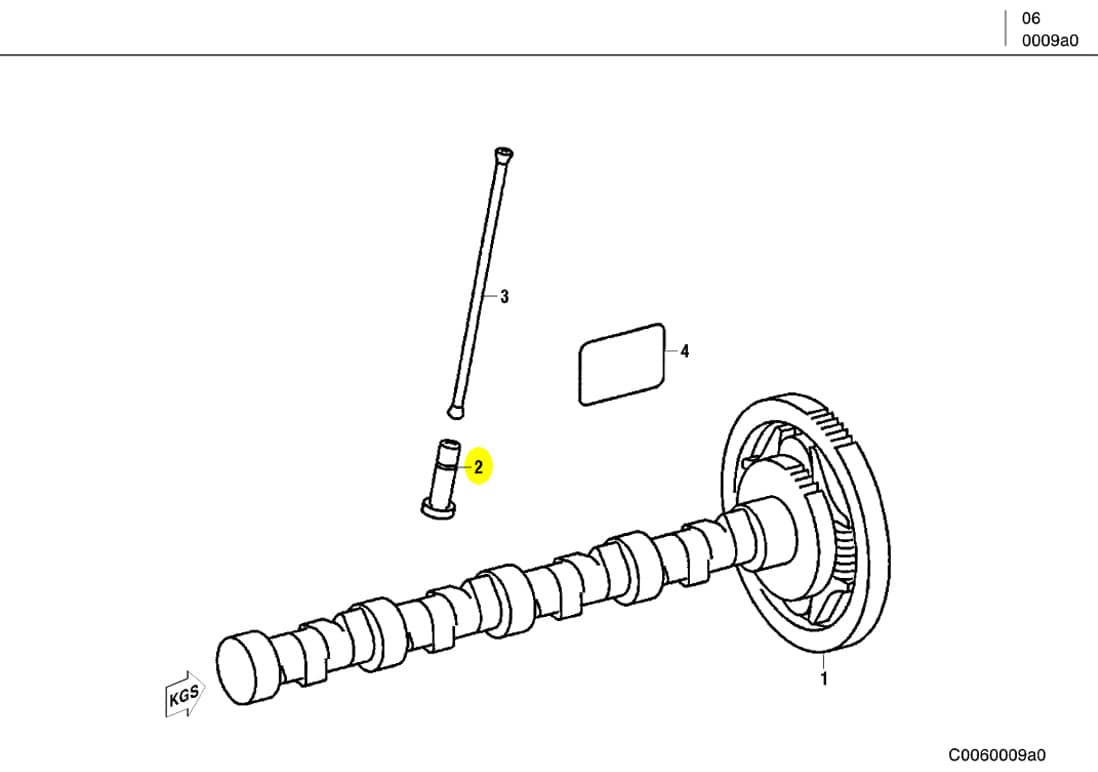

MTU 4760500025 Control System Assembly Components

MTU 4760500025 Control System Assembly Components

MTU 4760500025 Control System Assembly Components

C/N Description Part-Number Qty
01 CAMSHAFT 4440500001 01
02 TAPPET 4760500025 24
02A TAPPET 4220500425 24
03 PUSHROD 4220540105 24
04 INSTRUCTION PLATE 4235840021 02

4760500025 SUPERSEDED PART AND EFFECTIVE DATE

4760500025 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 4570500125 4220500025 N/A
02 4570500125 4030500325 1995/06/01
03 4570500125 4220500325 1995/07/01
04 4570500125 4760500025 1995/08/01

MTU 183 Diesel Engine Models & Specifications

MTU 8V 183 TE92 Diesel Engine

MTU 183 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
8V 183 TE52 OM 442 LA 243 1500
8V 183 TE52 OM 442 LA 367 1800
8V 183 AA51 OM 422 152 1500
8V 183 AA51 OM 422 178 1800
6R 183 TD13H OM 447 H LA 275 2100
12V 183 TE93 OM 444 LA 846 2400
12V 183 TE52 OM 444 LA 455 1500
12V 183 TE52 OM 444 LA 550 1800
12V 183 TD13 OM 444 LA 450 1500
12V 183 TD13 OM 444 LA 550 2100
12V 183 TB32 OM 444 LA 441 1500
12V 183 TA12 OM 444 A 400 2100
