| PART NUMBER | 0005862709 |
| ENGINE TYPE | MTU 183 ENGINE |

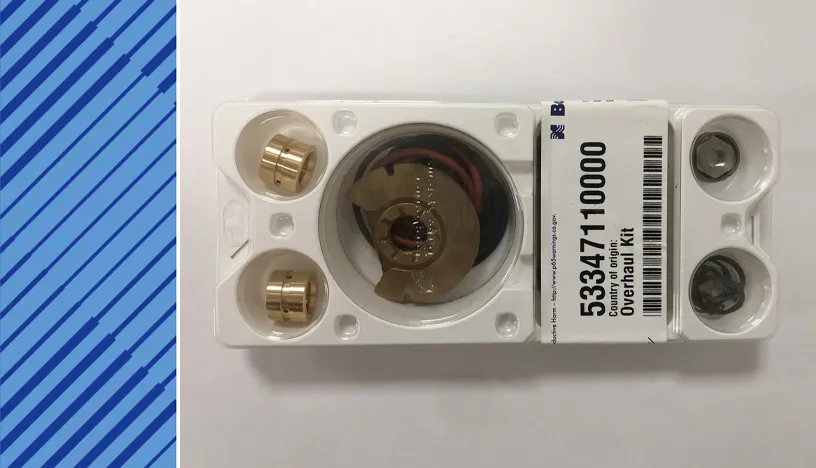

| DESCRIPTION | REPAIR KIT |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.410 KG |
| HS CODE | 84149000 |
| NATO-VERS.-NR. | 2990123633119 |

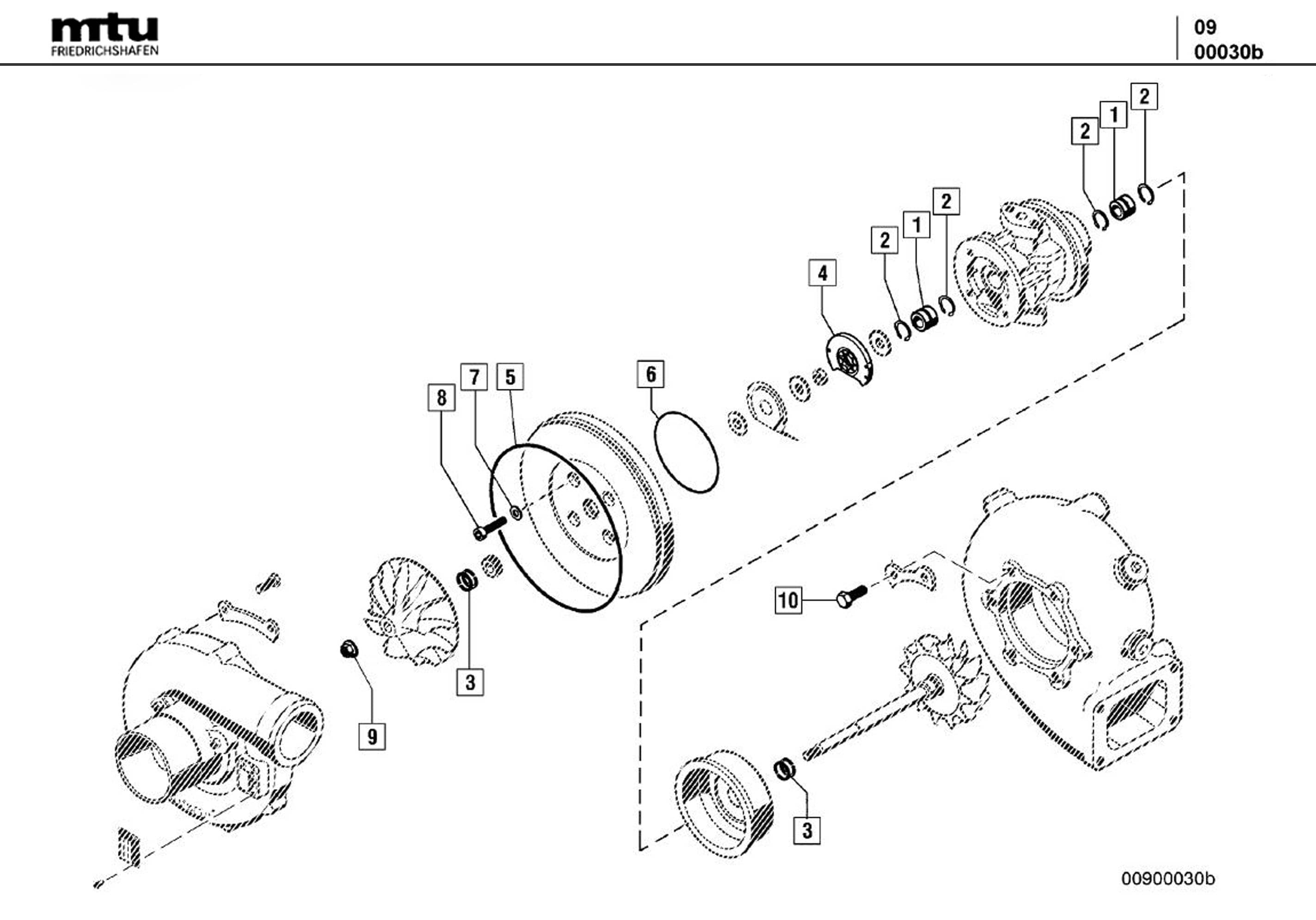

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 000 | REPAIR KIT | 0005862709 | 02 |
| 01 | BEARING BUSHING | 8690960125 | 04 |
| 02 | SNAP RING | 0000250173 | 08 |
| 03 | PISTON RING | 8690960040 | 08 |
| 04 | WASHER | 8690250000 | 02 |
| 05 | O-RING | 700429210000 | 02 |
| 05A | O-RING | 0009976248 | 02 |
| 06 | O-RING | 8699970038 | 02 |
| 07 | WASHER | 8699900021 | 08 |
| 08 | SCREW | 8699900019 | 08 |
| 09 | SHAFT NUT | 8699900085 | 02 |
| 10 | SCREW M 10X20 | 8699900039 | 12 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 0005862709 | 0000900898 | N/A |
| 02 | 0005862709 | 8695860295 | 2001/06/01 |
| 03 | 0005862709 | 0000900580 | 2001/07/01 |
| 04 | 0005862709 | 53347110000 | 2001/07/15 |
| 05 | 0005862709 | 0005862709 | 2001/08/01 |

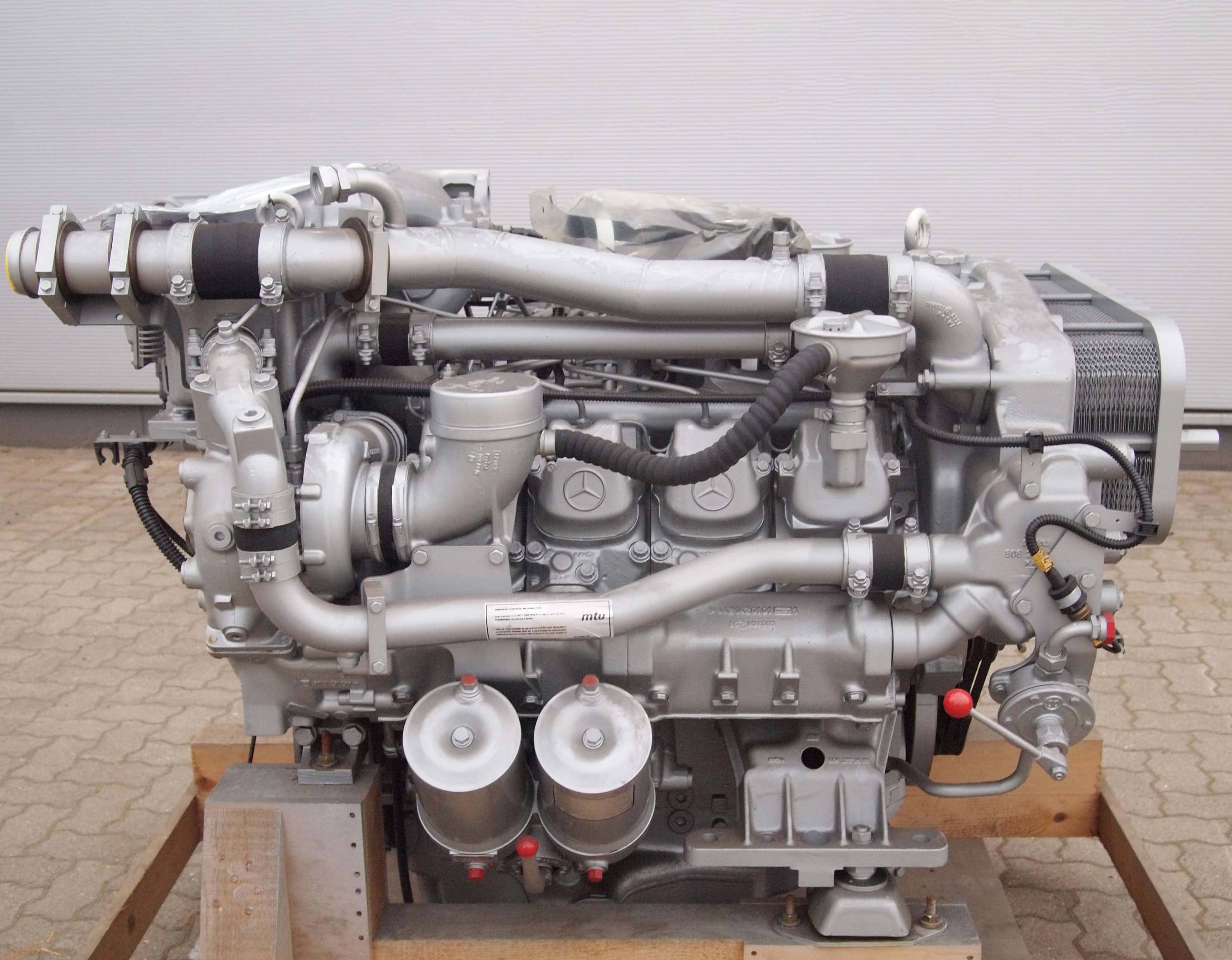

| Make | Year of construction | Power KW | U/MIN |
|---|---|---|---|
| 8V 183 TE52 | OM 442 LA | 243 | 1500 |
| 8V 183 TE52 | OM 442 LA | 367 | 1800 |
| 8V 183 AA51 | OM 422 | 152 | 1500 |
| 8V 183 AA51 | OM 422 | 178 | 1800 |
| 6R 183 TD13H | OM 447 H LA | 275 | 2100 |
| 12V 183 TE93 | OM 444 LA | 846 | 2400 |
| 12V 183 TE52 | OM 444 LA | 455 | 1500 |
| 12V 183 TE52 | OM 444 LA | 550 | 1800 |
| 12V 183 TD13 | OM 444 LA | 450 | 1500 |
| 12V 183 TD13 | OM 444 LA | 550 | 2100 |
| 12V 183 TB32 | OM 444 LA | 441 | 1500 |
| 12V 183 TA12 | OM 444 A | 400 | 2100 |
