MTU 0021882301/29 Oil System Assembly Components

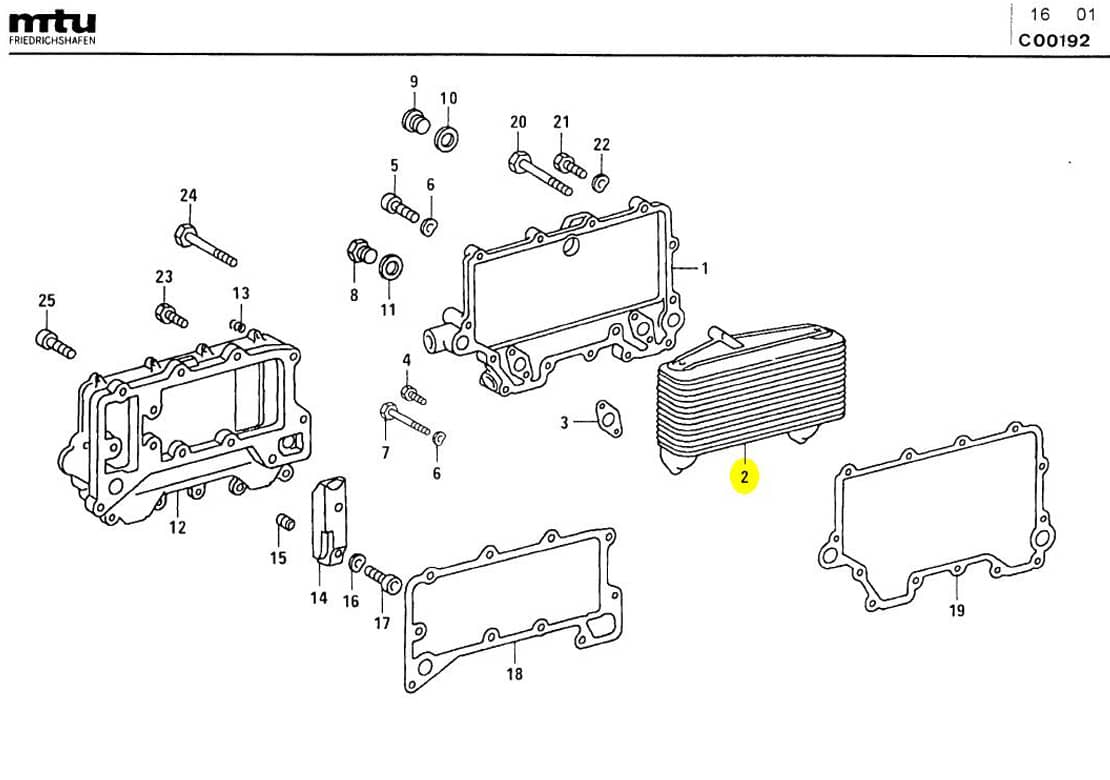

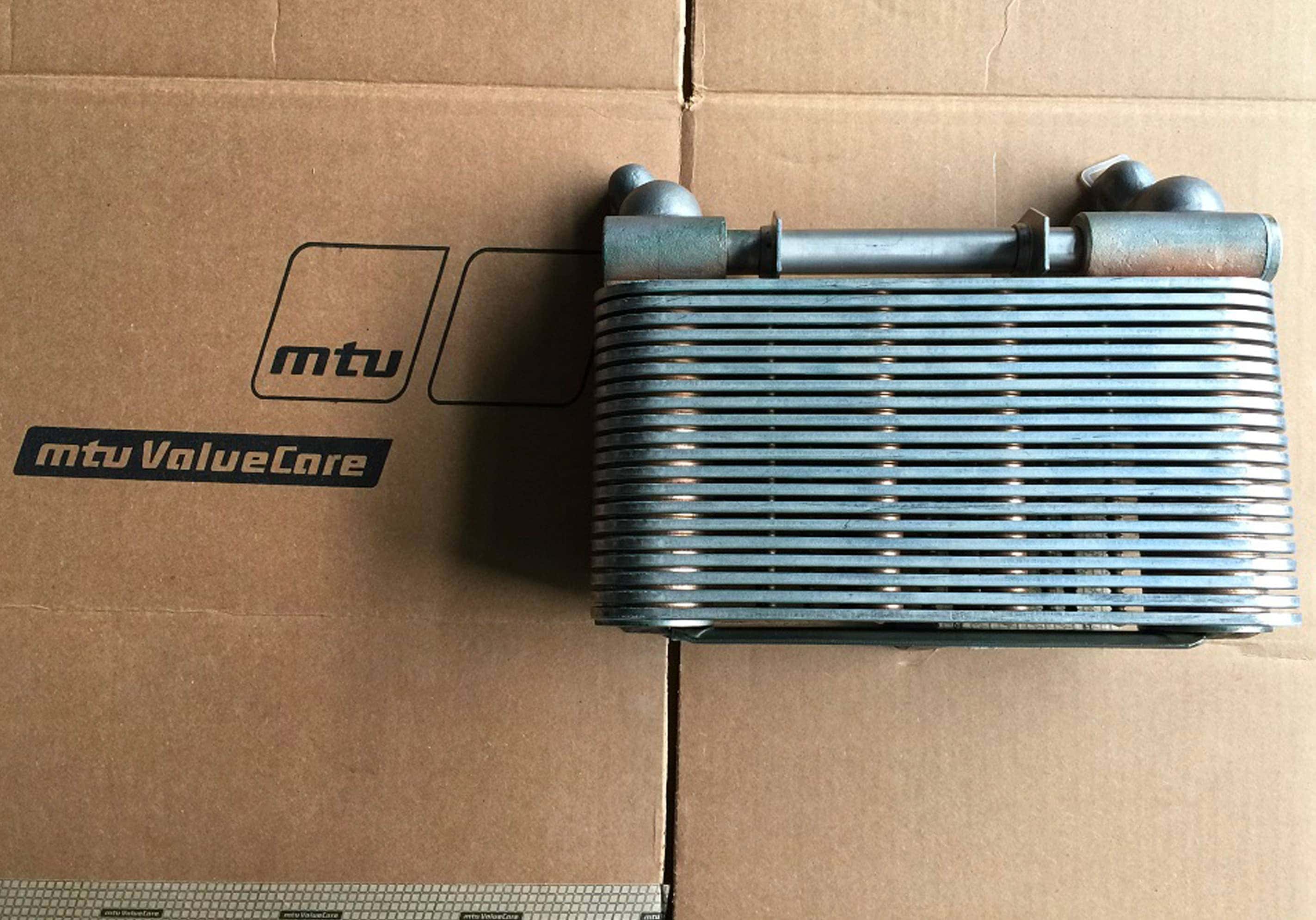

MTU 8V 183 AA51 Parts 0021882301/29 Technical Engineering Exploded View MTU 8V 183 AA51 Parts 0021882301/29 OIL COOLER

MTU 0021882301/29 Oil System Assembly Components

C/N Description Part-Number Qty
01 COVER 4041801738 01
02 OIL COOLER 0021882301/29 01
03 GASKET 917003026003 02
04 SCREW 000933008147 01
05 SCREW 000931008248 04
06 SPRING WASHER 000137008204 05
07 SCREW 000931008248 04
08 PLUG 6019970230 01
09 PLUG 000908026005 02
10 WASHER A COP 007603026105 02
11 SEALING RING 007603014104 01
12 OIL COOLER HOUSING 4041800337 01
13 INSERT THREAD 900421008002 13
14 INTERMEDIATE WALL 4041800135 01
15 INSERT THREAD 900421010002 02
16 SPRING WASHER 000137010201 02
17 SCREW 000912010081 02
18 GASKET 4421880580 01
19 GASKET 4441880080 01
20 SCREW 000931008248 02
21 SCREW 000931008047 11
22 WASHER SPRING 000137008204 13
23 SCREW 000933010202 06
24 SCREW 000931010306 01
25 SCREW 000912010081 03

MTU 183 Diesel Engine Models & Specifications

MTU 8V 183 TE92 Diesel Engine

MTU 183 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
8V 183 TE52 OM 442 LA 243 1500
8V 183 TE52 OM 442 LA 367 1800
8V 183 AA51 OM 422 152 1500
8V 183 AA51 OM 422 178 1800
6R 183 TD13H OM 447 H LA 275 2100
12V 183 TE93 OM 444 LA 846 2400
12V 183 TE52 OM 444 LA 455 1500
12V 183 TE52 OM 444 LA 550 1800
12V 183 TD13 OM 444 LA 450 1500
12V 183 TD13 OM 444 LA 550 2100
12V 183 TB32 OM 444 LA 441 1500
12V 183 TA12 OM 444 A 400 2100
