| PART NUMBER | 0005354330 |
| ENGINE TYPE | MTU 183 ENGINE |

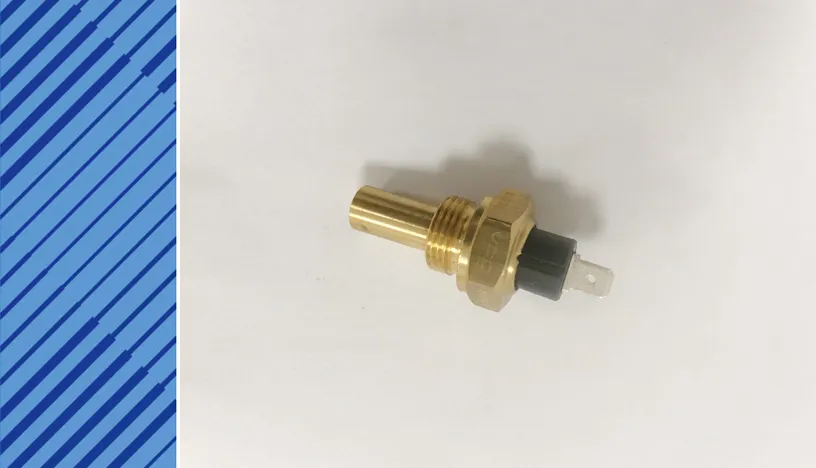

| DESCRIPTION | TEMPERATURE SENSOR |
| DIMENSIONS | M18X1,5/VDO |
| UNIT WEIGHT | 0.053 KG |
| HS CODE | 90251900 |
| NATO-VERS.-NR. | 6685123786423 |

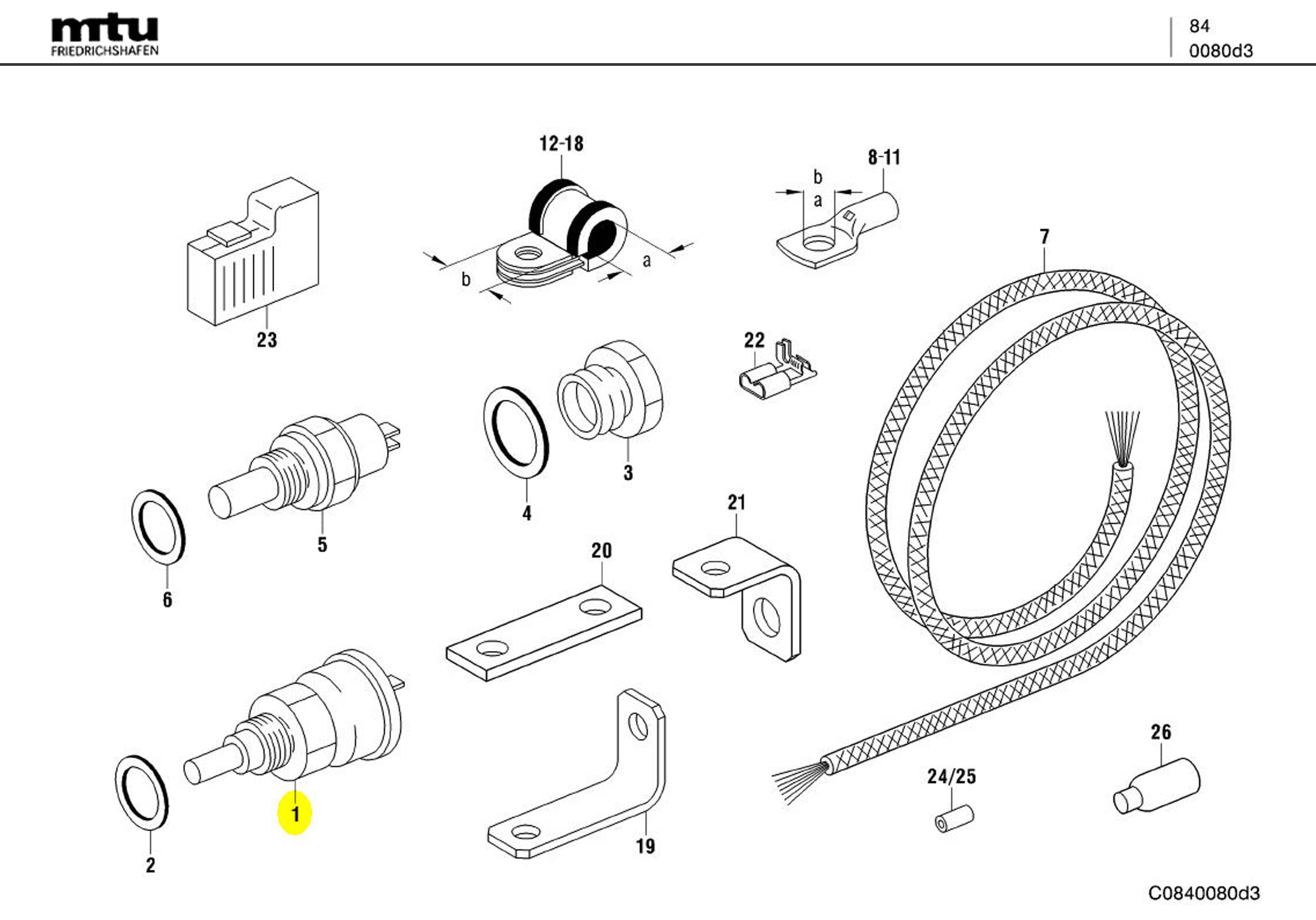

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 01 | LEVEL MONITOR | 0005353703 | 01 |
| 02 | COPPER SEALING RING | 007603018101 | 01 |
| 03 | LEVEL MONITOR | 0005353803 | 01 |
| 04 | COPPER SEALING RING | 007603018101 | 01 |
| 05 | MALE CONNECTOR | 0005316685 | 02 |
| 06 | SHRINK SLEEVE | 0005315082 | 06 |
| 07 | THERMOCOUPLE | 0005359160 | 00 |
| 08 | PIPE | 44059 | 01 |
| 09 | SHRINKABLE HOSE | 0015310682 | 00 |
| 10 | SHRINKABLE HOSE | 0015310582 | 00 |
| 11 | CRIMP CABLE TERMINAL | 43509 | 01 |
| 12 | CRIMP CABLE TERMINAL | 43508 | 01 |
| 13 | CRIMP CABLE TERMINAL | 43441 | 02 |
| 14 | CRIMP CABLE TERMINAL | 43440 | 01 |
| 15 | SPACER SLEEVE | 5500780453 | 02 |
| 16 | CLAMP | 916016012201 | 02 |
| 17 | CLAMP | 916016010205 | 02 |
| 18 | CLAMP | 916016012201 | 04 |
| 19 | CLAMP | 916016008202 | 06 |
| 20 | CLAMP | 916016015200 | 02 |
| 21 | CLAMP | 916016018202 | 04 |
| 22 | CLAMP | 916016006202 | 02 |
| 23 | CLAMP | 916016012200 | 02 |
| 24 | CLAMP | 916016020202 | 02 |
| 25 | BRACKET L H:25 | 5502034640 | 01 |
| 26 | BRACKET H:04 | 5500780741 | 02 |
| 27 | BRACKET L H:27 VENT LINE TO TANK | 5502034540 | 03 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 0005354330 | 323805001015N | N/A |
| 02 | 0005354330 | 0005354330 | 2009/04/01 |
| Make | Year of construction | Power KW | U/MIN |
|---|---|---|---|
| 8V 183 TE52 | OM 442 LA | 243 | 1500 |
| 8V 183 TE52 | OM 442 LA | 367 | 1800 |
| 8V 183 AA51 | OM 422 | 152 | 1500 |
| 8V 183 AA51 | OM 422 | 178 | 1800 |
| 6R 183 TD13H | OM 447 H LA | 275 | 2100 |
| 12V 183 TE93 | OM 444 LA | 846 | 2400 |
| 12V 183 TE52 | OM 444 LA | 455 | 1500 |
| 12V 183 TE52 | OM 444 LA | 550 | 1800 |
| 12V 183 TD13 | OM 444 LA | 450 | 1500 |
| 12V 183 TD13 | OM 444 LA | 550 | 2100 |
| 12V 183 TB32 | OM 444 LA | 441 | 1500 |
| 12V 183 TA12 | OM 444 A | 400 | 2100 |
