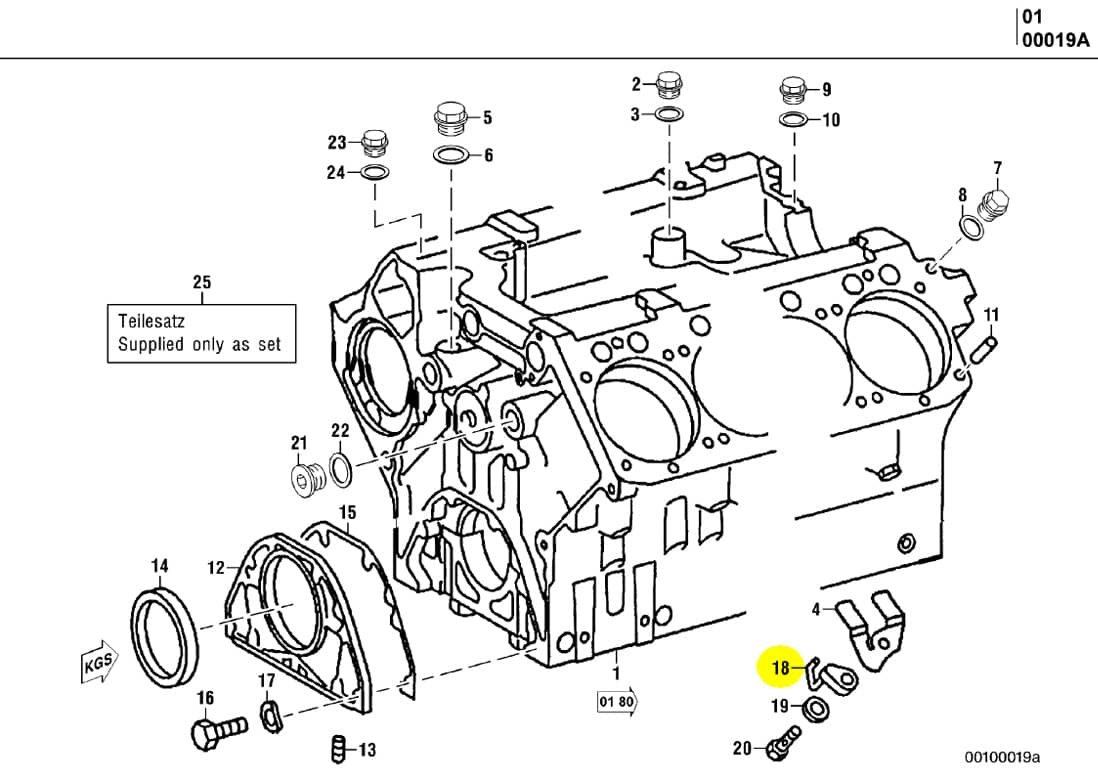

MTU 4421800543 Technical Engineering Exploded View

MTU 4421800543 Technical Engineering Exploded View

MTU 4421800543 Technical Engineering Exploded View

C/N Description Part-Number Qty
01 CRANKCASE 4440100108 01
02 PLUG 007604014102 02
03 WASHER A COP 007603014106 02
04 SEAL 4420110082 01
05 PLUG 0009973532 01
06 COPPER SEALING RING 007603026104 01
07 PLUG 007604014102 00
08 WASHER A COP 007603014106 00
09 PLUG 007604014102 01
10 WASHER A COP 007603014106 01
11 SPRING PIN 1079910041 24
12 COVER 4030110107 01
13 INSERT THREAD 900421008004 03
14 SEAL RING 0149974647 01
15 GASKET 4420110080 01
16 HEX SCREW 304017008081 06
17 WASHER SPRING B8 000137008203 06
18 OIL NOZZLE 4421800543 12
19 SEALING RING 0069972645 12
20 BANJO SCREW 915036010109 12
21 PLUG 000908030002 02
22 COPPER SEALING RING 007603030101 02
23 PLUG 007604014102 01
24 WASHER A COP 007603014106 01
25 GASKET KIT 4240100908 01

4421800543 SUPERSEDED PART AND EFFECTIVE DATE

4421800543 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 4421800543 4221800143 N/A
02 4421800543 4421800143 1993/02/01
03 4421800543 4421800343 1993/03/01
04 4421800543 93215140048 1993/03/02

MTU 183 Diesel Engine Models & Specifications

MTU 8V 183 TE92 Diesel Engine

MTU 183 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
8V 183 TE52 OM 442 LA 243 1500
8V 183 TE52 OM 442 LA 367 1800
8V 183 AA51 OM 422 152 1500
8V 183 AA51 OM 422 178 1800
6R 183 TD13H OM 447 H LA 275 2100
12V 183 TE93 OM 444 LA 846 2400
12V 183 TE52 OM 444 LA 455 1500
12V 183 TE52 OM 444 LA 550 1800
12V 183 TD13 OM 444 LA 450 1500
12V 183 TD13 OM 444 LA 550 2100
12V 183 TB32 OM 444 LA 441 1500
12V 183 TA12 OM 444 A 400 2100
