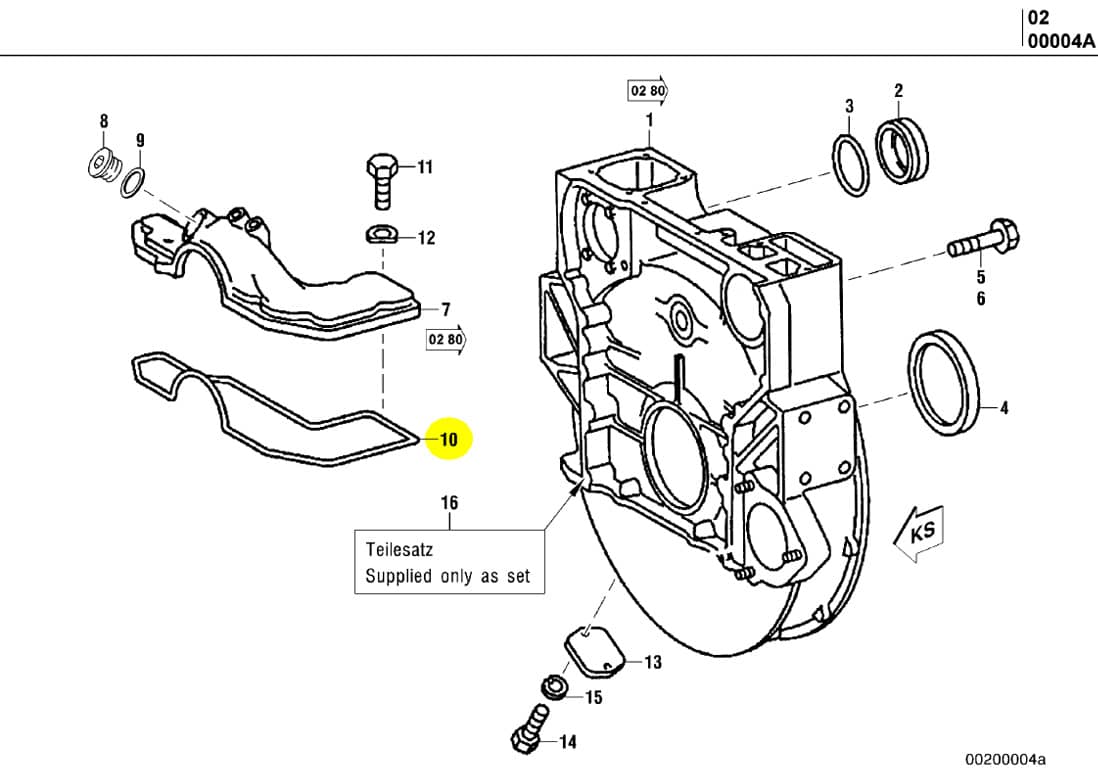

MTU 4420150060 Technical Engineering Exploded View

MTU 4420150060 Technical Engineering Exploded View

MTU 4420150060 Technical Engineering Exploded View

C/N Description Part-Number Qty
01 CONTROL HOUSING 4230105033 01
02 COVER 4240320033 01
03 SEALING RING 0149976148 01
04 SEALING RING 0139971447 01
04A RADIAL-LIP SHFT SEAL 0139973247 01
05 COLLAR SCREW 4239900004 10
06 SCREW 4039900404 02
07 COVER 4230100217 01
08 PLUG 4229970230 01
09 SEALING RING 4229970140 01
10 GASKET 4420150060 01
11 HEX SCREW 304017008083 08
12 WASHER SPRING B8 000137008203 08
13 COVER 4030150109 01
14 HEX SCREW 304017008079 02
15 SPRING WASHER 912004008102 02
16 GASKET KIT 4230104833 01

4420150060 SUPERSEDED PART AND EFFECTIVE DATE

4420150060 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 4420150060 4030150160 N/A
02 4420150060 4420150060 1988/07/01

MTU 183 Diesel Engine Models & Specifications

MTU 8V 183 TE92 Diesel Engine

MTU 183 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
8V 183 TE52 OM 442 LA 243 1500
8V 183 TE52 OM 442 LA 367 1800
8V 183 AA51 OM 422 152 1500
8V 183 AA51 OM 422 178 1800
6R 183 TD13H OM 447 H LA 275 2100
12V 183 TE93 OM 444 LA 846 2400
12V 183 TE52 OM 444 LA 455 1500
12V 183 TE52 OM 444 LA 550 1800
12V 183 TD13 OM 444 LA 450 1500
12V 183 TD13 OM 444 LA 550 2100
12V 183 TB32 OM 444 LA 441 1500
12V 183 TA12 OM 444 A 400 2100
