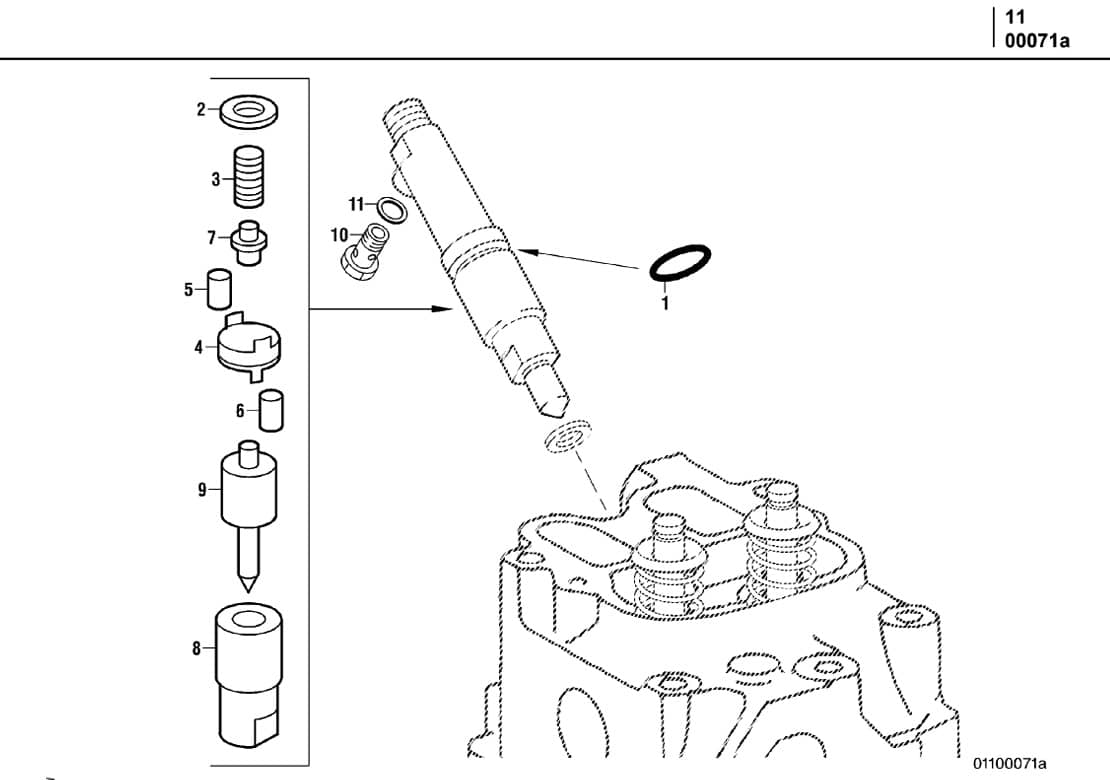

MTU 0030176421 Technical Engineering Exploded View

MTU 0030176421 Technical Engineering Exploded View

MTU 0030176421 Technical Engineering Exploded View

C/N Description Part-Number Qty

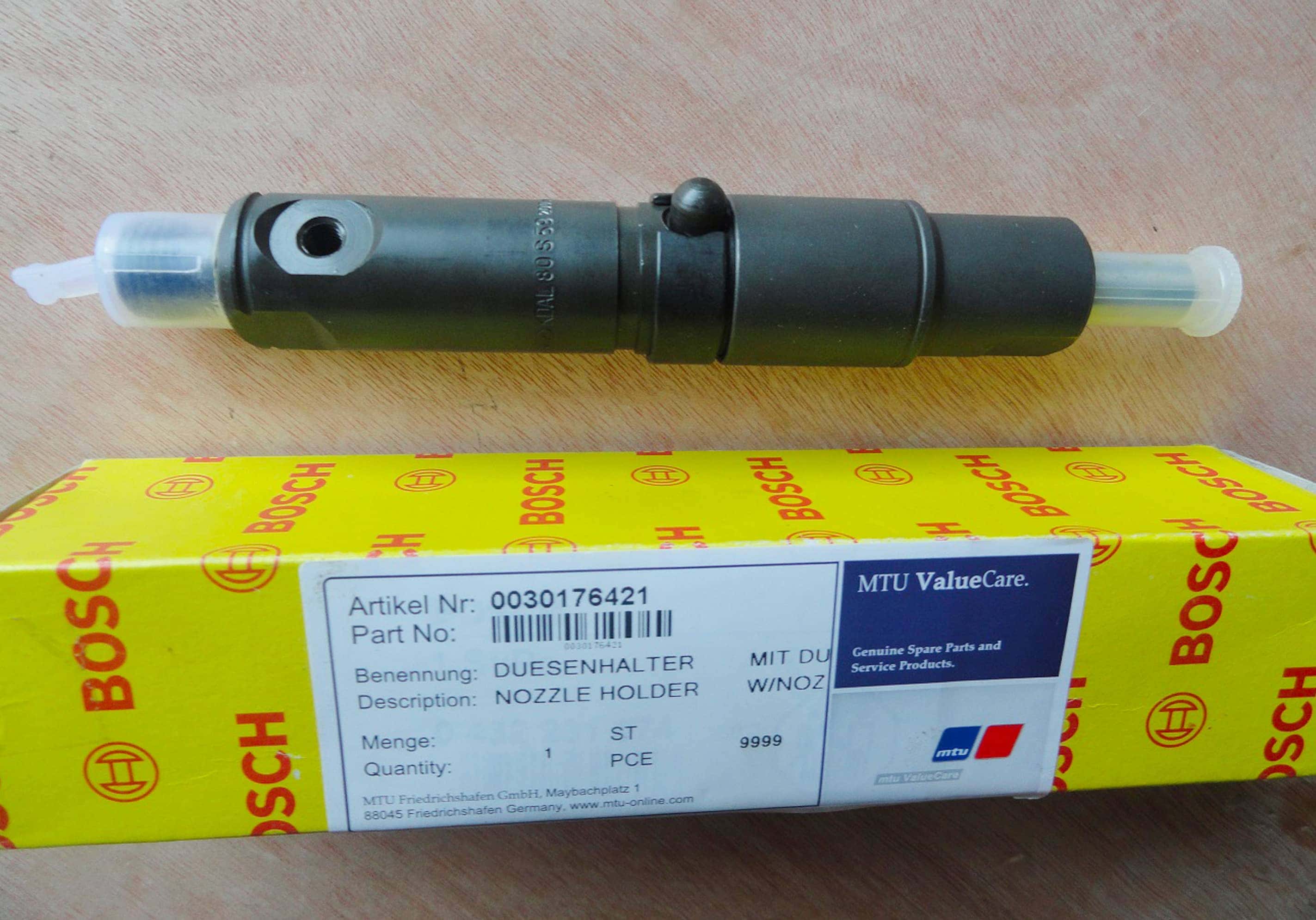

000 NOZZLE HOLDER W/NOZZLE 0030176421 01
01 SEALING RING 0239978948 03
02 SET OF SHIMS 8695860100 00
03 PRESSURE SPRING 0000170517 00
04 SPACER WASHER 0010179452 01
05 SPRING PIN 0000170023 02
06 SPRING PIN 0000170123 02
07 PIN 0000171574 01
08 UNION NUT 0000173916 01
09 INJECTION NOZZLE 0010178812 01
10 SCREW 0000746571 01
11 SEALING RING 007603006106 02

0030176421 SUPERSEDED PART AND EFFECTIVE DATE

0030176421 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 0030176421 0020177221 2009/01/01

MTU 183 Diesel Engine Models & Specifications

MTU 8V 183 TE92 Diesel Engine

MTU 183 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
8V 183 TE52 OM 442 LA 243 1500
8V 183 TE52 OM 442 LA 367 1800
8V 183 AA51 OM 422 152 1500
8V 183 AA51 OM 422 178 1800
6R 183 TD13H OM 447 H LA 275 2100
12V 183 TE93 OM 444 LA 846 2400
12V 183 TE52 OM 444 LA 455 1500
12V 183 TE52 OM 444 LA 550 1800
12V 183 TD13 OM 444 LA 450 1500
12V 183 TD13 OM 444 LA 550 2100
12V 183 TB32 OM 444 LA 441 1500
12V 183 TA12 OM 444 A 400 2100
