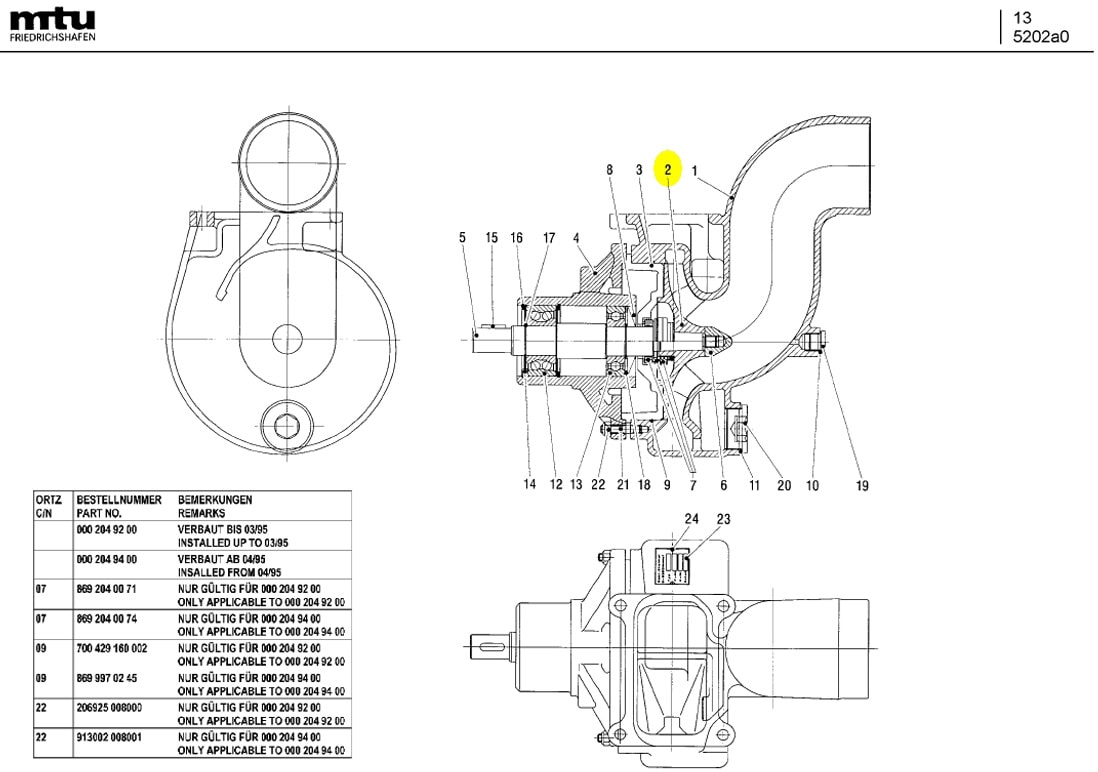

MTU 8692040067 Technical Engineering Exploded View

MTU 8692040067 Technical Engineering Exploded View

MTU 8692040067 Technical Engineering Exploded View

C/N Description Part-Number Qty
000 SEAWATER PUMP 0002049400 01
01 HOUSING 8692040089 01

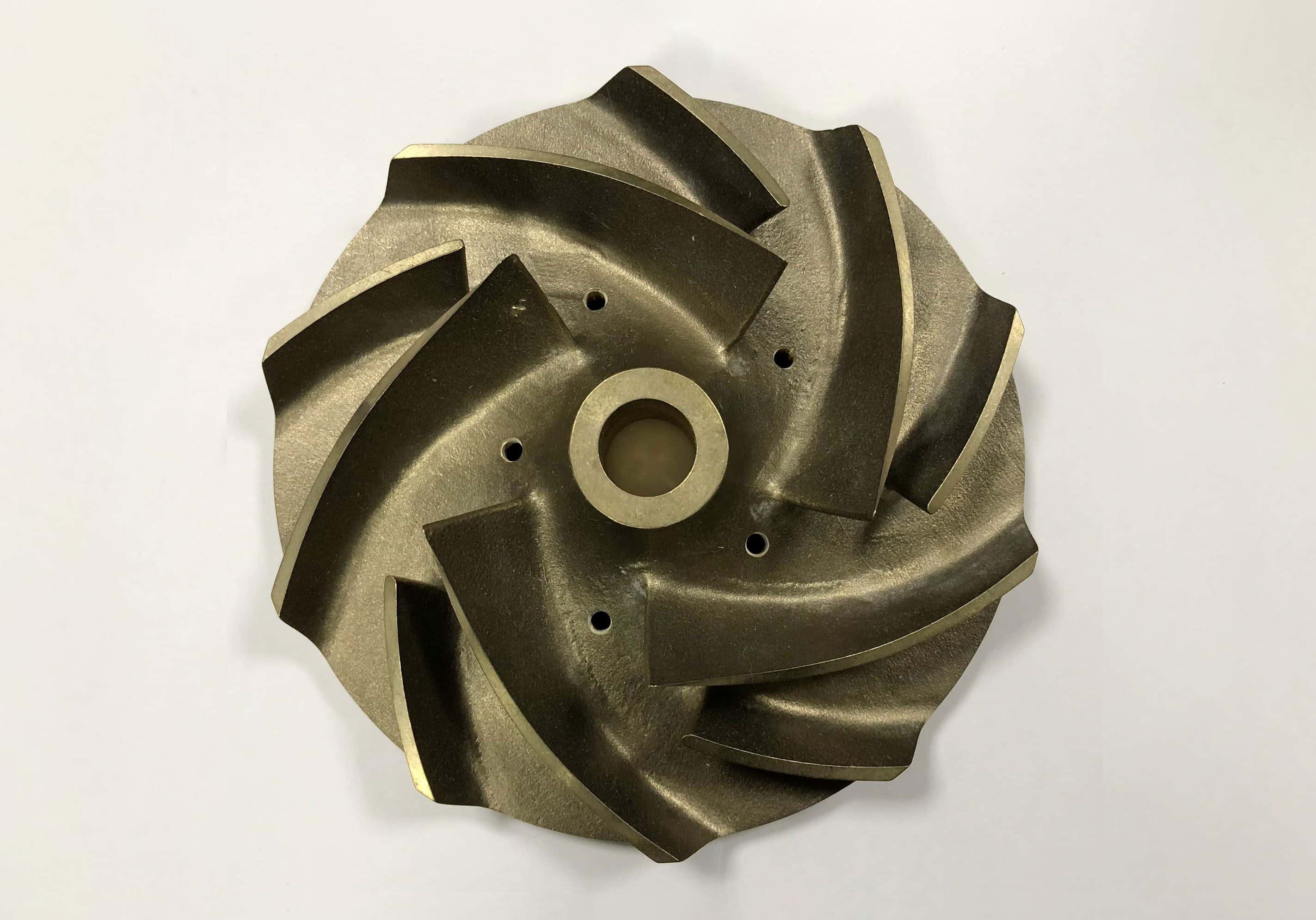

02 IMPELLER 8692040067 01
03 INTERMEDIATE MEMBER 8692040105 01
04 BEARNG HOUSING =ELG160-MTUGD21 01
05 COOLANT PUMP SHAFT 8692040068 01
06 NUT 8692040069 01
07 ROTARY SEAL 8692040074 01
08 SEALING RING 8699970241 01
09 SEALING RING 8699970245 01
10 SEALING RING 007603018101 02
11 SEALING RING 007603042101 01
12 ANGLR-CONT BALL BRG 8699810028 01
13 GROOVED BALL BEARING 8699810029 01
14 WASHER 8692040084 01
14A WASHER 8692040085 03
14B WASHER 8692040086 05
15 WOODRUFF KEY 8699910012 01
16 SNAP RING 8699940022 02
17 SNAP RING 000471030000 02
18 WASHER 8692040083 01
19 PLUG 000908018009 02
20 PLUG 000908999012 01
21 STUD 000939008074 06
22 NUT 913002008001 06
23 MAMEPLATE =ETY924-AA03 01
24 GROOVED PIN 001476002013 02
25Z PLATE =EHE1601-IP21 01

MTU 183 Diesel Engine Models & Specifications

MTU 8V 183 TE92 Diesel Engine

MTU 183 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
8V 183 TE52 OM 442 LA 243 1500
8V 183 TE52 OM 442 LA 367 1800
8V 183 AA51 OM 422 152 1500
8V 183 AA51 OM 422 178 1800
6R 183 TD13H OM 447 H LA 275 2100
12V 183 TE93 OM 444 LA 846 2400
12V 183 TE52 OM 444 LA 455 1500
12V 183 TE52 OM 444 LA 550 1800
12V 183 TD13 OM 444 LA 450 1500
12V 183 TD13 OM 444 LA 550 2100
12V 183 TB32 OM 444 LA 441 1500
12V 183 TA12 OM 444 A 400 2100
