| PART NUMBER | 4441410480 |
| ENGINE TYPE | MTU 183 ENGINE |

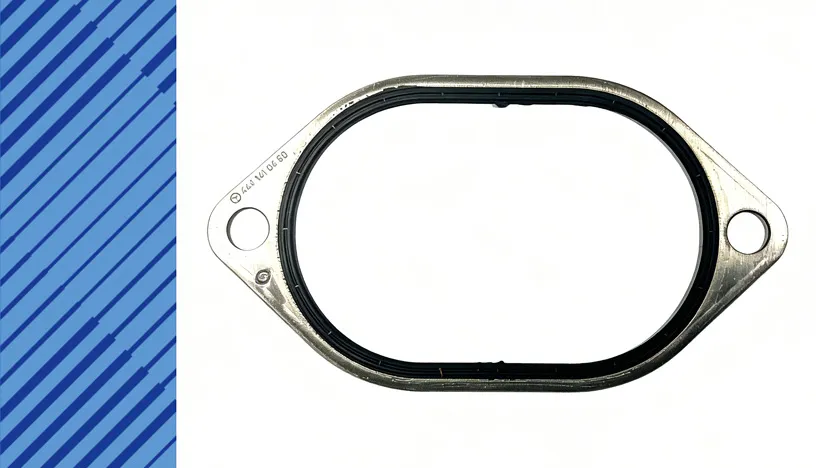

| DESCRIPTION | GASKET |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.012 KG |
| HS CODE | 39269097 |
| NATO-VERS.-NR. | N/A |

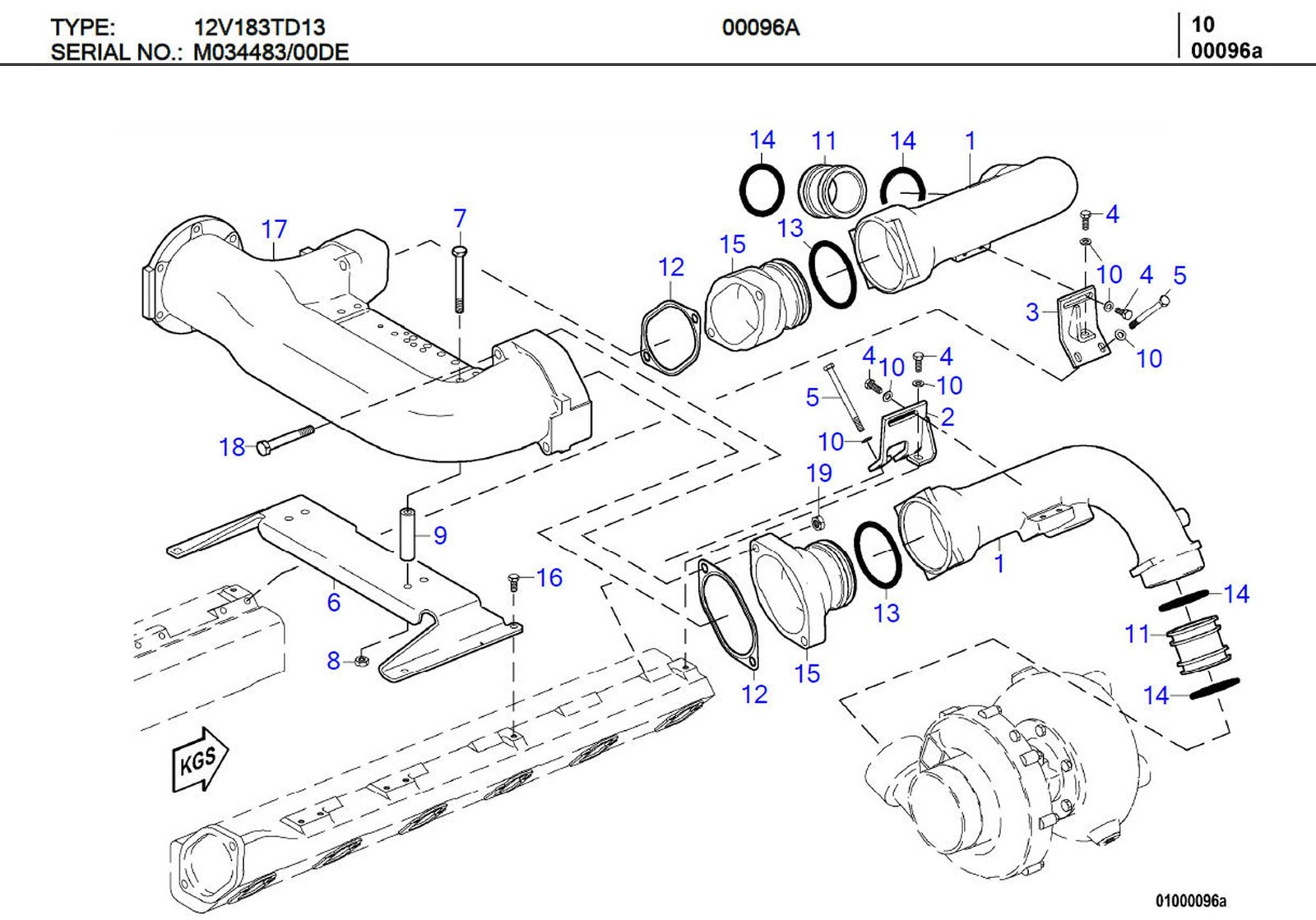

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 01 | CHARGE-AIR LINE | 4440981107 | 02 |
| 02 | PUNCH HOLDER | 4440900541 | 01 |
| 03 | PUNCH HOLDER | 4440900641 | 01 |
| 04 | SCREW | 304017008080 | 06 |
| 05 | SCREW | 000931008215 | 04 |
| 06 | PUNCH HOLDER | 4440980639 | 01 |
| 07 | DRAIN PLUG | 0069908901 | 04 |
| 08 | HEX NUT | 000934010007 | 04 |
| 09 | SPACER TUBE | 4449915040 | 04 |
| 10 | COVER DISC | 007349008002 | 10 |
| 11 | INTERMEDIATE MEMBER | 4070980016 | 02 |
| 12 | GASKET | 4441410480 | 02 |
| 13 | SEALING RING | 0129972448 | 02 |
| 14 | SEALING RING | 0219975348 | 04 |
| 15 | PRESSURE PIPE NECK | 4440980035 | 02 |
| 16 | DRAIN PLUG | 0089907401 | 04 |
| 17 | CHARGE-AIR LINE | 4440980507 | 01 |
| 18 | SCREW | 000912012161 | 02 |
| 18A | SCREW | 000912012033 | 02 |
| 19 | SCREW | 000934012008 | 04 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 4441410480 | 4441410080 | N/A |
| 02 | 4441410480 | 4441410480 | 1990/05/01 |
| Make | Year of construction | Power KW | U/MIN |
|---|---|---|---|
| 8V 183 TE52 | OM 442 LA | 243 | 1500 |
| 8V 183 TE52 | OM 442 LA | 367 | 1800 |
| 8V 183 AA51 | OM 422 | 152 | 1500 |
| 8V 183 AA51 | OM 422 | 178 | 1800 |
| 6R 183 TD13H | OM 447 H LA | 275 | 2100 |
| 12V 183 TE93 | OM 444 LA | 846 | 2400 |
| 12V 183 TE52 | OM 444 LA | 455 | 1500 |
| 12V 183 TE52 | OM 444 LA | 550 | 1800 |
| 12V 183 TD13 | OM 444 LA | 450 | 1500 |
| 12V 183 TD13 | OM 444 LA | 550 | 2100 |
| 12V 183 TB32 | OM 444 LA | 441 | 1500 |
| 12V 183 TA12 | OM 444 A | 400 | 2100 |
