| PART NUMBER | 0000533735 |
| ENGINE TYPE | MTU 595 ENGINE |

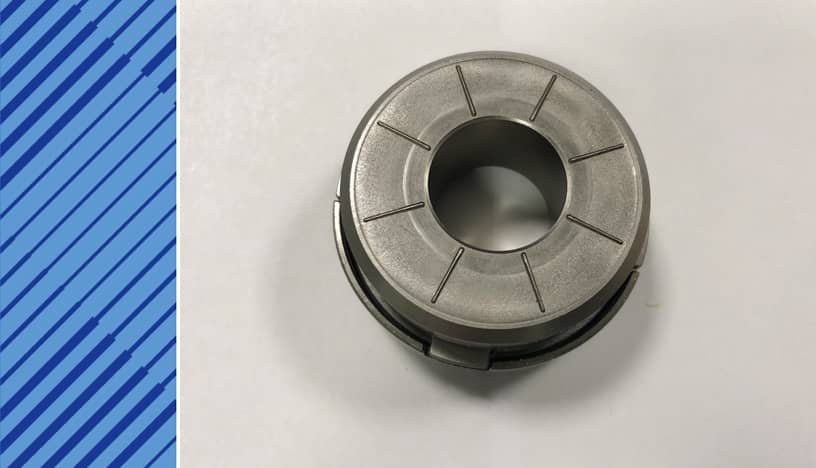

| DESCRIPTION | ROTOCAP |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.169 KG |
| HS CODE | 84821090 |
| NATO-VERS.-NR. | N/A |
| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 5 | CYLINDER HEAD | 5760101920 | 016 |
| 10 | VALVE | 5700530001 | 002 |
| 15 | VALVE | 5700530005 | 002 |
| 20 | VALVE SPRING INNER | 5760530022 | 004 |
| 25 | VALVE SPRING OUTER | 5760530020 | 004 |
| 30 | SPRING RETAINER | 5700530025 | 004 |
| 35 | VALVE COLLET | 0000530826 | 008 |
| 40 | ROTOCAP | 0000533735 | 004 |
| 50 | SCREW | 5760160171 | 001 |
| 55 | O-RING | 700429017000 | 001 |
| Make | Power KW | U/MIN | Bore/stroke mm (in) |
|---|---|---|---|
| 16V 595 TE70 | 3600 | 1750 | 190/210 (7.5/8.3) |
| 16V 595 TE70L | 3925 | 1750 | 190/210 (7.5/8.3) |
| 12V 595 TE90 | 3240 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE90 | 4320 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE60 | 3040 | 1600 | 190/210 (7.5/8.3) |
| 16V 595 TE70 | 3600 | 1700 | 190/210 (7.5/8.3) |
| 16V 595 TE70L | 3925 | 1750 | 190/210 (7.5/8.3) |
| 16V 595 TE80 | 3925 | 1750 | 190/210 (7.5/8.3) |
| 12V 595 TE90 | 3240 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE90 | 4320 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE50 | 2640 | 1500 | 190/210 (7.5/8.3) |
| 12V 595 TC10 | 2250 | 1650 | 190/210 (7.5/8.3) |
| 16V 595 TC10 | 3000 | 1650 | 190/210 (7.5/8.3) |
