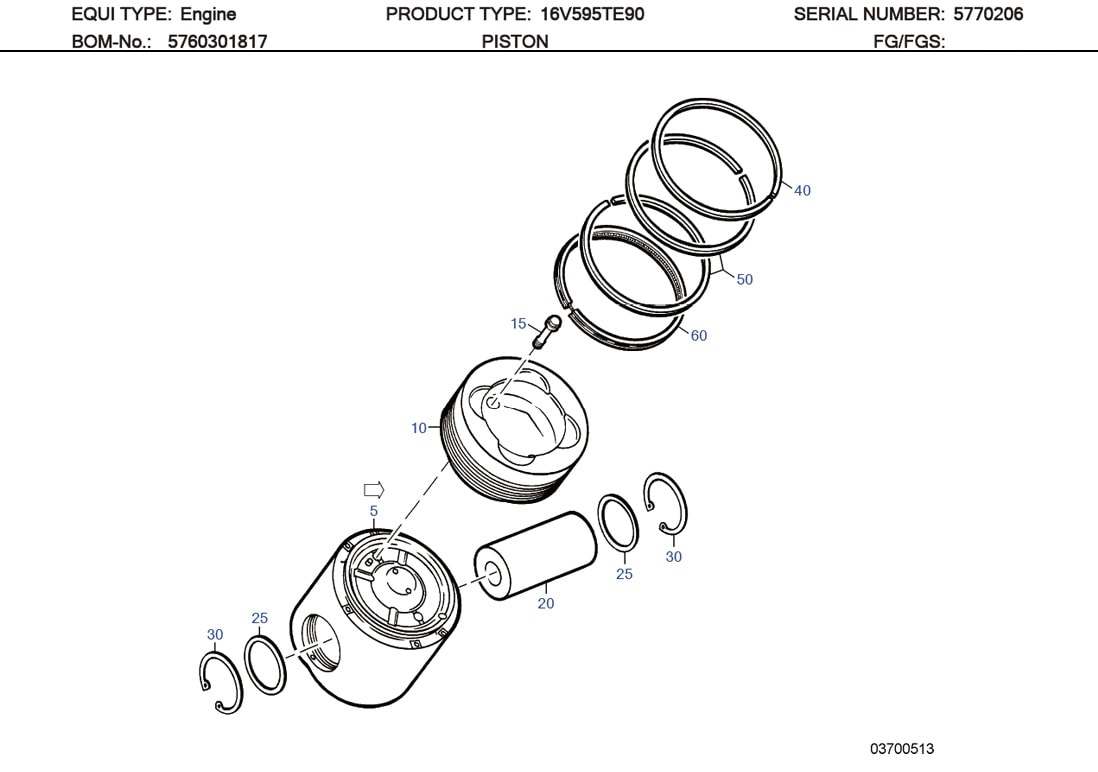

MTU 5760370076 Technical Engineering Exploded View

MTU 5760370076 Technical Engineering Exploded View

MTU 5760370076 Technical Engineering Exploded View

C/N Description Part-Number Qty
5 PISTON SKIRT 5760300515 001
10 PISTON CROWN 5760372225 001
15 STRESS BOLT 5769900619 002
20 PISTON PIN 5760370020 001
25 SHIM 5760370076 002
30 SNAP RING 200472082000 002
40 RECTANGLR-SECT RING 0080372819 001
50 COMPRESSION RING 0070372419 002
60 OIL CONTROL RING WITH SPRING 0090378218 001

MTU 595 Diesel Engine Models & Specifications

MTU 595 TE90 Family

MTU 595 Diesel Engine Models & Specifications

Make Power KW U/MIN Bore/stroke mm (in)
16V 595 TE70 3600 1750 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE60 3040 1600 190/210 (7.5/8.3)
16V 595 TE70 3600 1700 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
16V 595 TE80 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE50 2640 1500 190/210 (7.5/8.3)
12V 595 TC10 2250 1650 190/210 (7.5/8.3)
16V 595 TC10 3000 1650 190/210 (7.5/8.3)
