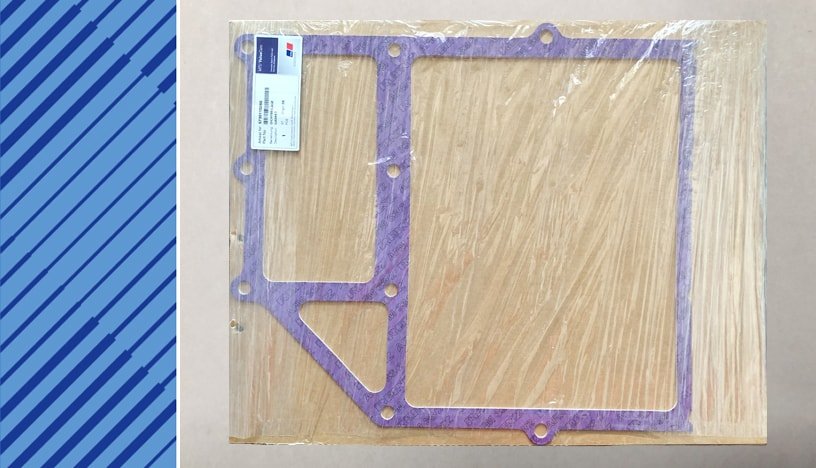

MTU 5730110280 Technical Engineering Exploded View

MTU 5770100708 Technical Engineering Exploded View MTU 5730110380 Technical Engineering Exploded ViewMTU 5730110280 Technical Engineering Exploded View

MTU 5730110280 Technical Engineering Exploded View

C/N Description Part-Number Qty
65 CRANKCASE 5770100708 001
75 PLUG 735084020000 001
80 O-RING 700429015000 001
90 SPACER S2000/4000 735151012100 006
95 BOLT HEX 000931012052 006
70 O-RING 700429021000 001
110 STRESS BOLT 700209010208 008
120 PIN DOWEL 000007010124 032
140 DOWEL PIN 000007010106 032
150 DOWEL PIN 5849910060 001
160 DOWEL PIN 000007016106 004
170 THREADED PLUG 000908016001 004
175 COPPER SEALING RING 007603016105 004
200 PLUG 000908036007 002
205 WASHER A COP 007603036101 002
215 FLANGE 5761421315 008
220 O-RING 0229970548 008
225 HEX SCREW 200933010009 016
230 TAB WASHER 700292010501 016
240 PLUG 735084036000 002
245 O-RING 700429028002 002
250 SNAP RING 000472040000 002
260 PLUG 735084050000 002
265 O-RING 700429040003 002
270 SNAP RING 000472055000 002
280 THREADED BUSHING 5769970516 004
285 SCREW NECK 915013008002 004
290 COPPER SEALING RING 007603014102 004
295 CONE SEALING 10 915005008001 004
300 NUT 915001008003 004
320 PLUG 000910016003 001
330 END COVER FOR CAMSHAFT CHAMBE X00023820 005
335 END COVER FOR CAMSHAFT CHAMBE X00023819 001
340 END COVER FOR CAMSHAFT CHAMBE X00023806 001
350 GASKET 5730110480 005
355 GASKET 5730110380 001
360 GASKET 5730110280 001
365 SPACER 735151010100 050
370 BOLT HEX 000933010133 050
380 BOLT HEX 000931010142 004
385 WASHER 000125010524 004
395 BRACKET L H:25 5502034640 002
400 BOLT HEX ZNPH R5F 304017008080 002
405 NUT HEX 000934008013 002
410 WASHER 000125008427 004
415 CLAMP 916016015204 002
420 CLAMP 916016015200 002
425 CLAMP 916016012203 003
430 CLAMP 916016012201 002
440 COVER 5760110532 001
450 GASKET 5730110080 001
460 BOLT HEX 000933010049 002
525 BOLT HEX 000931010105 002
540 BOLT HEX 000931010127 004

MTU 595 Diesel Engine Models & Specifications

MTU 595 TE90 Family

MTU 595 Diesel Engine Models & Specifications

Make Power KW U/MIN Bore/stroke mm (in)
16V 595 TE70 3600 1750 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE60 3040 1600 190/210 (7.5/8.3)
16V 595 TE70 3600 1700 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
16V 595 TE80 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE50 2640 1500 190/210 (7.5/8.3)
12V 595 TC10 2250 1650 190/210 (7.5/8.3)
16V 595 TC10 3000 1650 190/210 (7.5/8.3)
