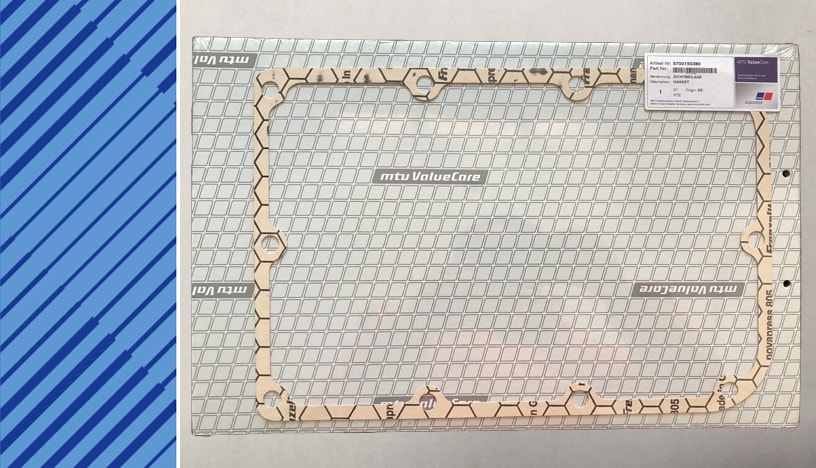

5700150380 GASKET

Other
Other 735082235000 VALVE TRIM 5842040551 SPACER RING 5760540532 GUIDE BUSHING 5129940030 TAB WASHER 0229978348 SEALING RING 5760162553 SLEEVE 5760550450 BUSHING 5760550350 BUSHING 700327028000 GROMMET 0001883180 GASKET 0002030181 SEALING RING 0000533735 ROTOCAP 0000530826 VALVE COLLET 5700530025 SPRING RETAINER 5760530020 VALVE SPRING OUTER 5760530022 VALVE SPRING INNER 5700530005 VALVE 5700530001 VALVE 5769900004 SCREW 5760110062 THRUST WASHER 5760110153 PLUG-IN PIPE 5769940030 TAB WASHER 000908020000 PLUG 5709970144 SEALING RING 5760160071 PLUG 5700380150 CONROD BUSHING SIZE 0 5760150180 GASKET 5700150380 GASKET 5702030280 GASKET 5769900619 STRESS BOLT 5760110159 CARBON SCRAPER RING 5760160419 SEALING RING 5730110180 GASKET 007603064100 WASHER A COP 5700510150 BUSHING 5760100081 PLUG 5730110080 GASKET 5730110280 GASKET 5730110380 GASKET 5730110480 GASKET 0000982780 SEALING BLOCK 5760550280 PROFILE GASKET 5760550180 GASKET 200988045000 SUPPORT PLATE 5760370076 SHIM 700327022000 GROMMET 5842040151 SPACER RING 5591420451 RING SEALING 5761420057 SEALING RING 5760110059 SEALING RING 200472082000 SNAP RING 0090378218 OIL CONTROL RING 0070372419 COMPRESSION RING 0080372819 RECTANGLR-SECT RING
PART NUMBER 5700150380
ENGINE TYPE MTU 595 ENGINE
DESCRIPTION GASKET
DIMENSIONS N/A
UNIT WEIGHT 0.020 KG
HS CODE 68069000
NATO-VERS.-NR. 5330124049799
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

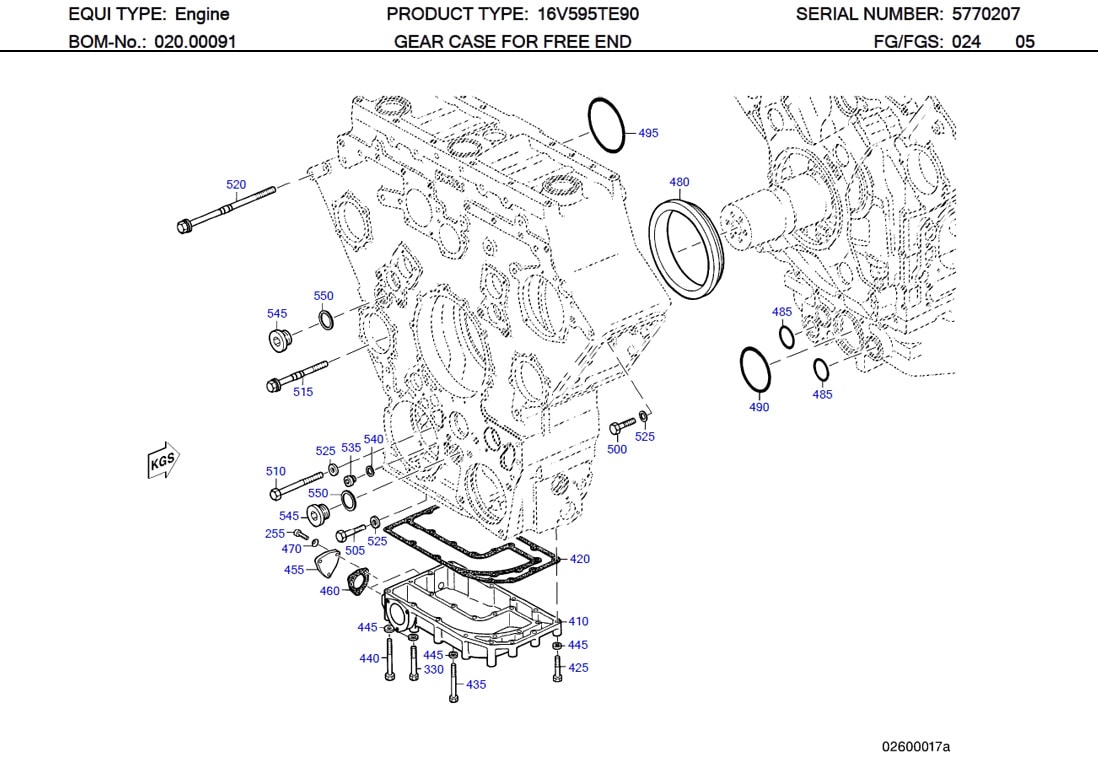

MTU 5700150380 Technical Engineering Exploded View

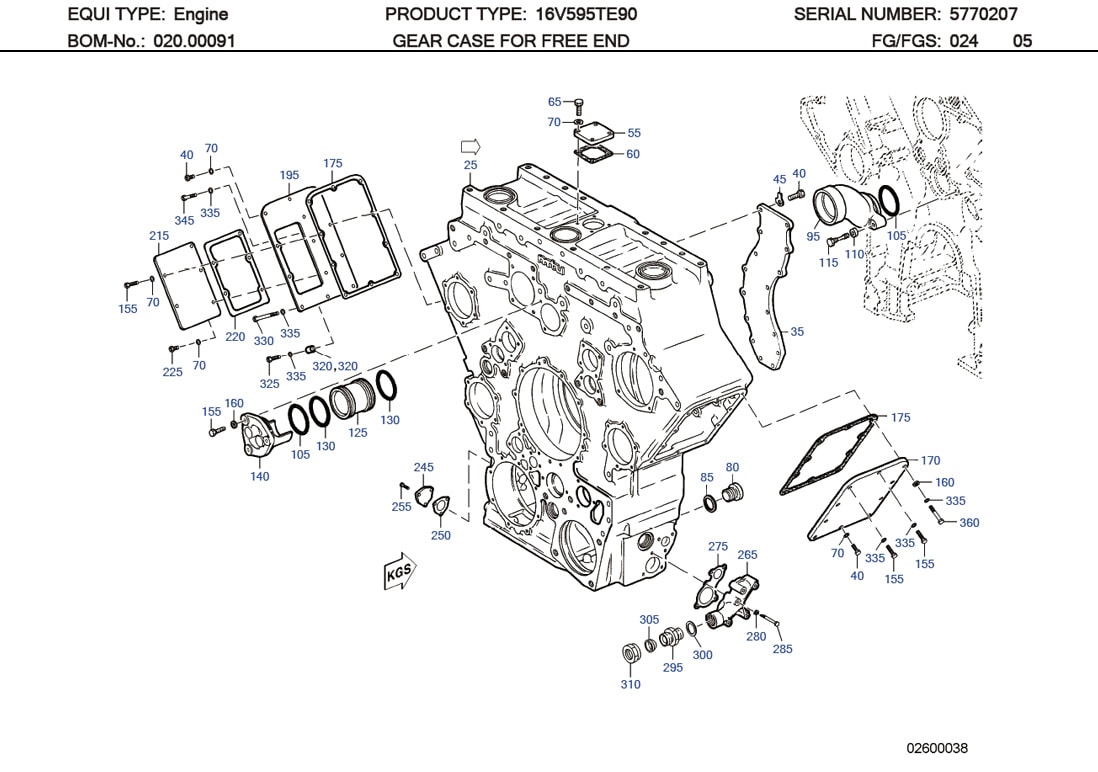

MTU 5700150380 Technical Engineering Exploded View MTU 5730150280 Technical Engineering Exploded View

MTU 5700150380 Technical Engineering Exploded View

C/N Description Part-Number Qty
25 EQUIPMENT RACK 5760100933 001
35 COVER PLATE 5700150209 001
40 BOLT HEX 000933010049 016
45 TAB WASHER 700292010500 016
55 COVER 5580140233 001
60 GASKET 5702030280 001
65 BOLT HEX 000933010058 004
70 WASHER 206796010000 004
80 THREAD PLUG 000908042001 001
85 COPPER SEALING RING 007603042101 001
95 ELBOW 5761870724 001
105 O-RING 700429090003 001
110 SLEEVE 5501421153 002
115 STRESS BOLT 700209010211 002
125 PLUG-IN PIPE 735078080001 001
130 O-RING 700429085002 002
140 COVER 5760150530 001
155 BOLT HEX 000933010194 003
160 SPACER 735151010100 003
170 COVER 5700150430 001
175 GASKET 5700150380 001
195 COVER 5760100335 001
215 COVER 5760150630 001
220 GASKET 5760150180 001
225 BOLT HEX 000933010038 003
245 FLANGE 700488035200 001
250 GASKET 700489035001 001
255 BOLT HEX ZNPH R5F 304017008082 003
265 ELBOW 5761860019 001
275 GASKET 5761860080 001
280 SPACER 735151008100 005
285 BOLT HEX 304014008031 005
295 UNION 735070032000 001
300 COPPER SEALING RING 007603038101 001
305 SEALING CONE 735189035000 001
310 NUT 915001032003 001
320 SPACER BUSHING 5599920601 002
325 BOLT HEX 000931010105 002
330 BOLT HEX 000931010147 001
335 WASHER 000125010524 003
345 BOLT HEX 000933010133 001
360 BOLT HEX 000931010111 002
410 COVER 5760100135 001
420 GASKET 5730150280 001
425 BOLT HEX 000931010117 007
435 HEX SCREW 000931010154 002
440 BOLT HEX 000931010244 004
445 SPACER S2000/4000 735151010200 023
455 BLIND FLANGE 5769970066 002
460 GASKET 5761870180 002
470 WASHER SPRING 8 FST 206796008000 006
480 CENTERING RING 5700150051 001
485 O-RING 700429050002 003
490 O-RING 700429115000 001
495 O-RING 700429158000 001
500 BOLT HEX 000931016019 006
505 BOLT HEX 000931016133 001
510 HEX SCREW 200931016008 006
515 SCREW 5760100183 003
520 SCREW 5760100083 028
525 WASHER 5589900040 013
535 THREADED PLUG 000908016001 007
540 COPPER SEALING RING 007603016105 007
545 THREAD PLUG 000908048004 003
550 COPPER SEALING RING 007603048101 003
