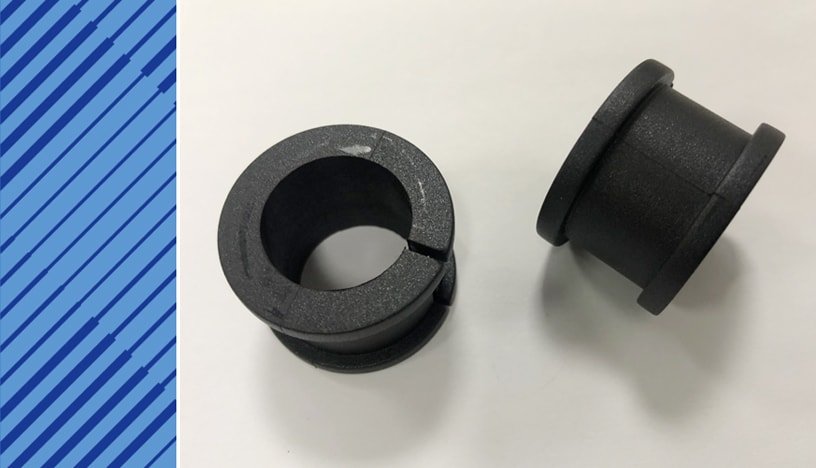

700327022000 GROMMET

Other
Other 735082235000 VALVE TRIM 5842040551 SPACER RING 5760540532 GUIDE BUSHING 5129940030 TAB WASHER 0229978348 SEALING RING 5760162553 SLEEVE 5760550450 BUSHING 5760550350 BUSHING 700327028000 GROMMET 0001883180 GASKET 0002030181 SEALING RING 0000533735 ROTOCAP 0000530826 VALVE COLLET 5700530025 SPRING RETAINER 5760530020 VALVE SPRING OUTER 5760530022 VALVE SPRING INNER 5700530005 VALVE 5700530001 VALVE 5769900004 SCREW 5760110062 THRUST WASHER 5760110153 PLUG-IN PIPE 5769940030 TAB WASHER 000908020000 PLUG 5709970144 SEALING RING 5760160071 PLUG 5700380150 CONROD BUSHING SIZE 0 5760150180 GASKET 5700150380 GASKET 5702030280 GASKET 5769900619 STRESS BOLT 5760110159 CARBON SCRAPER RING 5760160419 SEALING RING 5730110180 GASKET 007603064100 WASHER A COP 5700510150 BUSHING 5760100081 PLUG 5730110080 GASKET 5730110280 GASKET 5730110380 GASKET 5730110480 GASKET 0000982780 SEALING BLOCK 5760550280 PROFILE GASKET 5760550180 GASKET 200988045000 SUPPORT PLATE 5760370076 SHIM 700327022000 GROMMET 5842040151 SPACER RING 5591420451 RING SEALING 5761420057 SEALING RING 5760110059 SEALING RING 200472082000 SNAP RING 0090378218 OIL CONTROL RING 0070372419 COMPRESSION RING 0080372819 RECTANGLR-SECT RING
PART NUMBER 700327022000
ENGINE TYPE MTU 595 ENGINE
DESCRIPTION GROMMET
DIMENSIONS 22 MMN327
UNIT WEIGHT 0.009 KG
HS CODE 40169997
NATO-VERS.-NR. 5325121426378
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

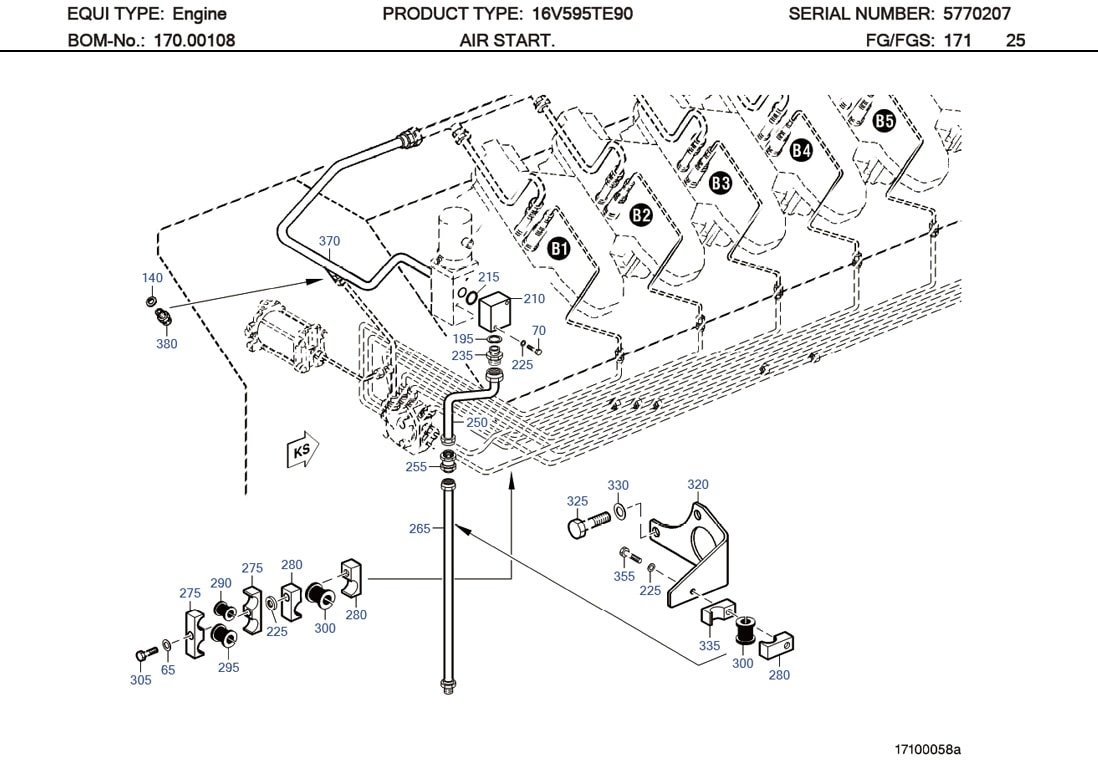

MTU 700327022000 Technical Engineering Exploded View

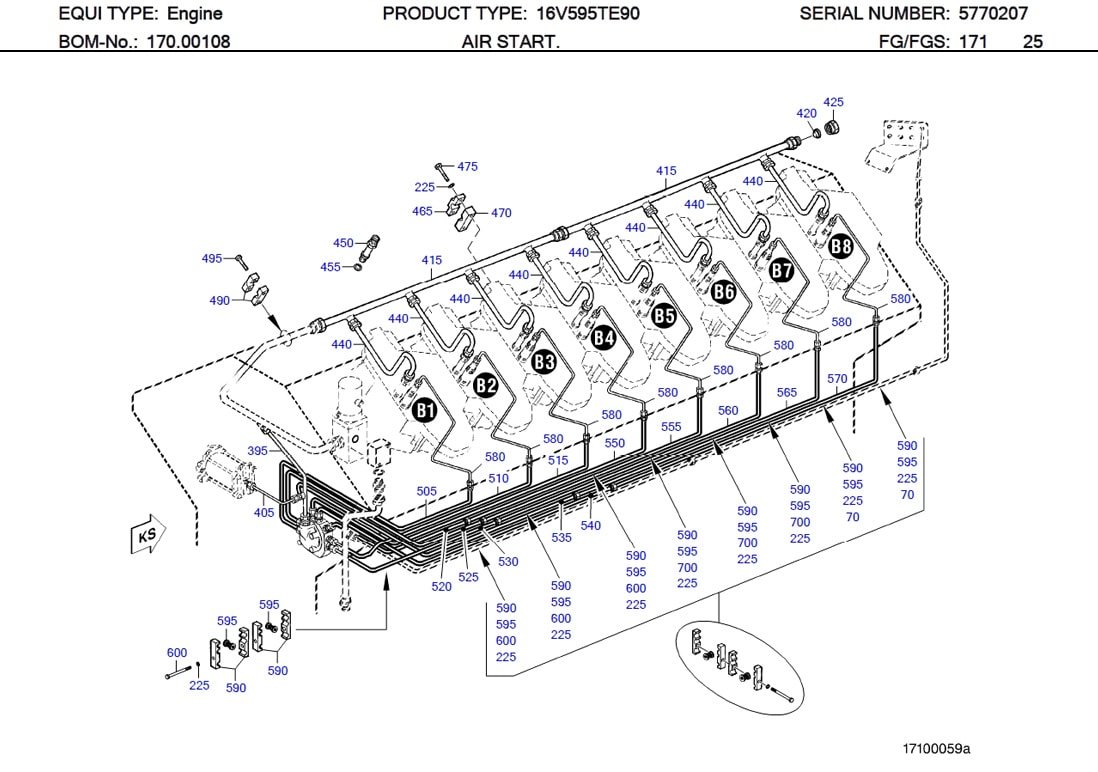

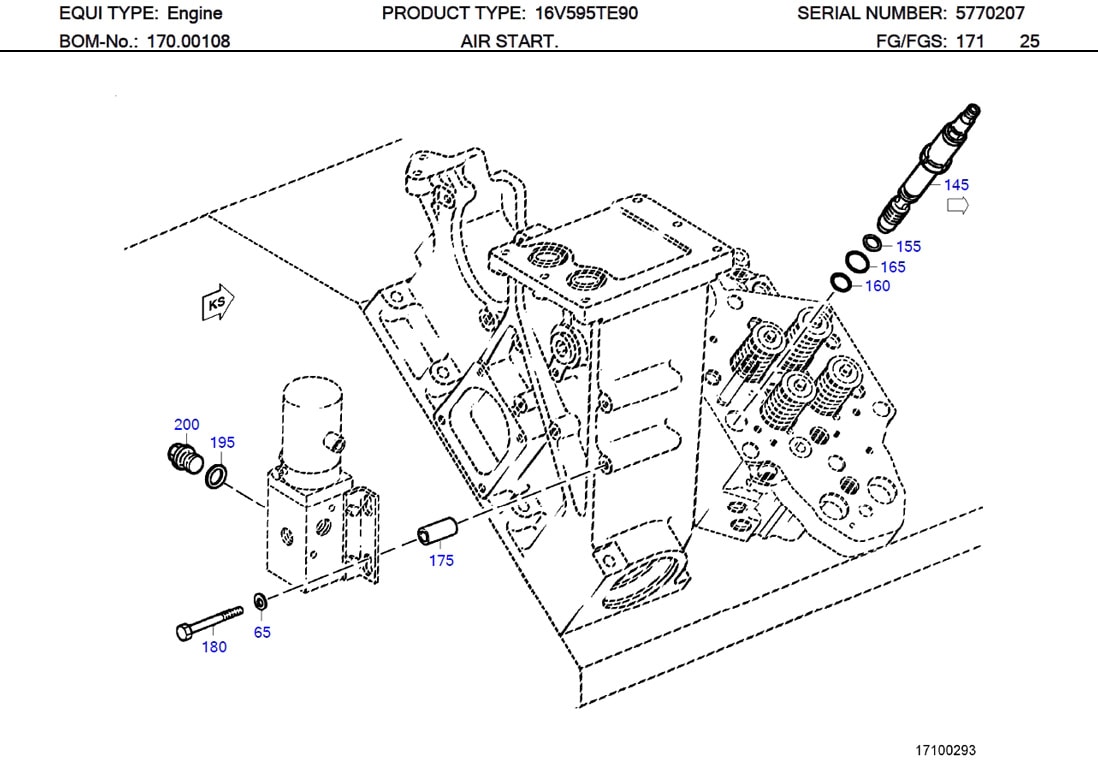

MTU 5801750180 Technical Engineering Exploded View MTU 5761700214 Technical Engineering Exploded ViewMTU 700327022000 Technical Engineering Exploded ViewMTU 5769950868 Technical Engineering Exploded View

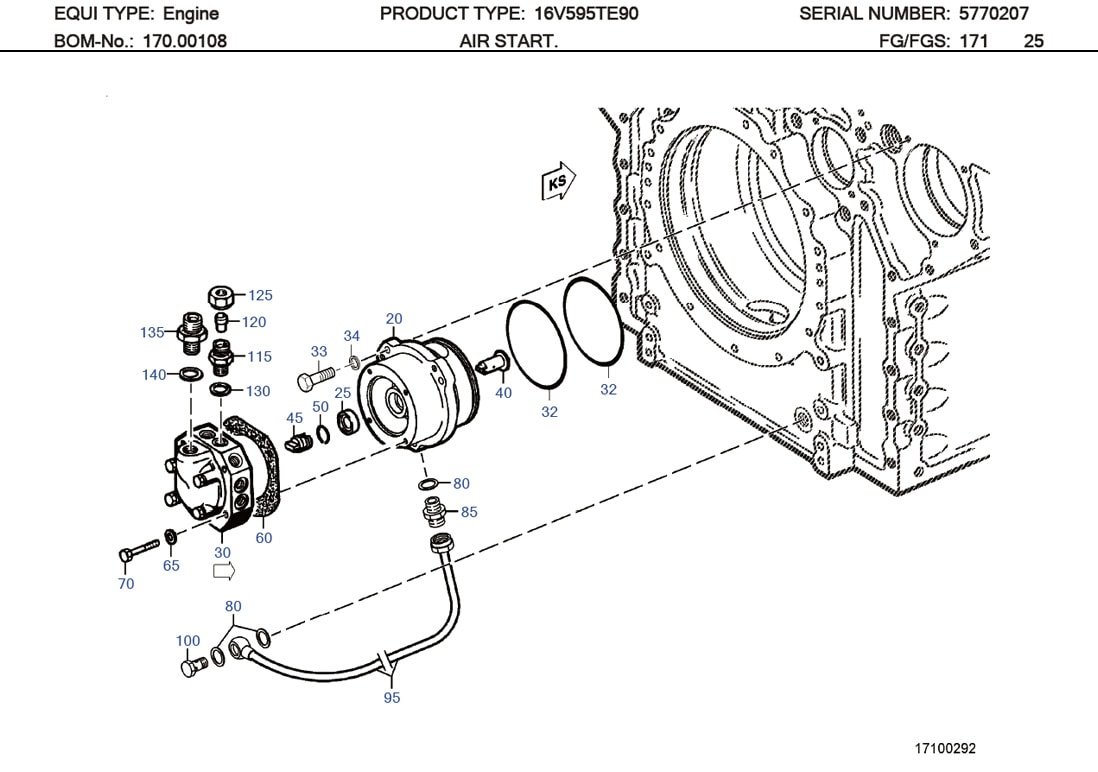

MTU 700327022000 Technical Engineering Exploded View

C/N Description Part-Number Qty
20 BEARING BODY 5760500442 001
25 SHAFT SEAL 700217018002 001
30 AIR DISTRIBUTOR 0001703006 001
32 O-RING 700429126000 002
33 BOLT HEX 000933010194 003
34 SPACER 735151010100 003
40 LINK 5801750809 001
45 COUPLER 5801750709 002
50 SNAP RING 5809940135 002
60 GASKET 5801750180 001
65 SPACER 735151008100 004
70 BOLT HEX 000931008185 004
80 COPPER SEALING RING 007603022102 001
85 UNION 735070016000 001
95 OIL LINE 5761800422 001
100 BOLT BANJO A15 700223013000 001
115 SCREW-FITTING UNION 5809970672 008
120 CUTTING OLIVE 003861008007 008
125 UNION NUT 003870008100 008
130 COPPER SEALING RING 007603014102 008
135 ADAPTOR 915013013003 001
140 COPPER SEALING RING 007603018101 001
145 STARTING VALVE 5761700214 008
155 SEALING RING 5709970144 008
160 O-RING 700429021000 008
165 O-RING 700429027003 008
175 SPACER SLEEVE 5760980753 004
180 SCREW 000000003208 004
195 WASHER A COP 007603027100 001
200 PLUG 000910999014 001
210 CONNECTING PIECE 5761750048 001
215 O-RING 700429032003 001
225 WASHER 000125008427 002
235 SCREW-FITTING UNION 700419999024 002
250 STARTING-AIR LINE 5761700951 001
255 VALVE NON-RETURN RHDK 22-L 0.5 735080022201 001
265 STARTING-AIR LINE 5761701051 001
275 PIPE HALF-CLAMP 5909953368 002
280 CLAMP HALF TUBE 1/1 G8-28 700325028200 001
290 GROMMET 700327010000 001
295 GROMMET 700327012000 001
300 GROMMET 700327022000 001
305 BOLT HEX 000931008109 001
320 RETAINER 5761720041 001
325 HEX SCREW 304017016018 002
330 WASHER 000125017014 002
335 CLAMP HALF TUBE 1/1 D9-28 700325028100 001
355 BOLT HEX 000931008189 001
370 STARTING-AIR LINE 5761700251 001
380 UNION 915013013004 001
395 STARTING AIR LINE 5761702160 001
405 COMPRESSED-AIR LINE 5761702360 001
415 STARTING AIR LINE 5761705460 001
420 SEALING CONE 915005020002 001
425 NUT 915001020003 001
440 STARTING AIR LINE 5761700360 008
450 FITTING 5769970172 008
455 WASHER A COP 007603020103 008
465 PIPE HALF-CLAMP 5769950168 004
470 PIPE HALF-CLAMP 5769950268 004
475 HEX SCREW 000931008086 008
490 PIPE CLAMP HALF 700325022102 002
495 BOLT HEX 000931008061 002
505 CONTROL AIR LINE 5771702360 001
510 CONTROL AIR LINE 5771702460 001
515 CONTROL AIR LINE 5771702560 001
520 CONTROL AIR LINE 5771702660 001
525 CONTROL AIR LINE 5771702760 001
530 CONTROL AIR LINE 5771702860 001
535 CONTROL AIR LINE 5771702960 001
540 CONTROL AIR LINE 5771703060 001
550 CONTROL AIR LINE 5761701360 001
555 CONTROL AIR LINE 5761701460 001
560 CONTROL AIR LINE 5761701560 001
565 CONTROL AIR LINE 5771703460 001
570 CONTROL AIR LINE 5771703560 001
580 CONTROL AIR LINE 5761701660 008
590 CONTROL AIR LINE 5769950868 008
595 GROMMET 700327008000 011
600 HEX SCREW 000931008215 001
700 BOLT HEX 304014008031 001
