MTU 595 Parts | 735082235000 | VALVE TRIM

735082235000 VALVE TRIM

Other
Other 735082235000 VALVE TRIM 5842040551 SPACER RING 5760540532 GUIDE BUSHING 5129940030 TAB WASHER 0229978348 SEALING RING 5760162553 SLEEVE 5760550450 BUSHING 5760550350 BUSHING 700327028000 GROMMET 0001883180 GASKET 0002030181 SEALING RING 0000533735 ROTOCAP 0000530826 VALVE COLLET 5700530025 SPRING RETAINER 5760530020 VALVE SPRING OUTER 5760530022 VALVE SPRING INNER 5700530005 VALVE 5700530001 VALVE 5769900004 SCREW 5760110062 THRUST WASHER 5760110153 PLUG-IN PIPE 5769940030 TAB WASHER 000908020000 PLUG 5709970144 SEALING RING 5760160071 PLUG 5700380150 CONROD BUSHING SIZE 0 5760150180 GASKET 5700150380 GASKET 5702030280 GASKET 5769900619 STRESS BOLT 5760110159 CARBON SCRAPER RING 5760160419 SEALING RING 5730110180 GASKET 007603064100 WASHER A COP 5700510150 BUSHING 5760100081 PLUG 5730110080 GASKET 5730110280 GASKET 5730110380 GASKET 5730110480 GASKET 0000982780 SEALING BLOCK 5760550280 PROFILE GASKET 5760550180 GASKET 200988045000 SUPPORT PLATE 5760370076 SHIM 700327022000 GROMMET 5842040151 SPACER RING 5591420451 RING SEALING 5761420057 SEALING RING 5760110059 SEALING RING 200472082000 SNAP RING 0090378218 OIL CONTROL RING 0070372419 COMPRESSION RING 0080372819 RECTANGLR-SECT RING

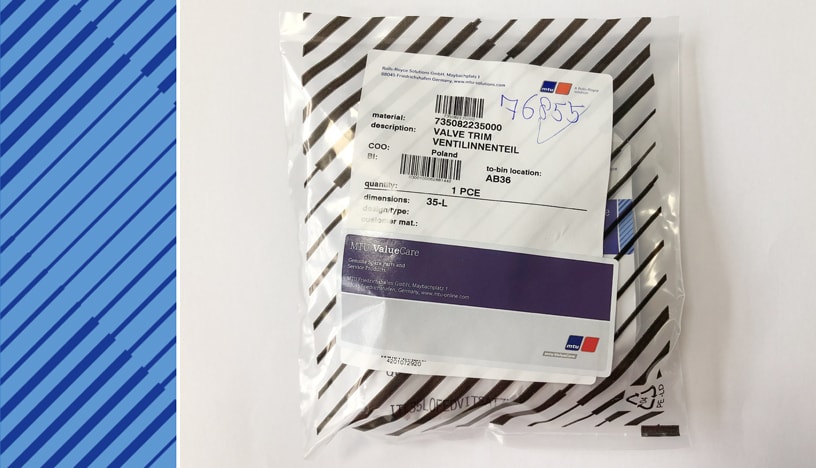

PART NUMBER 735082235000
ENGINE TYPE MTU 595 ENGINE
DESCRIPTION VALVE TRIM
DIMENSIONS 35-L
UNIT WEIGHT 0.118 KG
HS CODE 84819000
NATO-VERS.-NR. N/A
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

MTU 735082235000 Technical Engineering Exploded View

MTU 735082235000 Technical Engineering Exploded View MTU X00003327 Technical Engineering Exploded View MTU 5909953368 Technical Engineering Exploded View MTU 5760701532 Technical Engineering Exploded View MTU 5840700280 Technical Engineering Exploded View MTU 5502030043 Technical Engineering Exploded View

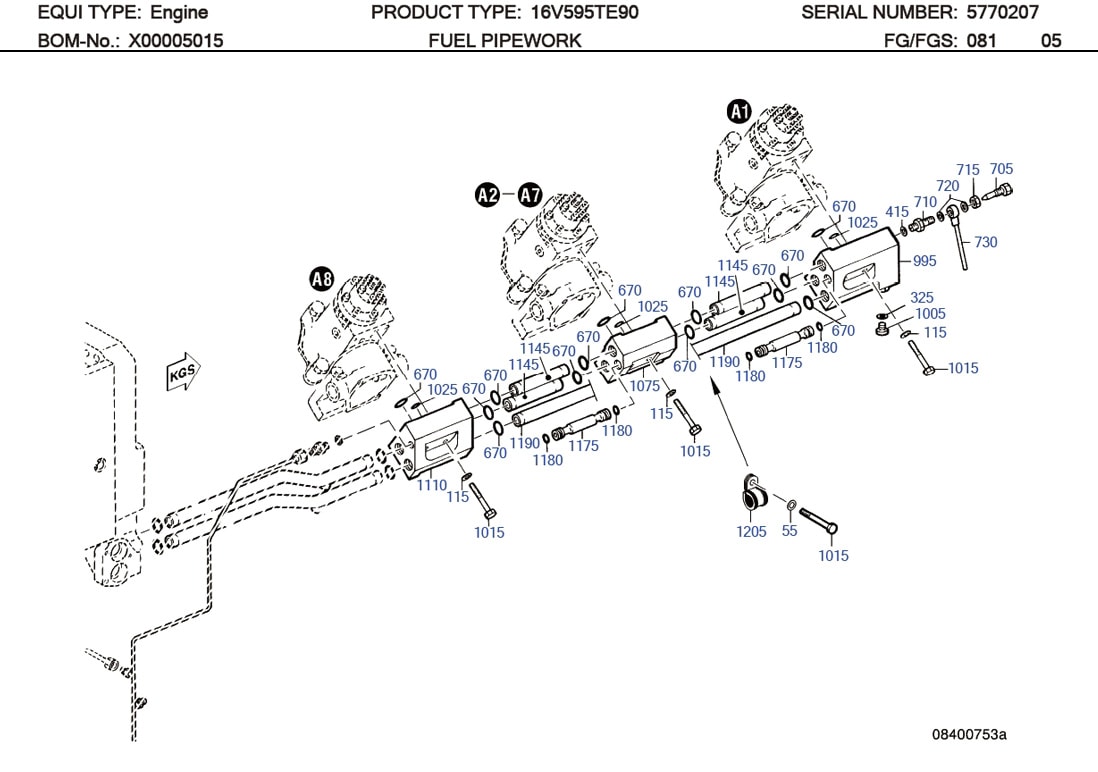

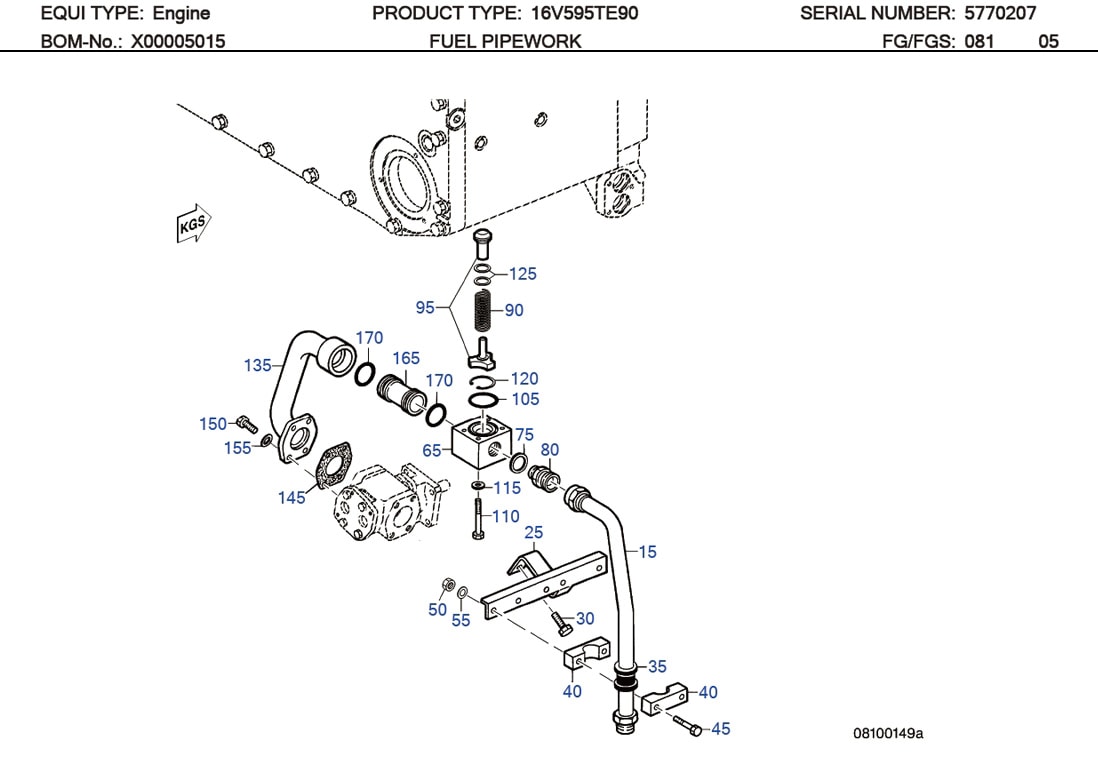

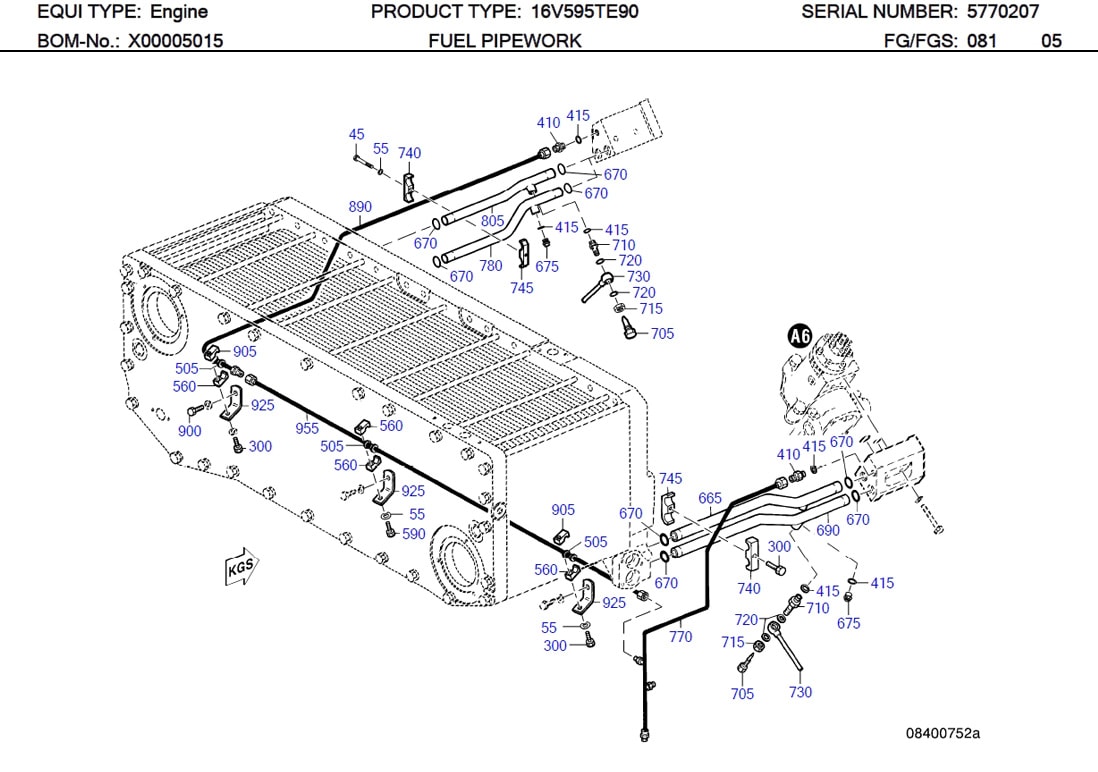

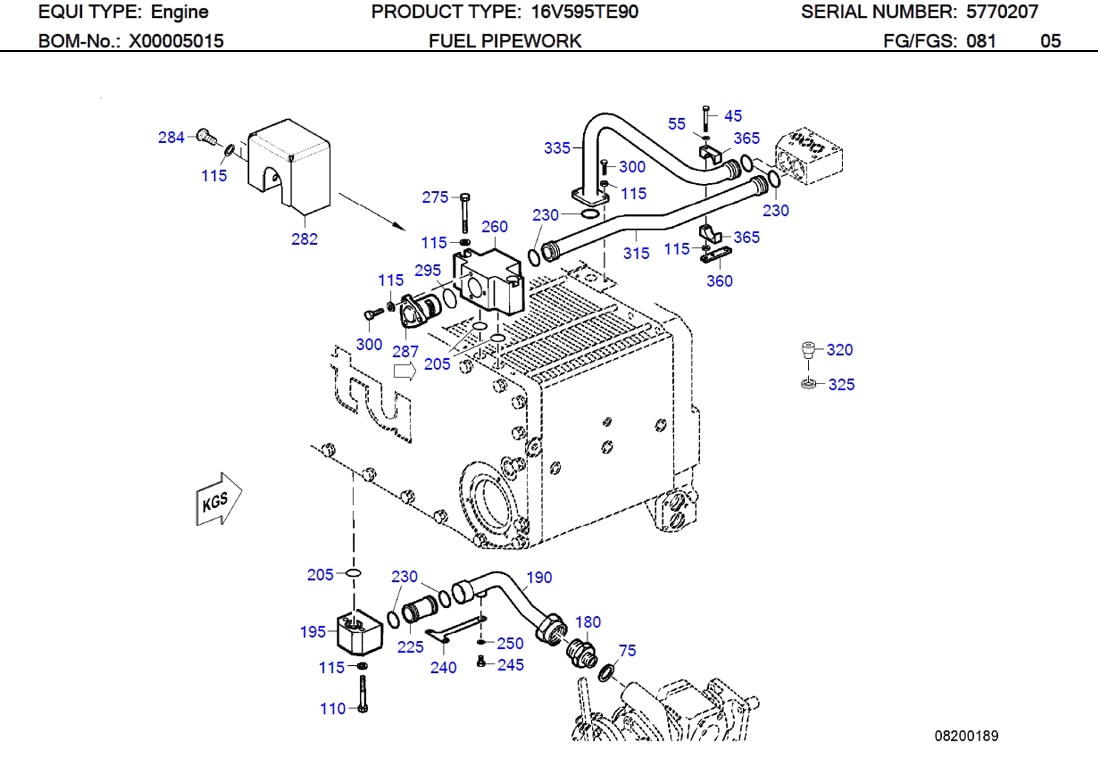

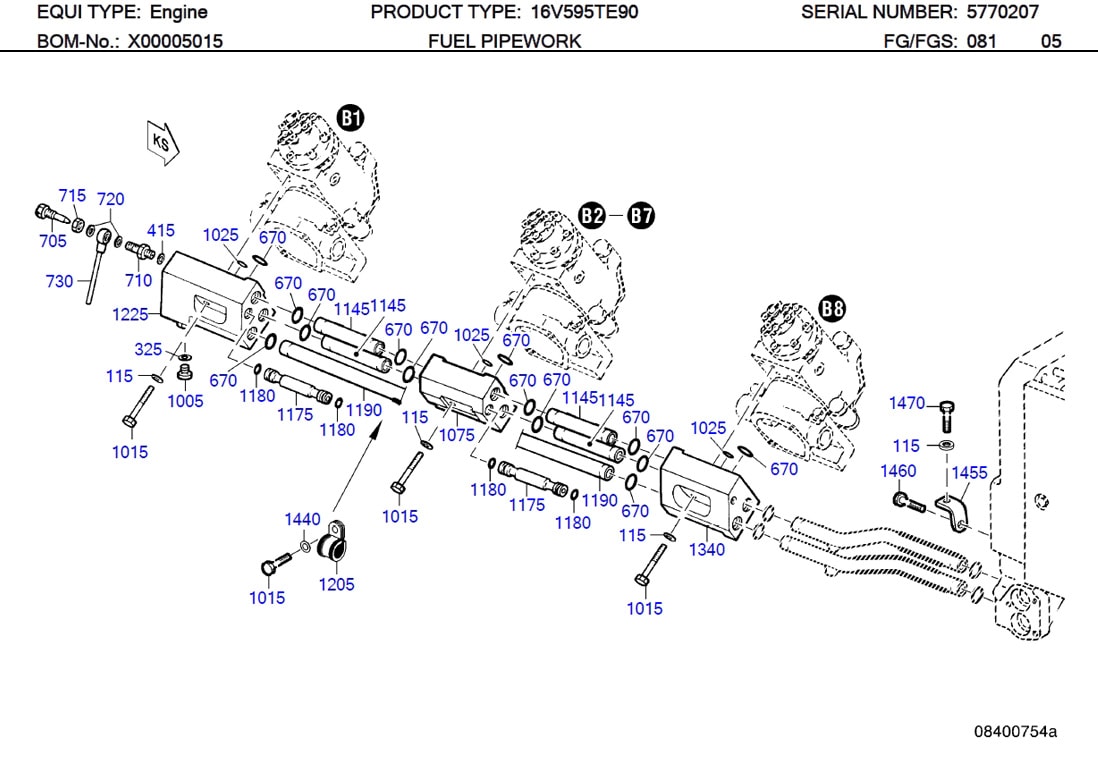

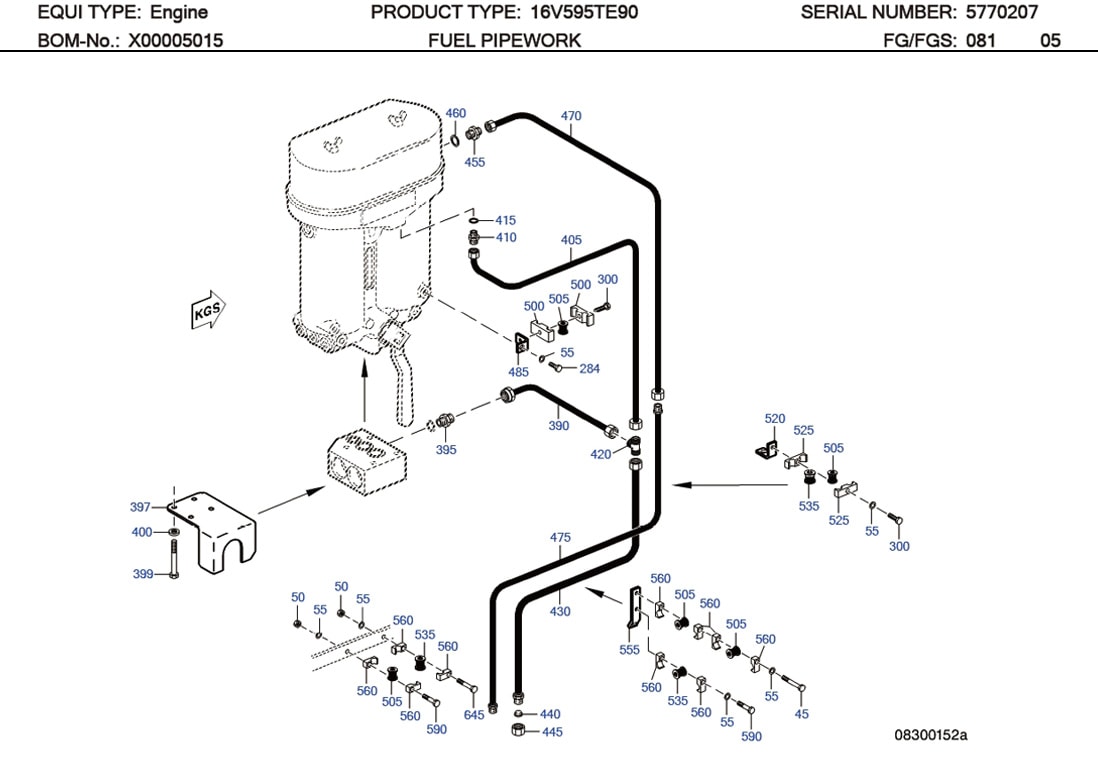

MTU 735082235000 Technical Engineering Exploded View

C/N Description Part-Number Qty
15 SUPPLY LINE 5760700432 001
25 RETAINER 5760700140 001
30 BOLT HEX 000933010058 002
35 GROMMET 700327028000 001
40 CLAMP HALF TUBE 1/2 D9-35 700325035101 002
45 BOLT HEX 000931008185 002
50 NUT HEX 000934008013 002
55 WASHER 000125008427 002
65 CONNECTING PIECE 5760781368 001
75 COPPER SEALING RING 007603030101 001
80 ADAPTOR 735070025000 001
90 SPRING 735082135002 001
95 VALVE TRIM 735082235000 001
105 O-RING 700429056001 001
110 BOLT HEX 304014008031 004
115 SPACER 735151008100 004
120 RING SNAP 000472048000 001
125 WASHER 5769900640 001
135 PIPE 5760704032 001
145 GASKET 5840780380 001
150 BOLT HEX 000933012059 004
155 WASHER 000125013012 004
165 PLUG-IN PIPE 735078035000 001
170 O-RING 700429038000 001
180 ADAPTOR SCREW NECK 915007032000 001
190 FUEL LINE 5760702832 001
195 CONNECTING PIECE 5760781068 001
205 O-RING 700429032000 001
225 PIPE PLUG-IN 735078032006 001
230 O-RING 700429036001 002
240 HEAT SHIELD FOR FUEL COOLER 5861871039 001
245 BOLT HEX 000933010198 001
250 WASHER 000125010524 001
260 FUEL THERMOSTAT X00003327 001
275 HEX SCREW 000931008240 002
282 HEAT SHIELD TO GOVERNOR HSNG 5860780384 001
284 BOLT HEX ZNPH R5F 304017008080 002
287 THERMOSTAT 0000700082 001
295 O-RING 700429046000 001
300 BOLT HEX ZNPH R5F 304017008082 001
315 FUEL LINE 5760708232 001
320 PLUG 000910012000 001
325 COPPER SEALING RING 007603012111 001
335 FUEL LINE 5760704432 001
360 RETAINER 135M20004/1 001
365 CLAMP HALF TUBE 1/1 D9-35 700325035100 001
390 DRAIN LINE 5760700032 001
395 UNION 915006010002 001
397 HEAT SHIELD TO DISTRIBUTOR PCE 5860780484 001
399 HEX SCREW 000933006158 004
400 WASHER 735151006100 004
405 DRAIN LINE 5760704632 001
410 ADAPTER 735070008000 001
415 COPPER SEALING RING 007603014102 001
420 FITTING TEE 5569970774 001
430 DRAIN LINE 5760704232 001
440 CONE SEALING 12 915005010000 001
445 NUT 915001010004 001
455 CONNECTOR 10/8 915007010001 001
460 COPPER SEALING RING 007603018101 001
470 VENT LINE 5760704132 001
475 VENT LINE 5760703032 001
485 BRACKET L H:51 S2000/4000 5551870640 001
500 CLAMP HALF TUBE 2/1 D9-15 700325015104 001
505 GROMMET 700327010000 001
520 BRACKET 5801533240 001
525 PIPE HALF-CLAMP 5909953368 002
535 GROMMET 700327012000 001
555 RETAINER 5761870340 001
560 CLAMP HALF TUBE 1/1 D9-15 700325015100 004
590 BOLT HEX 000931008061 001
645 HEX SCREW 000931008086 001
665 SUPPLY LINE 5760703132 001
670 O-RING 700429024002 002
675 PLUG 000910014004 001
690 RETURN LINE 5760701632 001
705 BOLT SPL M10 1.00X40 TO M6 0.2 8.8 5849900615 001
710 UNION 5849972672 001
715 NUT M16 04-2 DIN439 000439016200 001
720 COPPER SEALING RING 007603016105 001
730 TUBE VENT W/BANJO FTG 8MM X 10MM X 90 5840700280 001
740 PIPE HALF-CLAMP 5769950668 001
745 PIPE HALF-CLAMP 5769950768 001
770 FUEL RETURN LINE LEFT 5760701932 001
780 SUPPLY LINE 5760702132 001
805 FUEL RETURN LINE 5760701532 001
890 FUEL RETURN LINE RIGHT 5760701832 001
900 HEX SCREW 304017008078 001
905 CLAMP HALF TUBE 1/1 G8-15 700325015200 001
925 BRACKET 5502030743 003
955 FUEL RETURN LINE 5760702032 001
995 CONNECTING PIECE 5760701530 001
1005 THREAD PLUG 000908012003 001
1015 BOLT HEX 000931008109 002
1025 O-RING 700429015000 001
1075 CONNECTING PIECE 5760701730 006
1110 CONNECTING PIECE 5760701830 001
1145 PIPE 5760780102 007
1175 PLUG-IN PIPE 735078008001 007
1180 O-RING 700429011002 014
1190 RETURN LINE 5770780002 001
1205 CLAMP 916016018205 002
1225 CONNECTING PIECE 5760701630 001
1340 CONNECTING PIECE 5760701930 001
1440 WASHER SPRING 8 FST 206796008000 002
1455 BRACKET 5502030043 001
1460 BOLT HEX 304017008023 001
1470 HEX SCREW 304017008026 001

MTU 595 Diesel Engine Models & Specifications

MTU 595 TE90 Family

MTU 595 Diesel Engine Models & Specifications

Make Power KW U/MIN Bore/stroke mm (in)
16V 595 TE70 3600 1750 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE60 3040 1600 190/210 (7.5/8.3)
16V 595 TE70 3600 1700 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
16V 595 TE80 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE50 2640 1500 190/210 (7.5/8.3)
12V 595 TC10 2250 1650 190/210 (7.5/8.3)
16V 595 TC10 3000 1650 190/210 (7.5/8.3)
