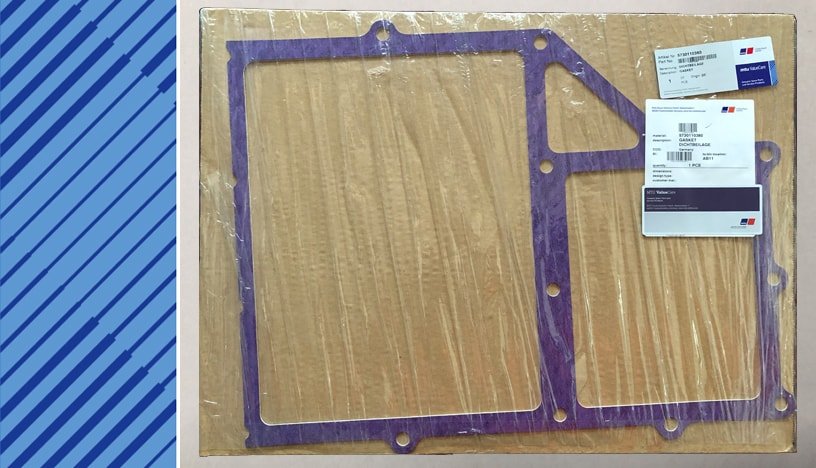

5730110380 - GASKET | Engine Family

MTU 5730110380 Technical Engineering Exploded View

C/N	Description	Part-Number	Qty
65	CRANKCASE	5770100708	001
75	PLUG	735084020000	001
80	O-RING	700429015000	001
90	SPACER S2000/4000	735151012100	006
95	BOLT HEX	000931012052	006
70	O-RING	700429021000	001
110	STRESS BOLT	700209010208	008
120	PIN DOWEL	000007010124	032
140	DOWEL PIN	000007010106	032
150	DOWEL PIN	5849910060	001
160	DOWEL PIN	000007016106	004
170	THREADED PLUG	000908016001	004
175	COPPER SEALING RING	007603016105	004
200	PLUG	000908036007	002
205	WASHER A COP	007603036101	002
215	FLANGE	5761421315	008
220	O-RING	0229970548	008
225	HEX SCREW	200933010009	016
230	TAB WASHER	700292010501	016
240	PLUG	735084036000	002
245	O-RING	700429028002	002
250	SNAP RING	000472040000	002
260	PLUG	735084050000	002
265	O-RING	700429040003	002
270	SNAP RING	000472055000	002
280	THREADED BUSHING	5769970516	004
285	SCREW NECK	915013008002	004
290	COPPER SEALING RING	007603014102	004
295	CONE SEALING 10	915005008001	004
300	NUT	915001008003	004
320	PLUG	000910016003	001
330	END COVER FOR CAMSHAFT CHAMBE	X00023820	005
335	END COVER FOR CAMSHAFT CHAMBE	X00023819	001
340	END COVER FOR CAMSHAFT CHAMBE	X00023806	001
350	GASKET	5730110480	005
355	GASKET	5730110380	001
360	GASKET	5730110280	001
365	SPACER	735151010100	050
370	BOLT HEX	000933010133	050
380	BOLT HEX	000931010142	004
385	WASHER	000125010524	004
395	BRACKET L H:25	5502034640	002
400	BOLT HEX ZNPH R5F	304017008080	002
405	NUT HEX	000934008013	002
410	WASHER	000125008427	004
415	CLAMP	916016015204	002
420	CLAMP	916016015200	002
425	CLAMP	916016012203	003
430	CLAMP	916016012201	002
440	COVER	5760110532	001
450	GASKET	5730110080	001
460	BOLT HEX	000933010049	002
525	BOLT HEX	000931010105	002
540	BOLT HEX	000931010127	004

Make	Power KW	U/MIN	Bore/stroke mm (in)
16V 595 TE70	3600	1750	190/210 (7.5/8.3)
16V 595 TE70L	3925	1750	190/210 (7.5/8.3)
12V 595 TE90	3240	1800	190/210 (7.5/8.3)
16V 595 TE90	4320	1800	190/210 (7.5/8.3)
16V 595 TE60	3040	1600	190/210 (7.5/8.3)
16V 595 TE70	3600	1700	190/210 (7.5/8.3)
16V 595 TE70L	3925	1750	190/210 (7.5/8.3)
16V 595 TE80	3925	1750	190/210 (7.5/8.3)
12V 595 TE90	3240	1800	190/210 (7.5/8.3)
16V 595 TE90	4320	1800	190/210 (7.5/8.3)
16V 595 TE50	2640	1500	190/210 (7.5/8.3)
12V 595 TC10	2250	1650	190/210 (7.5/8.3)
16V 595 TC10	3000	1650	190/210 (7.5/8.3)
