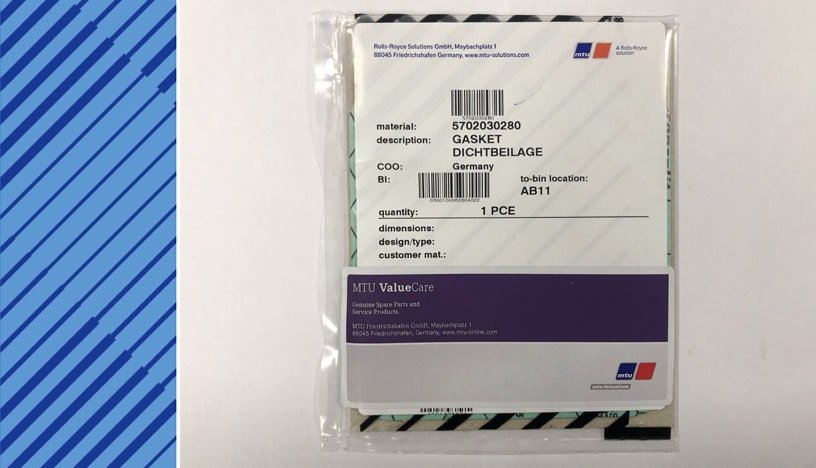

| PART NUMBER | 5702030280 |
| ENGINE TYPE | MTU 595 ENGINE |
| DESCRIPTION | GASKET |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.006 KG |
| HS CODE | 68069000 |
| NATO-VERS.-NR. | N/A |

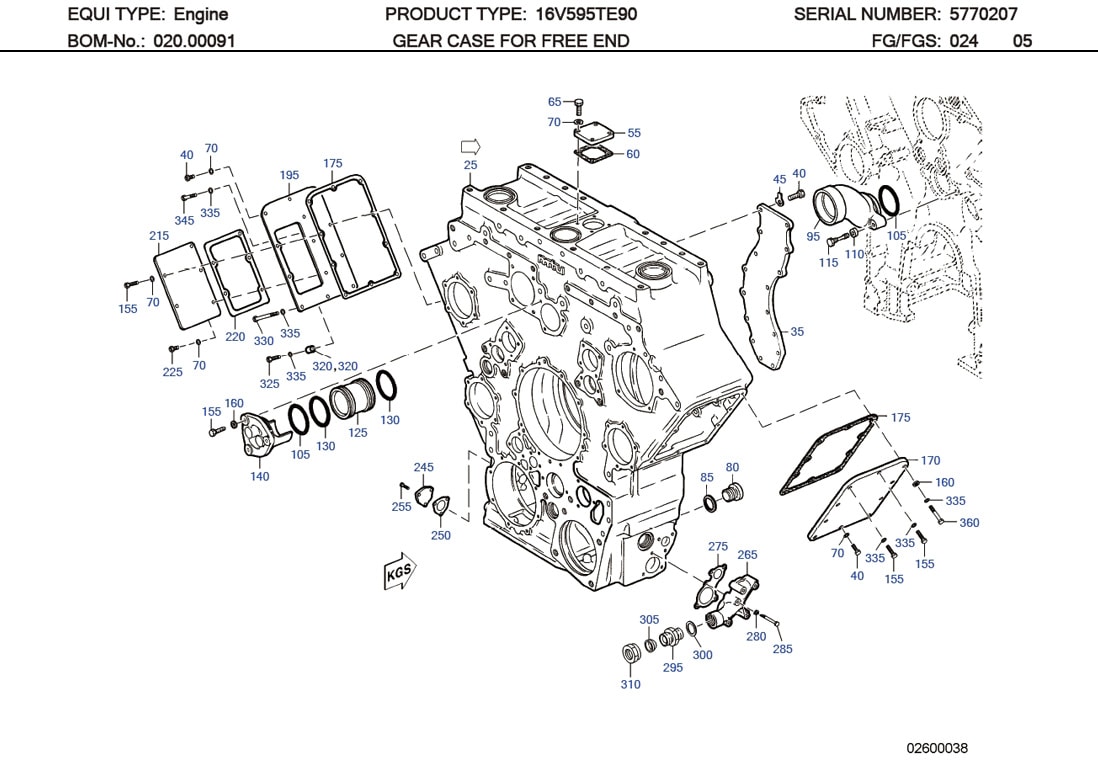

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 25 | EQUIPMENT RACK | 5760100933 | 001 |
| 35 | COVER PLATE | 5700150209 | 001 |
| 40 | BOLT HEX | 000933010049 | 016 |
| 45 | TAB WASHER | 700292010500 | 016 |
| 55 | COVER | 5580140233 | 001 |
| 60 | GASKET | 5702030280 | 001 |
| 65 | BOLT HEX | 000933010058 | 004 |
| 70 | WASHER | 206796010000 | 004 |
| 80 | THREAD PLUG | 000908042001 | 001 |
| 85 | COPPER SEALING RING | 007603042101 | 001 |
| 95 | ELBOW | 5761870724 | 001 |
| 105 | O-RING | 700429090003 | 001 |
| 110 | SLEEVE | 5501421153 | 002 |
| 115 | STRESS BOLT | 700209010211 | 002 |
| 125 | PLUG-IN PIPE | 735078080001 | 001 |
| 130 | O-RING | 700429085002 | 002 |
| 140 | COVER | 5760150530 | 001 |
| 155 | BOLT HEX | 000933010194 | 003 |
| 160 | SPACER | 735151010100 | 003 |
| 170 | COVER | 5700150430 | 001 |
| 175 | GASKET | 5700150380 | 001 |
| 195 | COVER | 5760100335 | 001 |
| 215 | COVER | 5760150630 | 001 |
| 220 | GASKET | 5760150180 | 001 |
| 225 | BOLT HEX | 000933010038 | 003 |
| 245 | FLANGE | 700488035200 | 001 |
| 250 | GASKET | 700489035001 | 001 |
| 255 | BOLT HEX ZNPH R5F | 304017008082 | 003 |
| 265 | ELBOW | 5761860019 | 001 |
| 275 | GASKET | 5761860080 | 001 |
| 280 | SPACER | 735151008100 | 005 |
| 285 | BOLT HEX | 304014008031 | 005 |
| 295 | UNION | 735070032000 | 001 |
| 300 | COPPER SEALING RING | 007603038101 | 001 |
| 305 | SEALING CONE | 735189035000 | 001 |
| 310 | NUT | 915001032003 | 001 |
| 320 | SPACER BUSHING | 5599920601 | 002 |
| 325 | BOLT HEX | 000931010105 | 002 |
| 330 | BOLT HEX | 000931010147 | 001 |
| 335 | WASHER | 000125010524 | 003 |
| 345 | BOLT HEX | 000933010133 | 001 |
| 360 | BOLT HEX | 000931010111 | 002 |
| 410 | COVER | 5760100135 | 001 |
| 420 | GASKET | 5730150280 | 001 |
| 425 | BOLT HEX | 000931010117 | 007 |
| 435 | HEX SCREW | 000931010154 | 002 |
| 440 | BOLT HEX | 000931010244 | 004 |
| 445 | SPACER S2000/4000 | 735151010200 | 023 |
| 455 | BLIND FLANGE | 5769970066 | 002 |
| 460 | GASKET | 5761870180 | 002 |
| 470 | WASHER SPRING 8 FST | 206796008000 | 006 |
| 480 | CENTERING RING | 5700150051 | 001 |
| 485 | O-RING | 700429050002 | 003 |
| 490 | O-RING | 700429115000 | 001 |
| 495 | O-RING | 700429158000 | 001 |
| 500 | BOLT HEX | 000931016019 | 006 |
| 505 | BOLT HEX | 000931016133 | 001 |
| 510 | HEX SCREW | 200931016008 | 006 |
| 515 | SCREW | 5760100183 | 003 |
| 520 | SCREW | 5760100083 | 028 |
| 525 | WASHER | 5589900040 | 013 |
| 535 | THREADED PLUG | 000908016001 | 007 |
| 540 | COPPER SEALING RING | 007603016105 | 007 |
| 545 | THREAD PLUG | 000908048004 | 003 |
| 550 | COPPER SEALING RING | 007603048101 | 003 |
| Make | Power KW | U/MIN | Bore/stroke mm (in) |
|---|---|---|---|
| 16V 595 TE70 | 3600 | 1750 | 190/210 (7.5/8.3) |
| 16V 595 TE70L | 3925 | 1750 | 190/210 (7.5/8.3) |
| 12V 595 TE90 | 3240 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE90 | 4320 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE60 | 3040 | 1600 | 190/210 (7.5/8.3) |
| 16V 595 TE70 | 3600 | 1700 | 190/210 (7.5/8.3) |
| 16V 595 TE70L | 3925 | 1750 | 190/210 (7.5/8.3) |
| 16V 595 TE80 | 3925 | 1750 | 190/210 (7.5/8.3) |
| 12V 595 TE90 | 3240 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE90 | 4320 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE50 | 2640 | 1500 | 190/210 (7.5/8.3) |
| 12V 595 TC10 | 2250 | 1650 | 190/210 (7.5/8.3) |
| 16V 595 TC10 | 3000 | 1650 | 190/210 (7.5/8.3) |
