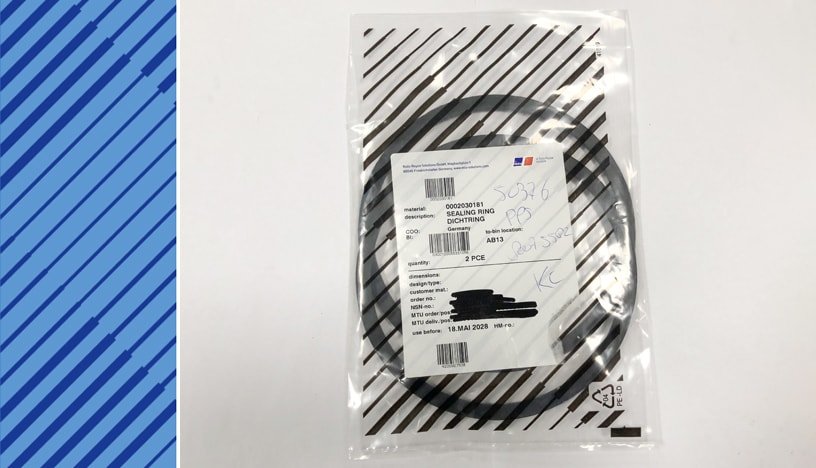

| PART NUMBER | 0002030181 |
| ENGINE TYPE | MTU 595 ENGINE |
| DESCRIPTION | SEALING RING |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.016 KG |
| HS CODE | 40169300 |
| NATO-VERS.-NR. | 5330123774683 |

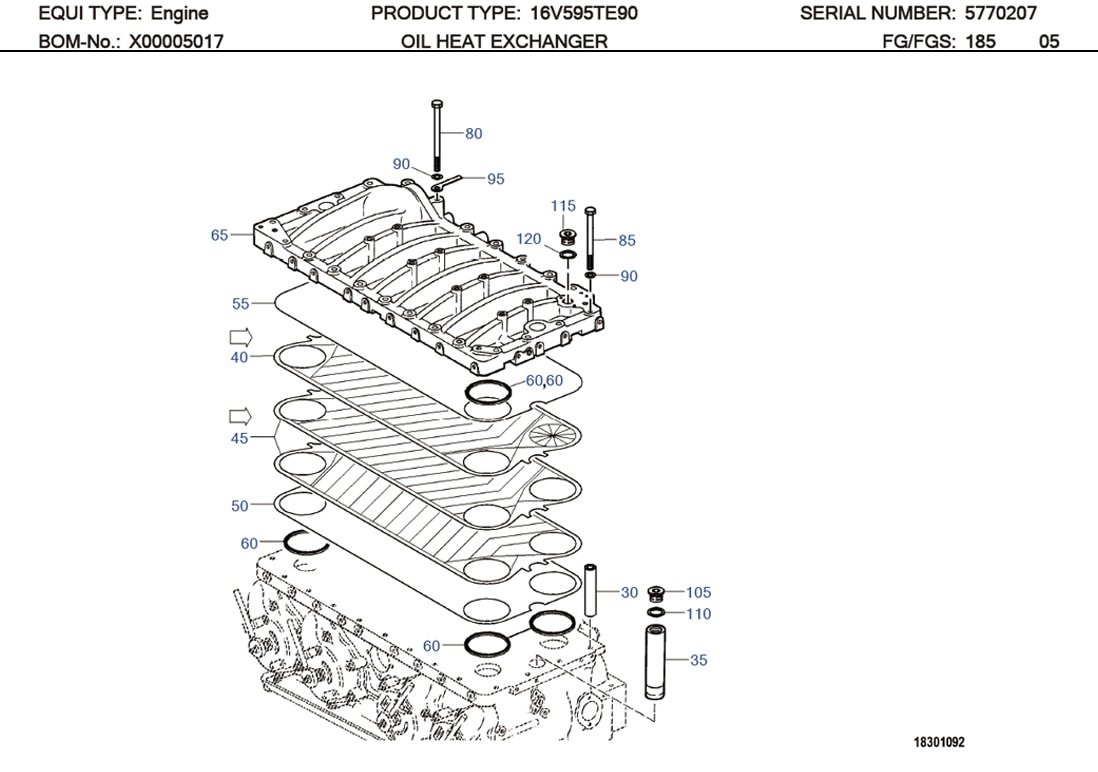

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 30 | PIPE | 5771870101 | 023 |
| 35 | GUIDE PIN | 5771870074 | 002 |
| 40 | COOLER PLATE | 0001881846 | 001 |
| 45 | COOLER PLATE | 0001881746 | 036 |
| 50 | INTERMEDIATE PLATE F/OIL HEAT EXCHANGE | 5761880246 | 001 |
| 55 | INTERMEDIATE PLATE F/OIL HEAT EXCHANGE | 5761880346 | 001 |
| 60 | SEALING RING | 0002030181 | 004 |
| 65 | COVER ON OIL HT EXCH PLAT | X00003351 | 001 |
| 80 | BOLT HEX | 200931016004 | 002 |
| 85 | BOLT HEX | 000931016055 | 021 |
| 90 | SPACER | 735151016100 | 023 |
| 95 | TAB WASHER | 5769940001 | 001 |
| 105 | PLUG | 735072036000 | 002 |
| 110 | WASHER A COP | 007603036101 | 002 |
| 115 | THREAD PLUG | 000908030002 | 001 |
| 120 | COPPER SEALING RING | 007603030101 | 001 |

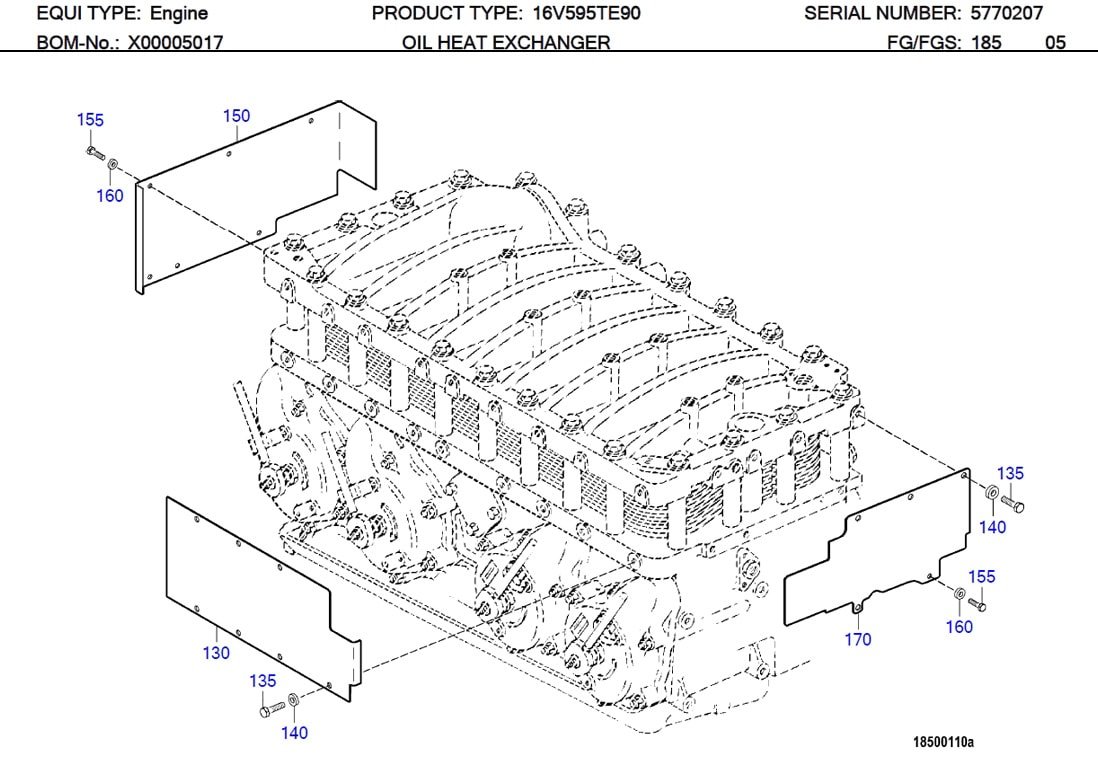

| 130 | HEAT SHIELD F/OIL HEAT EXCHANGE | 5861870039 | 001 |
| 135 | HEX SCREW | 304017010038 | 005 |
| 140 | SPACER | 735151010100 | 005 |
| 150 | HEAT SHIELD F/OIL HEAT EXCHANGE | 5861870139 | 001 |
| 155 | BOLT HEX ZNPH R5F | 304017008080 | 005 |
| 160 | SPACER | 735151008100 | 005 |
| 170 | HEAT SHIELD F/OIL HEAT EXCHANGE | 5861870239 | 001 |

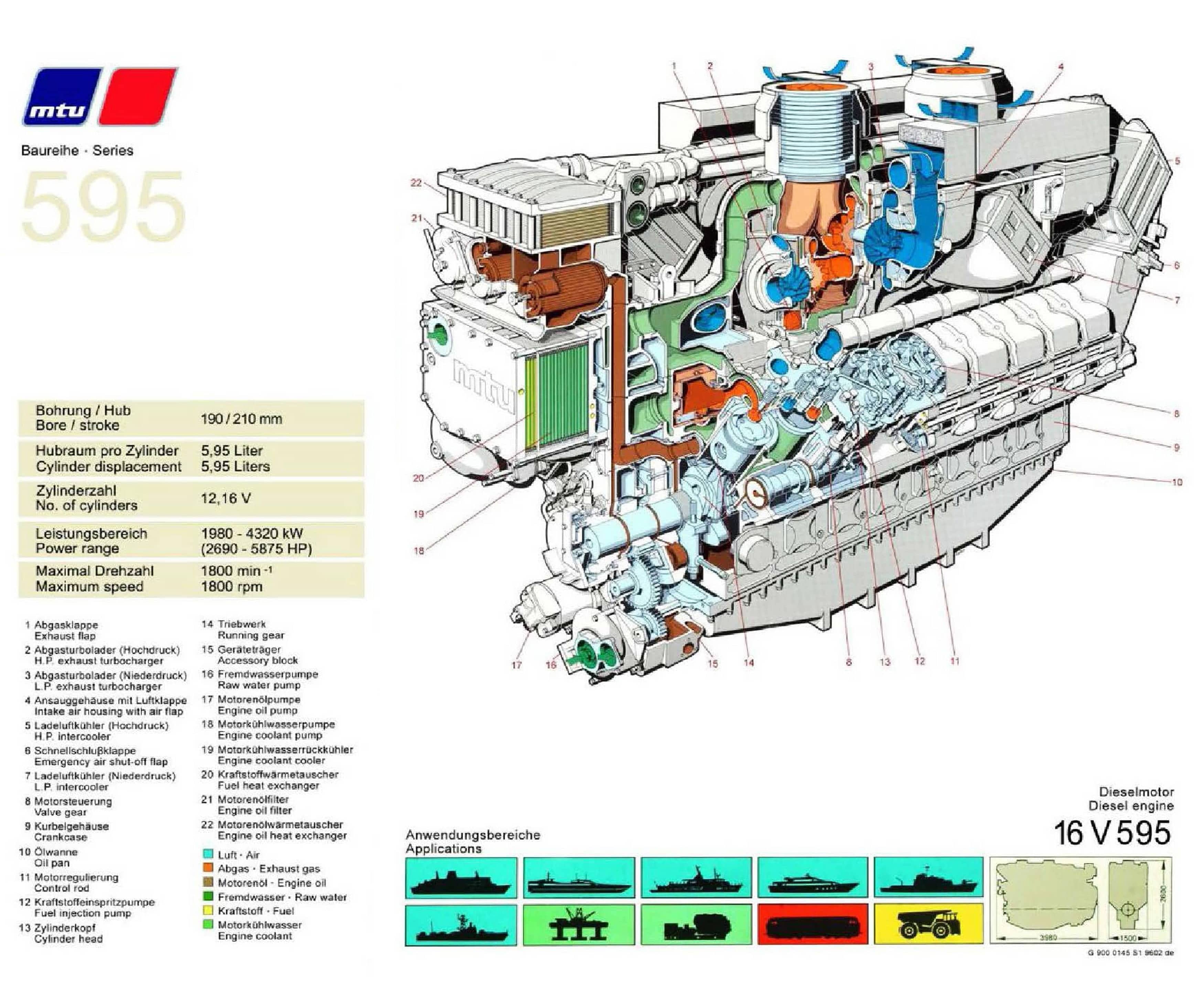

| Make | Power KW | U/MIN | Bore/stroke mm (in) |
|---|---|---|---|
| 16V 595 TE70 | 3600 | 1750 | 190/210 (7.5/8.3) |
| 16V 595 TE70L | 3925 | 1750 | 190/210 (7.5/8.3) |
| 12V 595 TE90 | 3240 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE90 | 4320 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE60 | 3040 | 1600 | 190/210 (7.5/8.3) |
| 16V 595 TE70 | 3600 | 1700 | 190/210 (7.5/8.3) |
| 16V 595 TE70L | 3925 | 1750 | 190/210 (7.5/8.3) |
| 16V 595 TE80 | 3925 | 1750 | 190/210 (7.5/8.3) |
| 12V 595 TE90 | 3240 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE90 | 4320 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE50 | 2640 | 1500 | 190/210 (7.5/8.3) |
| 12V 595 TC10 | 2250 | 1650 | 190/210 (7.5/8.3) |
| 16V 595 TC10 | 3000 | 1650 | 190/210 (7.5/8.3) |
