MTU 5769940030 Technical Engineering Exploded View

MTU 5769940030 Technical Engineering Exploded ViewMTU 135A45008/2 Technical Engineering Exploded View

MTU 5769940030 Technical Engineering Exploded View

C/N Description Part-Number Qty
50 CYLINDER HEAD 5760102020 016
60 PLUG 5760160071 008
65 SEALING RING 5709970144 008
70 O-RING 700429021000 008
80 PLUG 000908020000 008

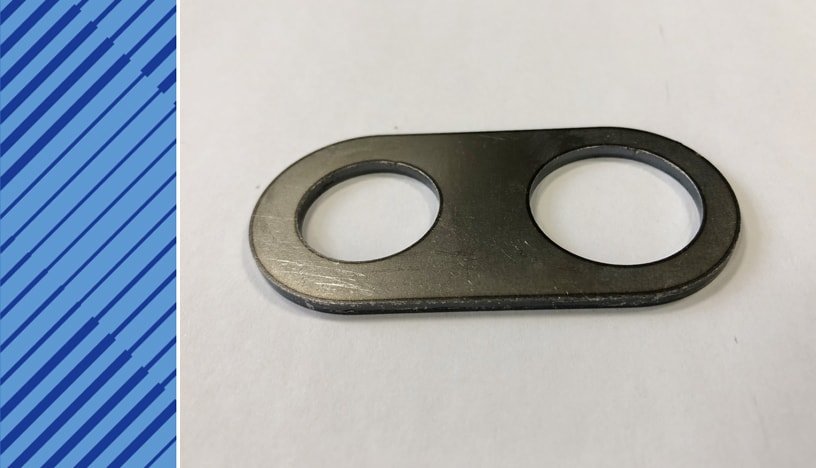

90 TAB WASHER 5769940030 008
100 SLEEVE 135A45008/2 080
105 SEALING RING 0229978348 080
110 O-RING 700429028001 016
120 PLUG-IN PIPE 5760110153 014
125 O-RING 700429011002 028
135 PLUG-IN PIPE 5761805127 002
150 THRUST WASHER 5760110062 096
155 SCREW 5769900004 096
160 O-RING 700429024002 096
170 THREAD PLUG 000908012003 001
175 COPPER SEALING RING 007603012111 001

MTU 595 Diesel Engine Models & Specifications

MTU 595 TE90 Family

MTU 595 Diesel Engine Models & Specifications

Make Power KW U/MIN Bore/stroke mm (in)
16V 595 TE70 3600 1750 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE60 3040 1600 190/210 (7.5/8.3)
16V 595 TE70 3600 1700 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
16V 595 TE80 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE50 2640 1500 190/210 (7.5/8.3)
12V 595 TC10 2250 1650 190/210 (7.5/8.3)
16V 595 TC10 3000 1650 190/210 (7.5/8.3)
