MTU 595 Parts | 5129940030 | TAB WASHER

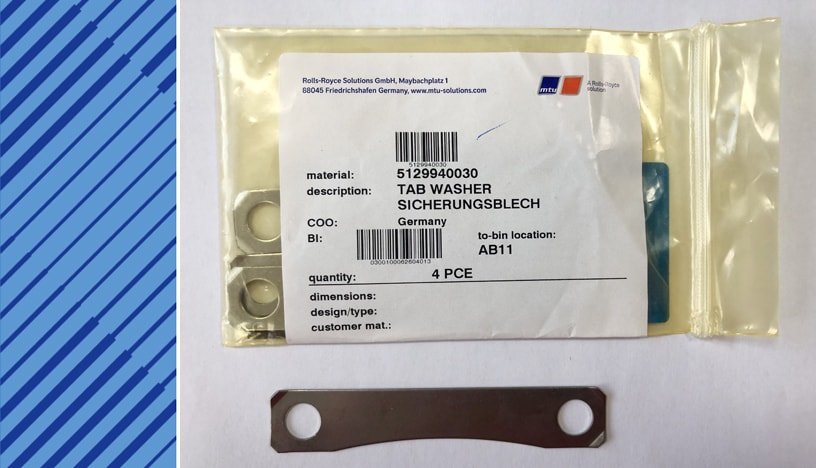

5129940030 TAB WASHER

Other
Other 735082235000 VALVE TRIM 5842040551 SPACER RING 5760540532 GUIDE BUSHING 5129940030 TAB WASHER 0229978348 SEALING RING 5760162553 SLEEVE 5760550450 BUSHING 5760550350 BUSHING 700327028000 GROMMET 0001883180 GASKET 0002030181 SEALING RING 0000533735 ROTOCAP 0000530826 VALVE COLLET 5700530025 SPRING RETAINER 5760530020 VALVE SPRING OUTER 5760530022 VALVE SPRING INNER 5700530005 VALVE 5700530001 VALVE 5769900004 SCREW 5760110062 THRUST WASHER 5760110153 PLUG-IN PIPE 5769940030 TAB WASHER 000908020000 PLUG 5709970144 SEALING RING 5760160071 PLUG 5700380150 CONROD BUSHING SIZE 0 5760150180 GASKET 5700150380 GASKET 5702030280 GASKET 5769900619 STRESS BOLT 5760110159 CARBON SCRAPER RING 5760160419 SEALING RING 5730110180 GASKET 007603064100 WASHER A COP 5700510150 BUSHING 5760100081 PLUG 5730110080 GASKET 5730110280 GASKET 5730110380 GASKET 5730110480 GASKET 0000982780 SEALING BLOCK 5760550280 PROFILE GASKET 5760550180 GASKET 200988045000 SUPPORT PLATE 5760370076 SHIM 700327022000 GROMMET 5842040151 SPACER RING 5591420451 RING SEALING 5761420057 SEALING RING 5760110059 SEALING RING 200472082000 SNAP RING 0090378218 OIL CONTROL RING 0070372419 COMPRESSION RING 0080372819 RECTANGLR-SECT RING
PART NUMBER 5129940030
TURBO MODEL ZR210 / 007
DESCRIPTION TAB WASHER
DIMENSIONS N/A
UNIT WEIGHT 0.009 KG
HS CODE 73182900
NATO-VERS.-NR. 5340123348771
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

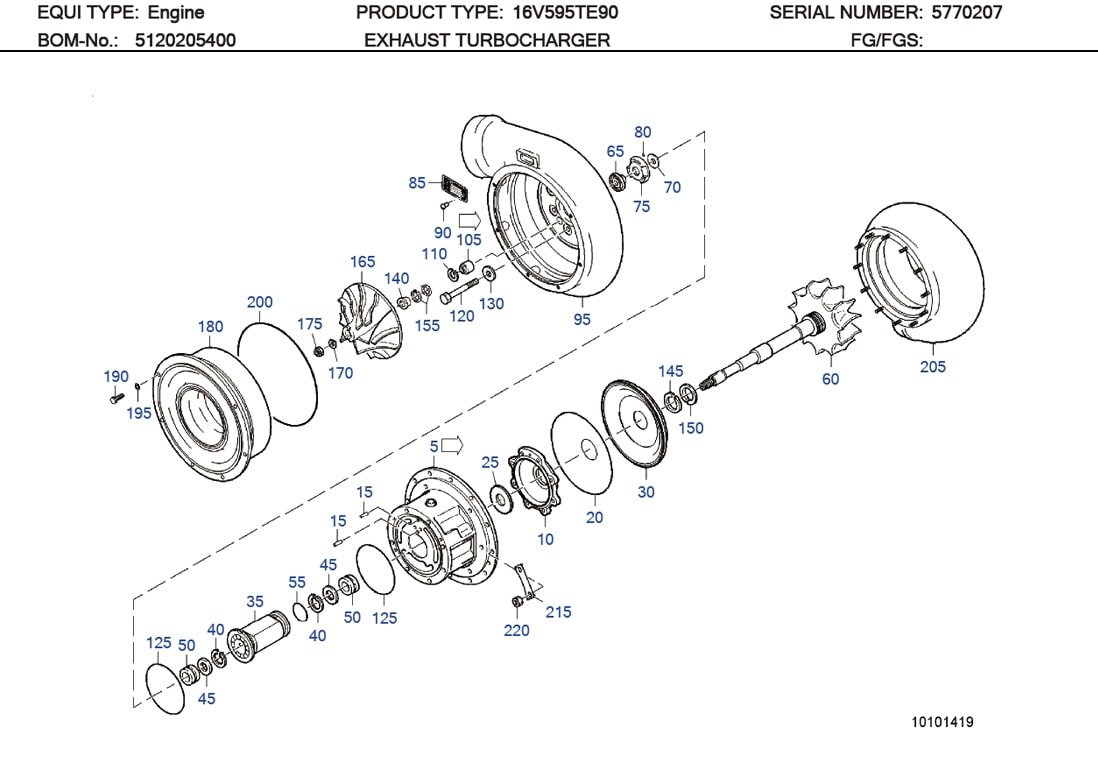

MTU 5129940030 Technical Engineering Exploded View

MTU 5129940030 Technical Engineering Exploded View

MTU 5129940030 Technical Engineering Exploded View

C/N Description Part-Number Qty
5 BEARING HOUSING 5120801601 001
10 HOUSING COVER 5120820602 001
15 DOWEL PIN 000007006103 001
20 HEAT SHIELD 5120820226 001
25 WASHER 5120252076 001
30 HEAT SHIELD 5120810703 001
35 BEARING 5120251210 001
40 SNAP RING 000472045000 002
45 WASHER 5120250252 002
50 BEARING BUSHING 5120250850 002
55 O-RING 700429050003 001
60 TURBINE WHEEL 5120802421 001
65 WASHER X00025178 001
70 WASHER X00010430 001
75 THRUST BEARING 5120200112 001
80 O-RING 700429006001 001
85 LABEL MTU ABGASTURBOLADER ID 39 700425000049 001
90 PIN GROOVED 001476003017 002
95 COMPRESSOR HOUSING 5120210901 001
105 VALVE 5110200278 002
110 RING SNAP 000472020000 002
120 HEX SCREW 200933012007 008
125 O-RING 700429142000 001
130 WASHER 8700780076 008
140 RING CARRIER X57810100001 001
145 PISTON RING 5120850560 001
150 PISTON RING 5120850660 001
155 PISTON RING 5110850060 002
165 COMPRESSOR WHEEL 5120250601 001
170 GROOVED RING 5120250142 001
175 HEX NUT 5110250072 001
180 INTAKE HOUSING 5120210502 001
190 BOLT HEX 000933010092 002
195 WASHER 000125010524 002
200 O-RING 700429300000 001
205 TURBINE HOUSING 5120801130 001
215 TAB WASHER 5129940030 006
220 HEX NUT 5119900051 012

MTU 595 Diesel Engine Models & Specifications

MTU 595 TE90 Family

MTU 595 Diesel Engine Models & Specifications

Make Power KW U/MIN Bore/stroke mm (in)
16V 595 TE70 3600 1750 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE60 3040 1600 190/210 (7.5/8.3)
16V 595 TE70 3600 1700 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
16V 595 TE80 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE50 2640 1500 190/210 (7.5/8.3)
12V 595 TC10 2250 1650 190/210 (7.5/8.3)
16V 595 TC10 3000 1650 190/210 (7.5/8.3)
