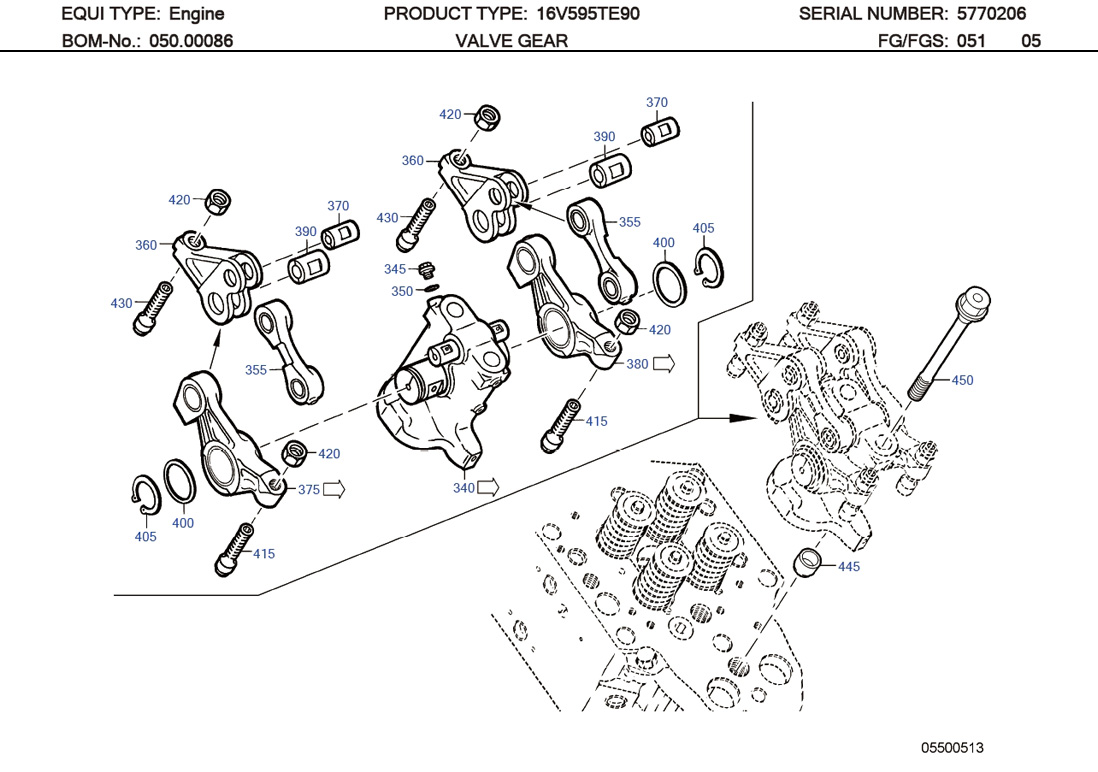

MTU 200988045000 Technical Engineering Exploded View

MTU 5770510601 Technical Engineering Exploded View MTU 5760500164 Technical Engineering Exploded ViewMTU 5760510845 Technical Engineering Exploded ViewMTU 5760500530 Technical Engineering Exploded ViewMTU 200988045000 Technical Engineering Exploded View

MTU 200988045000 Technical Engineering Exploded View

C/N Description Part-Number Qty

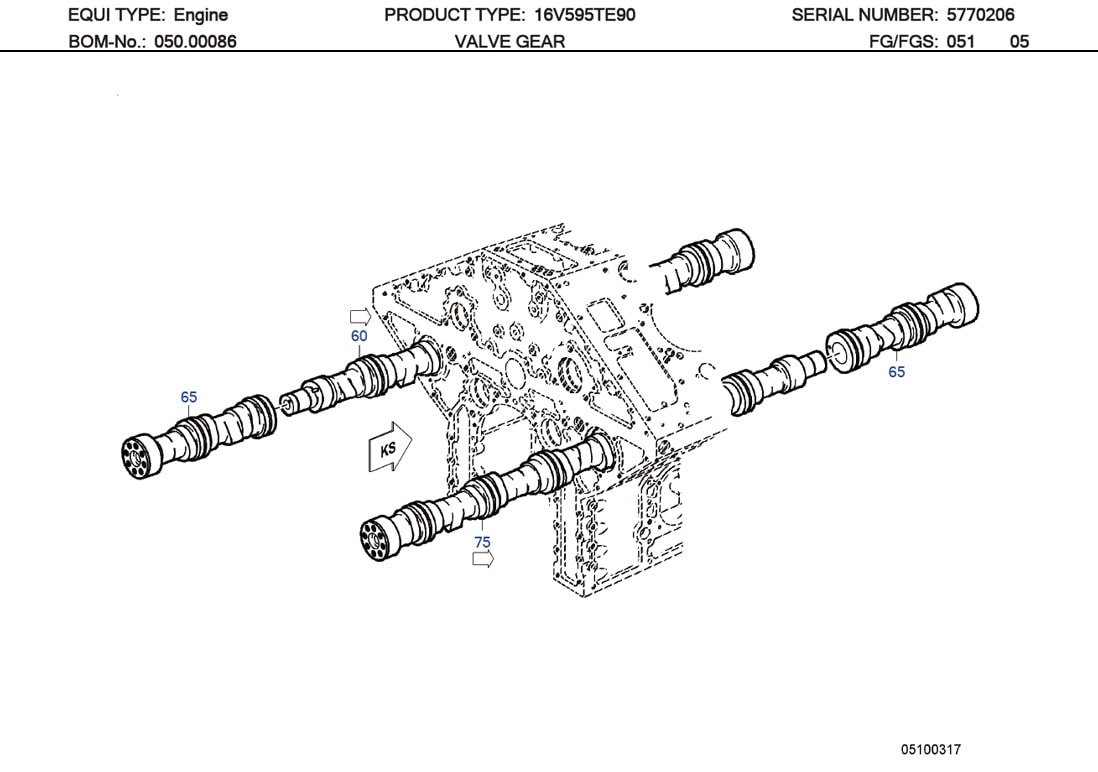

60 CAMSHAFT 5770500201 001
65 CAMSHAFT 5770510601 001
75 CAMSHAFT 5770500201 001

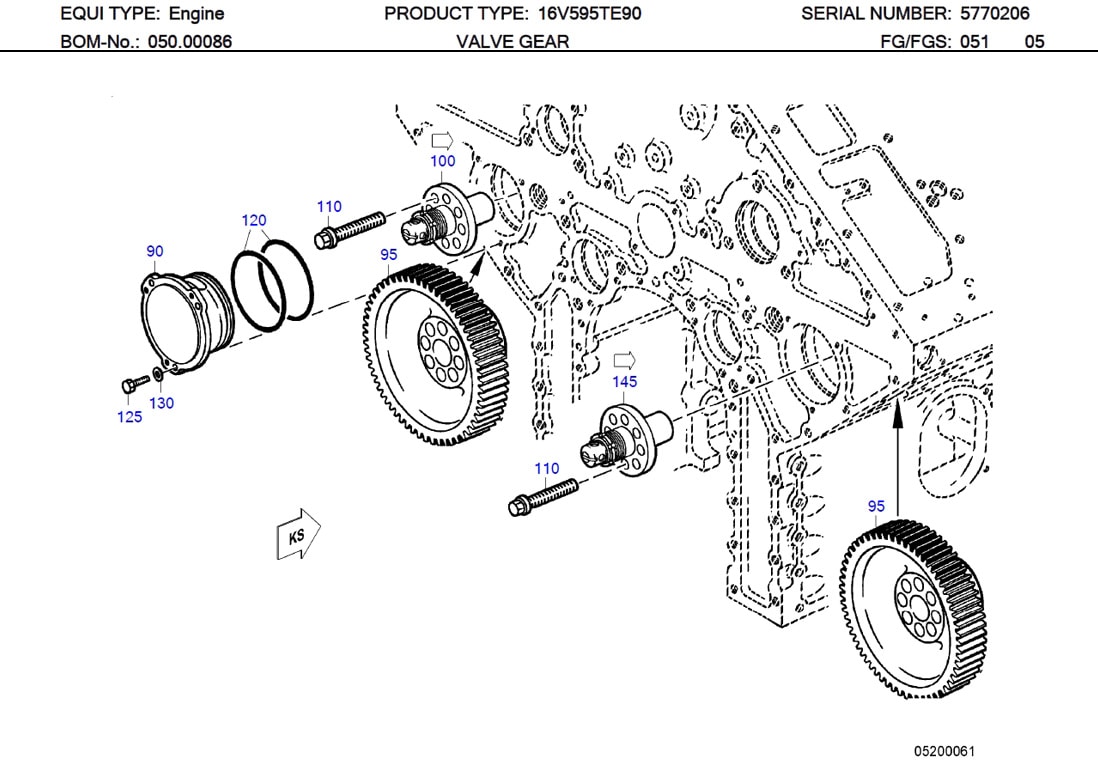

90 BEARING BODY 5760500342 001
95 CAMSHAFT GEAR 5760520001 001
100 CONNECTING SLEEVE 5760500164 001
110 COLLAR SCREW 5769900410 008
120 O-RING 700429126000 002
125 BOLT HEX 000933010194 003
130 SPACER 735151010100 003
145 CONNECTING SLEEVE 5760500164 001

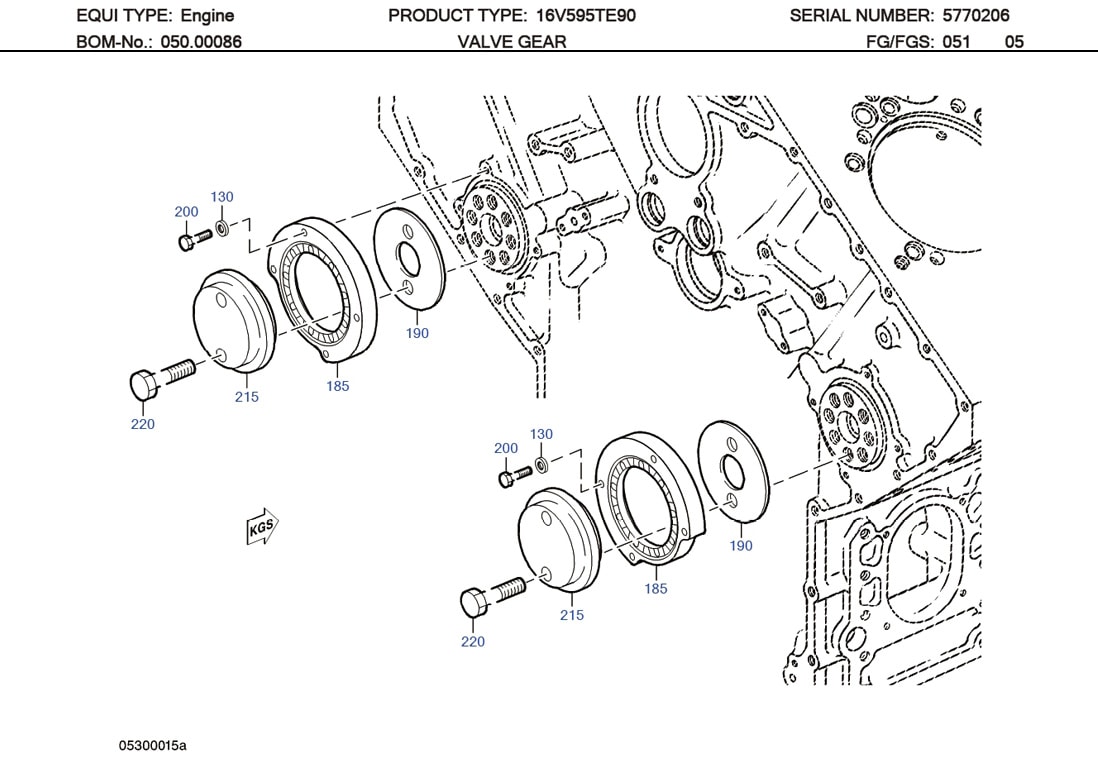

185 THRUST BEARING FLANG 5760510845 001
190 WASHER 5760510175 001
200 BOLT HEX 000933010133 004
215 BEARING FLANGE 5760511045 001
220 HEX SCREW 000960020049 002

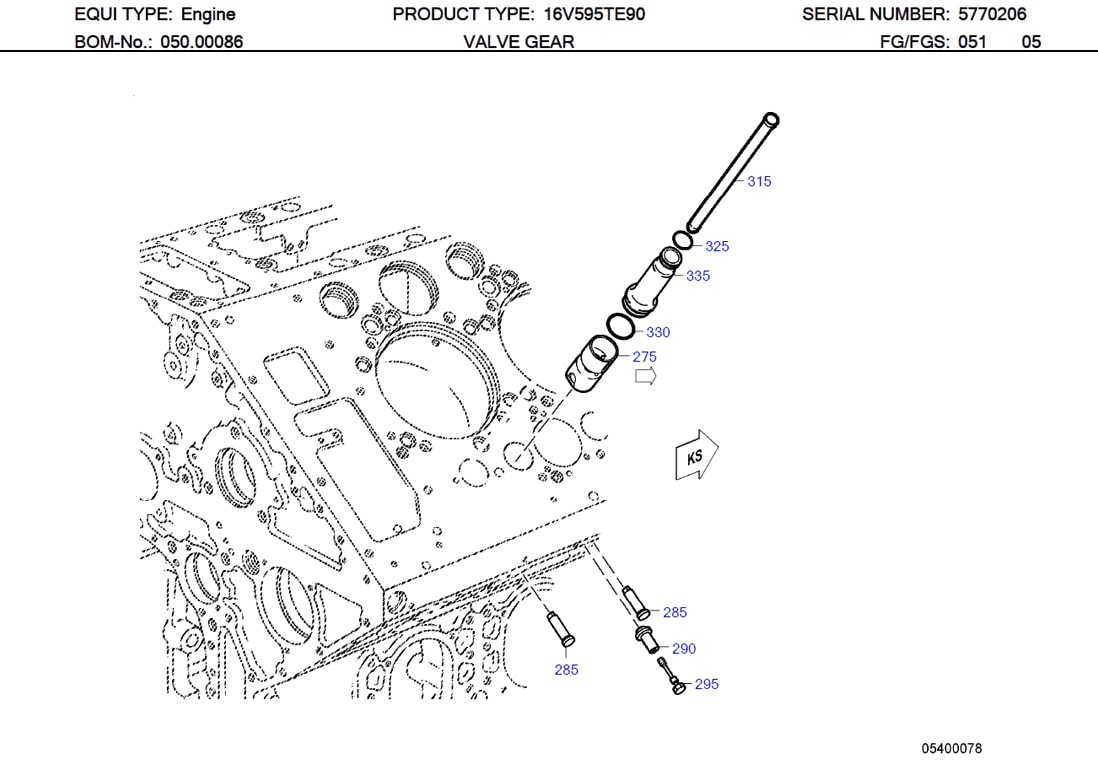

275 ROLLER TAPPET 5760500325 032
285 GUIDE PIN 5700540874 016
290 SLEEVE 5700540353 016
295 STRESS BOLT 700209010202 016
315 PUSHROD 5760500530 032
325 O-RING 700429032003 032
330 O-RING 700429045000 032
335 PLUG-IN PIPE 5760540353 032
340 BEARING PEDESTAL 5760500536 016
345 NOZZLE 5760550023 016
350 SEALING RING 007603010112 016
355 PARALLEL-ACTION LINK 5760500135 032
360 TRIANGULAR CONTR ARM 5760550304 032
370 BEARING PIN 5760550037 032
375 ROCKER ARM INLET 5760500533 016
380 ROCKER ARM EXHAUST 5760500434 016
390 BEARING PIN 5760550137 032
400 SUPPORT PLATE 200988045000 032
405 RING SNAP HV ZNPH R5F 000471045000 032
415 ADJUSTING SCREW 5760550420 032
420 NUT ADEC 000000000403 032
430 ADJUSTING SCREW 5760500320 032
445 SLEEVE 5500310153 032
450 STRESS BOLT 5769900019 032

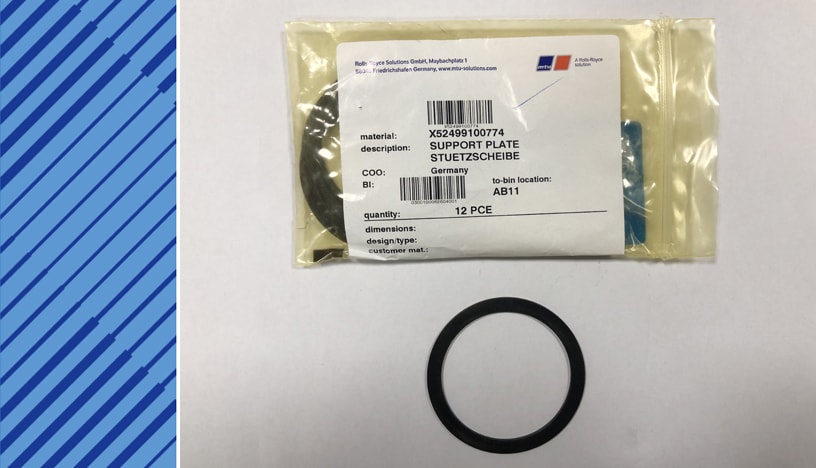

200988045000 SUPERSEDED PART AND EFFECTIVE DATE

200988045000 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 X52499100774 200988045000 N/A
02 X52499100774 X52499100774 2017/10/06

MTU 595 Diesel Engine Models & Specifications

MTU 595 TE90 Family

MTU 595 Diesel Engine Models & Specifications

Make Power KW U/MIN Bore/stroke mm (in)
16V 595 TE70 3600 1750 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE60 3040 1600 190/210 (7.5/8.3)
16V 595 TE70 3600 1700 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
16V 595 TE80 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE50 2640 1500 190/210 (7.5/8.3)
12V 595 TC10 2250 1650 190/210 (7.5/8.3)
16V 595 TC10 3000 1650 190/210 (7.5/8.3)
