| PART NUMBER | 5760110159 |
| ENGINE TYPE | MTU 595 ENGINE |
| DESCRIPTION | CARBON SCRAPER RING |
| DIMENSIONS | 12/16V 595 |
| UNIT WEIGHT | 0.380 KG |
| HS CODE | 84099900 |
| NATO-VERS.-NR. | N/A |

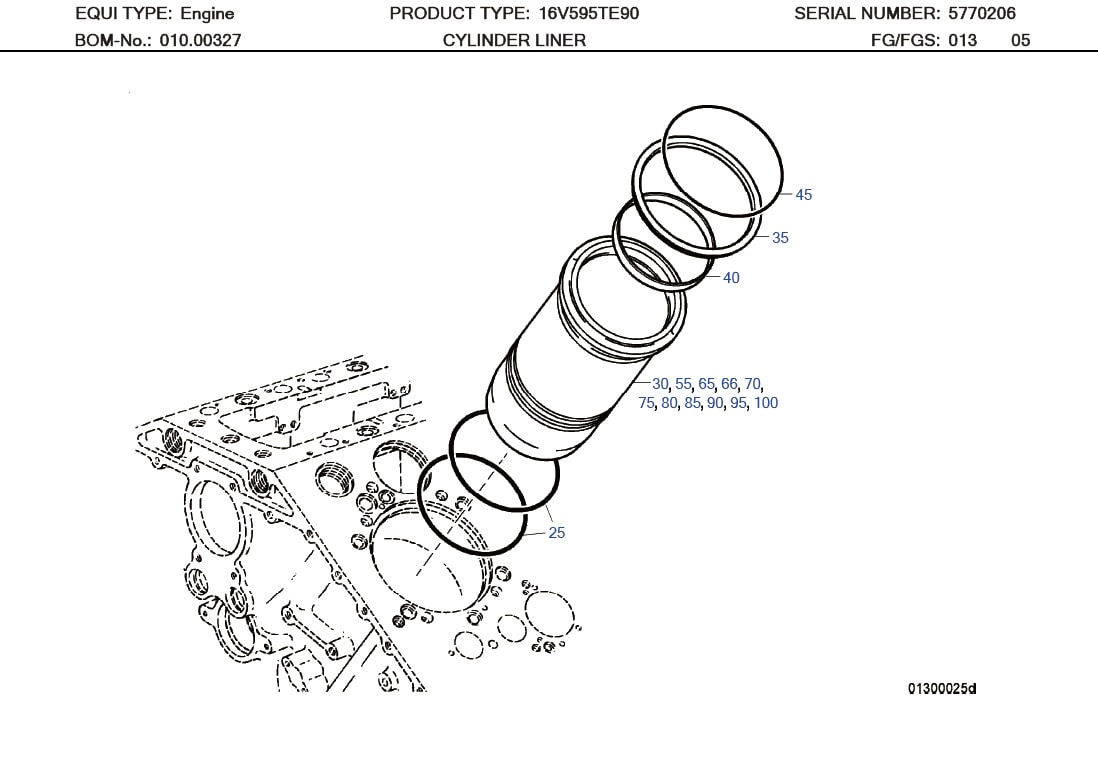

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 25 | SEALING RING | 5760110059 | 032 |
| 30 | CYLINDER LINER | X57601300002 | 016 |
| 35 | SEALING RING | 5760160419 | 016 |
| 40 | CARBON SCRAPER RING | 5760110159 | 016 |
| 45 | O-RING | 700429210000 | 016 |
| 55 | CYLINDER LINER SIZE 1 | X57601300003 | 001 |
| 65 | CYLINDER LINER SIZE 2 | X57601300004 | 001 |
| 66 | CYLINDER LINER SIZE 3 | X57601300020 | 001 |
| 70 | CYLINDER LINER SIZE 1-0 | X57601300006 | 001 |
| 75 | CYLINDER LINER SIZE 2-0 | X57701300004 | 001 |
| 80 | CYLINDER LINER SIZE 3-0 | X57601300005 | 001 |
| 85 | CYLINDER LINER SIZE 4-0 | X57601300014 | 001 |
| 90 | CYLINDER LINER SIZE 4-1 | X57601300019 | 001 |
| 95 | CYLINDER LINER SIZE 5-0 | X57601300022 | 001 |
| 100 | CYLINDER LINER SIZE 5-1 | X57601300023 | 001 |
| Make | Power KW | U/MIN | Bore/stroke mm (in) |
|---|---|---|---|
| 16V 595 TE70 | 3600 | 1750 | 190/210 (7.5/8.3) |
| 16V 595 TE70L | 3925 | 1750 | 190/210 (7.5/8.3) |
| 12V 595 TE90 | 3240 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE90 | 4320 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE60 | 3040 | 1600 | 190/210 (7.5/8.3) |
| 16V 595 TE70 | 3600 | 1700 | 190/210 (7.5/8.3) |
| 16V 595 TE70L | 3925 | 1750 | 190/210 (7.5/8.3) |
| 16V 595 TE80 | 3925 | 1750 | 190/210 (7.5/8.3) |
| 12V 595 TE90 | 3240 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE90 | 4320 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE50 | 2640 | 1500 | 190/210 (7.5/8.3) |
| 12V 595 TC10 | 2250 | 1650 | 190/210 (7.5/8.3) |
| 16V 595 TC10 | 3000 | 1650 | 190/210 (7.5/8.3) |
