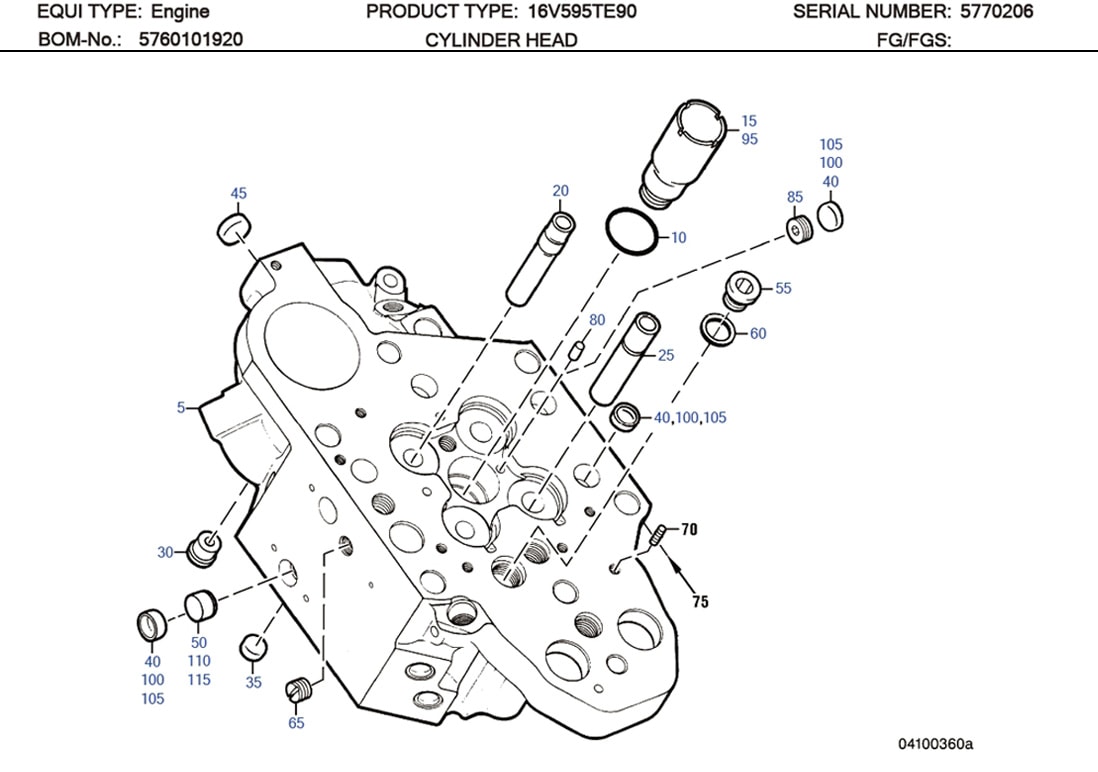

MTU 5760162553 Technical Engineering Exploded View

MTU 5760162553 Technical Engineering Exploded View

MTU 5760162553 Technical Engineering Exploded View

C/N Description Part-Number Qty
5 CYLINDER HEAD 5760160901 001
10 O-RING 700429041000 001
15 SLEEVE 5760162553 001
20 VALVE GUIDE INLET 5760530329 002
25 VALVE GUIDE 5760530930 002
30 SLEEVE 135C01005/1 001
35 SEALING CAP 5550160033 001
40 SEALING CAP 5800160033 018
45 PLUG CUP 5370160133 001
50 PLUG 5760160861 003
55 THREAD PLUG 000908026005 001
60 COPPER SEALING RING 007603026104 001
65 PLUG ROD 700248016000 001
80 DOWEL PIN 000007008101 002
85 RESTRICTOR 5700160088 001
95 SLEEVE 5760162653 001
100 COVER 5760160033 001
105 COVER 5760160133 001
110 PLUG 5760160961 001
115 PLUG 5760161061 001

5760162553 SUPERSEDED PART AND EFFECTIVE DATE

5760162553 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5760162553 5760162253 N/A
02 5760162553 5760162553 1995/09/01

MTU 595 Diesel Engine Models & Specifications

MTU 595 TE90 Family

MTU 595 Diesel Engine Models & Specifications

Make Power KW U/MIN Bore/stroke mm (in)
16V 595 TE70 3600 1750 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE60 3040 1600 190/210 (7.5/8.3)
16V 595 TE70 3600 1700 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
16V 595 TE80 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE50 2640 1500 190/210 (7.5/8.3)
12V 595 TC10 2250 1650 190/210 (7.5/8.3)
16V 595 TC10 3000 1650 190/210 (7.5/8.3)
